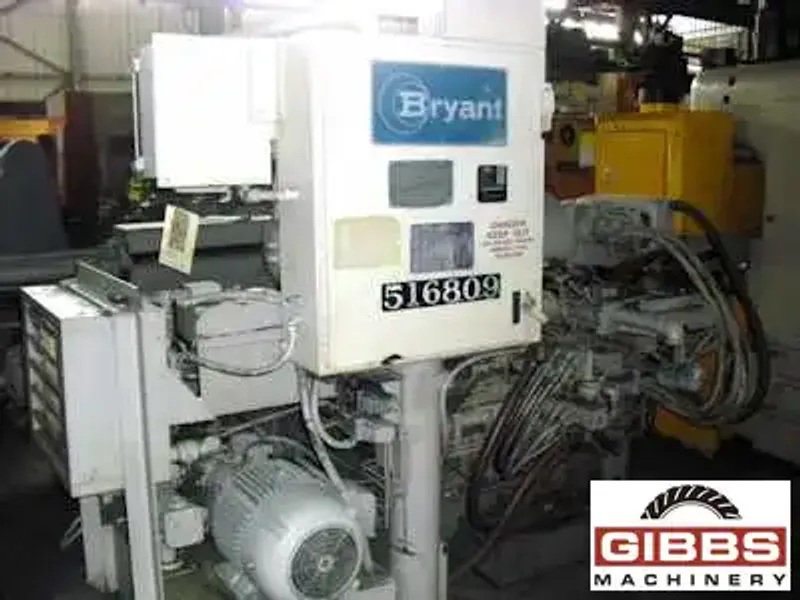

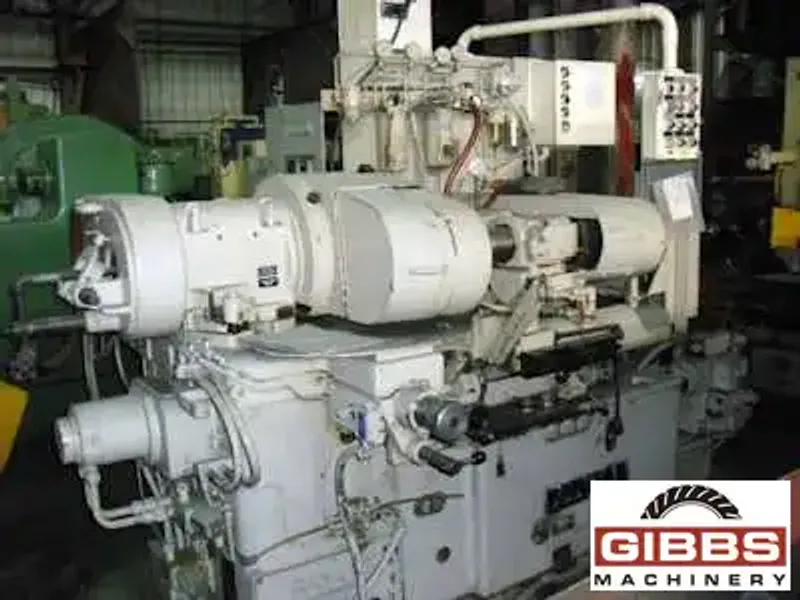

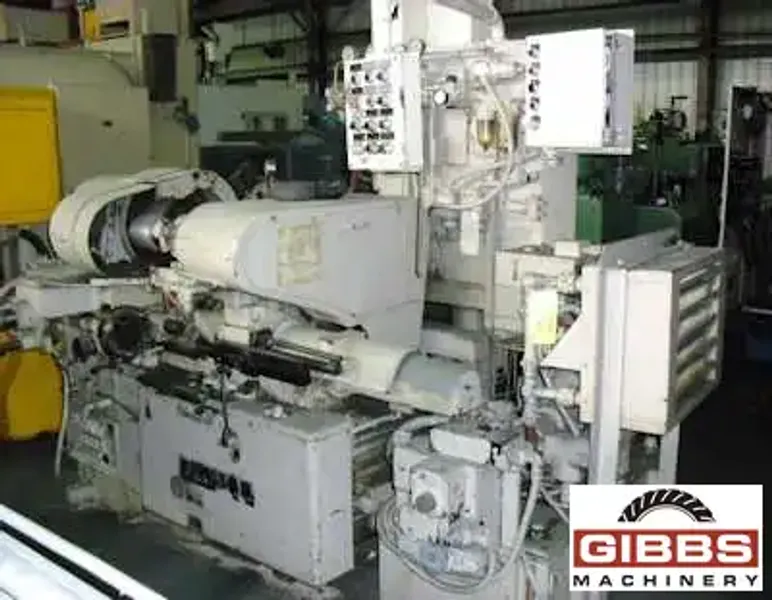

BRYANT 1316-J - Internal Grinder

Manufacturer

BRYANT

Category

Grinding Machines

Type

GRINDERS, INTERNAL

Stock

2702

Model

1316-J

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • 30,000 RPM Grinding Spindle
  • (1) Facing Spindle
  • Dresser
  • Hardinge Speed Chuck
  • Digital RPM Readout
  • Collet Chuck
  • Fan Cooled Hydraulic Unit
  • 1/2 HP Coolant Pump, Tank & Guards
  • 220/440/3/60 AC Motor W/110 Volt Controls
  • Fully Enclosed Fan-Cooled Type Motors
,

Machine Specifications :

  • Year 1971
  • Swing 16.0"
  • Stroke 20.0"
  • Wheel Power 0.0 HP
  • Workhead Speed 800 RPM
  • Dresser (Yes/No) Yes
  • Manufacturer BRYANT
,

MODEL #1316-J BRYANT HOLE AND FACE INTERNAL GRINDER

    EQUIPPED WITH:

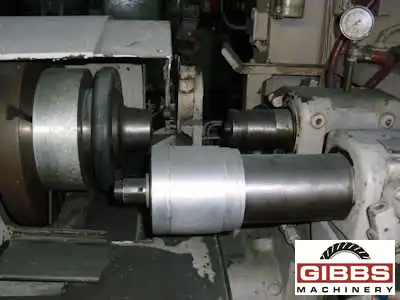

  • 30,000 RPM Grinding Spindle
  • (1) Facing Spindle
  • Dresser
  • Hardinge Speed Chuck
  • Digital RPM Readout
  • Collet Chuck
  • Fan Cooled Hydraulic Unit
  • 1/2 HP Coolant Pump, Tank & Guards
  • 220/440/3/60 AC Motor W/110 Volt Controls
  • Fully Enclosed Fan-Cooled Type Motors
  • SPECIFICATIONS:
  • Total Swing: 16"
  • Grinding Stroke (Maximum Depth of Hole):
  • Plain Spindle: 9"
  • Cam Lock Spindle: 8"
  • Total Wheelslide Stroke: 20"
  • Max. Travel of Work Table (Including Feed): 9 3/4"
  • Workhead is Adjustable for Grinding Included Angles Up To: 90 Deg.
  • Work Spindle: 100-800 RPM
  • Wheel Drive Motor: 7 1/2 HP, 3600 RPM
  • Oil Pump Motor: 3 HP, 1200 RPM
  • Work Drive Motor: 3 HP, 375-1350 RPM
  • Capacity of Oil Reservoir: 30 Gal.
  • Capacity of Coolant Tank: 60 Gal.
  • Approx. Net Weight: 6550 lbs
  • Approx. Gross Weight: 7300 lbs
  • Floor Space with Coolant Tank and Oil Tank: 90" x 75 1/2"
  • MACHINE HAS LIGHT WORK IN GOOD CONDITION.
  • F.O.B., TRUCK, WARREN, MI
