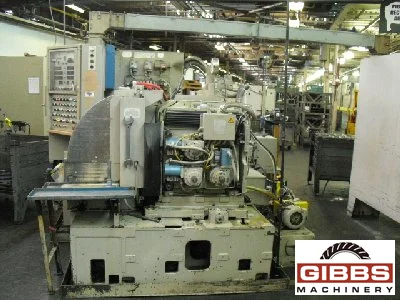

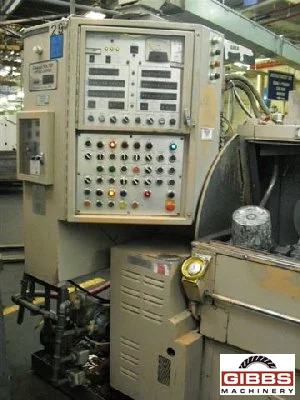

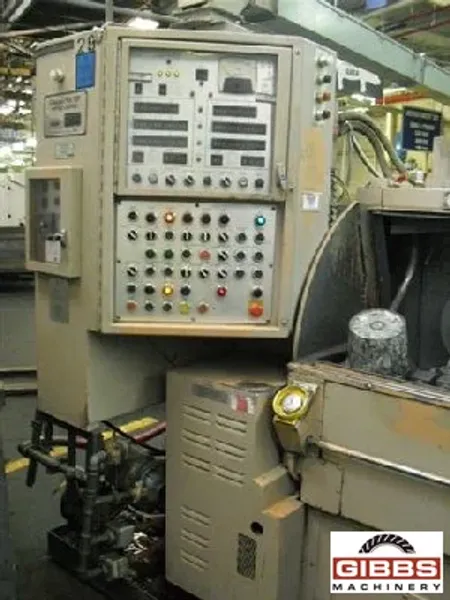

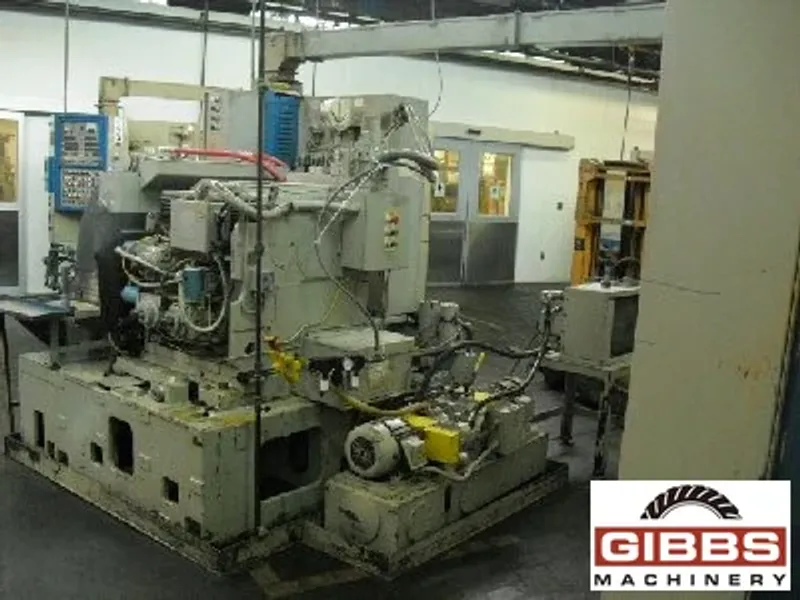

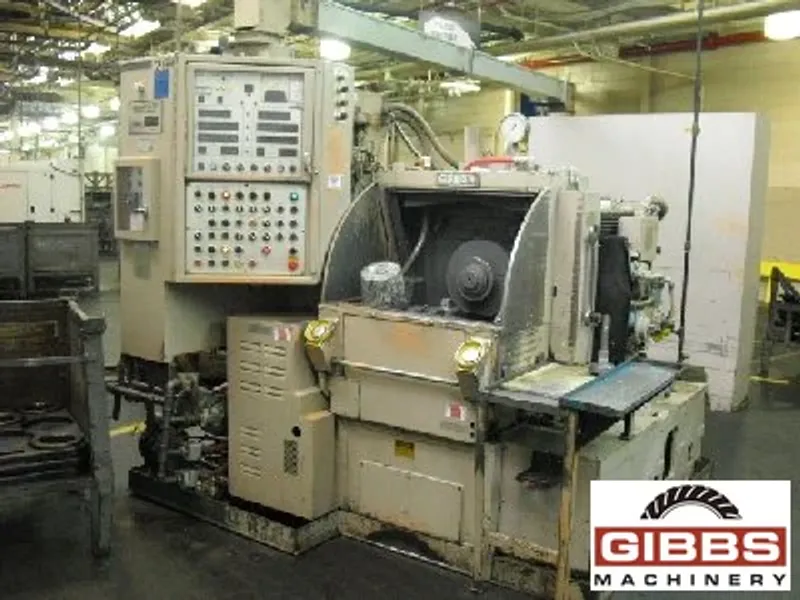

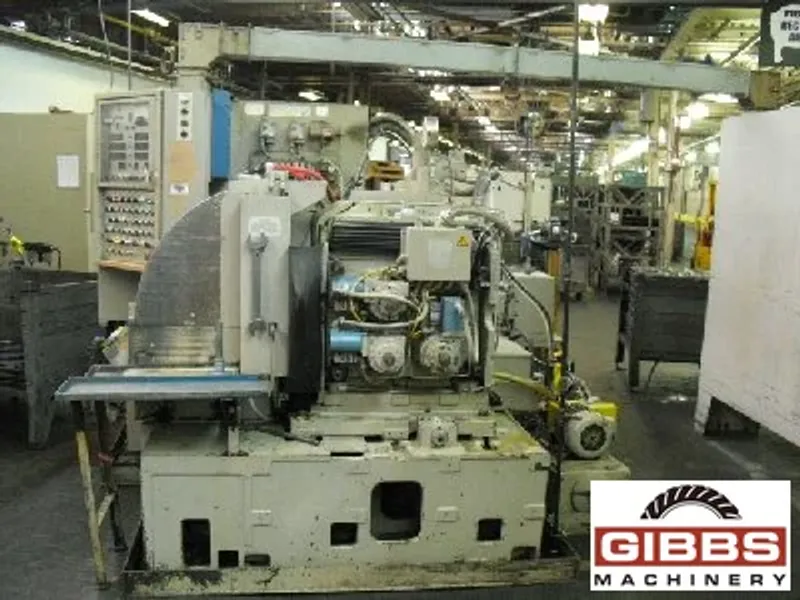

GLEASON 507 - Bevel Gear Lapper

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR LAPPERS

Stock

15783

Model

507

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Adjustable Hydraulic Brake
  • Variable Speed Drive Motor
  • Automatic Lapping Guard
  • Automatic Meshing
  • Automatic Preset Backlash
  • Manual Lapping Compound Replenish System
  • Remanufactured by Gleason in 1989
,

Machine Specifications :

  • Year 1972
  • Manufacturer GLEASON
  • Maximum Pinion Outside Diameter 10.0"
  • Maximum Workpiece Diameter 20.0"
,

MODEL 507 GLEASON GEAR LAPPER, 1972 REMANUFACTURED BY GLEASON IN 1989

    Specifications:

  • Capacity:
  • Gear Outside Diameter, Maximum: 20"
  • Pinion Outside Diameter, Maximum: 10"
  • Pinion Spindles (Standard):
  • Diameter of Taper Hole At Large End: 3-29/32"
  • Taper Per Foot: 39/64"
  • Depth of Taper: 2-1/2"
  • Gear Spindles (Standard):
  • Diameter of Taper Hole at Large End: 2-19/64"
  • Taper Per Foot: 1/2"
  • Depth of Taper: 3"
  • Pinion Spindle Speed Range, Standard: 0 - 2400 RPM

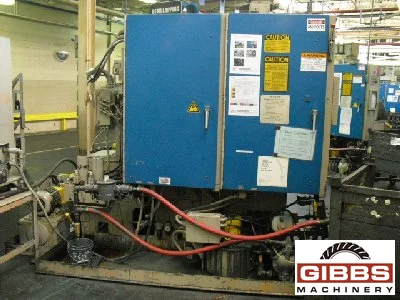

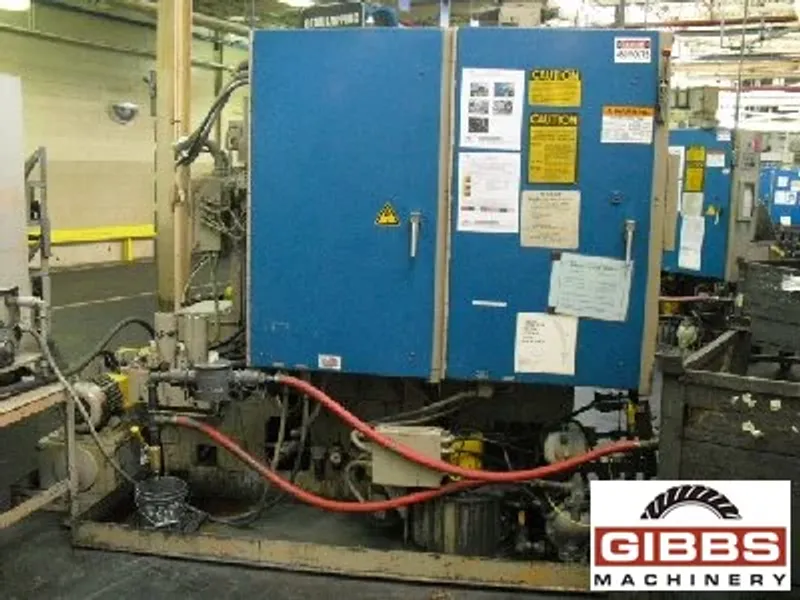

  • Electrical Equipment:
  • Main Motor: 5.5 kW

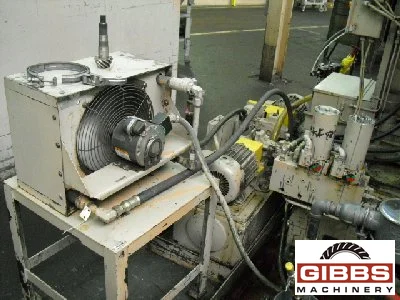

  • Hydraulic Motor: 4 kW
  • Compound Motor: .55 kW
  • Miscellaneous:
  • Floor Space: 105" x 81" x 78"
  • Net Weight: 15,200 lbs
  • PRICE, RECONDITIONED: $79,500.00
  • PRICE, CYLED & TESTED: 69,500.00
  • PRICE, AS TAKEN FROM SERVICE: 62,500.00
