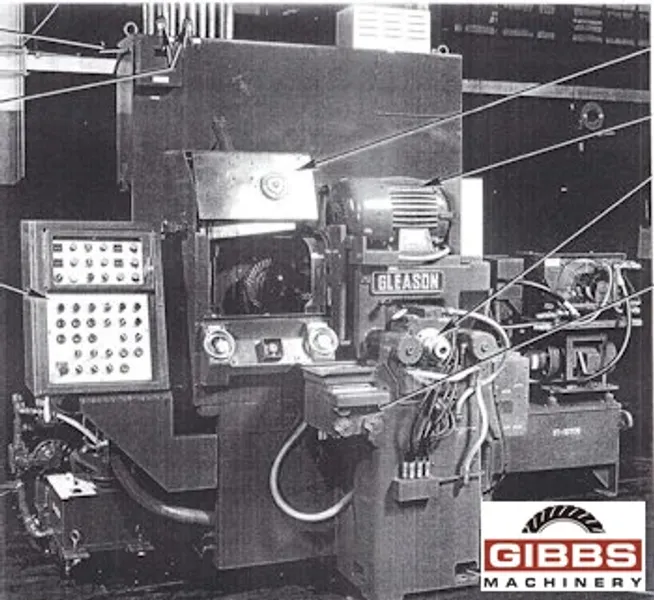

GLEASON 514 - Bevel Gear Lapper

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR LAPPERS

Stock

17373

Model

514

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • The Gleason No. 514 Hypoid Lapper affords fast lapping times, improved
  • quality, accurate contol, and increased flexibility. The swing pinion cone
  • (SPC) lapping action, combined with the conventional pinion horizontal and
  • backlash motions, permits fast and accurate lapping of the tooth surface.
  • The SPC lapping method produces pinions and gears precisely mated to operate
  • with maximum smoothness and quietness.
  • EQUIPPED WITH:
  • Modicon 984 System
  • Hydraulic Chucking
  • Draw Bar
  • Lapping Pump and Tank
  • Vee Arc Super 7000 Adjusted Frequency Drive
  • Compound Temperature Control
  • LT10 Sony Display Unit
  • Automatic Doors
  • Hydraulic Unit
  • Palm Buttons
  • Books, Manuals
  • Electrical Prints
,

Machine Specifications :

  • Year 1967
  • Manufacturer GLEASON
  • Maximum Pinion Outside Diameter 6.0"
,

MODEL 514 GLEASON GEAR LAPPER WITH SWING PINION CONE (SPC) LAPPING ACTION, 1990

    The Gleason No. 514 Hypoid Lapper affords fast lapping times, improved

  • quality, accurate contol, and increased flexibility. The swing pinion cone
  • (SPC) lapping action, combined with the conventional pinion horizontal and
  • backlash motions, permits fast and accurate lapping of the tooth surface.
  • The SPC lapping method produces pinions and gears precisely mated to operate
  • with maximum smoothness and quietness.
  • EQUIPPED WITH:
  • Modicon 984 System
  • Hydraulic Chucking
  • Draw Bar
  • Lapping Pump and Tank
  • Vee Arc Super 7000 Adjusted Frequency Drive
  • Compound Temperature Control
  • LT10 Sony Display Unit
  • Automatic Doors
  • Hydraulic Unit
  • Palm Buttons
  • Books, Manuals
  • Electrical Prints
  • SPECIFICATIONS:
  • Maximum Gear Diameter: 10.50"
  • Maximum Pinion Diameter: 6.00"
  • Pinion Spindle Diameter Of Taper Hole At Large End: 3.91"
  • Pinion Spindle Depth Of Taper: 3.00"
  • Gear Spindle Diameter Of Hole Thru Spindle: 2.50"
  • Gear Spindle Taper Per Foot: 0.50"
  • Gear Spindle Diameter Of Hole Thru Spindle: 2.19"
  • Floor Space (W x L): 75.5" x 69"
  • Height of Machine: 90"
  • Net Weight (Approximate): 8,400 lbs
  • FOB LOADED ON TRUCK, WARREN, MI
