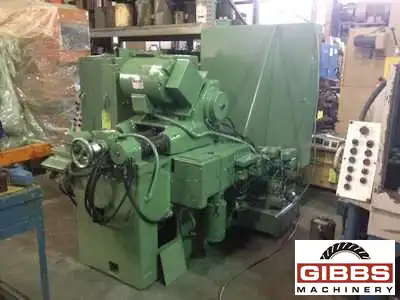

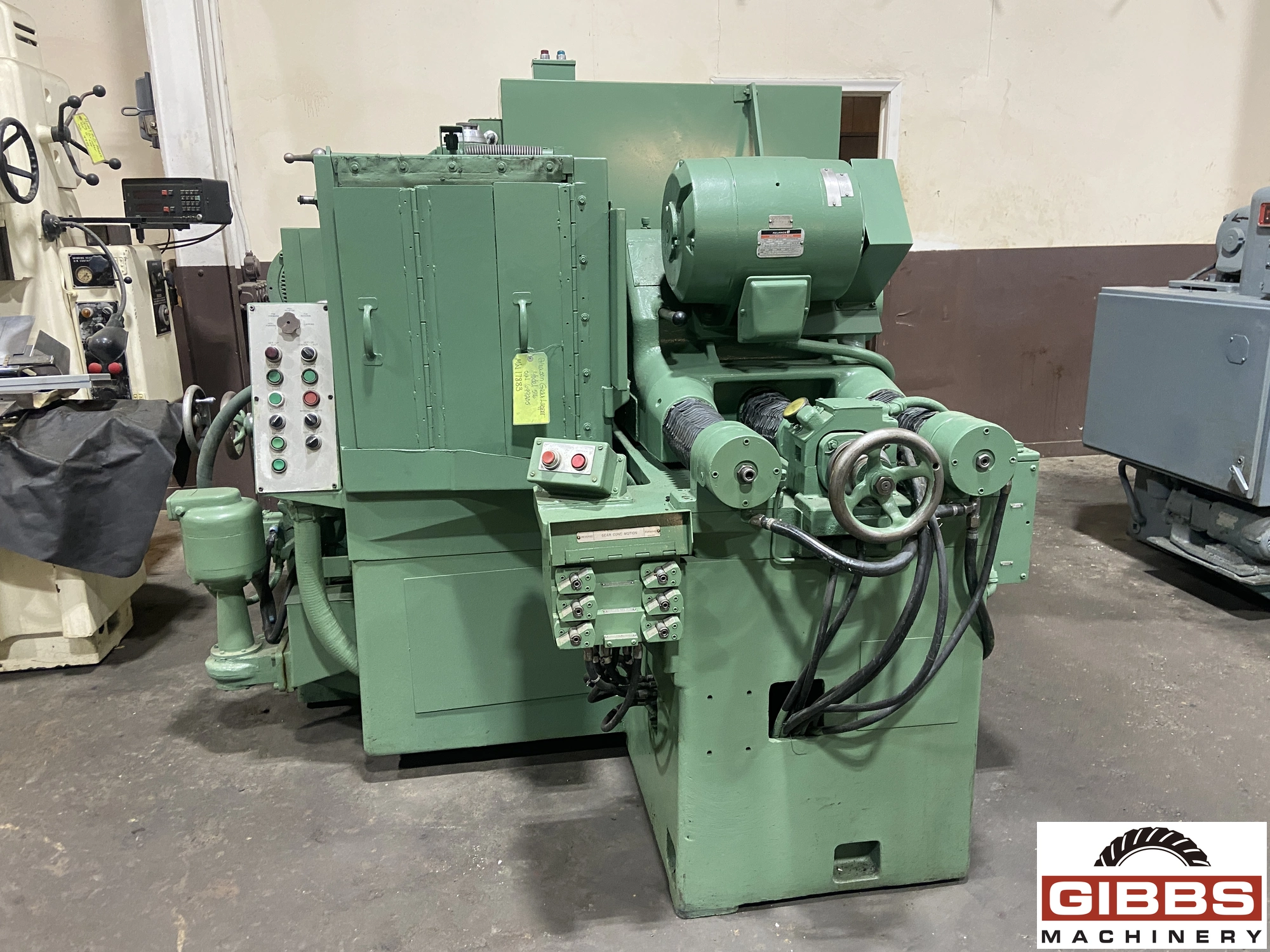

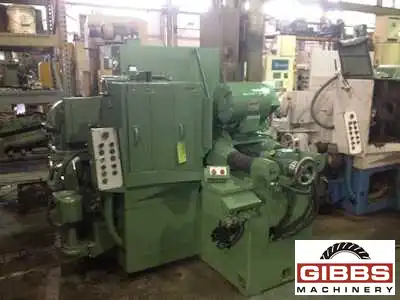

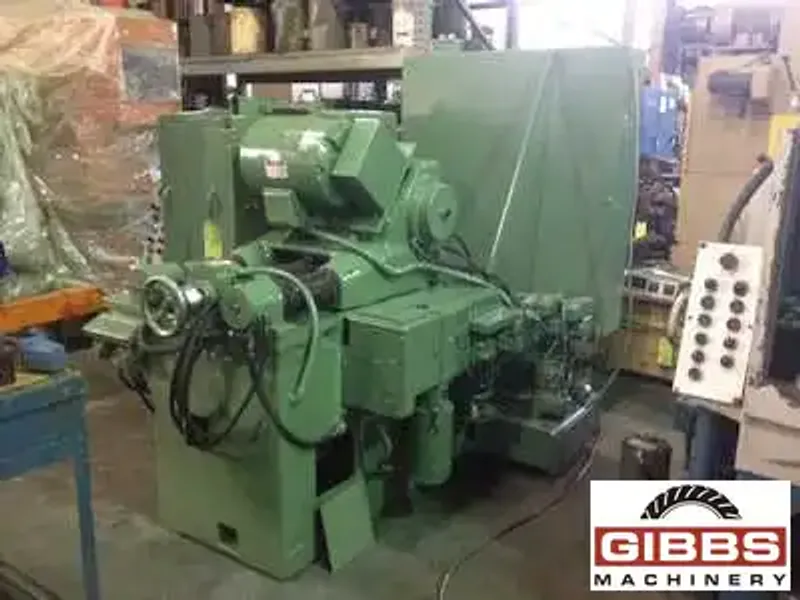

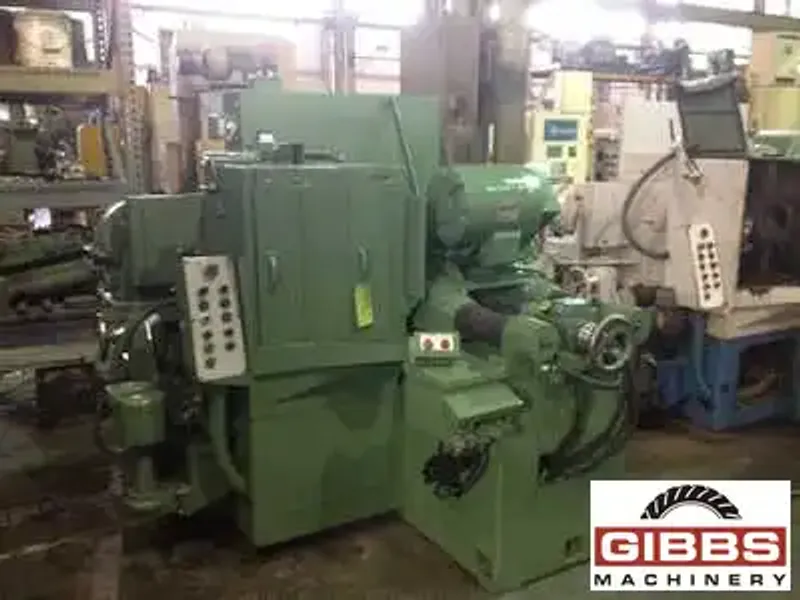

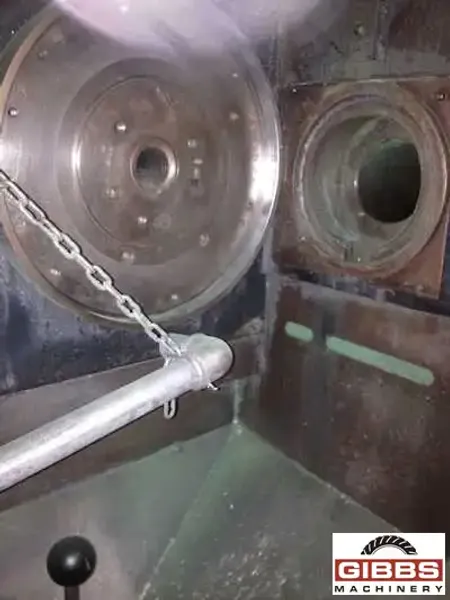

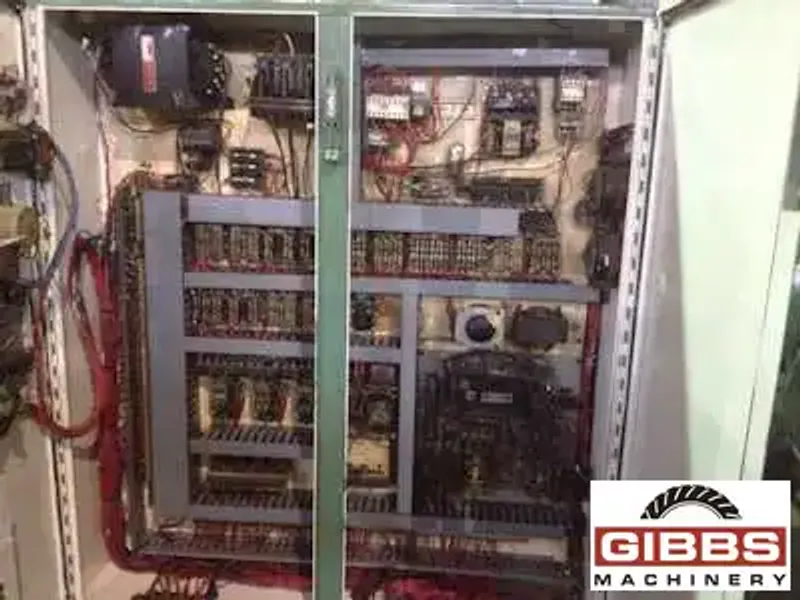

GLEASON 516 - Bevel Gear Lapper

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR LAPPERS

Stock

17883

Model

516

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Hydraulic Chucking
  • Gear Cone Motion
  • Manual/Auto Cycle
  • Forward/Reverse Cycles
  • Lapping Compound Tank
  • Fixing Motor
  • Hydraulic Unit
  • Lube System
  • Guards
,

Machine Specifications :

  • Year 1970
  • Manufacturer GLEASON
  • Control Manufacturer Conventional
  • Maximum Pinion Outside Diameter 12.0"
  • Maximum Driven Speed 1,200 RPM
  • Maximum Workpiece Diameter 24.0"
,

The No, 516 Hypoid Lapper is designed primarily tor lapping automotive and truck spi ral bevel and hypoid gears and pinions operat ing at a 90" shaft angle with gear diameters up to 24" (609.6 mm). The No. 516 Hypoid tapper affords fast lap ping times, high quality, accurate control and great flexibility, Most important is Swing Pinion Cone (SPC} lapping action which, combined with the conventional pinion horizontal and backlash motions, permits fast accurate lap• ping of the tooth surface. This SPC tapping method produces pinions and gears precisely mated to operate in auto motive and truck drive axles under the ever changing high way driving conditions with max imum smoothness and quietness.

    Specifications:

  • Capacity:
  • Diameter of Gear (Max): 24"
  • Diameter of Pinion (Max): 12"
  • Offset of Gear Spindle Above or Below Center of Pinion Spindle
  • (Max): 6"
  • Drive Spindle:
  • Speed: 1200 RPM
  • Diameter of Taper at Large End: 3-29/32"
  • Taper Per Foot: 39/64"
  • Depth of Taper: 3"
  • Brake Spindle:
  • Diameter of Taper at Large End: 2-19/64"
  • Taper Per Foot: 1/2"
  • Depth Of Taper: 3"
  • Electrical Equipment:
  • Main Motor, Standard: 5 HP, 1800 RPM
  • Hydraulic Pump Motor: 1 HP, 1800 RPM
  • Miscellaneous:
  • Floor Space: 80" x 90"
  • Height: 72"
  • Net Weight, Approximate: 11,200 lbs
