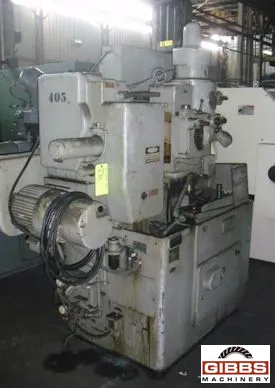

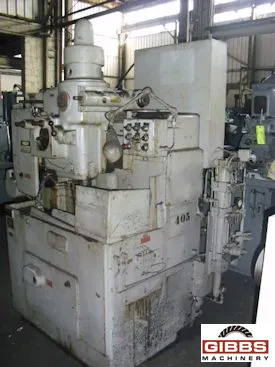

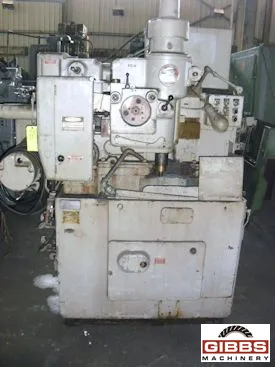

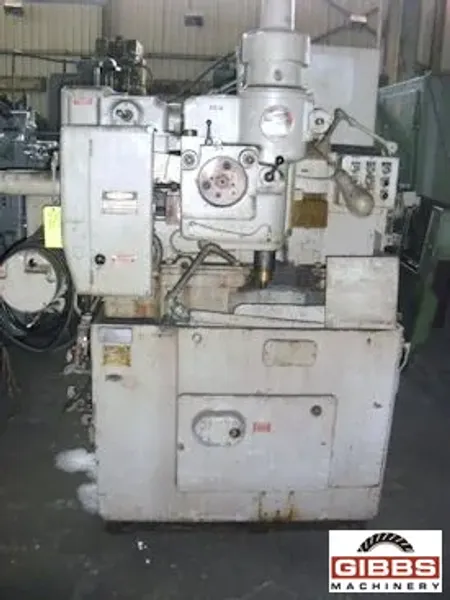

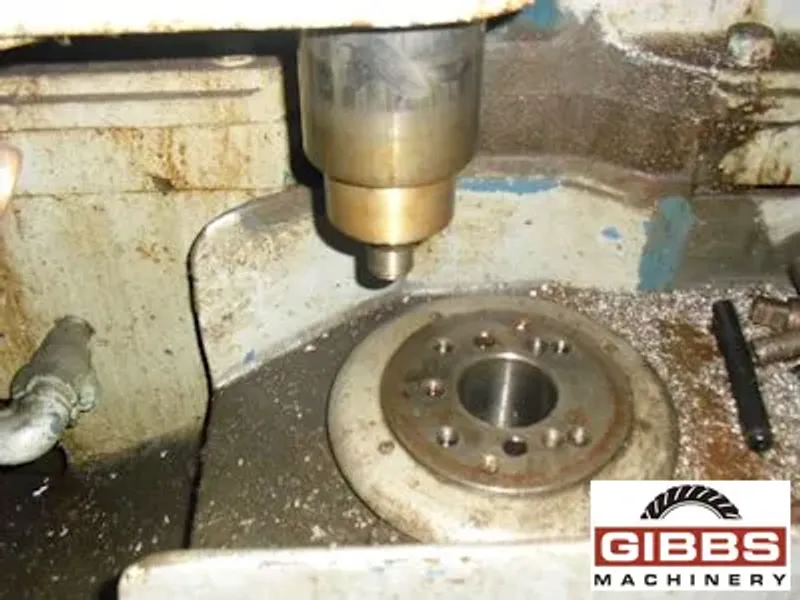

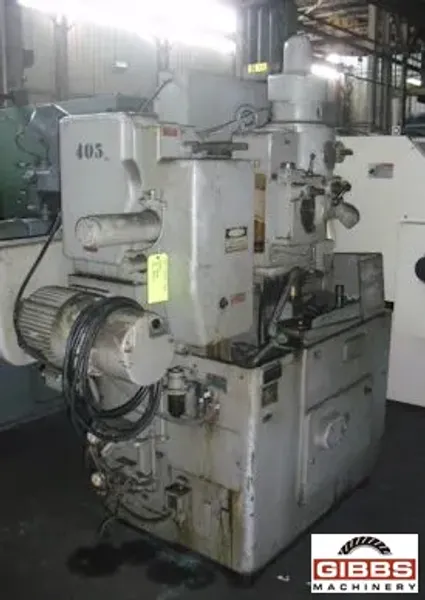

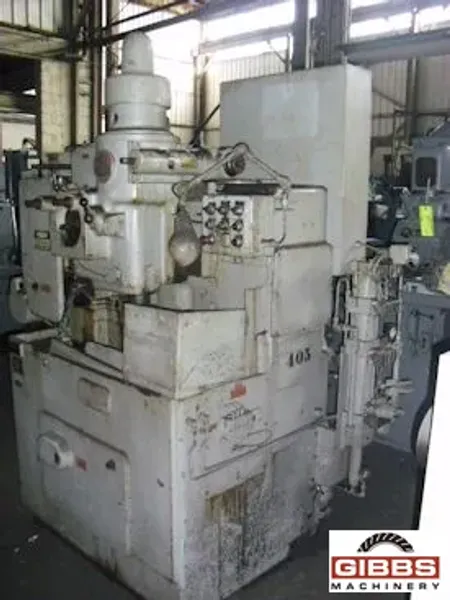

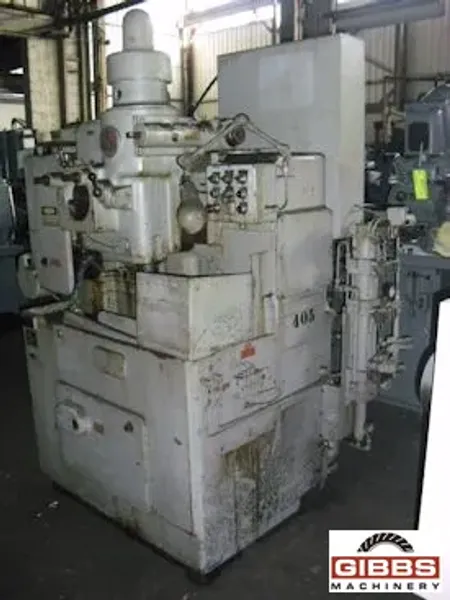

FELLOWS 8AGS - Gear Shaper

Manufacturer

FELLOWS

Category

Gear Machines

Type

GEAR SHAPERS

Stock

19826

Model

8AGS

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • 2" Riser
  • Spur Guide
  • 2-Speed Stroke Selection
  • Operating Extension for Internals
  • Rapid Approach
  • Lube System
  • Hydraulics
  • Coolant System
  • Motor and Controls
  • Operating Light
  • Operators Manual
,

Machine Specifications :

  • Year 1968
  • Manufacturer FELLOWS
  • Cutter Spindle Diameter 0.0"
  • Stroke 0.0"
  • Riser 2.0"
  • Diametral Pitch 57.0
  • Maximum Internal Gear Diameter 8.0"
  • Maximum External Gear Diameter 8.0"
  • Guide Spur
,

FELLOWS 8AG GEAR SHAPER

    Specifications:

  • Max. Pitch Diameter: 8" (Internal & External)
  • Max. Diametral Pitch: 5/7 Spur; 6 Helical
  • Max. Face Width: 1 1/2" Internal; 2" External
  • Max. Stroke: 2-1/4"
  • Max. Helix Angle W/Standard Guides: 38 Degrees 41'
  • Diameter of the Cutter Spindle 3-3/8"
  • Speeds Six from 200 to 600 strokes per minute
  • Overall Dimensions: 66"L x 44"W x 81"H
  • Net Weight W/Motors: 6,750#
  • FOR TRUCK WARREN MICHIGAN
