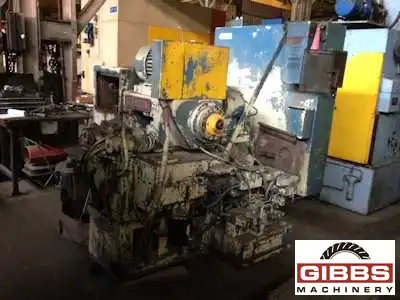

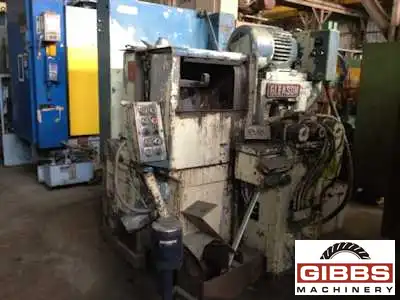

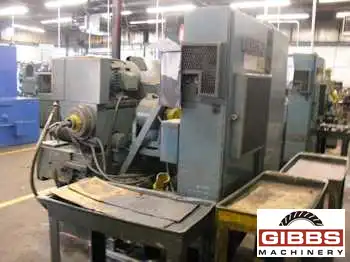

GLEASON 503 - Bevel Gear Lapper

Manufacturer

GLEASON

Category

Gear Machines

Stock

16888

Model

503

Dealer Location

Michigan

Spec Sheet

Highlights:
  • Lap System
  • Hydraulic Chucking
  • Automatic Backlash Eliminator
  • Power Traverse
  • Guide
  • Hydraulic System
  • Automatic Splash Doors
,
  • Year 1963
  • Manufacturer GLEASON
  • Maximum Pinion Outside Diameter 6.0"
,

MODEL 503 GLEASON HYPOID GEAR LAPPER

    SPECIFICATIONS:

  • Maximum Gear Diameter: 10.50"
  • Maximum Pinion Diameter: 6.00"
  • Pinion Spindle Diameter Of Taper Hole At Large End: 3.91"
  • Pinion Spindle Depth Of Taper: 3.00"
  • Gear Spindle Diameter Of Hole Thru Spindle: 2.50"
  • Gear Spindle Taper Per Foot: 0.50"
  • Gear Spindle Diameter Of Hole Thru Spindle: 2.19"
  • Floor Space (W x L): 75.5" x 69"
  • Height of Machine: 90"
  • Net Weight (Approximate): 8,400 lbs
