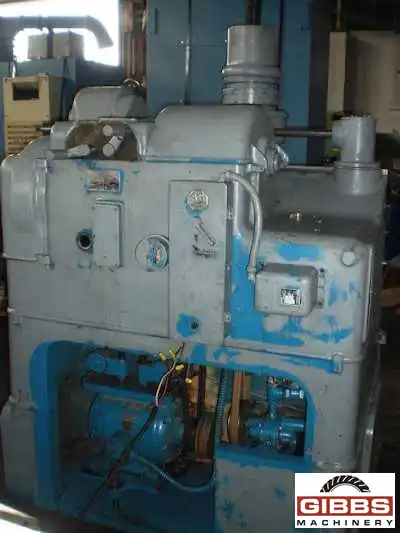

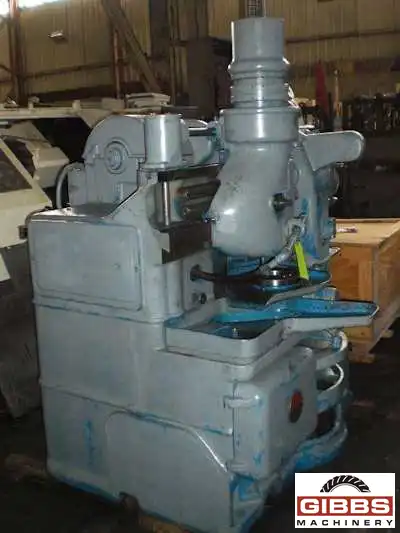

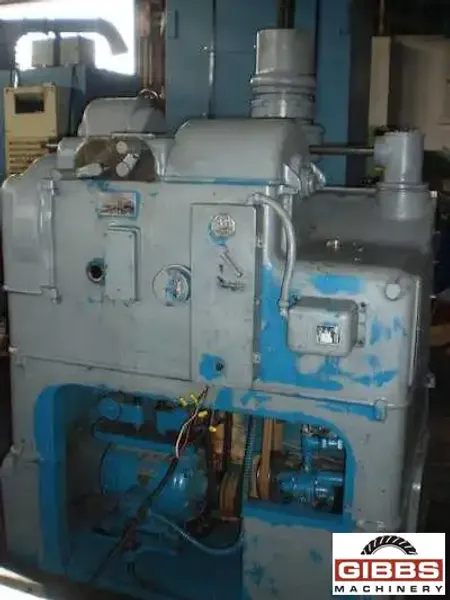

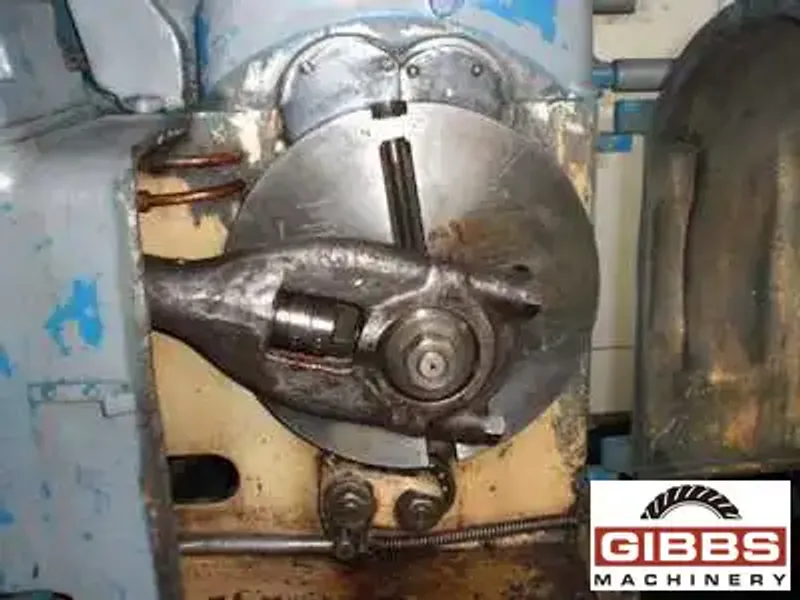

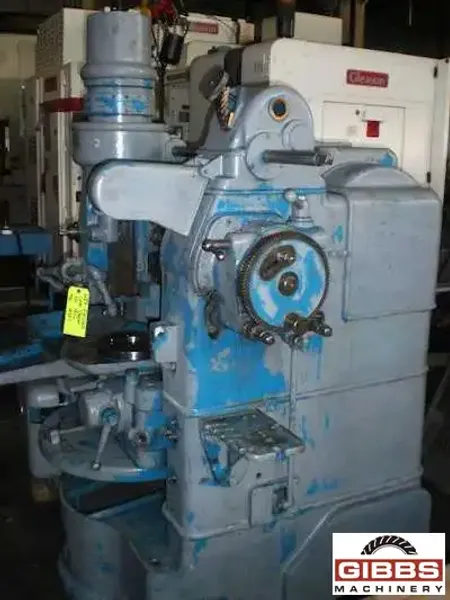

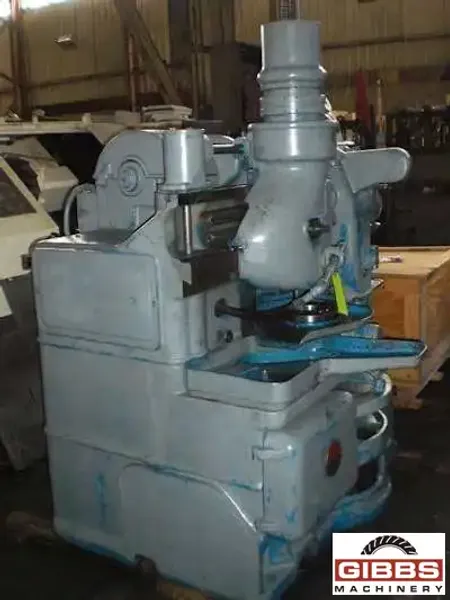

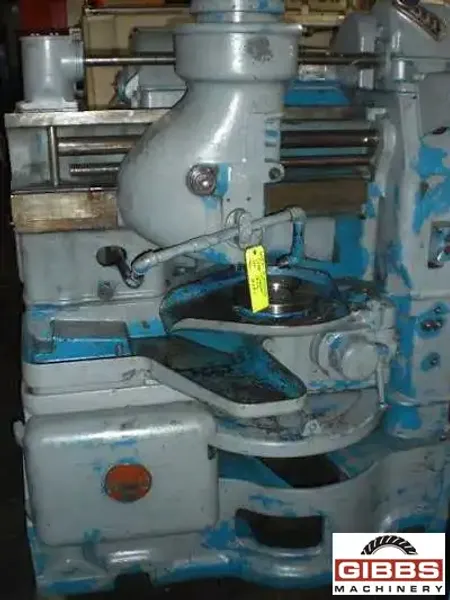

FELLOWS 615A - Gear Shaper

Manufacturer

FELLOWS

Category

Gear Machines

Type

GEAR SHAPERS

Stock

18351

Model

615A

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Spur Guide
  • Solid Spindle

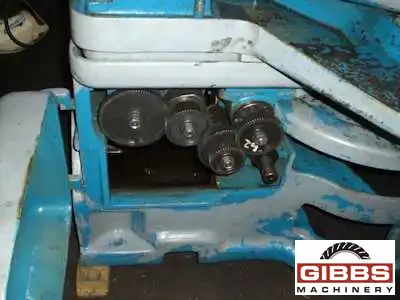

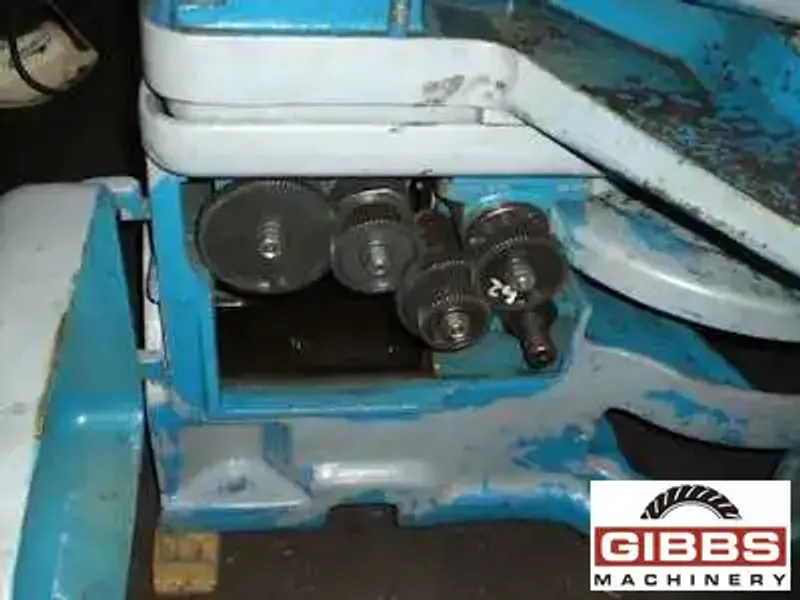

  • 2 Set-Ups of Change Gears For Your Jobs
  • Coolant
  • Operators and Parts Manuals
,

Machine Specifications :

  • Year 1941
  • Manufacturer FELLOWS
  • Diametral Pitch 34.0
  • Maximum Internal Gear Diameter 18.0"
  • Maximum External Gear Diameter 18.0"
  • Guide Spur
,

MODEL 615A FELLOWS GEAR SHAPER, 1941

    Specifications:

  • Maximum External & Internal Pitch Diameter: 18"
  • Maximum Face Width (External/Internal): 5"/5"
  • Maximum Diametral Pitch: Spur/Helical: 3/4"/5/7"
  • Maximum Helix Angle With Standard Guides: 30 Degrees
  • Maximum Overall Length Of Machine: 5'3"
  • Maximum Overall Width Of Machine: 4'
  • Maximum Overall Height Of Machine: 6'5"
  • Crated For Domestic Shipment: 6'4" x 4'10" x 6'1" High
  • Boxed For Foreign Shipment: 6'3" x 4' 9" x 6'3" High
  • Net Weight Of Machines, Approximate: 6800 lbs.
  • Crated For Domestic Shipment: 7100 lbs.
  • Boxed For Foreign Shipment: 7900 lbs.
  • F.O.B., TRUCK, WARREN, MI
