BARBER COLMAN 16-16 - Gear Hobber

Manufacturer

BARBER COLMAN

Category

Gear Machines

Type

GEAR HOBBERS, HORIZONTAL

Stock

25428

Model

16-16

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Downfeed
  • 1.25" Hob Arbor
  • Hob Shift
  • 3.25" Spindle Bore
  • Tailstock W/Center
  • Single Thread
  • Bijur Lube
  • Change Gears
,

Machine Specifications :

  • Year
  • Manufacturer BARBER COLMAN
  • Horz/Vert Horz
  • Maximum Workpiece Diameter 16.0"
  • Maximum Diametral Pitch 6.0
  • Module 4.0
  • Axial Travel 16.0"
  • Maximum Hob Diameter 5.0"
  • Hob Arbor Size 1.25"
  • Hob Speed 425 RPM
  • Control Manufacturer Conventional
  • Work Spindle Bore 3.25"
,

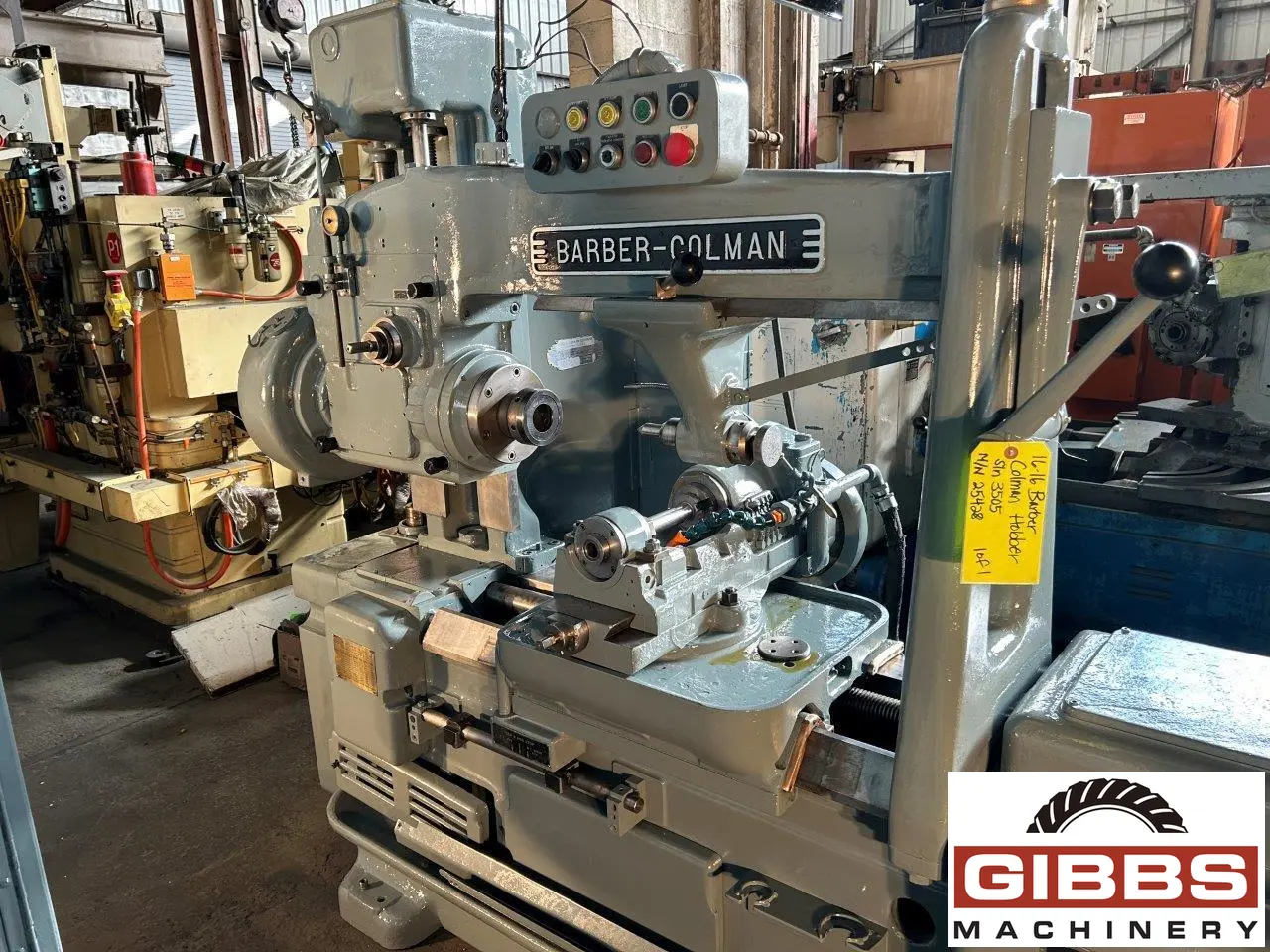

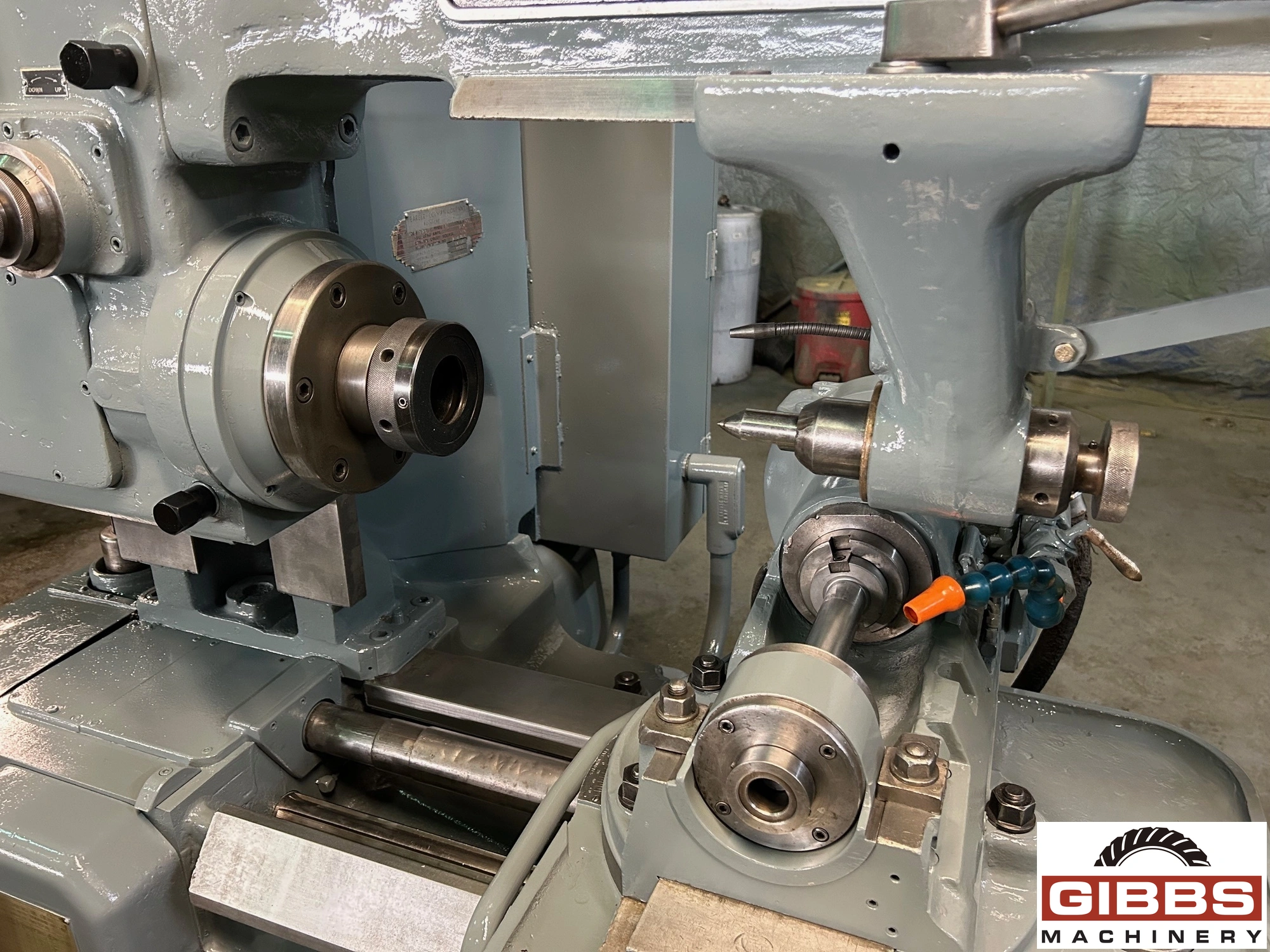

BARBER COLMAN 16-16 Horizontal Gear Hobber. Capable of handling 16" dia workpieces, 6 dp, with a 425 RPM hob speed. Includes downfeed, tailstock, lube system, and change gears.

    Specifications:

  • Hole Thru Spindle: 3-1/8"
  • Maximum Rated Work Diameter: 16"
  • Maximum DP (for 1 Cut in Steel): 6 DP
  • Maximum Rate Hob Diameter: 5"
  • Maximum Travel of Hob Carriage: 16"
  • Maximum Distance, Work Spindle Face to Tail Center: 44"
  • Diameter of Work Spindle Bore: 4-1/8"
  • Maximum Hob Swivel Angle Setting (Left or Right): 45 Degrees
  • Maximum Hob Speed: 425 RPM
  • Maximum Vertical Speed Distance: 1/2"
  • Maximum Total Vertical Distance: 7/8"
  • Downfeed (25): From .020 - .500
  • Approximate Weight: 8400 lbs.
