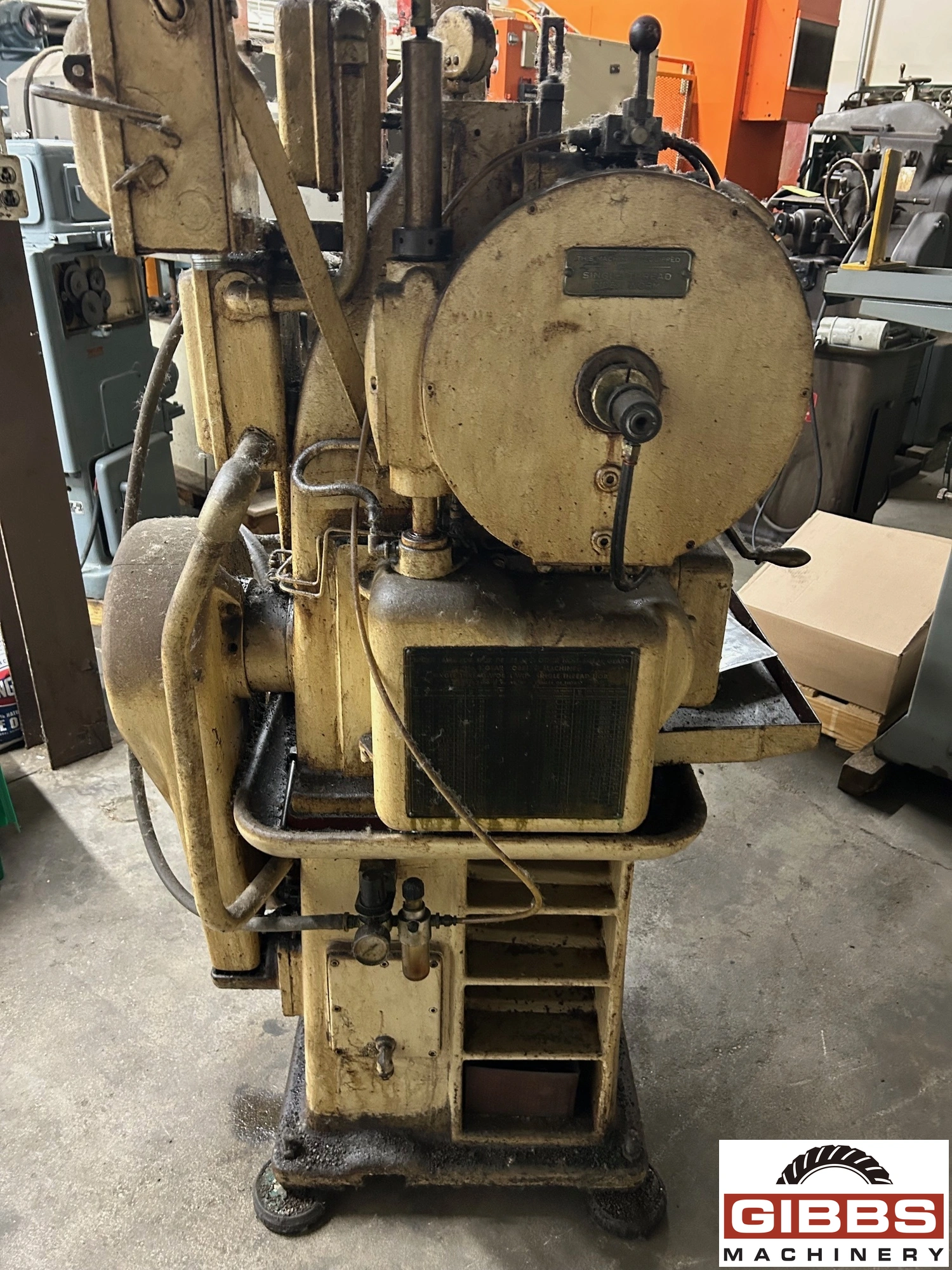

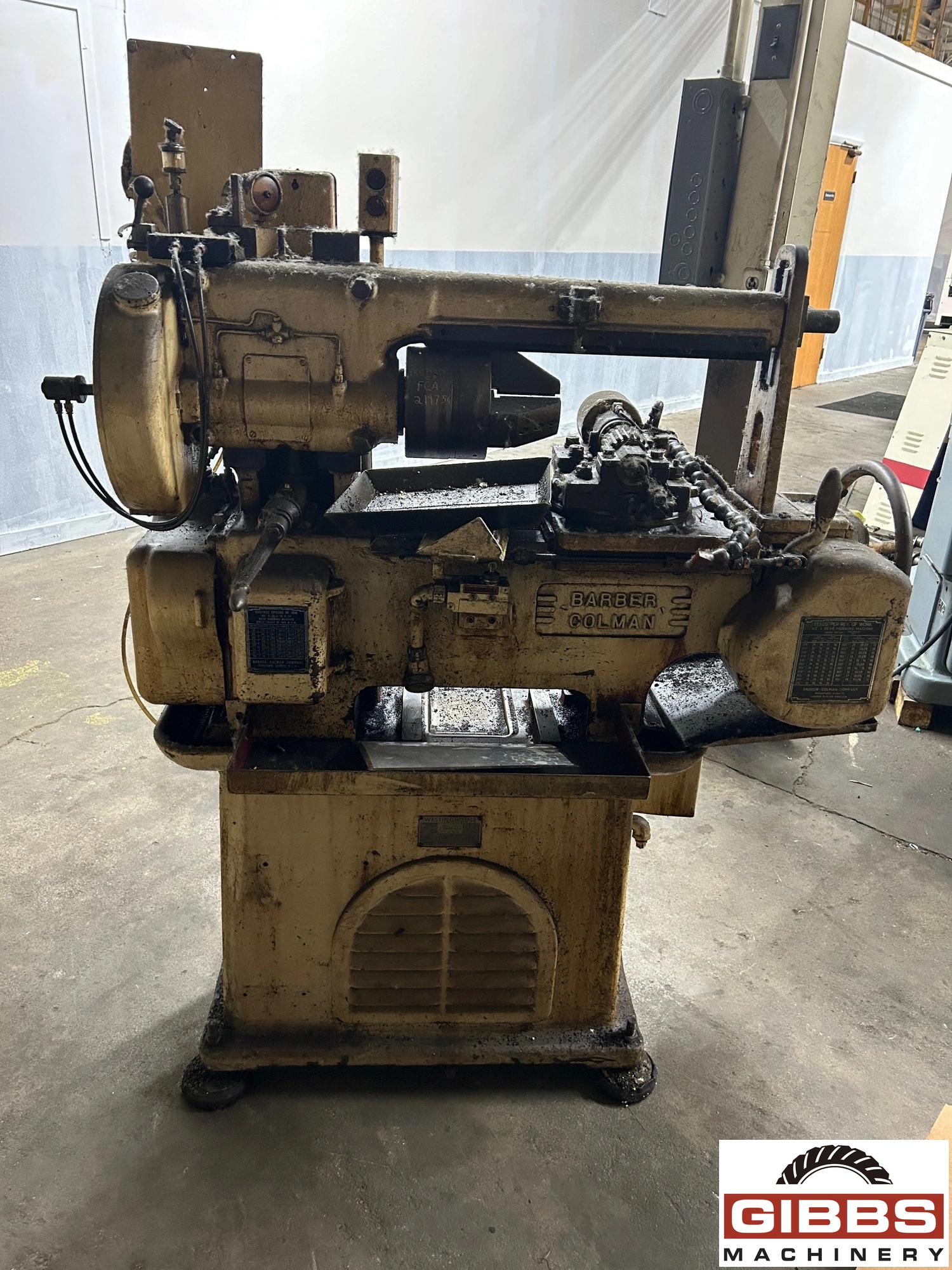

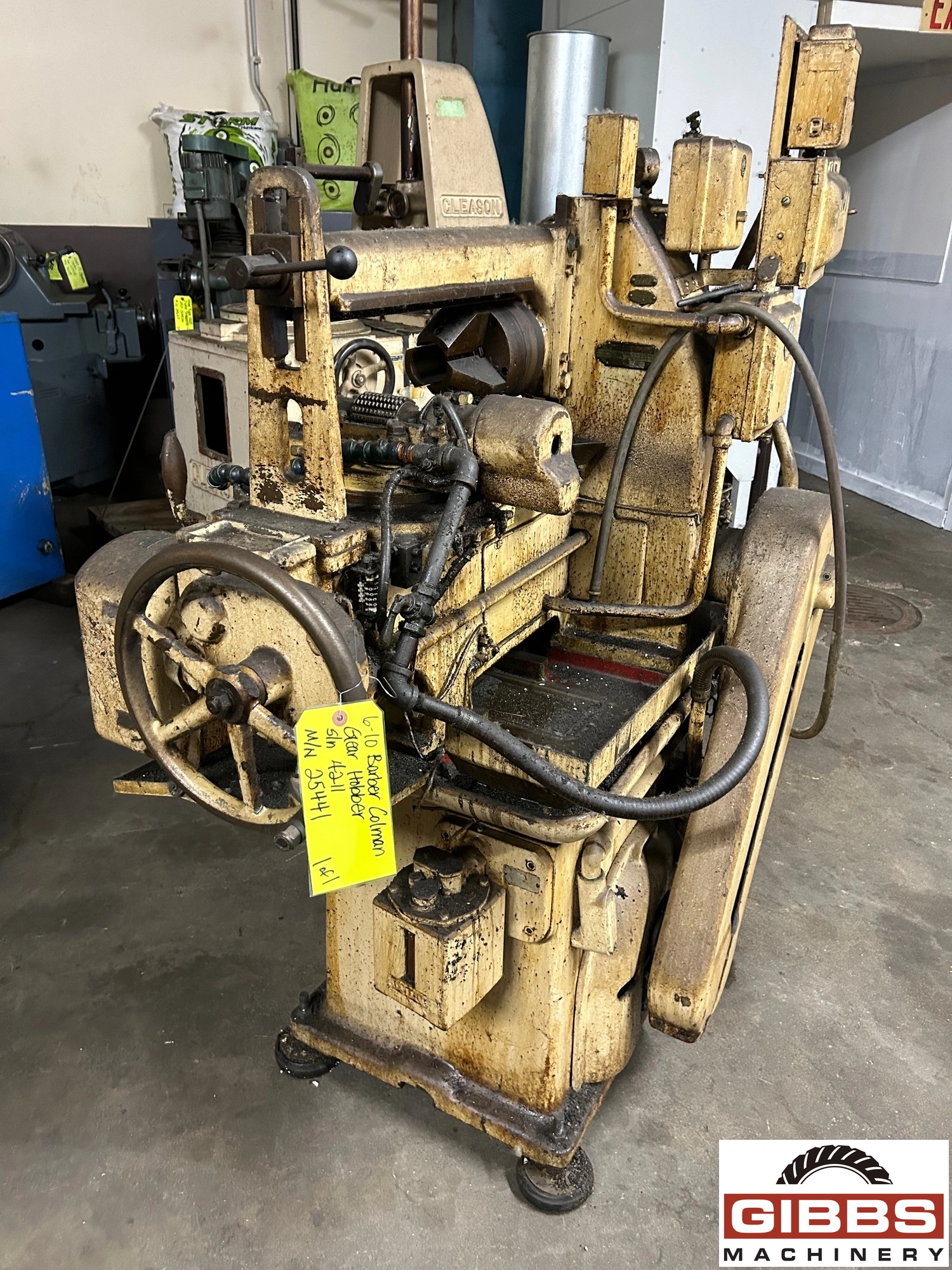

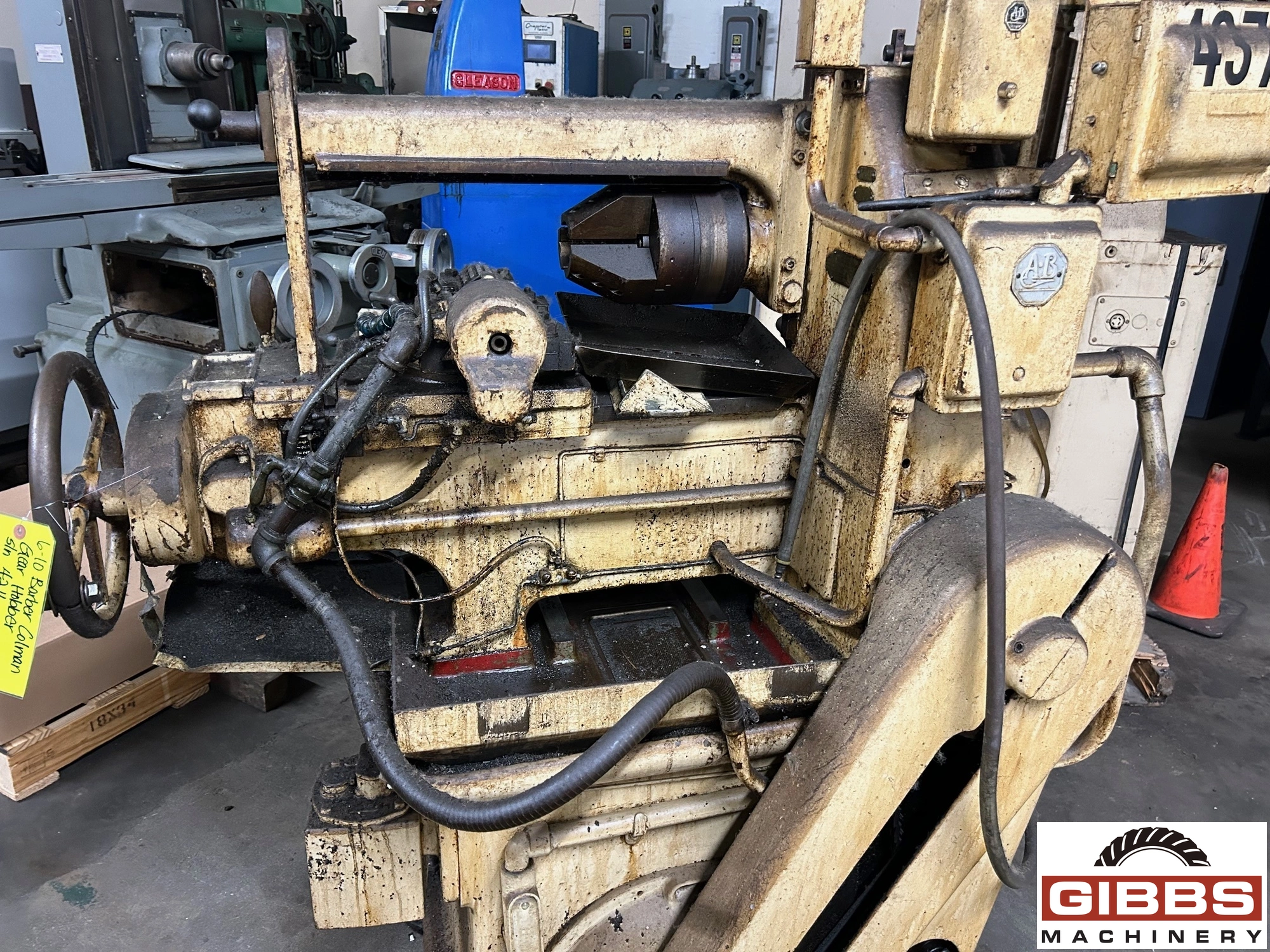

BARBER COLMAN 6-10 - Gear Hobber

Manufacturer

BARBER COLMAN

Category

Gear Machines

Type

GEAR HOBBERS, HORIZONTAL

Stock

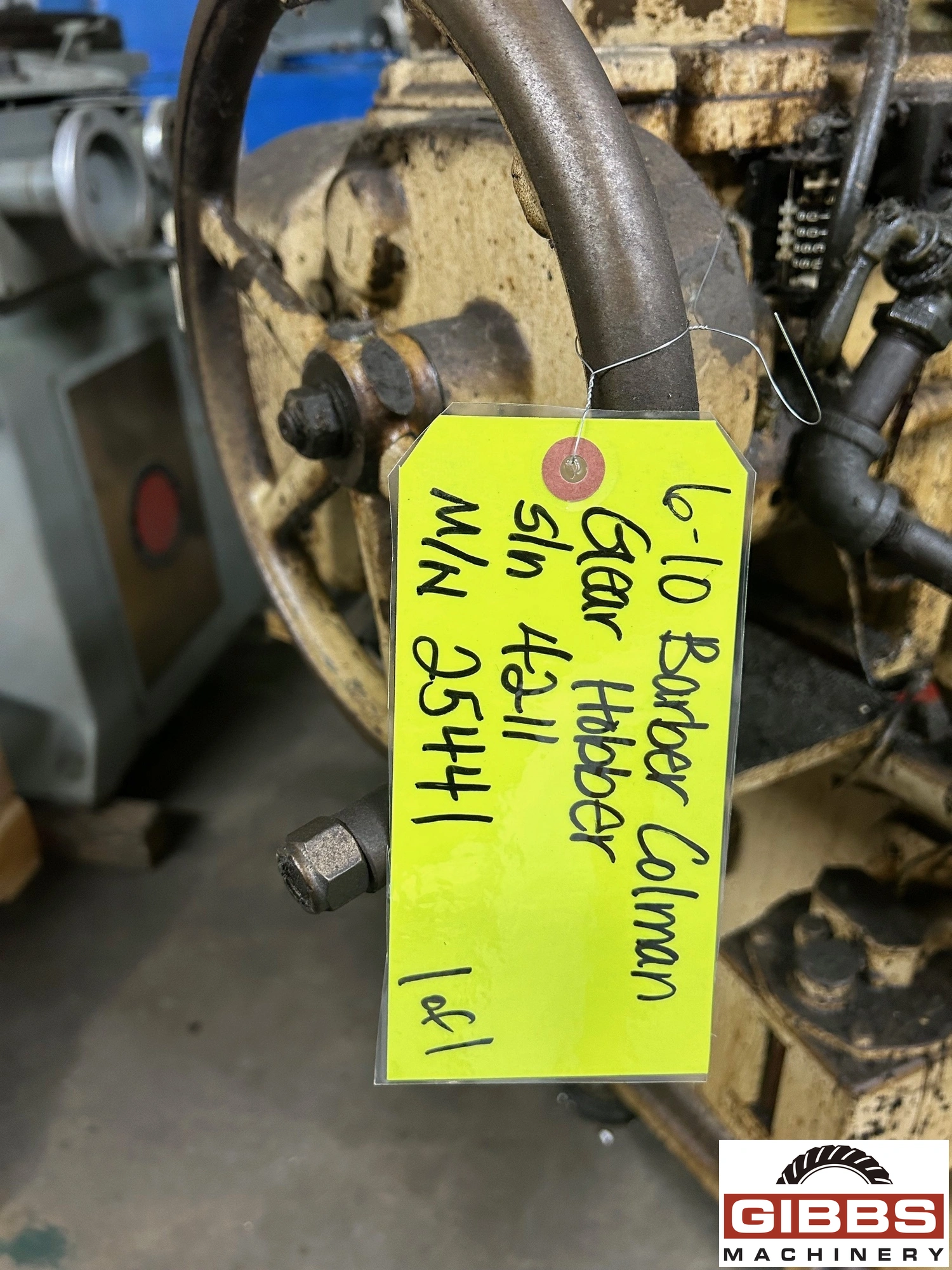

25441

Model

10-Jun

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Single Thread Index

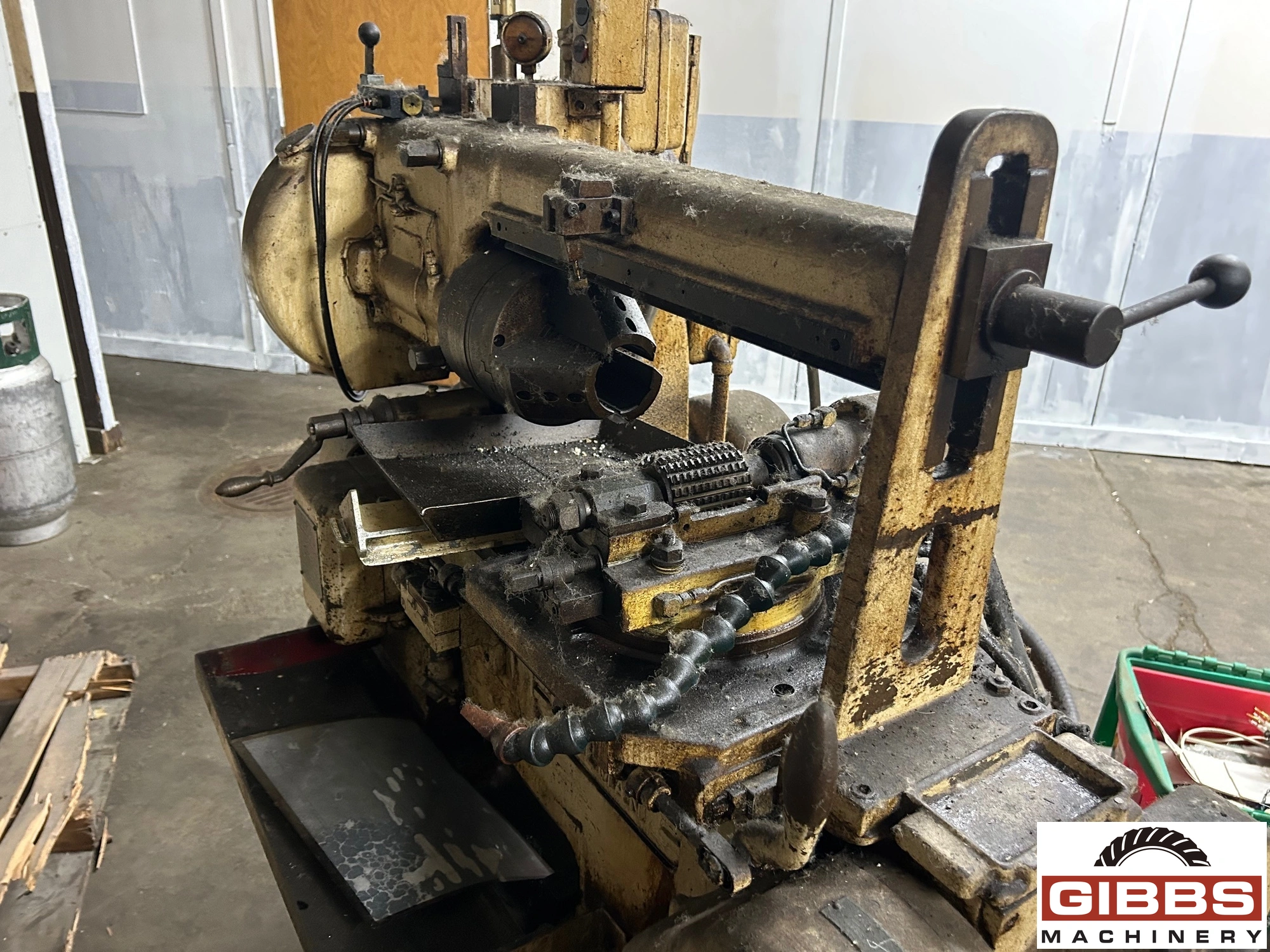

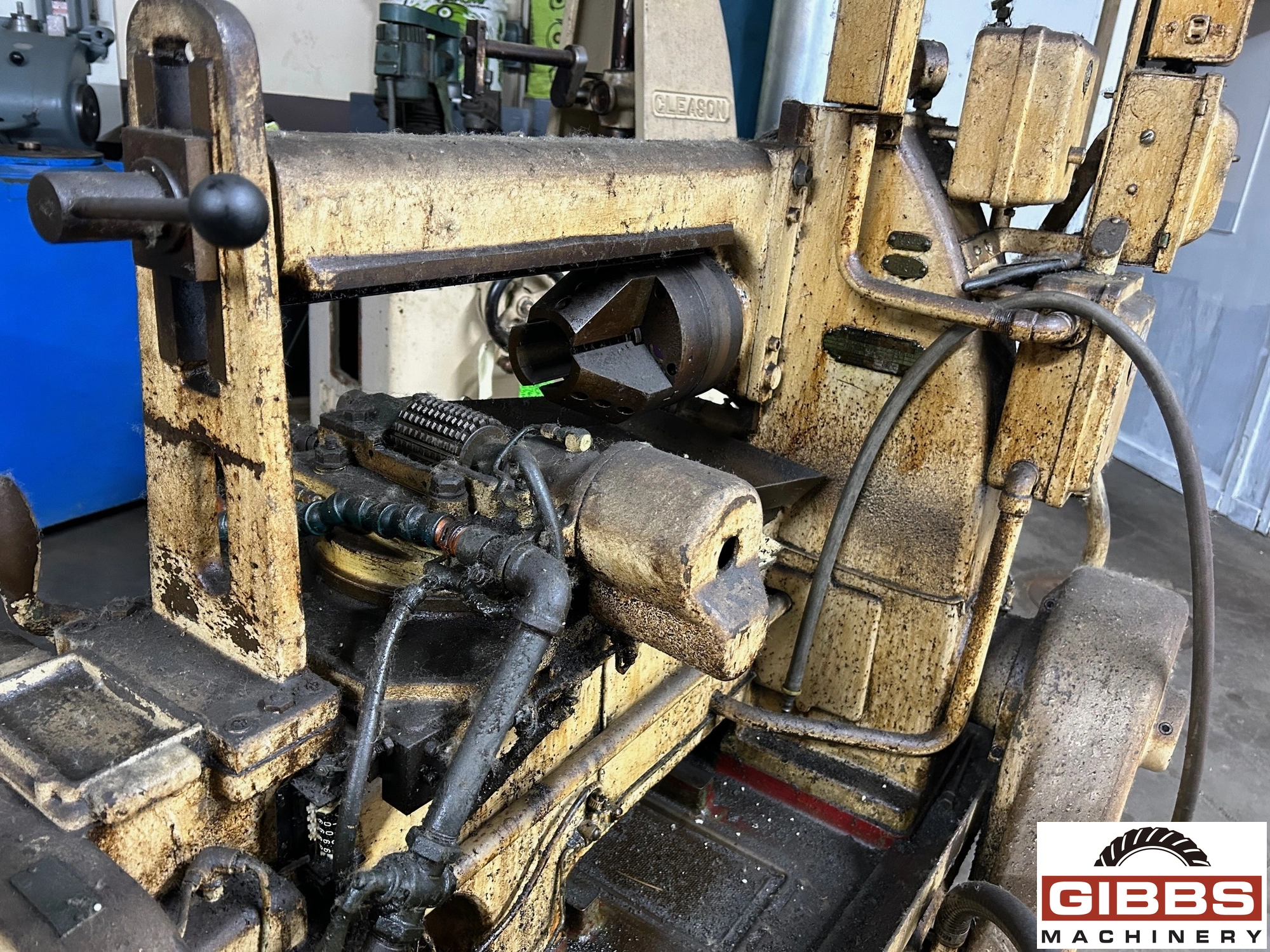

  • 6" 3-Jaw Power Chuck
  • Hob Arbor
  • Hob Slide
  • Bijur Lube
  • Coolant Pump
  • Chip Pan
,

Machine Specifications :

  • Year
  • Manufacturer BARBER COLMAN
  • Horz/Vert Horz
  • Maximum Workpiece Diameter 6.0"
  • Maximum Diametral Pitch 48.0
  • Work Spindle Bore 1.03125"
  • Maximum Hob Diameter 2.0625"
  • Hob Speed 1,200 RPM
  • Control Manufacturer Conventional
,

The No. 6-10 Standard Hobbing Machine is a mechanical machine designed for general purpose hobbing. It is equipped with a triple thread index worm for maximum versatility. A single-thread index worm can be furnished for increased accuracy. Maximum capacity of this machine is 6" dimeter by 10" face and 16 pitch or the equivalent. The No. 6-10 Precision Hobbing Machine has been designed to meet the demand for extra accuracy required on many small parts, including spur and helical gears, worm 9ears, splines and special forms. In con struction, the precision machine is basically the same as the No. 6-10 Standard Hobbing Machine, differing only in the use of an extra large index worm gear, with either a single or triple thread worm, selected parts throughout, and greater precision in all fits. This machine is used pri marily for hobbing precision fine-pitch gears for instruments and other precision mechanisms.

    Specifications:

  • Maximum DP In Steel: 16 DP 2" / 48 DP 6"
  • Maximum Working Diameter: 6"
  • Maximum Swivel: 60° Right / 90° Left
  • Maximum Hob Slide Travel: 10.5"
  • Maximum Work Spindle Face to Tail Center: 15.75"
  • Work Spindle to Centerline of Hob Spindle: 2.25" to 12.75"
  • Maximum Hob Diameter: 2.0625"
  • Hob Spindle Speed: 30 - 1,200 RPM
  • Spindle Bore Diameter: 1.03125"
  • Drive Motor: 2 HP
  • Dimensions: Floor Space (L x W x H) 66" x 48" x 57"
  • Weight (approx.): 3,500 Lbs
