BRIDGEPORT EZ SURF - Surface Grinder

Manufacturer

BRIDGEPORT

Category

Grinding Machines

Type

GRINDERS, SURFACE, RECIP. TABLE, (Horizontal Spdl), CNC

Stock

21767

Model

EZ SURF

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

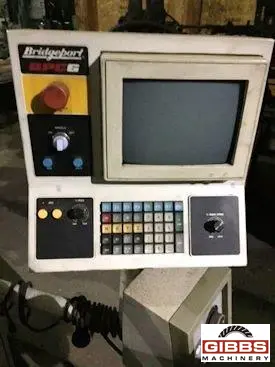

  • Bridgeport BPCG Control
  • 12" X 24" Walker Fine Line Chuck
  • Hydraulic Table Traverse
  • Cross & Vertical Axes
  • Conversational MDI for Form & Step Grinding
  • MDI Set-Up Teach Program
  • Slot & Form Creep Feed Grinding
  • Two-Axis Linear Circular Interpolation
  • Electroncs Handwheels on Y & Z Axis
  • Ballscrews on Y & Z Axis
  • Manual, Semi or Fully Automatic
  • Coolant System
  • Lubrication System
  • Wheel Guard
  • 230-460 Volts/3 Phase/ 60Hz
,

Machine Specifications :

  • Year
  • Manufacturer BRIDGEPORT
,

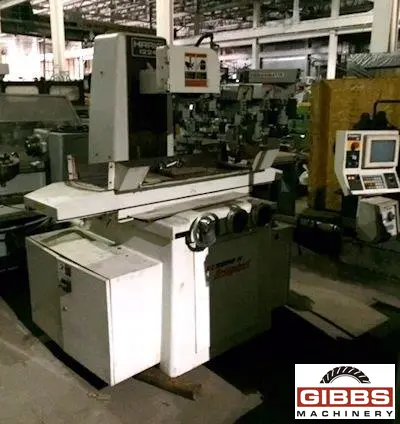

HARIG BRIDGEPORT EZ SURF II 12" X 24" CNC SURFACE GRINDER

    Specifications:

  • Table Size: 12" x 24"
  • Distance Between Table & Grinding Wheel: 14"
  • Hydraulic X-Axis Table Travel: 28"
  • Handfeed X-Axis Table Travel: 24"
  • X-Axis Traverse Rate: 36 - 840 IPM
  • X-Axis Jog Rate: 36 - 240 IPM
  • Y-Axis Vertical Travel Ball Screw: 20"
  • Y-Axis Feed Min. Increment: .0001"
  • Y-Axis Feed Rate up to: 100 IPM
  • Y-Axis Jog Mode Switchable: 0.0001, 0.001, 0.01, 0.1 Steps
  • Z-Axis Table Crossfeed Travel Ball Screw: 14"
  • Z-Axis Feed Rate up to: 100 IPM
  • Z-Axis Programmable Increment Min.: .0001"
  • Max. Spark Out Passes: 0-999
  • Grinding Wheel Diameter x Width: 12" x 1.5"
  • Grinding Wheel Bore: 3"
  • Grinding Wheel 2 speed: 1460 & 1770 rpm
  • Grinding Wheel Motor: 5hp
