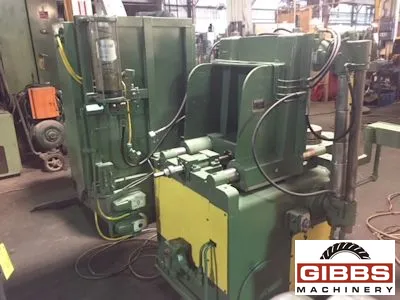

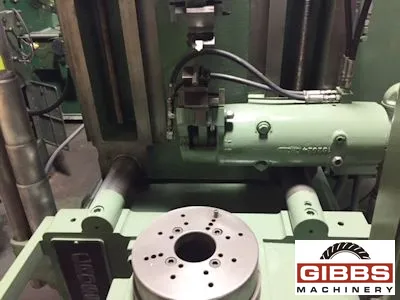

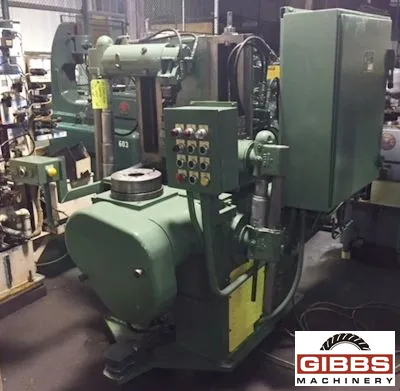

CROSS 85 - Gear Chamfering & Deburring

Manufacturer

CROSS

Category

Gear Machines

Type

GEAR CHAMFERING, POINTING, ROUNDING

Stock

1681

Model

85

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Cross 85 is designed to; spur gears, helical gears, spline teeth
  • straight or involute), spiral bevel pinion and hypoid pinions.
  • Hydraulic Chucking
  • (2) Cutter Heads
  • Auto Cycle
  • Hydraulic System
  • Lube System
  • Change Gears
  • Palm Buttons
,

Machine Specifications :

  • Year
  • Manufacturer CROSS
,

MODEL #85 CROSS CHAMFERING AND DEBURRING

    EQUIPPED WITH:

  • Cross 85 is designed to; spur gears, helical gears, spline teeth
  • straight or involute), spiral bevel pinion and hypoid pinions.
  • Hydraulic Chucking
  • (2) Cutter Heads
  • Auto Cycle
  • Hydraulic System
  • Lube System
  • Change Gears
  • Palm Buttons
  • CATALOG SPECIFICATIONS:
  • Gear Diameter Capacity: 0 to 10 Inches
  • Gear Face Capacity: 0 to 6 Inches
  • Overall Length Capacity: 0 to 15 Inches
  • Standard Indexing Range: 8 to 80 Teeth
  • Bearings: Anti-Friction
  • Power Transmission: Vee Belt, Constant Mesh, Gearing and Spline Shafts
  • Indexing Drive: Precision, Roller Index Drive
  • Capacity Of Oil Tank: 12 Gallons
  • Floor Space Required: 55 x 47 Inches
  • Net Weight: 3,500 lbs
  • Model 85 Cross is designed with high speed steel formed cutters to allow
  • deburring and chamfering of both ends simultaneously on gears to 10" diameter
  • 8 to 80 teeth. With a continuous oscillating action, two independently
  • adjustable cutter heads on the Model 85 deburr and chamfer the tight spots on
  • all kinds of external gears and splines.
