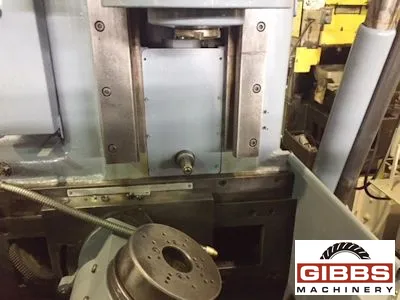

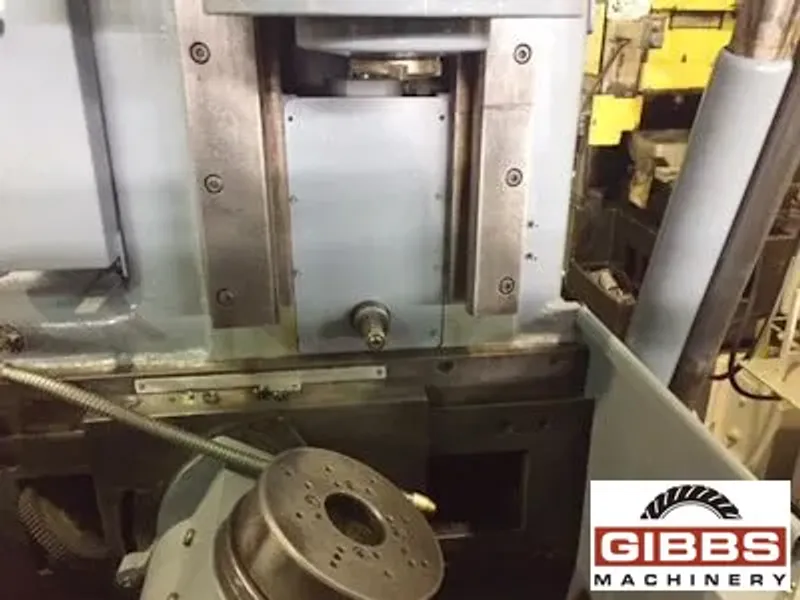

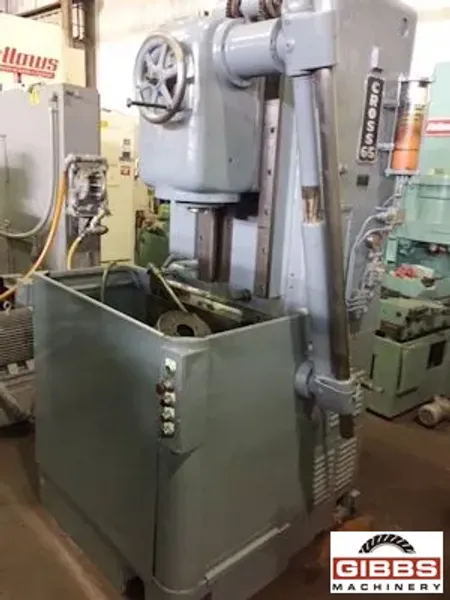

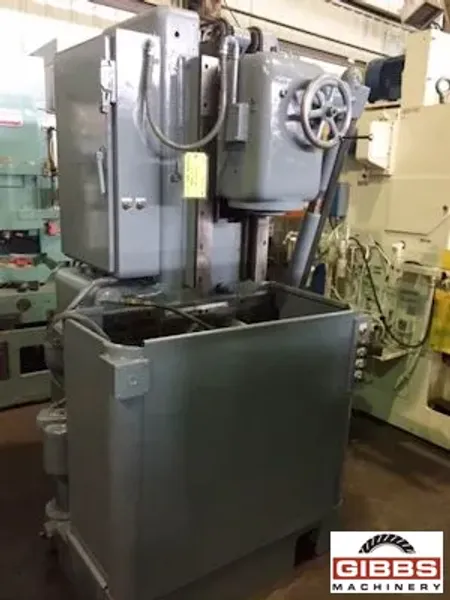

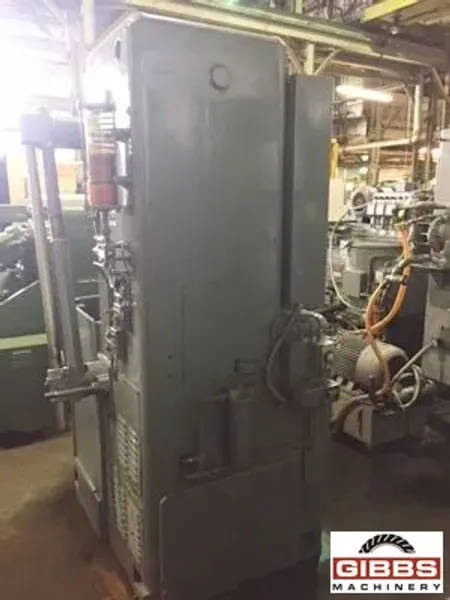

CROSS 65 - Gear Chamfering & Deburring

Stock

12400

Model

65

Dealer Location

Michigan

Spec Sheet

Highlights:
  • Complete with Cutter
  • Power Cylinder
  • Work Spindle
  • Change Gears
  • Coolant System
  • Guards
  • Set up for job with cutter
,
  • Year
  • Manufacturer CROSS
  • Control Manufacturer Conventional
  • Maximum Face Width 9.0"
  • Module 6.0
  • Diametral Pitch 4.0
  • Maximum Workpiece Diameter 10.0"
,

MODEL NO. 65 CROSS GEAR POINTING AND CHAMFERING MACHINE

    Specifications:

  • Capacity Of Coolant Tank: 15 gallons or 56 liters
  • Floor Space Required: 53 x 49 inches or 134.6 X 124.5 cm
  • Gear Diameter Capacity: 10 inches or 254 mm
  • Gear Face Capacity: 9 inches or 228.6 mm
  • Gear Pitch Capacity: 4 pitch or finer; 6 module or finer
  • Standard Indexing Range: 10 teeth or 80 teeth; other ranges available
  • Net Weight: 4800 lbs. or 2180 kg
  • F.O.B. TRUCK, LOCATION
