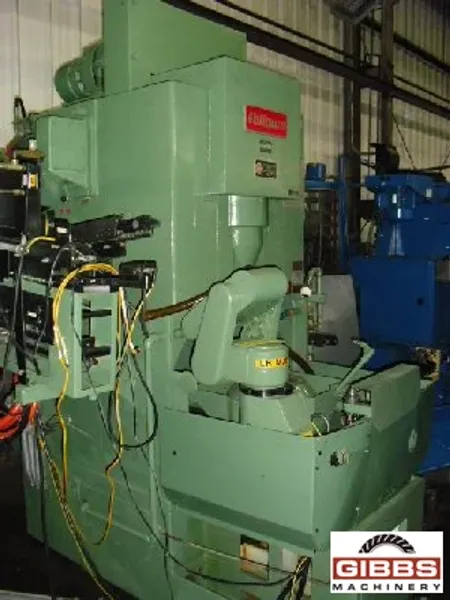

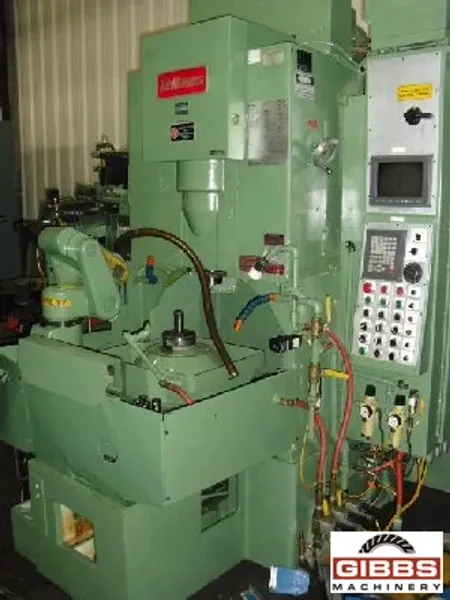

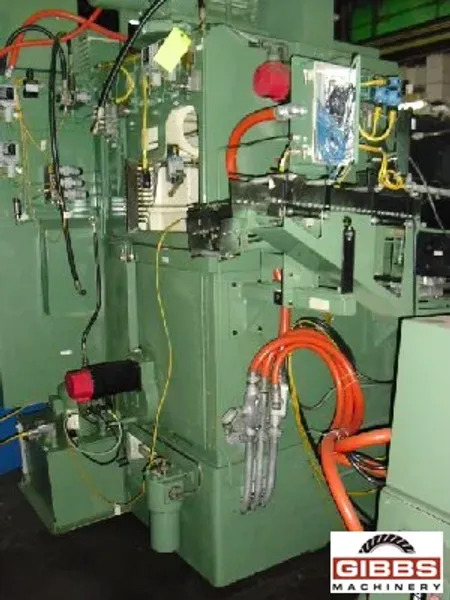

FELLOWS 10-2 - Gear Shaper

Manufacturer

FELLOWS

Category

Gear Machines

Type

GEAR SHAPERS

Stock

16092

Model

10-2

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Fanuc Control
  • Elevating Attachment on Work Spindle
  • Spur Guide
  • 3" Riser
  • Vari-Speed Motor Drive

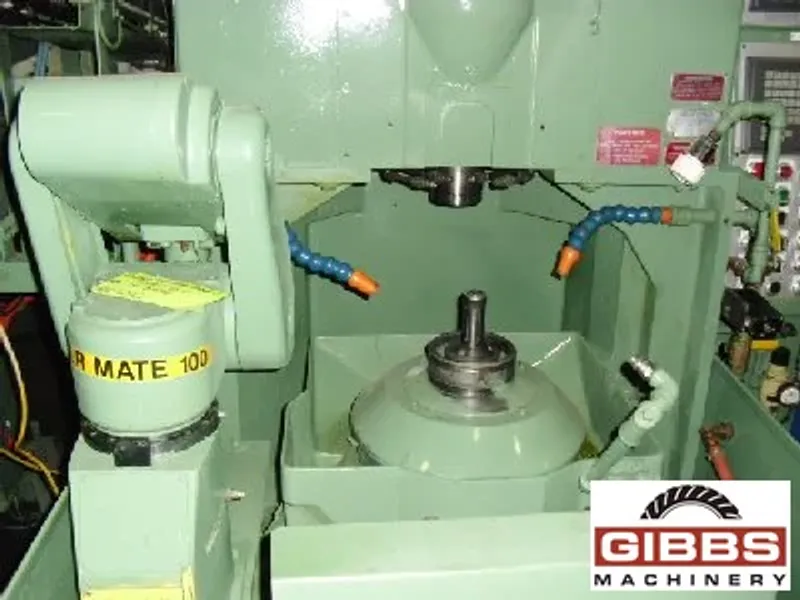

  • LR Mate 100 Robot W/Independent Control
  • 7.5/1.75 HP Motor
  • Worklight
,

Machine Specifications :

  • Year
  • Manufacturer FELLOWS
  • Control Manufacturer Fanuc
  • Diametral Pitch 45.0"
  • Maximum Internal Gear Diameter 10.0"
  • Maximum Workpiece Diameter 10.0"
,
MODEL 10-2 FELLOWS CNC GEAR SHAPER
    Specifications:
  • Max. Pitch Diameter (External): 10"
  • Max. Pitch Diameter (Internal): 10"
  • Max. Diametral Pitch (Spur): 4
  • Max. Diametral Pitch (Helical): 5
  • Max. Face Width 10-2: 2"
  • Max. Helix Angle (Using 5" Cutter): 45 Degrees
  • Max. Overall Length: 118-7/8"
  • Max. Overall Height (Zero Raise): 96-1/2
  • Max. Overall Depth: 53"
  • Net Weight With Motors: 11,000 lbs
  • Approx. Dimensions: 94"L x 80"W x 105"H
