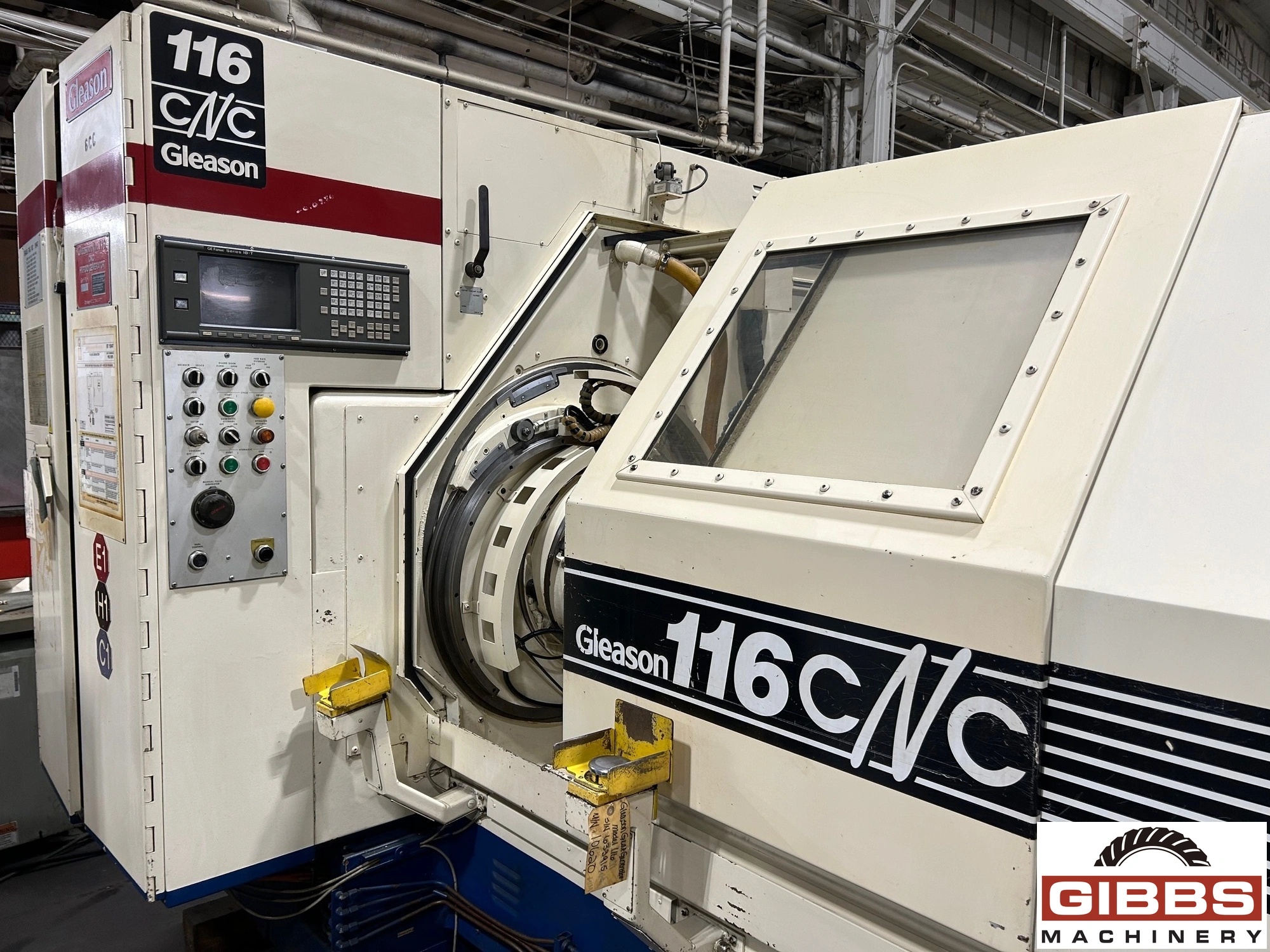

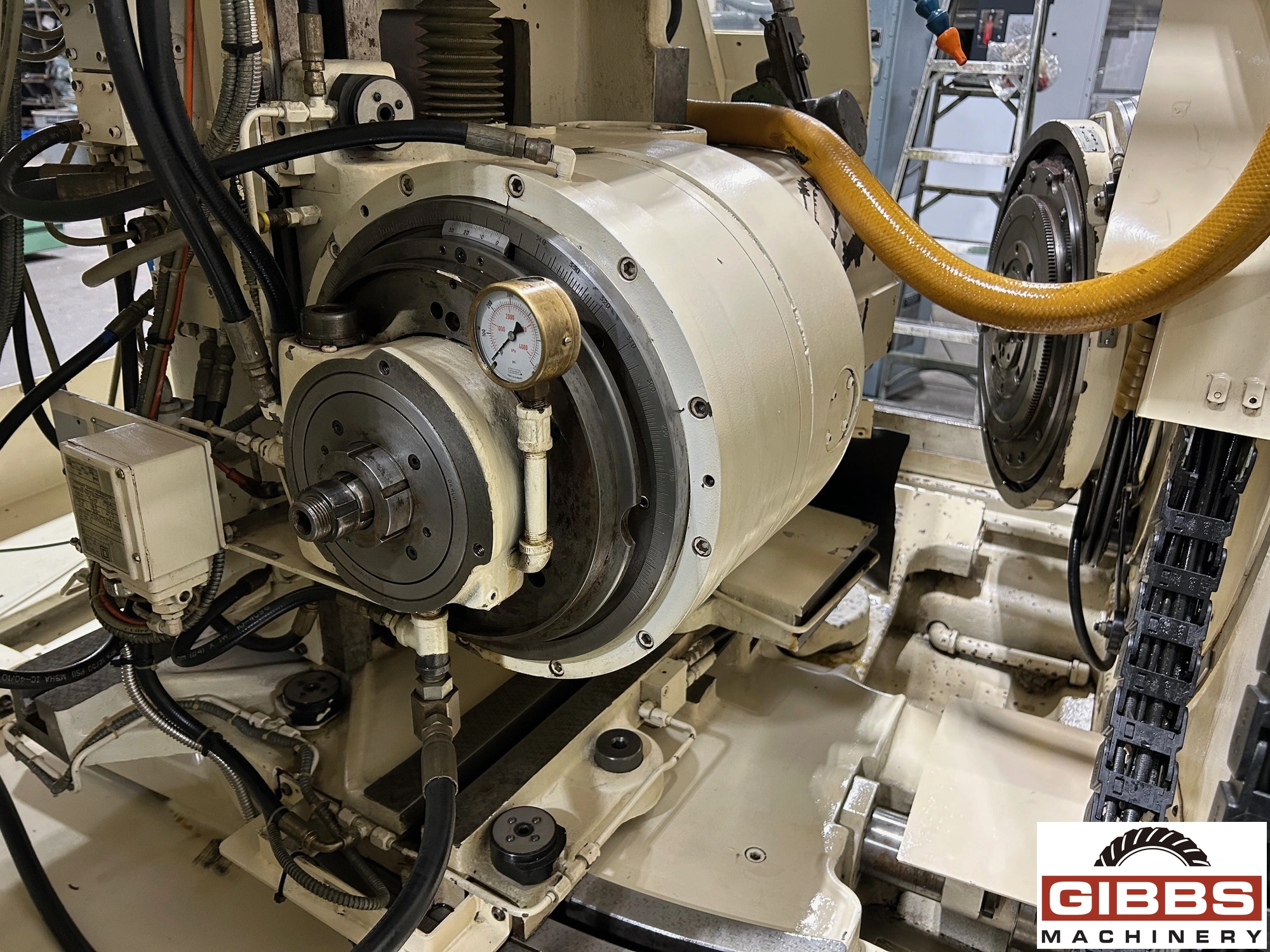

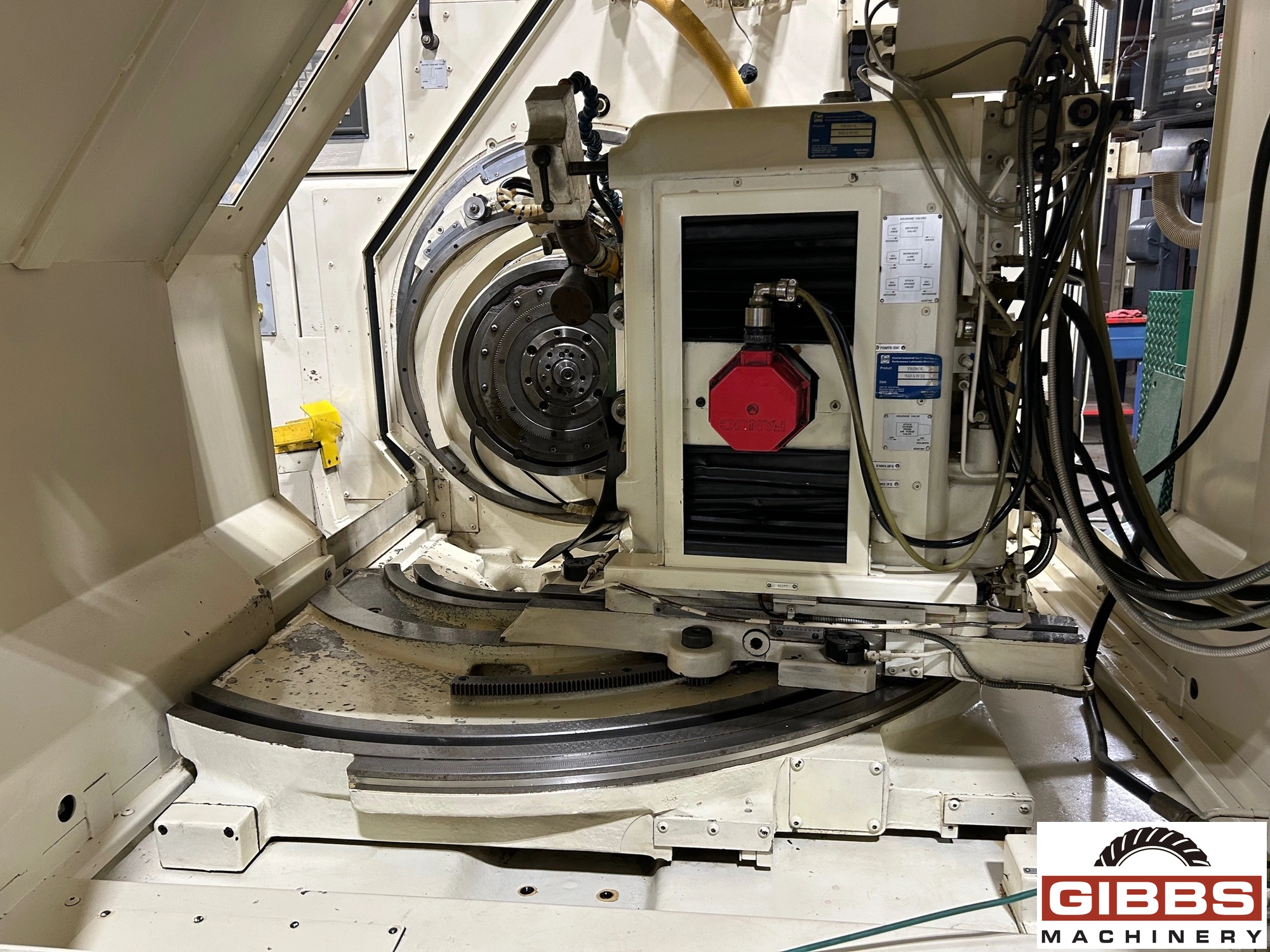

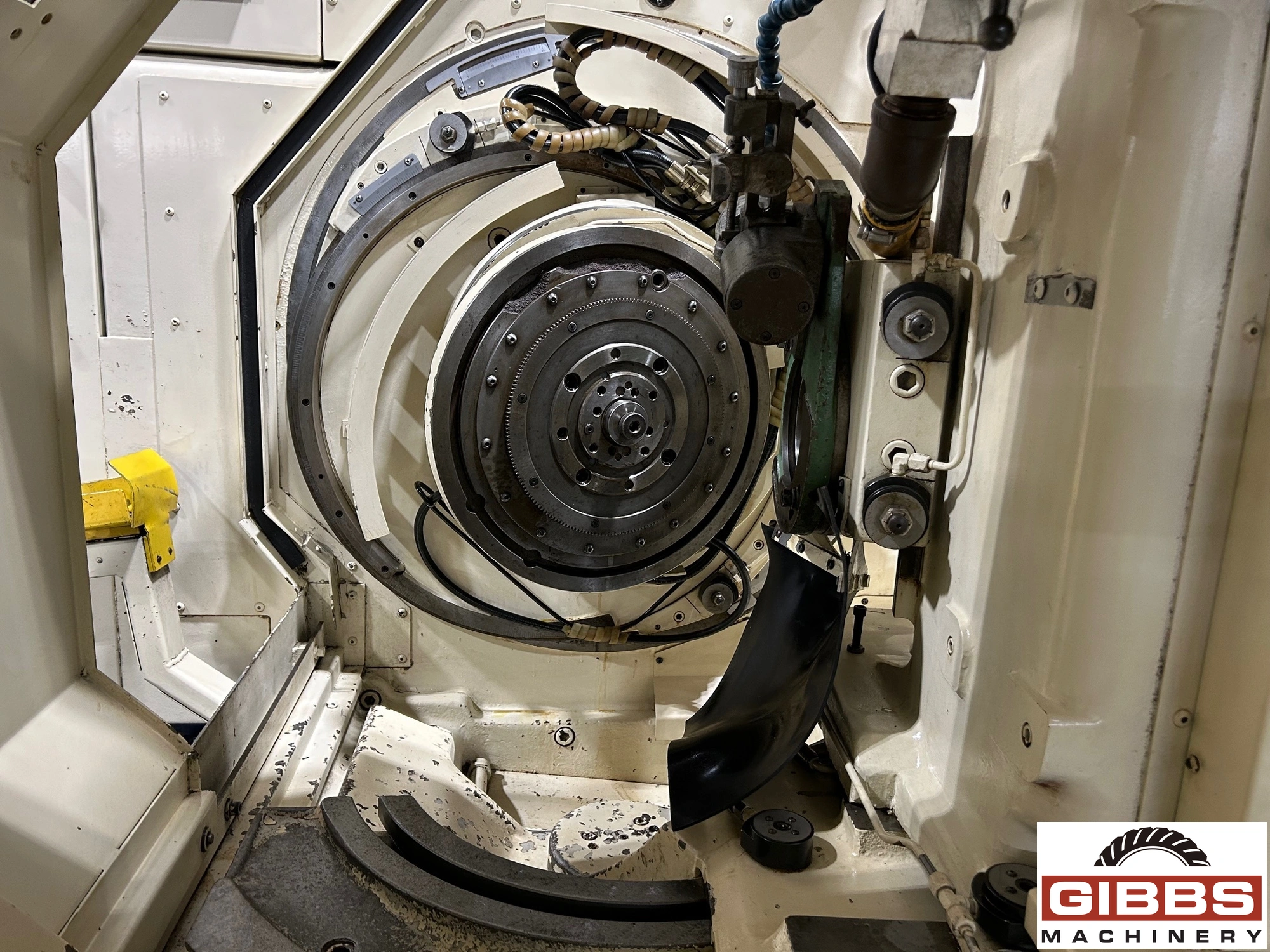

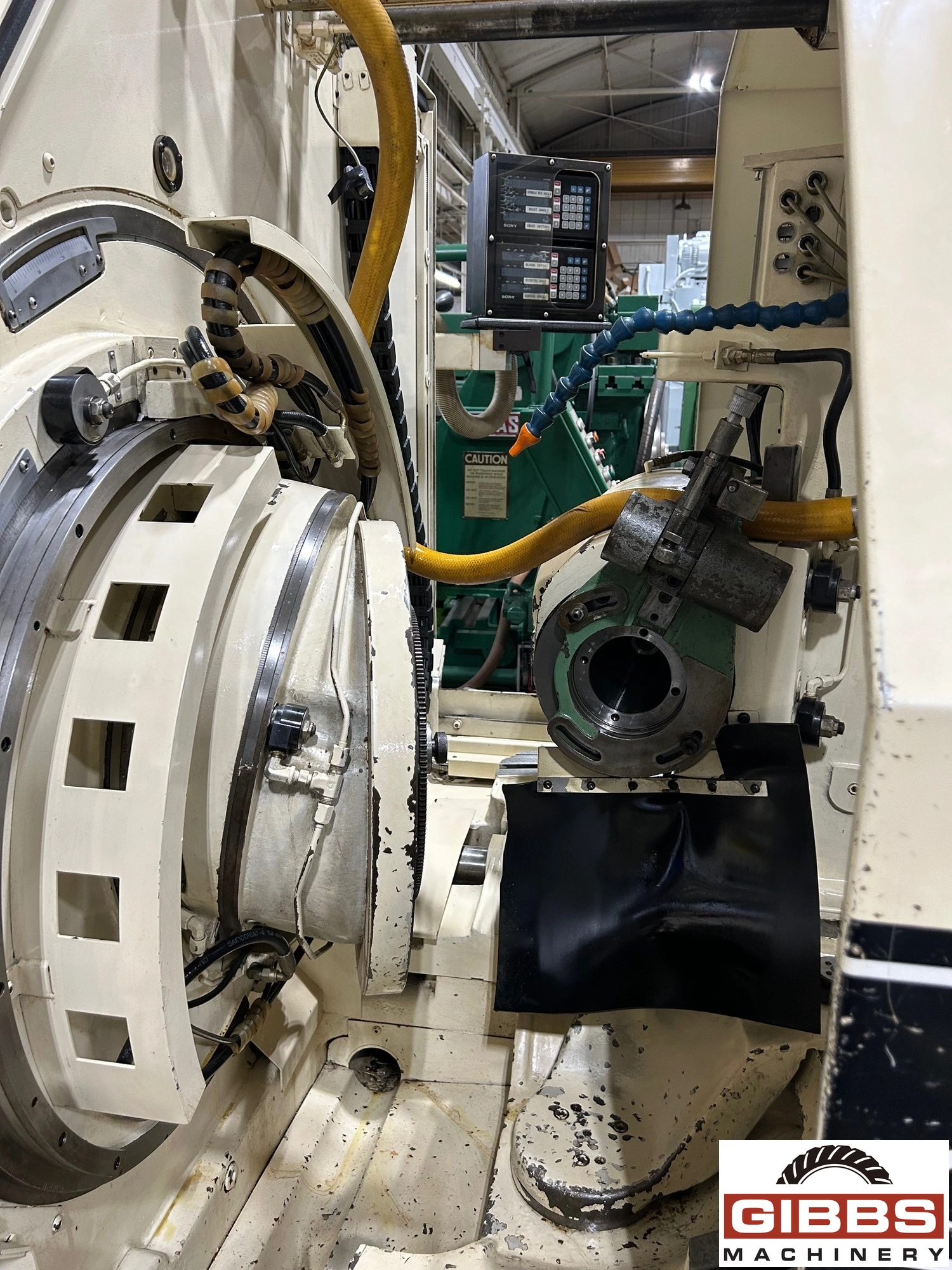

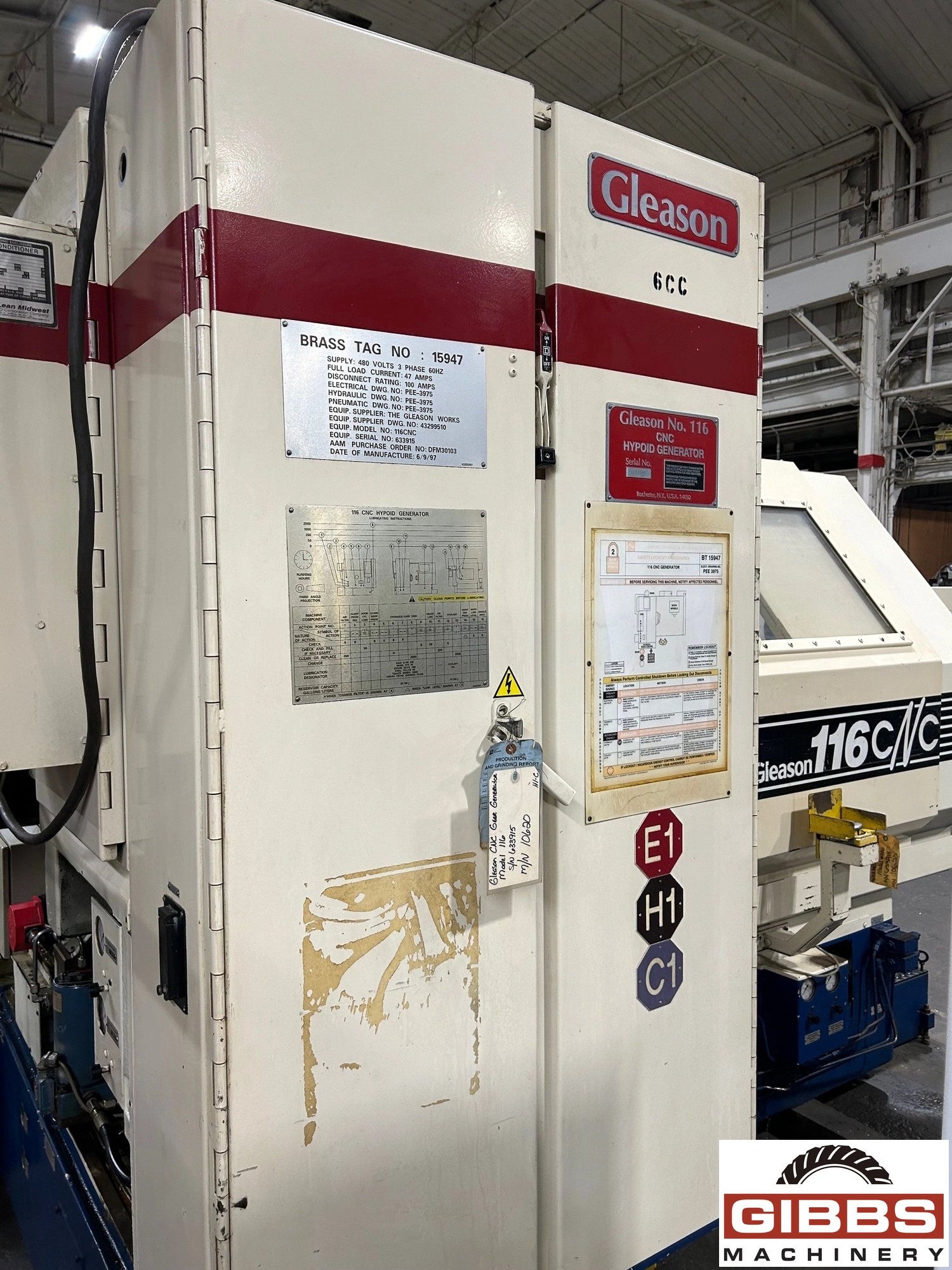

GLEASON 116 - Spiral Bevel Gear Generator

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR GENERATORS, BEVEL, (Spiral/Hypoid)

Stock

10620

Model

116

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Fanuc 18T
  • Hydraulic Clamping
  • 6 Axis DRO
  • Magnetic Chip Separator
  • Enclosed Guarding
,

Machine Specifications :

  • Year
  • Manufacturer GLEASON
  • Control Manufacturer Fanuc
  • Extreme Ratio 10:1
  • Maximum Cone Distance 9.0"
  • Diametral Pitch 2.0
  • Maximum Face Width 2.3"
  • Maximum Diameter Gear 16.0"
,

The Gleason No. 116 Generator has been updated with a new FANUC Series 0-GC Controller, allowing greater ease of operator interaction, increased reliability and reduction in set-up time.

    SPECIFICATIONS:

  • Automotive Version (Jobbing Version)
  • Y Extreme Ratio: 4:1 (10:1)
  • Y Cone Distance: Max (30 Deg. Spiral Angle & 12" Dia. Cutter: 7.40 (9.00")
  • Full Depth, Maximum: 1.00"
  • Face Width, Maximum: 2.30" (2.750")
  • Range of Tooth Numbers: 5 to 150 Inclusive
  • Maximum Gear Pitch Dia. of: (18.00")
  • Typical 30 Deg. Spiral Ang.: 14.00"
  • Gear Using 12" Dia. Cutter: 14.00" (16.00")
  • At The Following Ratios: 10.50" (12.75")
  • Diametral Pitch (Coarsest): 2.00"
  • MACHINE SPECIFICATIONS:
  • Machine Center to Nose Of Spindle: 2.50" to 13.50"
  • Root Angle: -12 Deg. to 66 Deg. (-12 Deg. to 90 Deg.)
  • Sliding Base: Withdraw 2",Advance 3"
  • Vertical Offset: 4.50" Up and Down
  • Cutter Spindle Rotation Angle (Tilt): 0 Deg. to 180 Deg.
  • Swivel Angle: 0 Deg. to 355 Deg.
  • Eccentric Angle: 0 Deg. to 160 Deg.
  • Cradle Angle: Deg. to 180 Deg.
  • AXIS SPEEDS - MAXIMUM:
  • Y Cutter Spindle: 115 RPM
  • WORKSPINDLE DIMENSIONS:
  • Diameter of Tapered Hole at Large End: 3 29/32"
  • Taper Per Foot: 39/64"
  • Depth of Taper: 6"
  • Diameter of Hole Through Spindle: 3 1/16"
  • Diameter of Spindle Nose: 5 1/2"
  • Length x Width x Height: 126" x 102" x 84" (Width can be adjusted to 90")
  • Weight: 24,000 lbs
