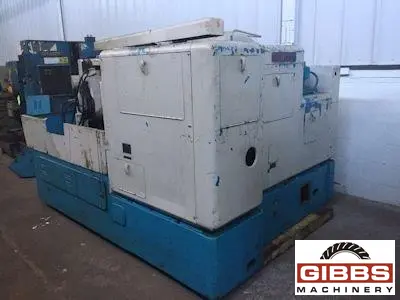

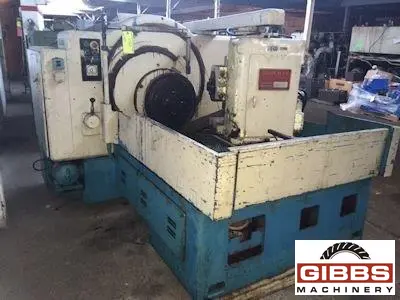

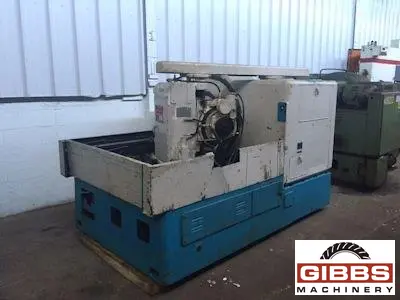

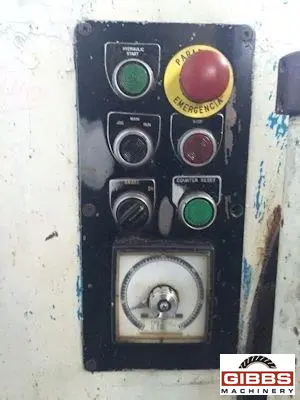

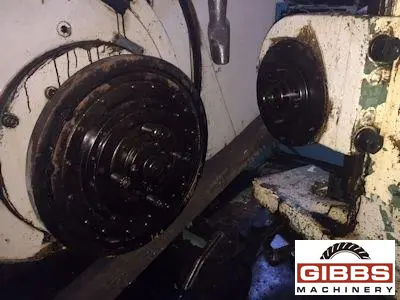

GLEASON 116 - Spiral Bevel Gear Generator

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR GENERATORS, BEVEL, (Spiral/Hypoid)

Stock

16099

Model

116

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Modified Roll
  • Hydraulic Chucking
  • Change Gears
  • Coolant System
  • 415/3/50 Electrics
,

Machine Specifications :

  • Year
  • Manufacturer GLEASON
  • Control Manufacturer Conventional
  • Extreme Ratio 10:1
  • Maximum Cone Distance 9.0"
  • Diametral Pitch 2.0
  • Maximum Face Width 2.75"
  • Maximum Diameter Gear 18.0"
,

The No. 116 Hypoid Generator is a completely automatic, high speed machine for cutting spiral bevel, Zero bevel and hypoid gears. The machine is outstanding for its range of work-capable of roughing and finishing both gears and pinions. It handles diame ters up to 18 inches, and gears of 2 diametral pitch and finer. This new generator offers many advantages: improved quality of product, increased production rates, longer cutter life, easier setup and operation, simplified development of tooth bearing and the use of the Unitool method.

    Specifications:

  • Maximum Pitch Diameter: 18"
  • Maximum Rate: 10/1
  • Maximum Cone Distance: 9"
  • Work Head Angle: 5 degrees - 84 degrees
  • Diametral Pitch, Coarsest: 2
  • Face Width, Maximum: 2-3/4"
  • Number of Teeth: 5-175
  • Spindle:
  • Diameter Of Taper Hole, Large End: 3-29/32"
  • Taper Per Foot: 39/64"
  • Depth Of Taper: 6"
  • Diameter Of Hole Thru: 3-1/16"
  • Spindle Nose To Centerline: 5-1/2"
  • Speeds and Feeds:
  • Cutter Speeds, Feet Per Minute: 20-115 RPM
  • Feeds, Seconds Per Tooth: 9-80 Seconds
  • Electrical Equipment:
  • Feed Motor: 5 HP, 1800 RPM
  • Hydraulic Pump Motor: 3/4 HP, 1800 RPM
  • Coolant Motor: 1/2 HP, 3600 RPM
  • Floor Space: 75" x 114"
  • Net Weight: 23,400 lbs
  • Shipping Weight, Boxed for Export:
  • 1 Case - 10'6" x 8'9" x 6'5": 26,100 lbs
