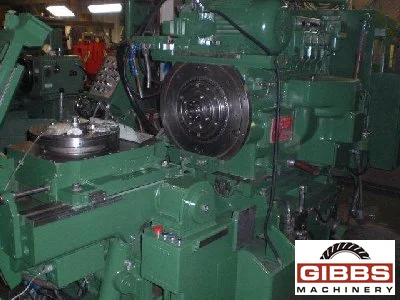

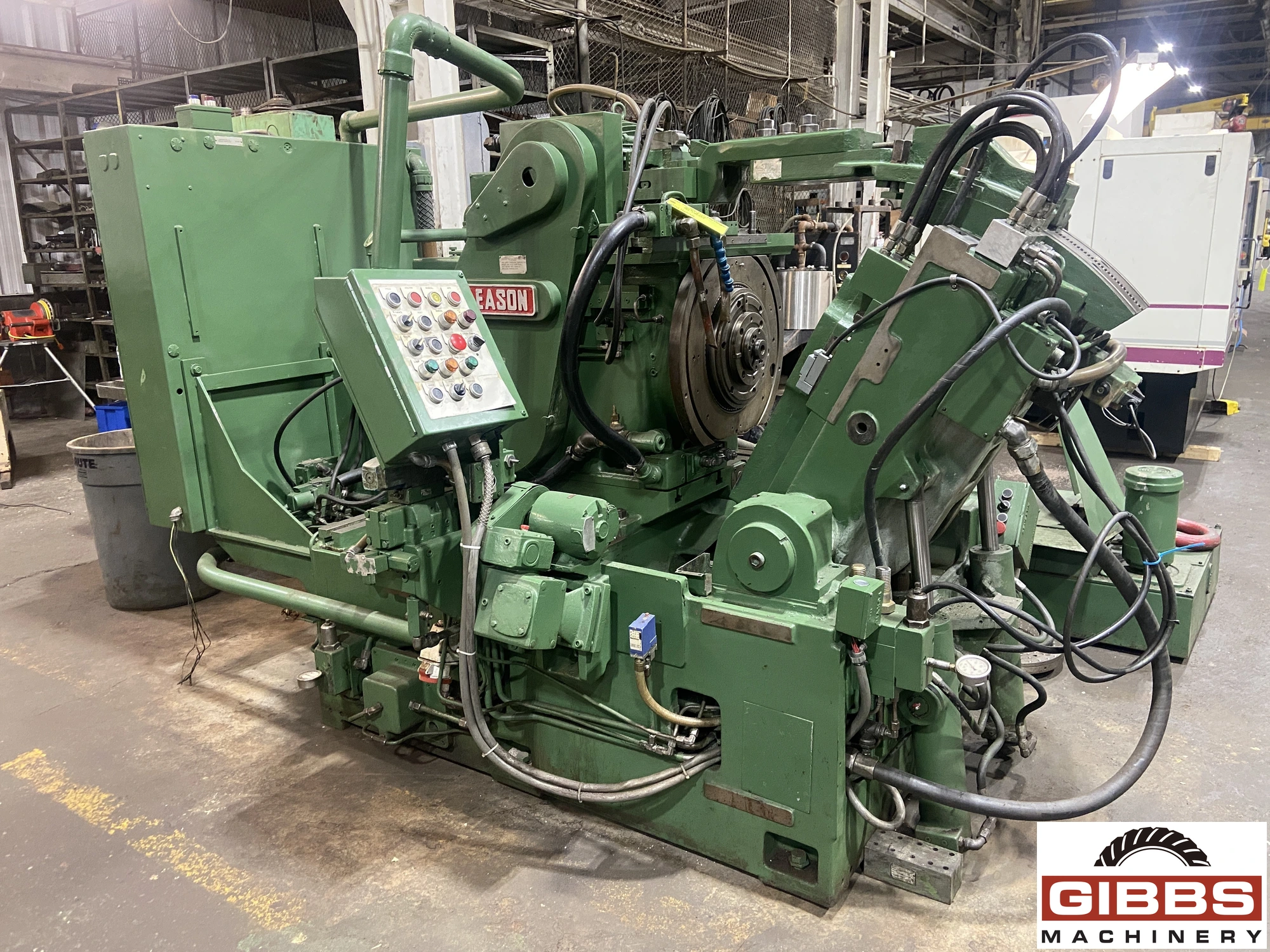

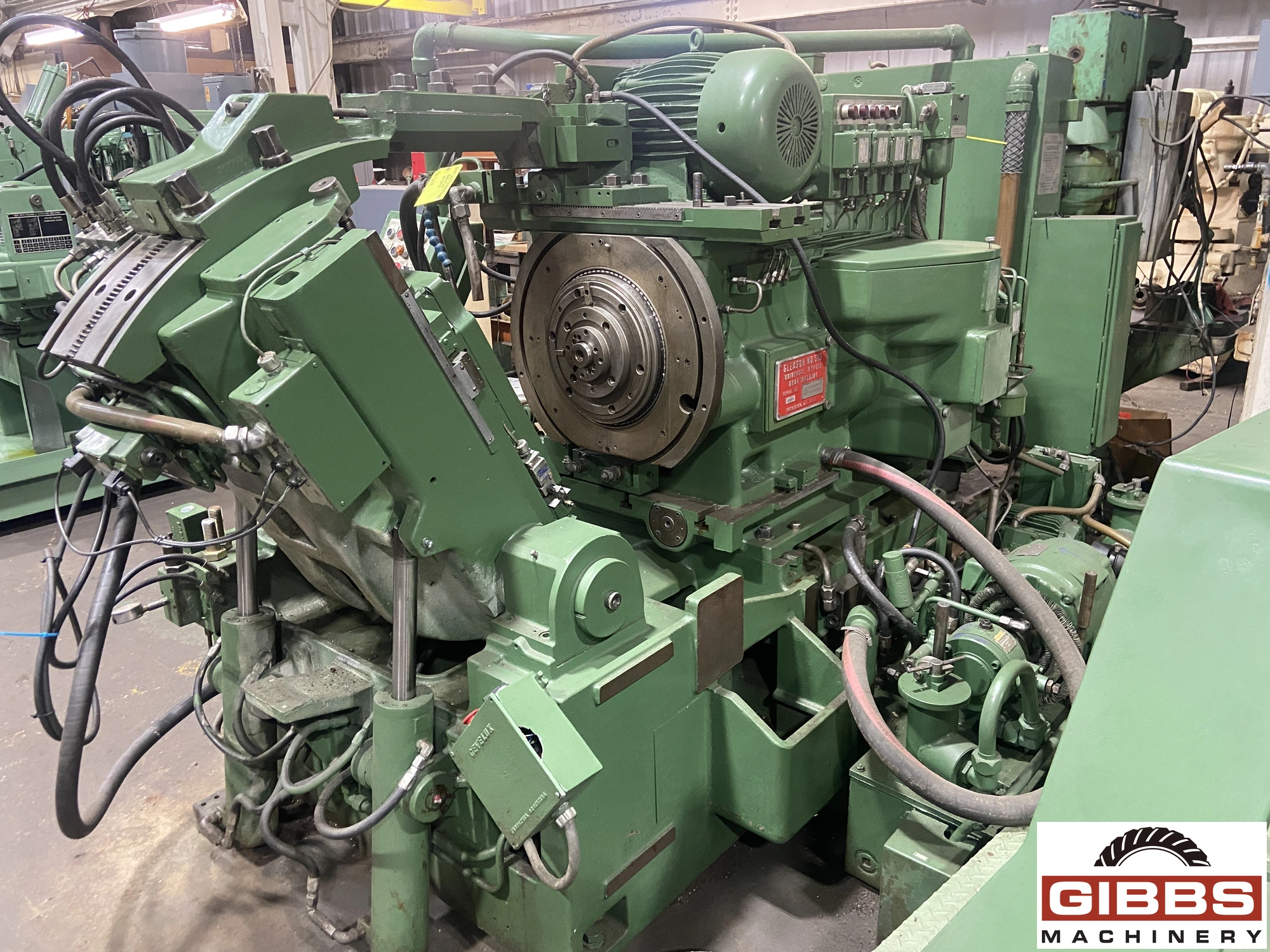

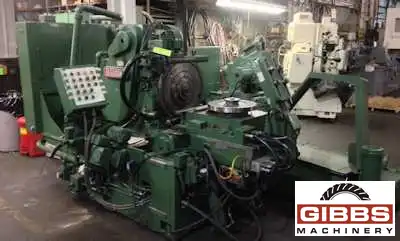

GLEASON 610 - Spiral Bevel Gear Generator

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR GENERATORS, BEVEL, (Spiral/Hypoid)

Stock

16078

Model

610

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Hydraulic Workholding

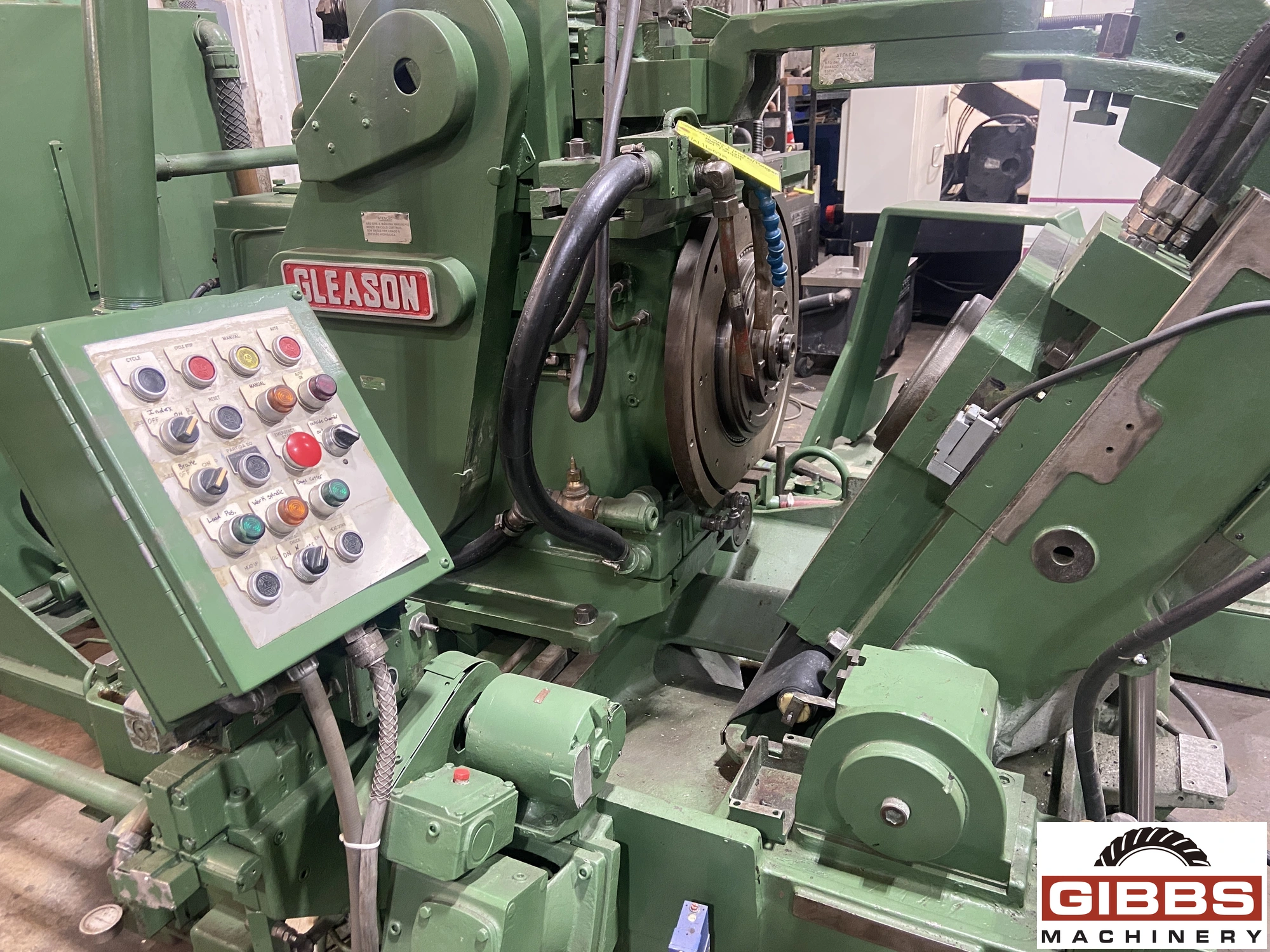

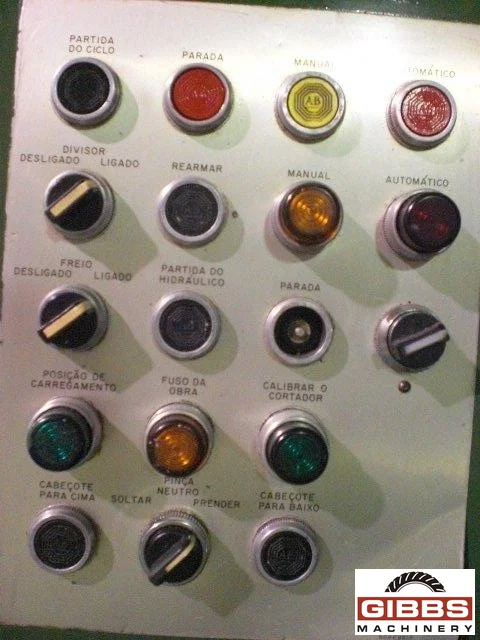

  • Pendant Control
  • Chip Conveyor
  • Index Plate
  • Geneva Cam
  • Change Gears

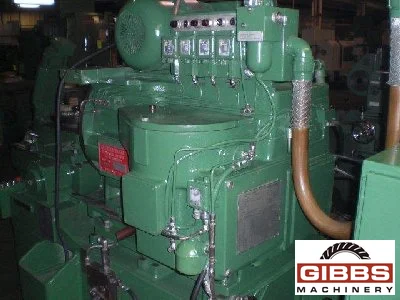

  • Hydraulic System
  • Coolant System
  • Manuals
,

Machine Specifications :

  • Year
  • Manufacturer GLEASON
  • Extreme Ratio 10:1
  • Maximum Face Width 3.0"
  • Maximum Diameter Gear 20.0"
,

MODEL 610 GLEASON GEAR ROUGHER/FINISHER

    Specifications:

  • Maximum Gear Pitch Diameter: 20"
  • Cutter Diameters: 9", 10.5", 12",14",16", 18"
  • Whole Depth: 1.250"
  • Root Angle: 60 to 80 deg.
  • Face Width: 3.0"
  • Extreme Ratio (Minimum): 2.25 to 1
  • Number of Teeth: 20 to 75
  • Diameter of Taper Hole at Large End: 3-27/64"
  • Cutter Speeds (Per Minute) for Roughing: 15.6' to 87.7'
  • Feeds (Seconds Per Tooth) for Roughing: 3 to 35
  • Cutter speeds (Per Minute) for Finishing: 6.8' to 20.5'
  • Feeds (Seconds Per Tooth) for Finishing: 3 to 9
  • Floor Space: 118" x 86.5" x 70" H
  • Weight: 17,500 lbs
