GLEASON 22 - Spiral Bevel Gear Generator

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR GENERATORS, BEVEL, (Spiral/Hypoid)

Stock

20758

Model

22

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Hydraulic Chucking
  • Coolant
  • Index Plates
  • Gears
,

Machine Specifications :

  • Year
  • Manufacturer GLEASON
  • Control Manufacturer Conventional
  • Extreme Ratio 12:1
  • Maximum Cone Distance 11.0"
  • Diametral Pitch 1.5
  • Maximum Face Width 4.0"
  • Maximum Diameter Gear 22.0"
,

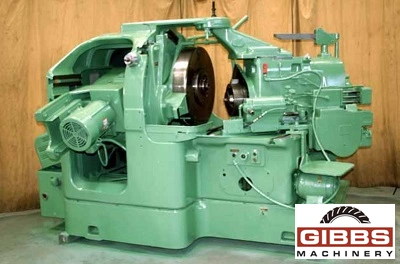

MODEL 22 GLEASON HYPOID GEAR GENERATOR ROUGHER

    EQUIPPED WITH:

  • Hydraulic Chucking
  • Coolant
  • Index Plates
  • Gears
  • SPECIFICATIONS:
  • Machine Capacity:
  • Longest Cone Distance:11"
  • Largest Pitch Angle: 90 deg.
  • Smallest Pitch Angle (without chamfering or burring attachments):45 deg.
  • Largest Pitch Diameter:-1 to 1 Ratio:15 1/2"
  • 12 to 1 Ratio:22"
  • Largest Pitch (diametral):1 1/2 D.P.
  • Maximum Face Width:4"
  • Index Range(number of teeth):31 to 78
  • Feed (seconds per tooth):5 to 40
  • Work Spindle:
  • Diameter of Tapered Nose(large end):6 7/8"
  • Length of Tapered Nose:3/4"
  • Taper Per Foot:1/2"
  • Diameter of Hole Through:2"
  • Spindle Nose to Center Line of Machine:4 1/2" to 8"
  • Cutter:
  • Diameter:9", 12", 18"
  • Cutter Speeds:100 to 150
  • Main Motor:10 H.P., 1800 R.P.M.
  • Floor Space: 84" x 103"
  • Weight:18,500 lbs.
