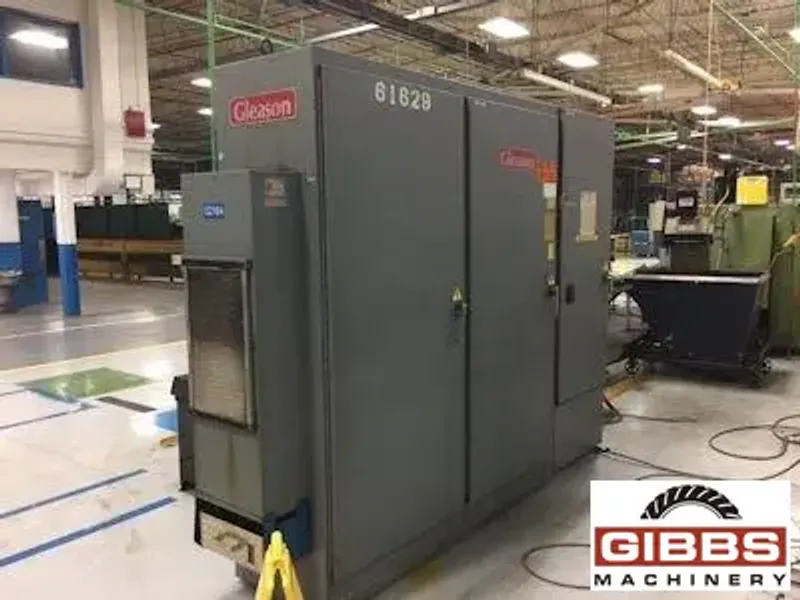

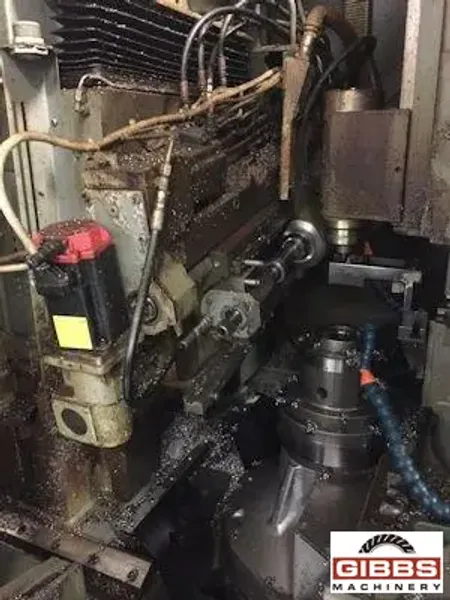

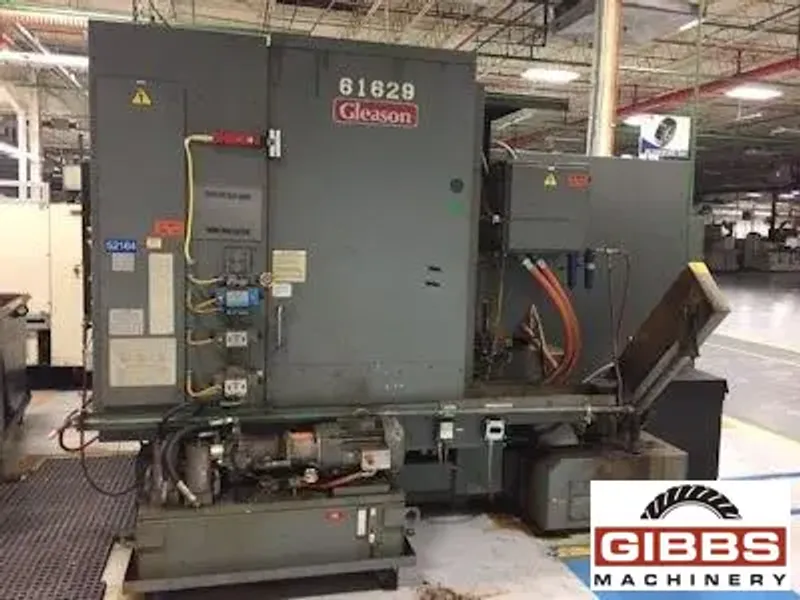

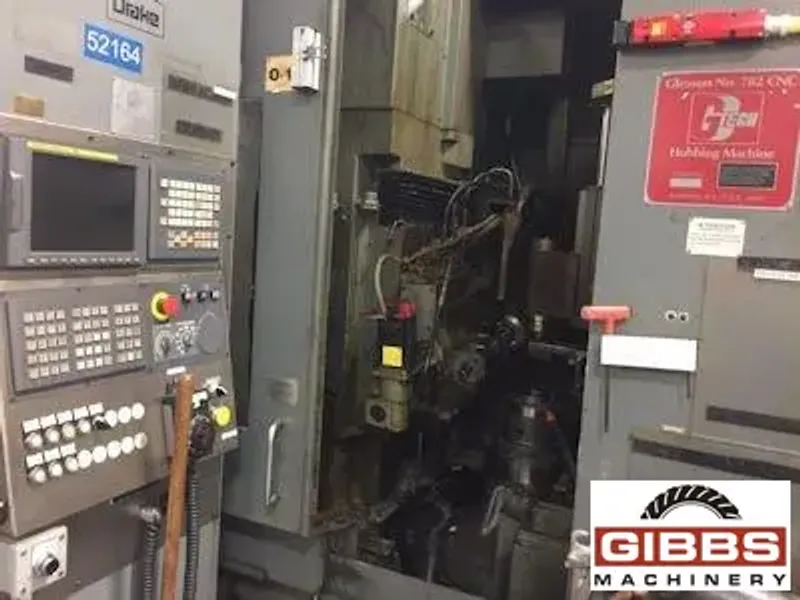

GLEASON 782 - Gear Hobber

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR HOBBERS, CNC

Stock

23268

Model

782

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

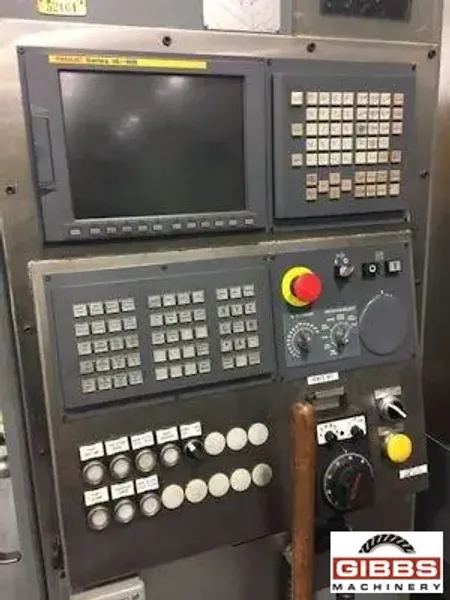

  • Fanuc 16iM Control
  • Hydraulic Chuck
  • Tailstock w/Center
  • Hob Setting Stand
  • High Helix Head
  • Transformer

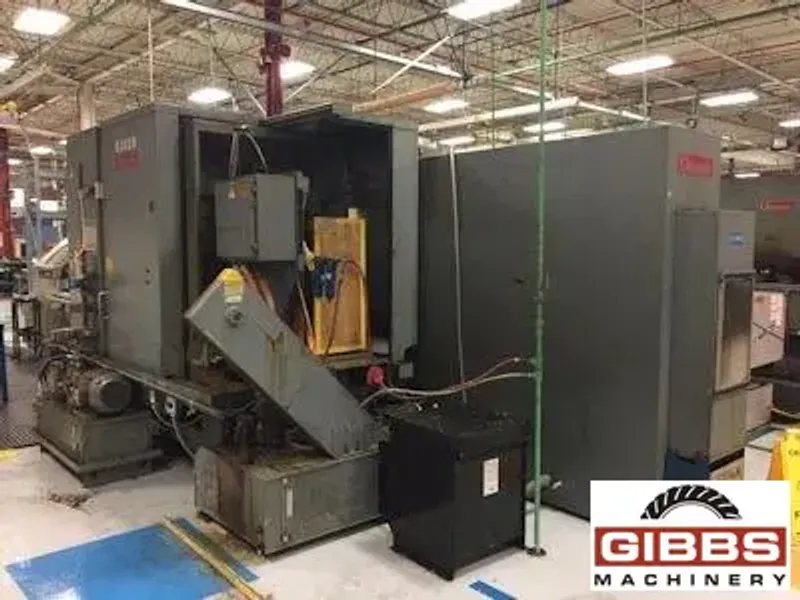

  • Chip Conveyor
  • Coolant
  • Hydraulic System

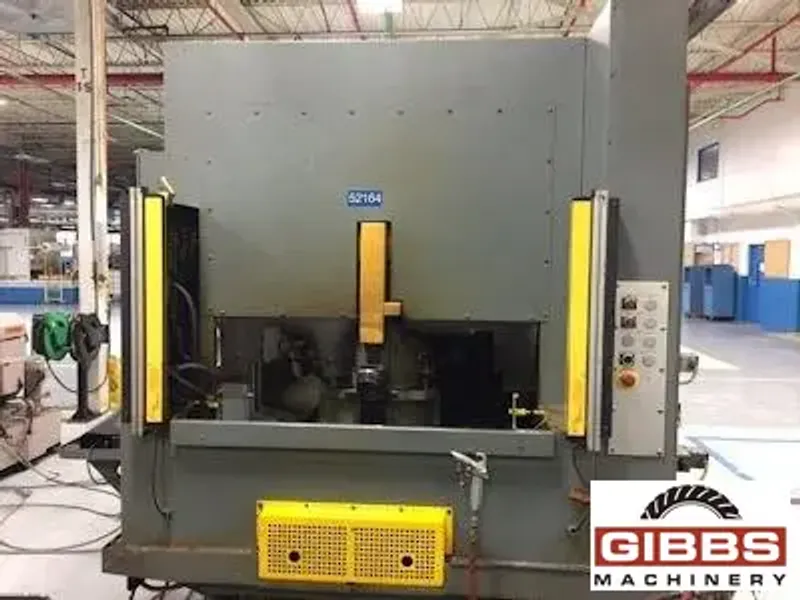

  • Light Curtain
  • 180 deg. Auto Loader
  • Auto Retract
,

Machine Specifications :

  • Year
  • Manufacturer GLEASON
  • Control Manufacturer Fanuc
  • Hob Speed 680 RPM
  • Maximum Hob Diameter 5.0"
  • Axial Travel 11.5"
  • Maximum Diametral Pitch 4.0
  • Maximum Workpiece Diameter 12.0"
  • Horz/Vert Vert
,

GLEASON 782 G-TECH CNC GEAR HOBBER REBUILT 2006

    Specifications:

  • Max. Workpiece Diameter: 12"
  • Max. Diametral Pitch: 4 NDP
  • Max. Helix Angle: +/- 45 deg.
  • Min./Max. Number of Teeth: 4/256
  • Min./Max. Center Distance from Hob Spindle to Worktable: 1"/12.5"
  • Min./Max. Height Worktable To Center of Hob Spindle: 6.25"/17.75"
  • Max. Distance Worktable to Tailstock Center: 32"
  • Max. Axial Hob Slide Travel: 11.5"
  • Max. Radial Slide Travel: 11.5"
  • Worktable Mounting Diameter: 10.75"
  • Max. Hob Diameter: 5"
  • Max. Hob Length: 8.5"
  • Tangential Slide Travel (Hob Shift): 7.25"
  • Hob Speed Range: 80 to 680 rpm
  • Worktable Speed: 1-110 rpm
  • Carousel Lift Piston Capacity: 100lbs
  • Approximate Dimensions LxWxH: 145" x 112" x 98.75"
  • Approximate Weight: 18,000lbs
