GLEASON 15 - Gear Tester

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR TESTERS

Stock

23194

Model

15

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Machine Specifications :

  • Year
  • Manufacturer GLEASON
  • Maximum Workpiece Diameter 20.0"
,

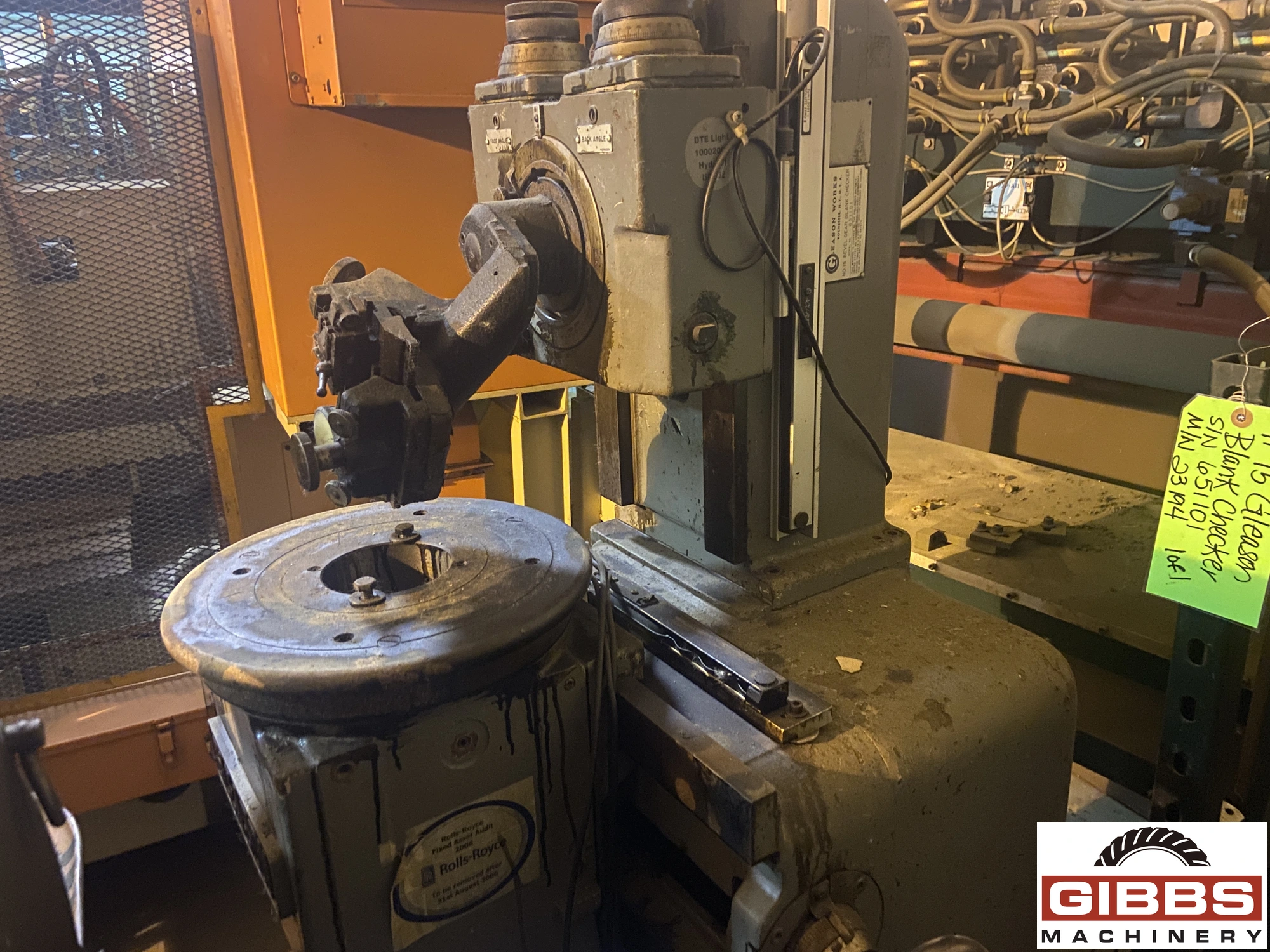

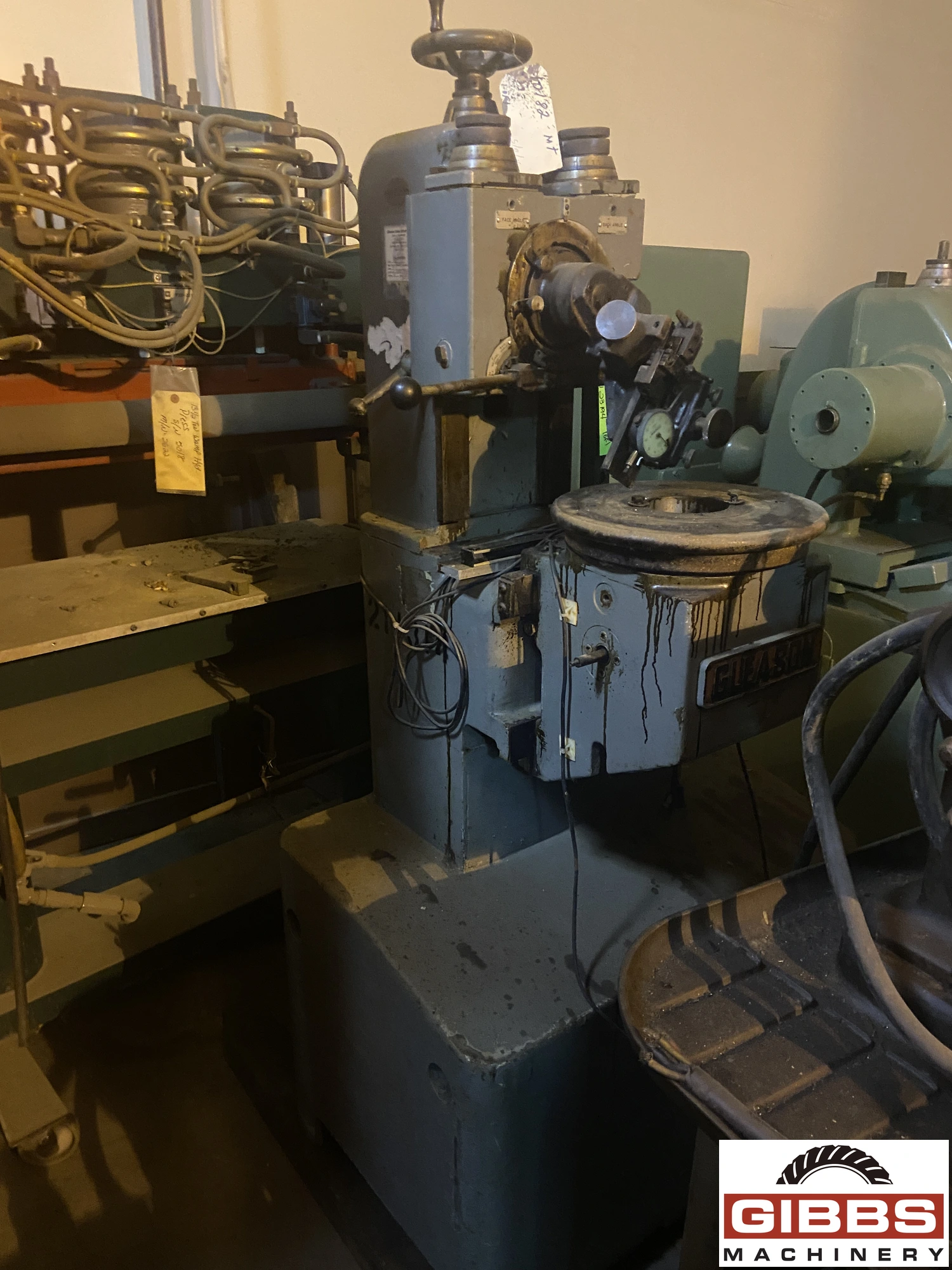

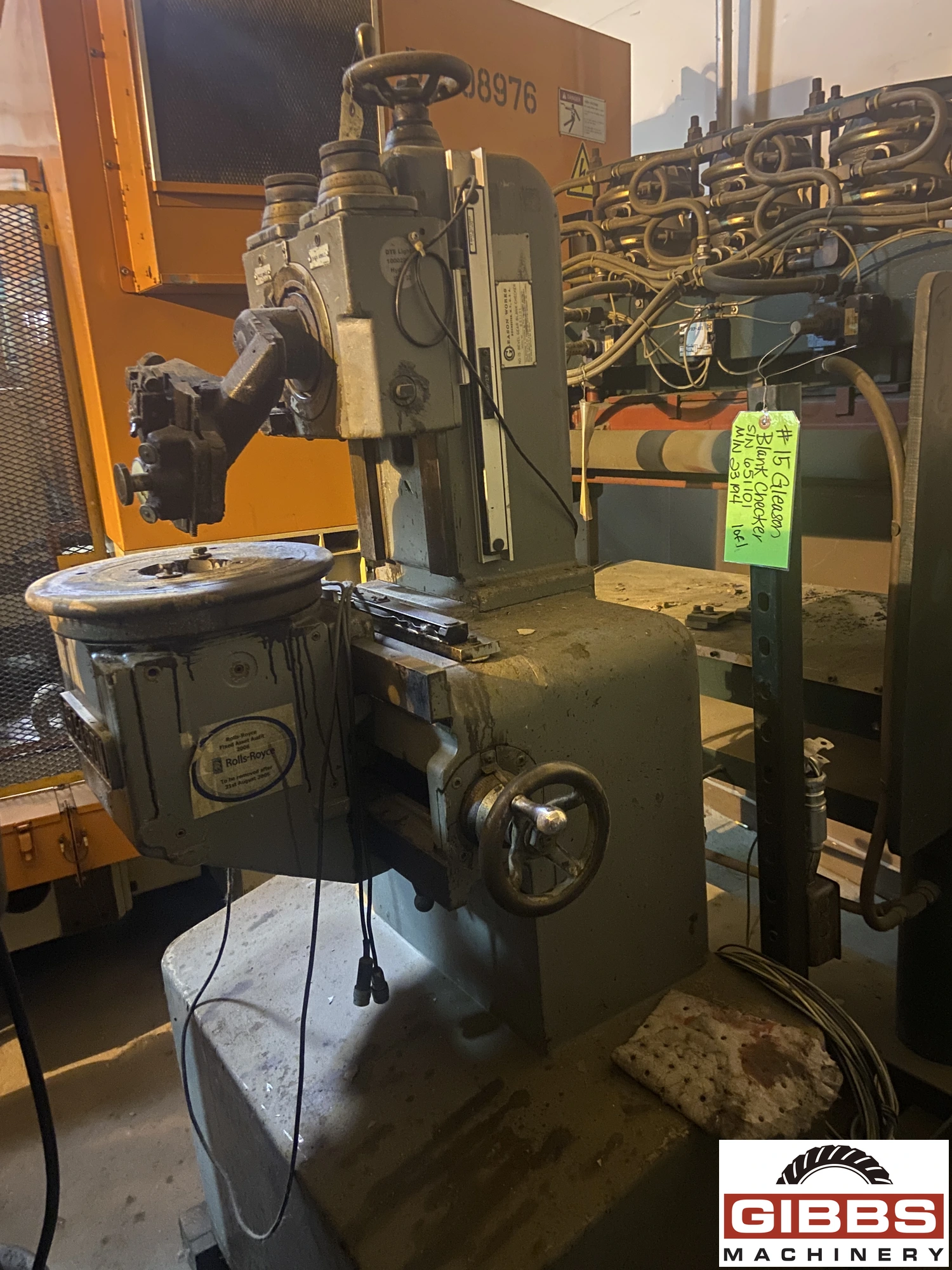

Used Gleason 15 Gear Blank Checker, ideal for precision work with max diameter of 20". Features include adjustable reading accuracy and resolution. Compact 22"x32-11/16" footprint, 68-1/2" height, and weighing 1,900 lbs.

    EQUIPPED WITH:

  • SPECIFICATIONS:
  • Max. Diameter:20"
  • Min. Diameter: 2"
  • Max. Spindle Nose to Crown: 10"
  • Min. Spindle Nose to Crown: 2"
  • Back Angle up to 70 deg.: 4"
  • Back Angle 70-75 deg.: 4-1/4"
  • Back Angle 75-80 deg.: 4-1/2"
  • Back Angle 80-85 deg.: 4-3/4"
  • Back Angle Over 85 deg.
  • Travel of Indicator (Face Angle): 2"
  • Travel of Indicator (Back Angle): 1"
  • Max. Length Between Centers: 17-3/4"
  • Min. Length Between Centers: 6-1/2"
  • Diameter of Taper Bore, Large End: 3-29/32"
  • Taper Per Foot: 6"
  • Total Travel Vertical & Horizontal: 8.5", 10.5"
  • Reading Travel Vertical & Horizontal: 8", 10"
  • Ratio Display/Travel Vertical & Horizontal: 1/1, 2/1
  • Reading Accuracy at Sensor: +/-.0005"
  • Reading Accuracy at Display: +/-.0005"
  • Reading Resolution: +/-.0001"
  • Display Reset Adjust to "0" at Any Place in : 8" Travel
  • Min. High Reading: 7.9999
  • Floor Space: 22" x 32-11/16"
  • Height: 68-1/2"
  • Net Weight: 1,900 lbs
  • Shipping Weight (Boxed for Export): 2,175 lbs
  • Size of Case: 48" x 46" x 78"
