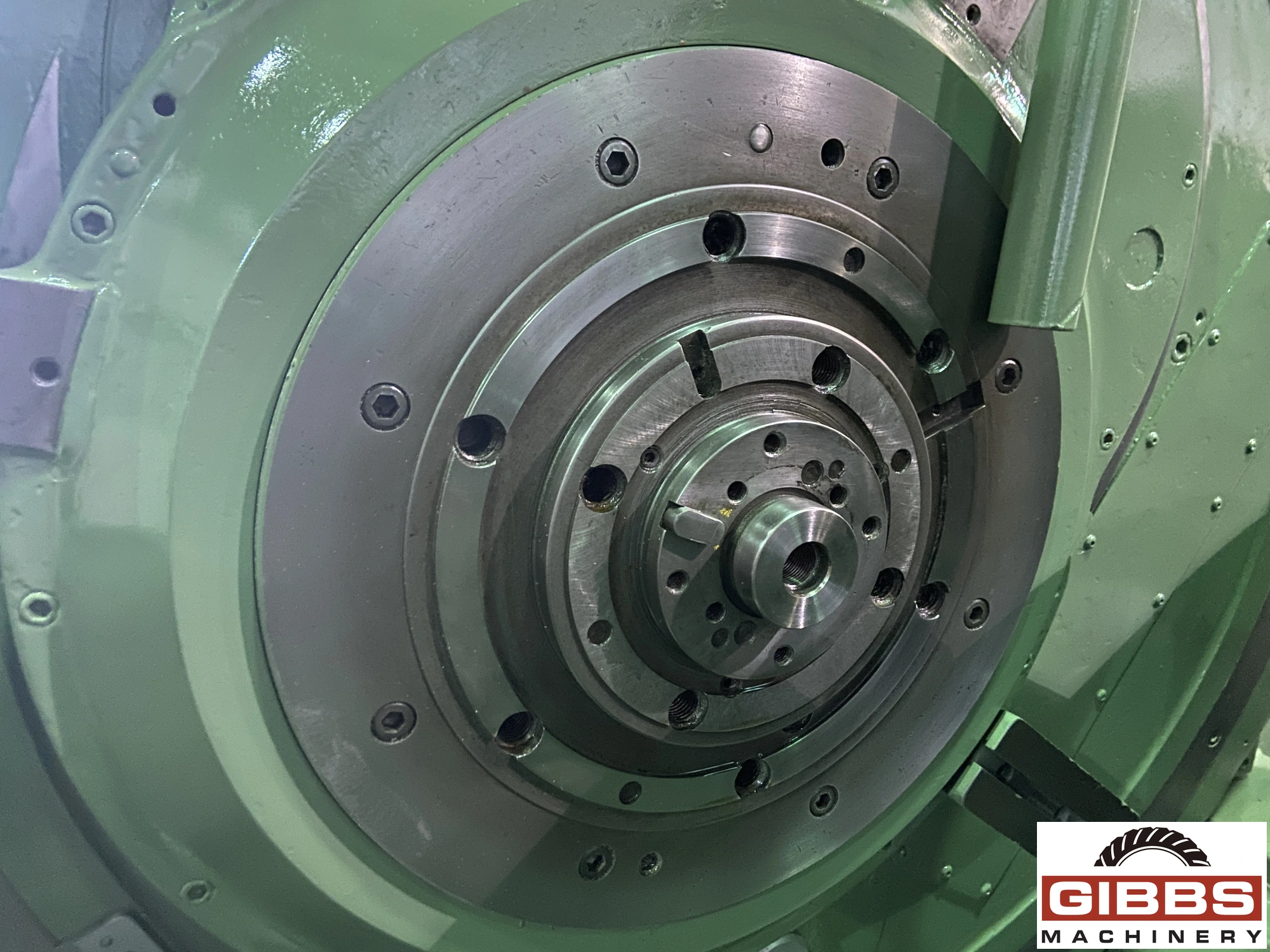

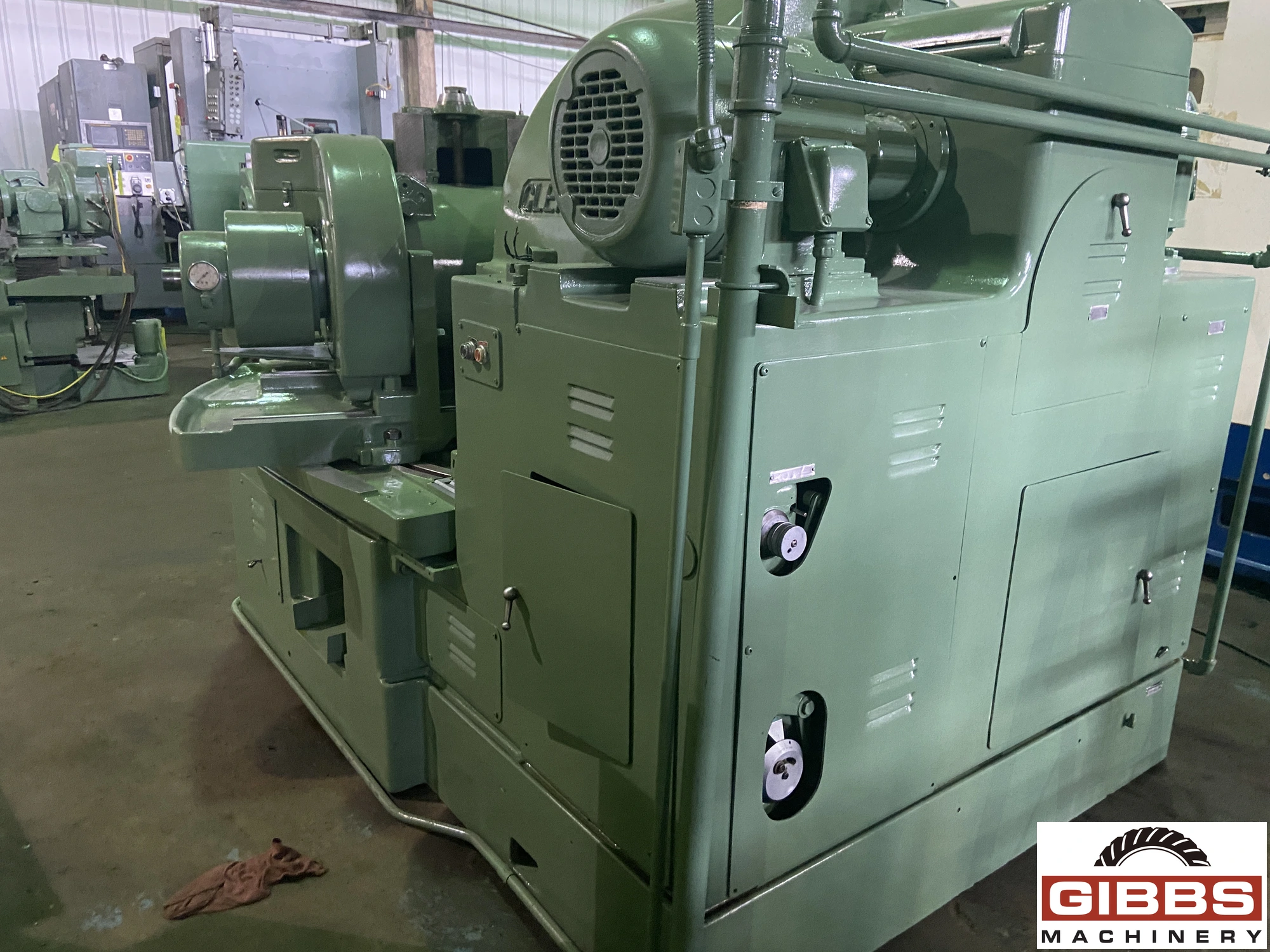

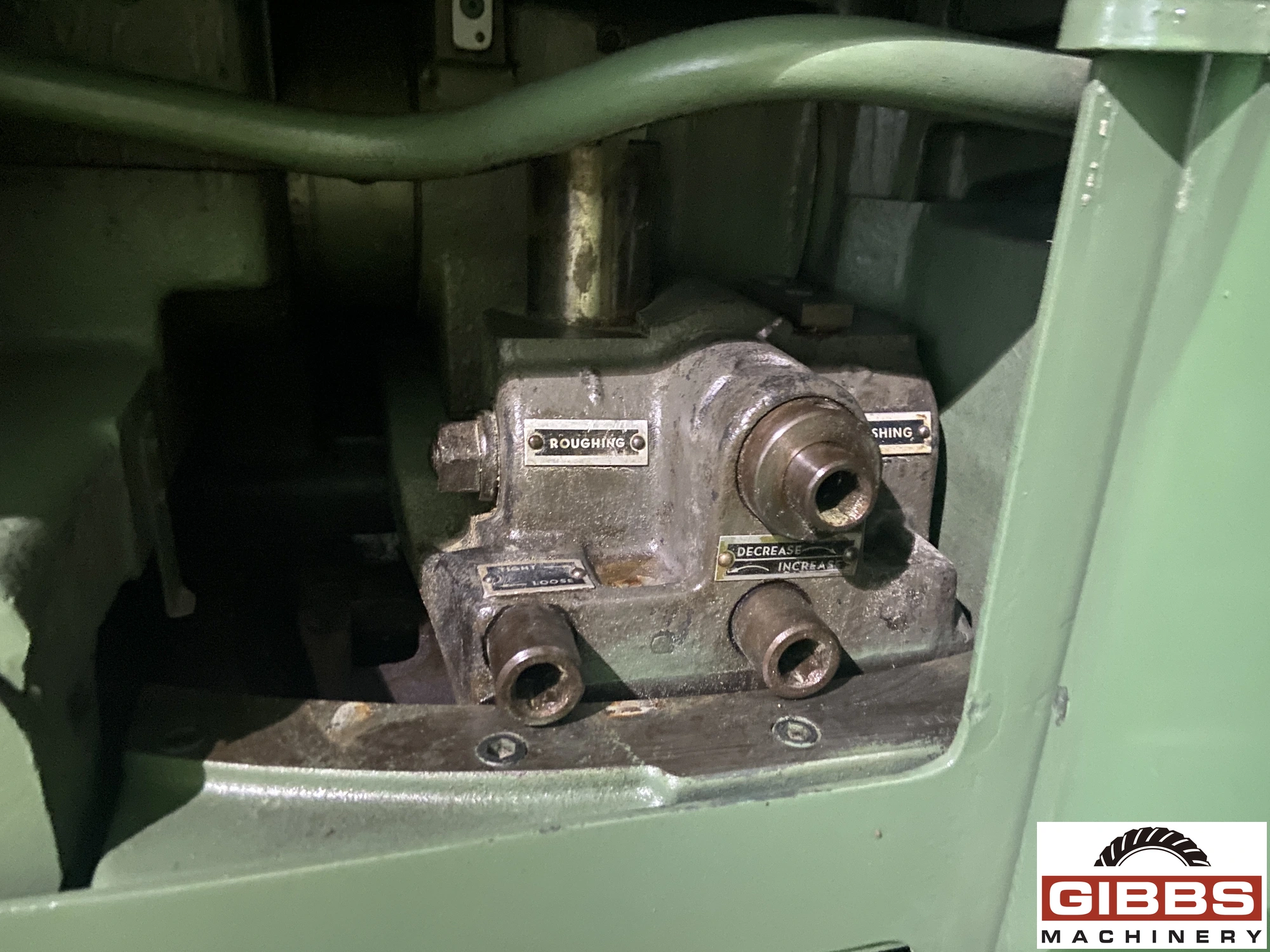

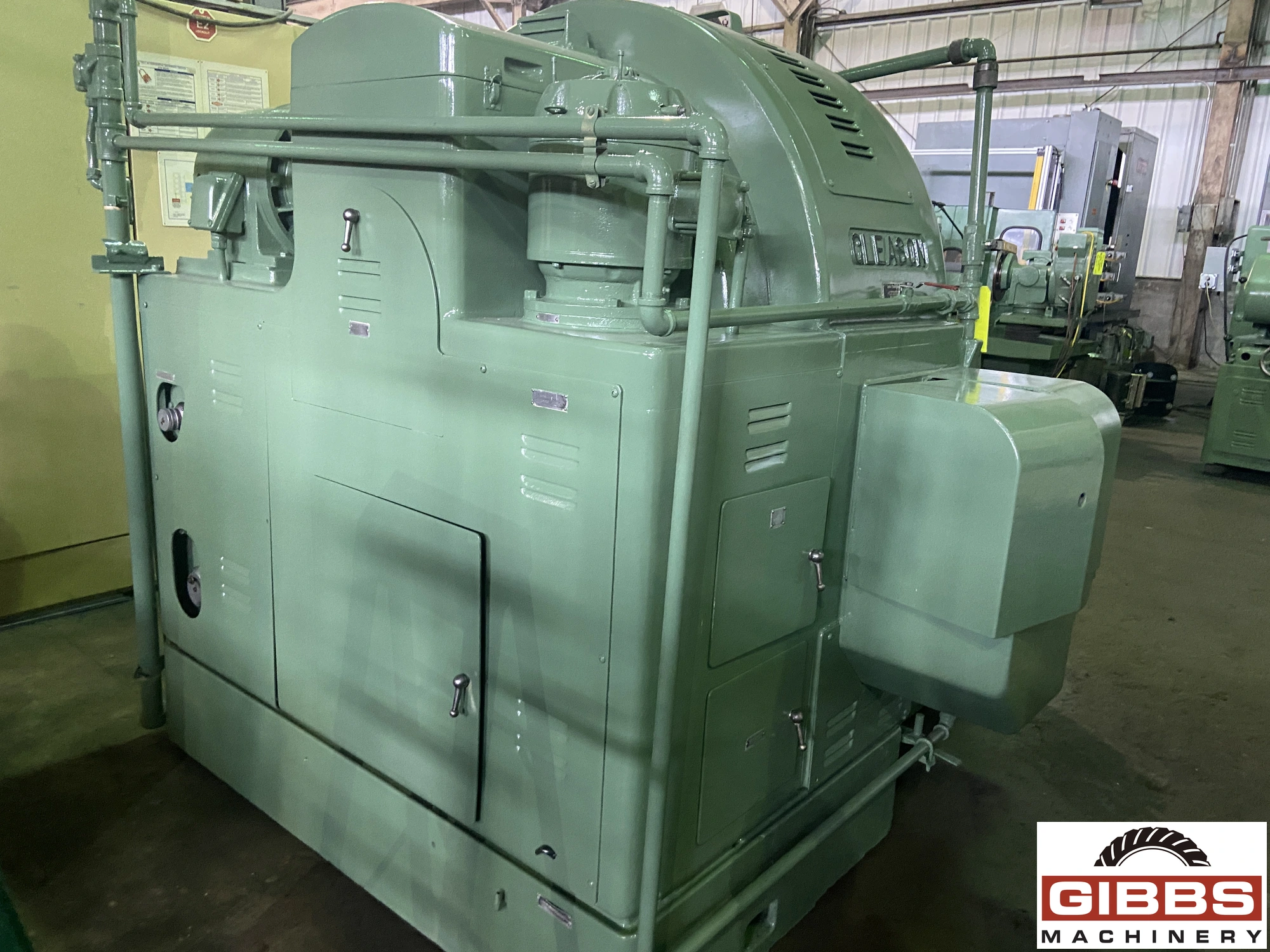

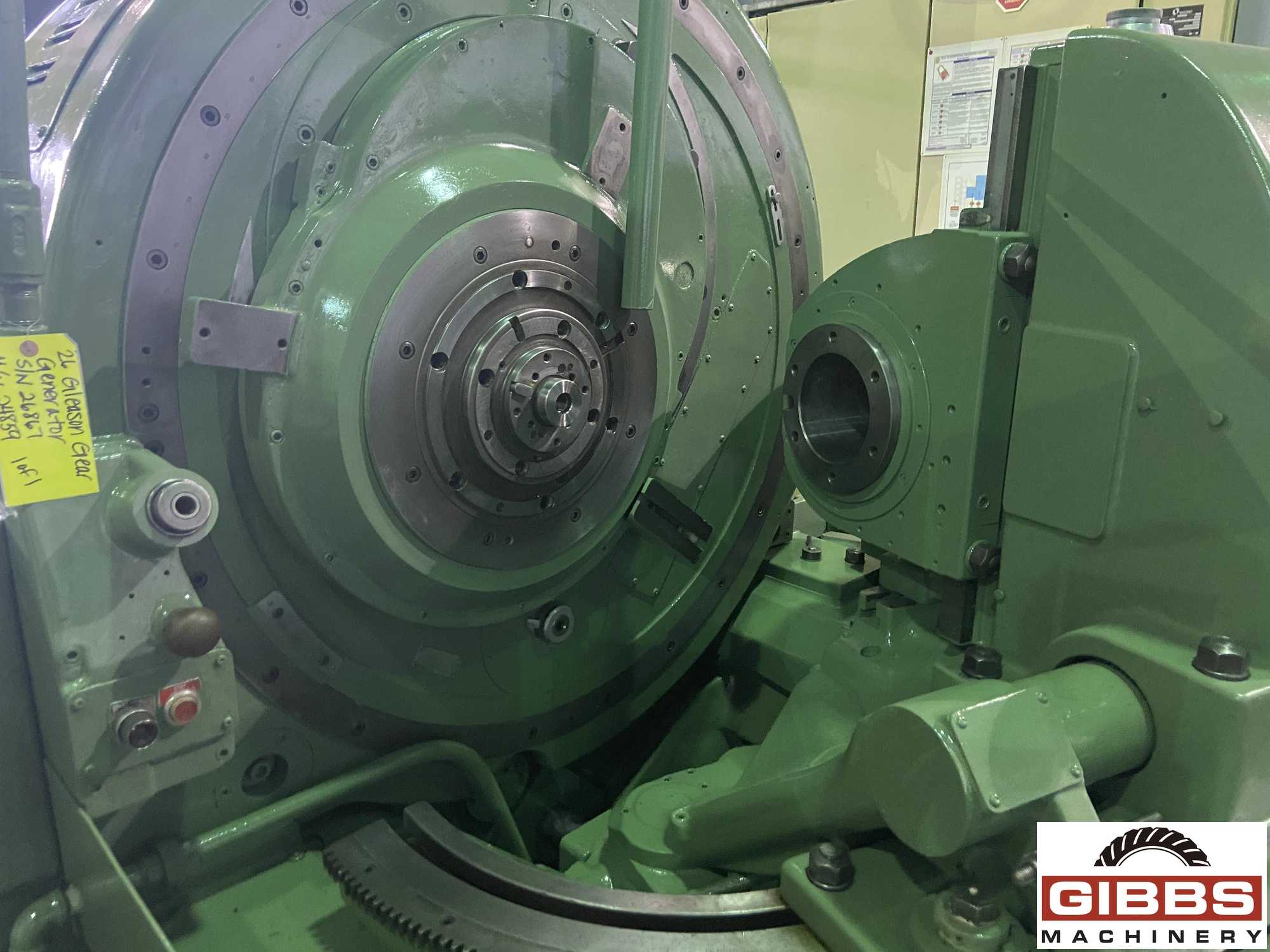

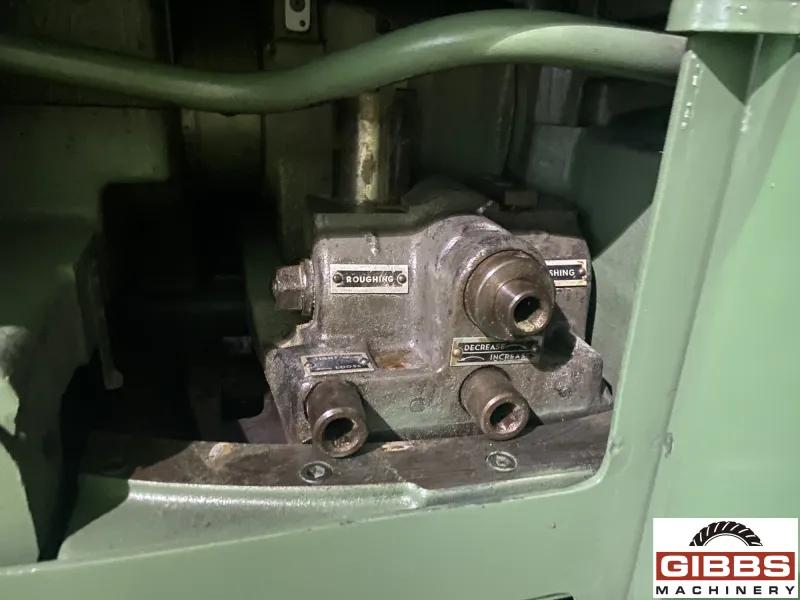

GLEASON 26 - Spiral Bevel Gear Generator

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR GENERATORS, BEVEL, (Spiral/Hypoid)

Stock

24859

Model

26

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Hydraulic Chucking Unit, Less Draw-In Bar & Nut
  • Modified Roll
  • Power Forced Lubriction System
  • Full Complement of Electrics (Motors/Controls)
  • Self-Contained Coolant System
  • Self-Contained Hydraulic System
  • Guards
  • Covers
  • Assortment of Change Gers For Roll, Ratio of Roll, Index, Feed
  • and Cutter Speed
,

Machine Specifications :

  • Year
  • Manufacturer GLEASON
  • Extreme Ratio 10:1
  • Maximum Cone Distance 0.0"
  • Diametral Pitch 0.0
  • Maximum Face Width 4.0"
  • Maximum Diameter Gear 33.0"
,

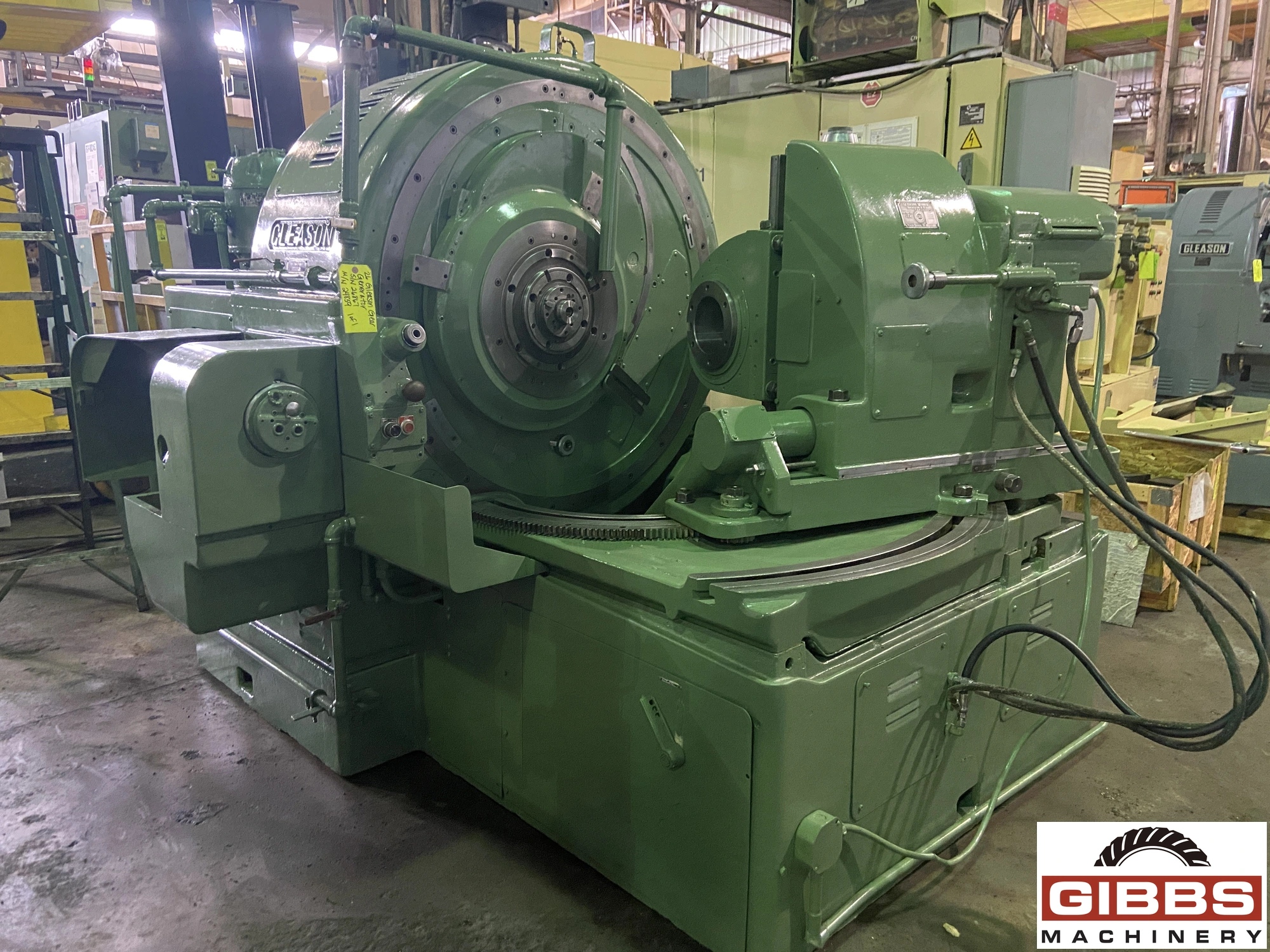

GLEASON 26 SPIRAL BEVEL GEAR GENERATOR

    Specifications:

  • Maximum Diameter Gear: 33"
  • Cone Distance Max (30 deg. and 18" Cutter): 16 1/2"
  • Max. Pitch Angle:Shaft at 90 Deg.: 84 Deg. 18'
  • Min. Pitch Angle: 5 Deg., 42'
  • Extreme Ratio: 10:1
  • Max Face Width: 4"
  • Diametral Pitch: 1 1/2

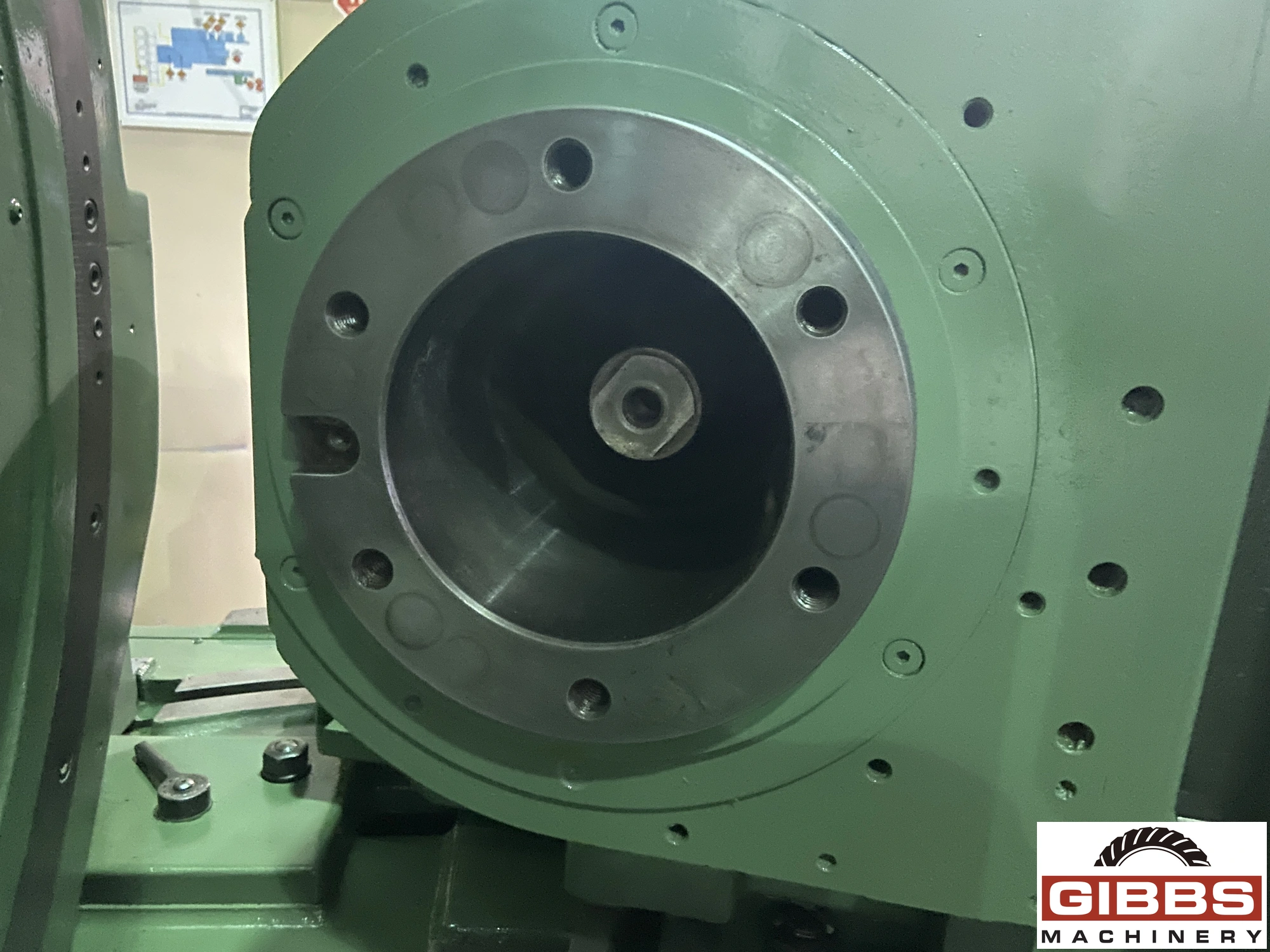

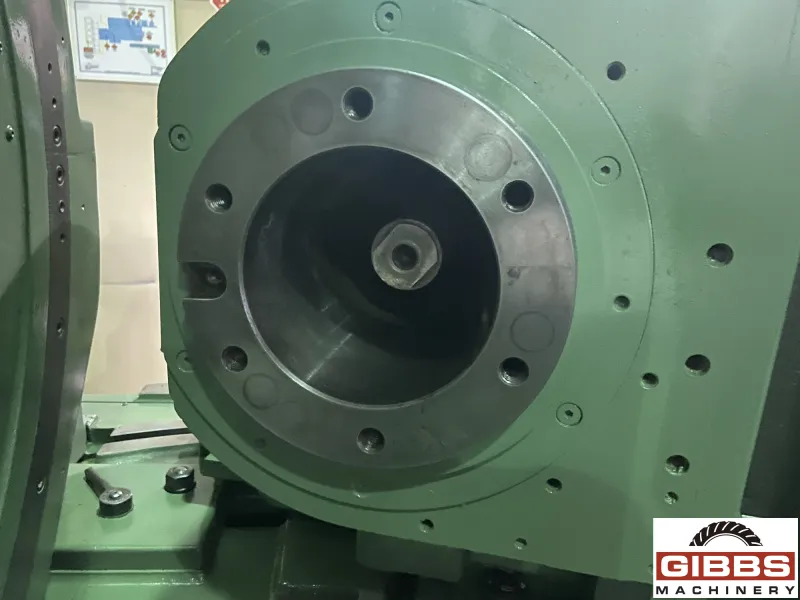

  • Diameter of Taper Hole at Large End: 6" 152mm
  • Taper Per Foot: 3/4" 19mm
  • Depth of Taper: 6", 152mm
  • Diameter of Hole Through: 5" 127mm
  • Spindle Nose to Machine Center: 9 1/4", 235mm
  • Cutter Diameter: 9", 12", 16", 18"
  • Max Offset Above Center: 4 1/2"
  • Max Offset Below Center: 4 1/2"
  • Max. Distance from Machine Center to Nose of Spindle: 23 1/2"
  • Min. Distance from Machine Center to Nose of Spindle: 5"
  • Cutter Speeds-Feed Per Minute: 35 - 200
  • Feed (sec./tooth): 23 - 333
  • Main Motor - 2 Speed: 7 1/2 HP
  • Floor Space: 132" x 101"
  • Net Weight: 25,300 lbs.
