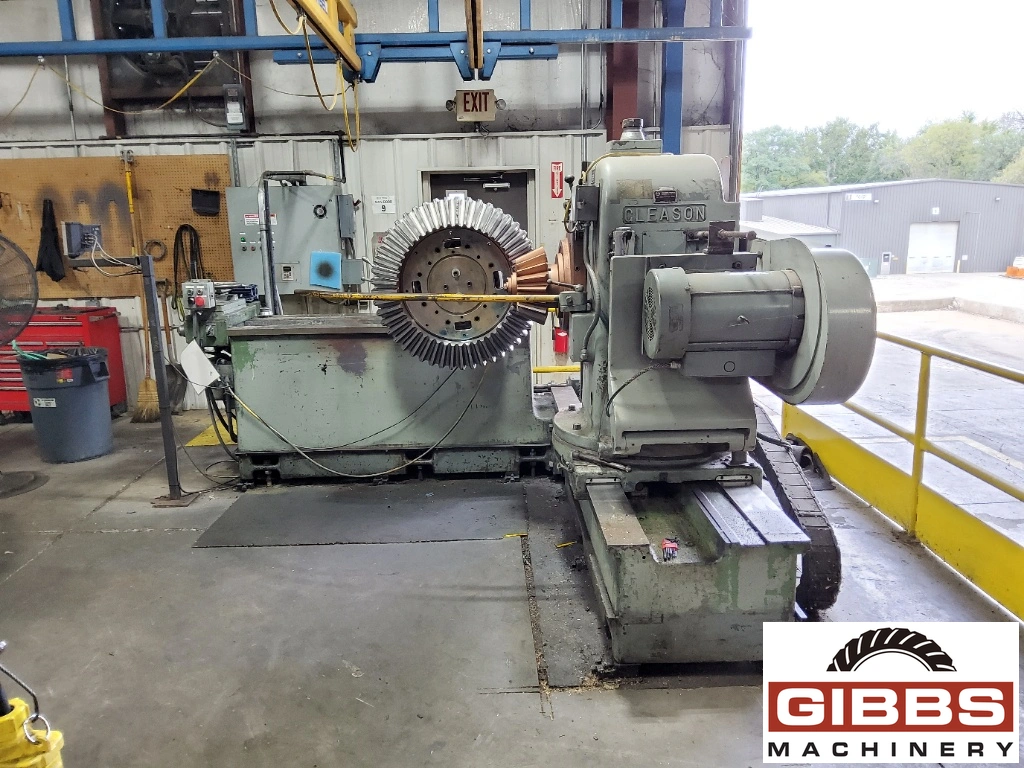

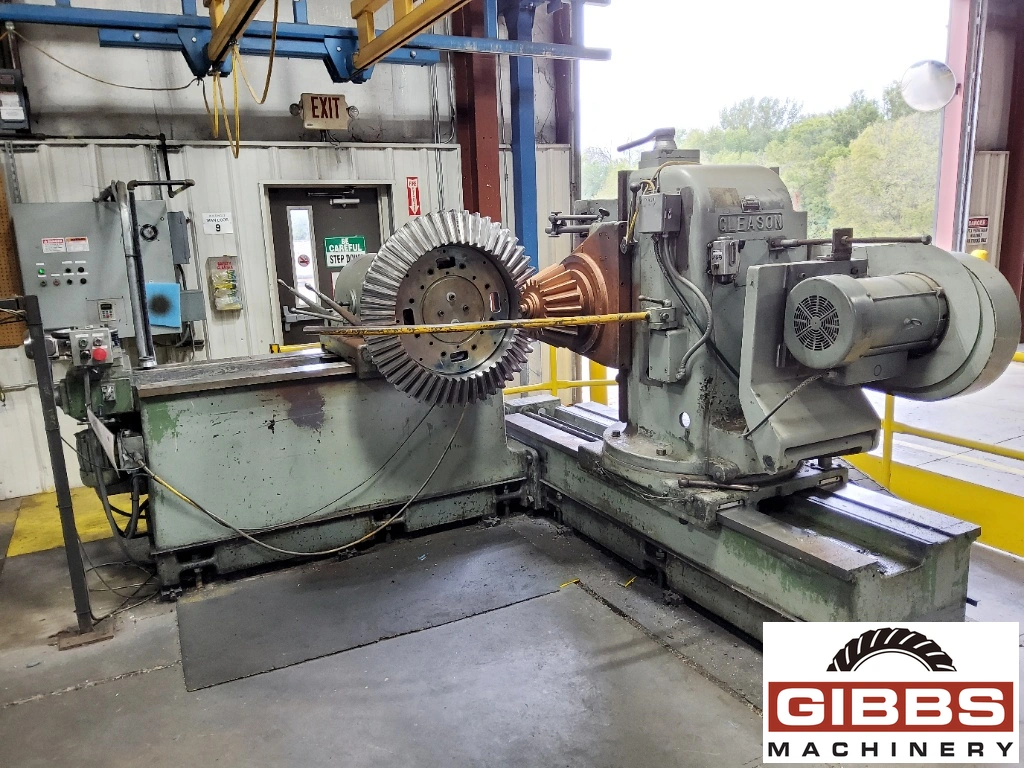

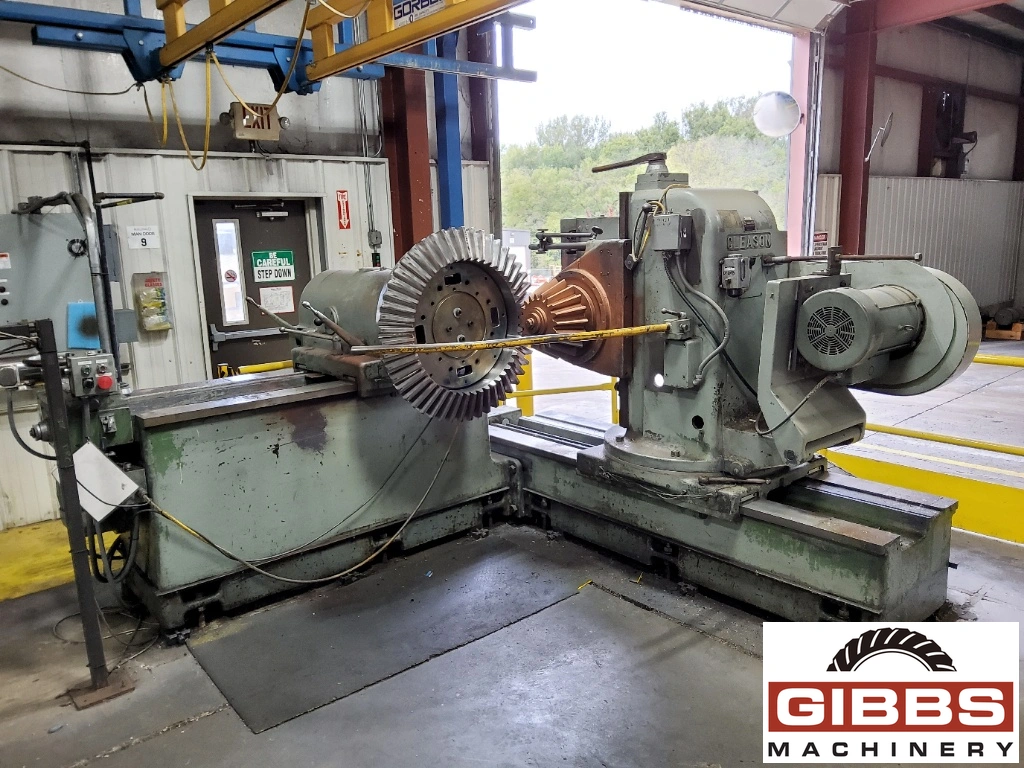

GLEASON 61 - Gear Tester

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR TESTERS

Stock

25124

Model

61

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Machine Specifications :

  • Year
  • Manufacturer GLEASON
  • Control Manufacturer Conventional
  • Maximum Workpiece Diameter 90.0"
  • Type Universal
,

The No. 61 Angular Hypoid Tester is designed to test large bevel and hypoid gears up to 90" diameter and with shaft angles from 0 - 135 degrees. Spur, helical and internal gears can also be accommodated. The drive or pinion spindle can be rotated in either direction at a recommended spindle speed of 600 RPM. It is mounted in a head which is vertically adjustable on a column, so that the spindle can be offset either above or below the center line of the gear spindle for testing hypoid gears. The pinion head column is adjustable angularly in a horizontal plane to permit testing of gears of any shaft angle from 0 - 135 degrees.

    Specifications:

  • Centerline of Drive Spindle to Nose of Brake Spindle
  • (90 degrees shaft angle and without face plate): 38-1/2" Max. / 7-5/8" Min.
  • Centerline of Brake Spindle to Nose of Drive Spindle
  • (90 degrees shaft angle and without face plate): 60" Max. / 10" Min.
  • Centerline of Brake Spindle to Nose of Drive Spindle
  • (90 degrees shaft angle and with 54" face plate): 60" Max. / 28" Min.
  • Centerline of Brake Spindle to Centerline of Drive Spindle
  • (For Spur Gears): 56" Max. / 6" Min.
  • Distance Between Nose of Brake Spindle and Nose of
  • Drive Spindle (for spur gears): 36-1/2" Max. / 0" Min.
  • Offset of Drive Spindle Either Above or Below Centerline of Brake Spindle: 10"
  • Range of Shaft Angles: 0 - 360 Degrees
  • Maximum Diameter of Gear: 90"
  • Diameter of Face Plate: 54"
  • Outboard Bearing: 3" Diameter Hole
  • Spindles:
  • RPM of Drive Spindle Pulley Set No. 1: 100 - 400
  • RPM of Drive Spindle Pulley Set No. 2: 250 - 600
  • Diameter of Taper Hole (large end): 6"
  • Taper Per Foot: 3/4"
  • Depth of Taper: 8"
  • Hole Through Spindle: 5-1/2"
  • Net Weight of Machine: 20,000#
  • Net Weight of Machine W/Outboard Support and Bed Plate: 24,000#
