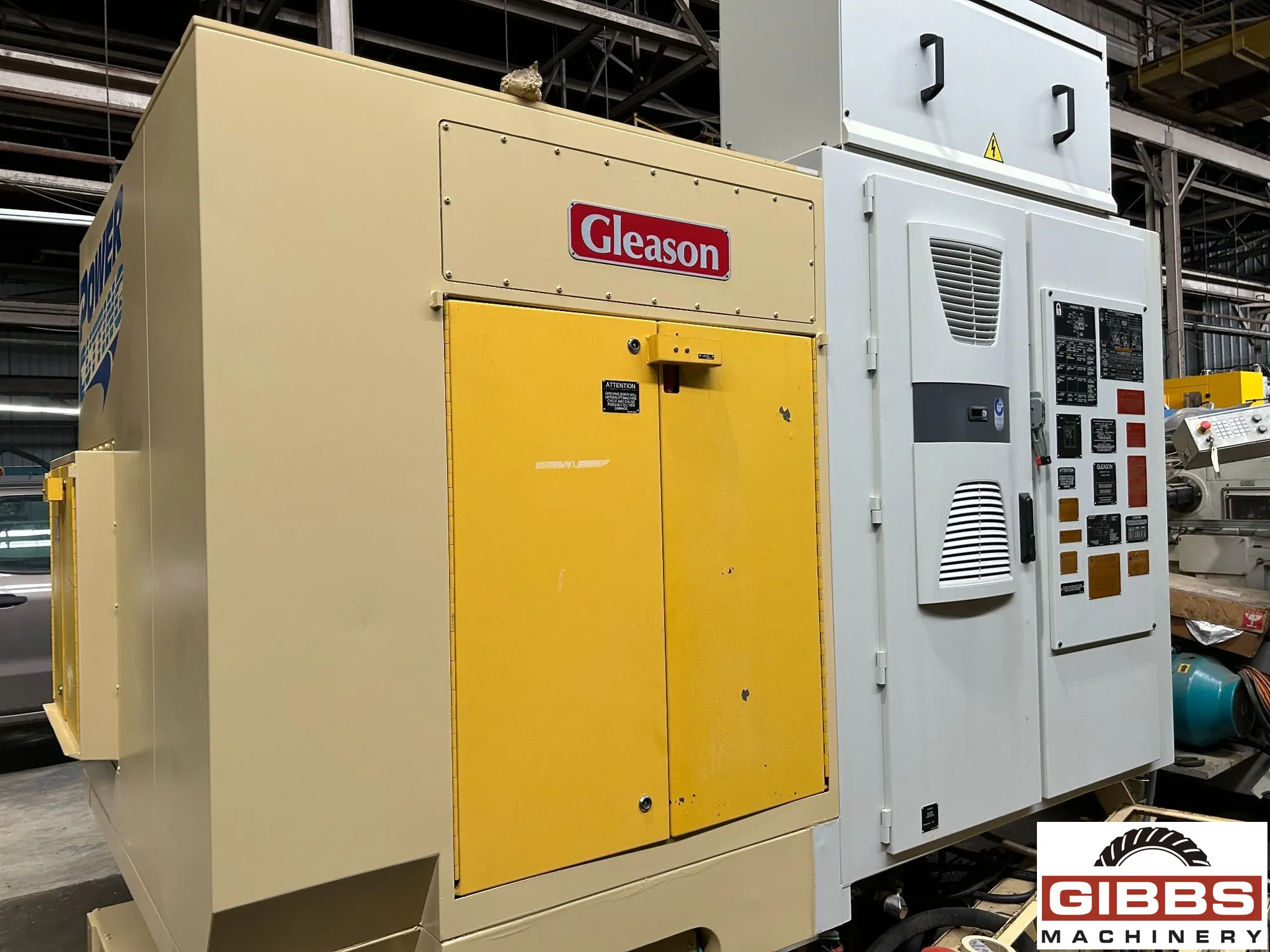

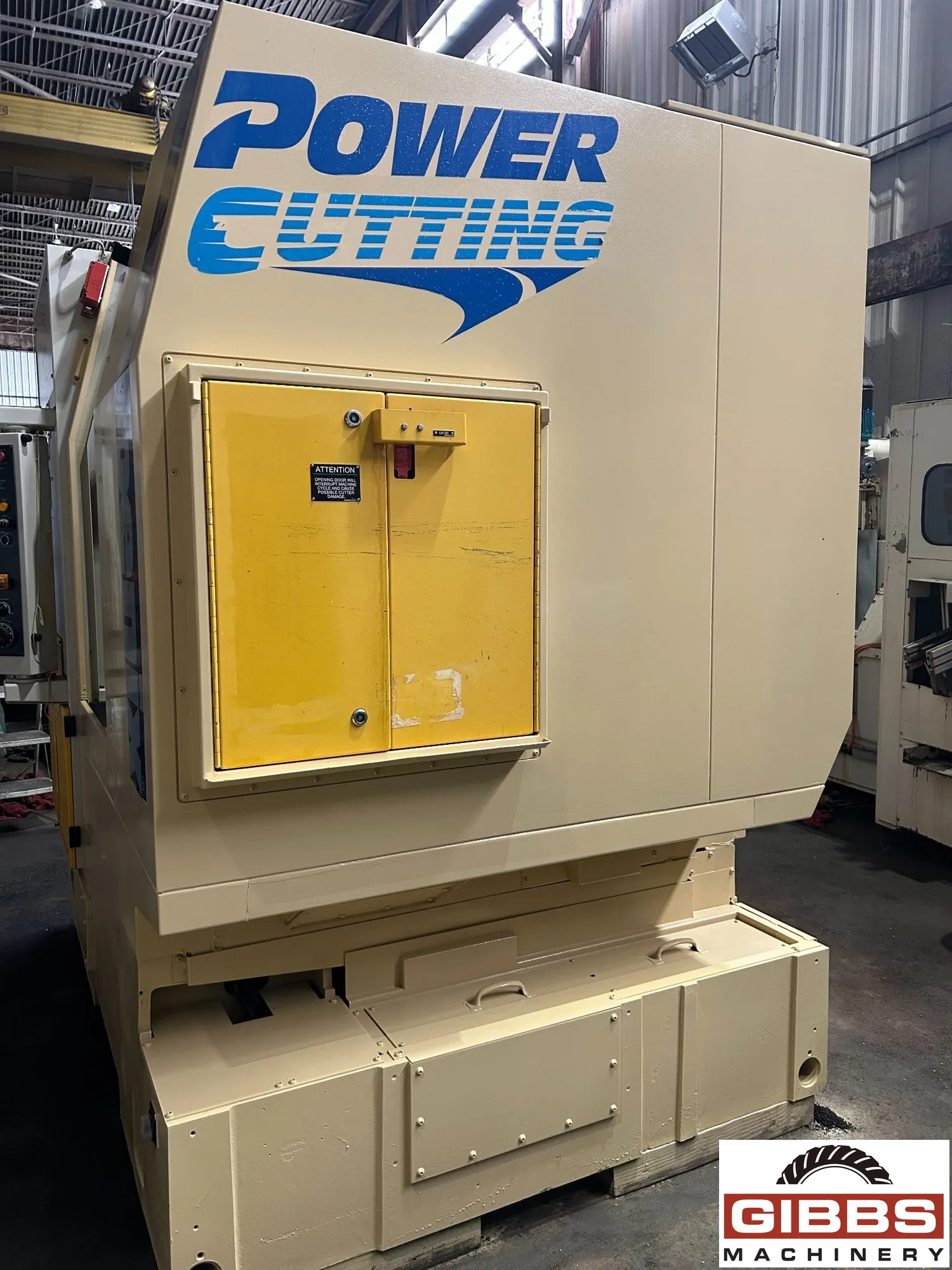

GLEASON 175HC - Spiral Bevel Gear Generator

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR GENERATORS, BEVEL, (Spiral/Hypoid)

Stock

25582

Model

175HC

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

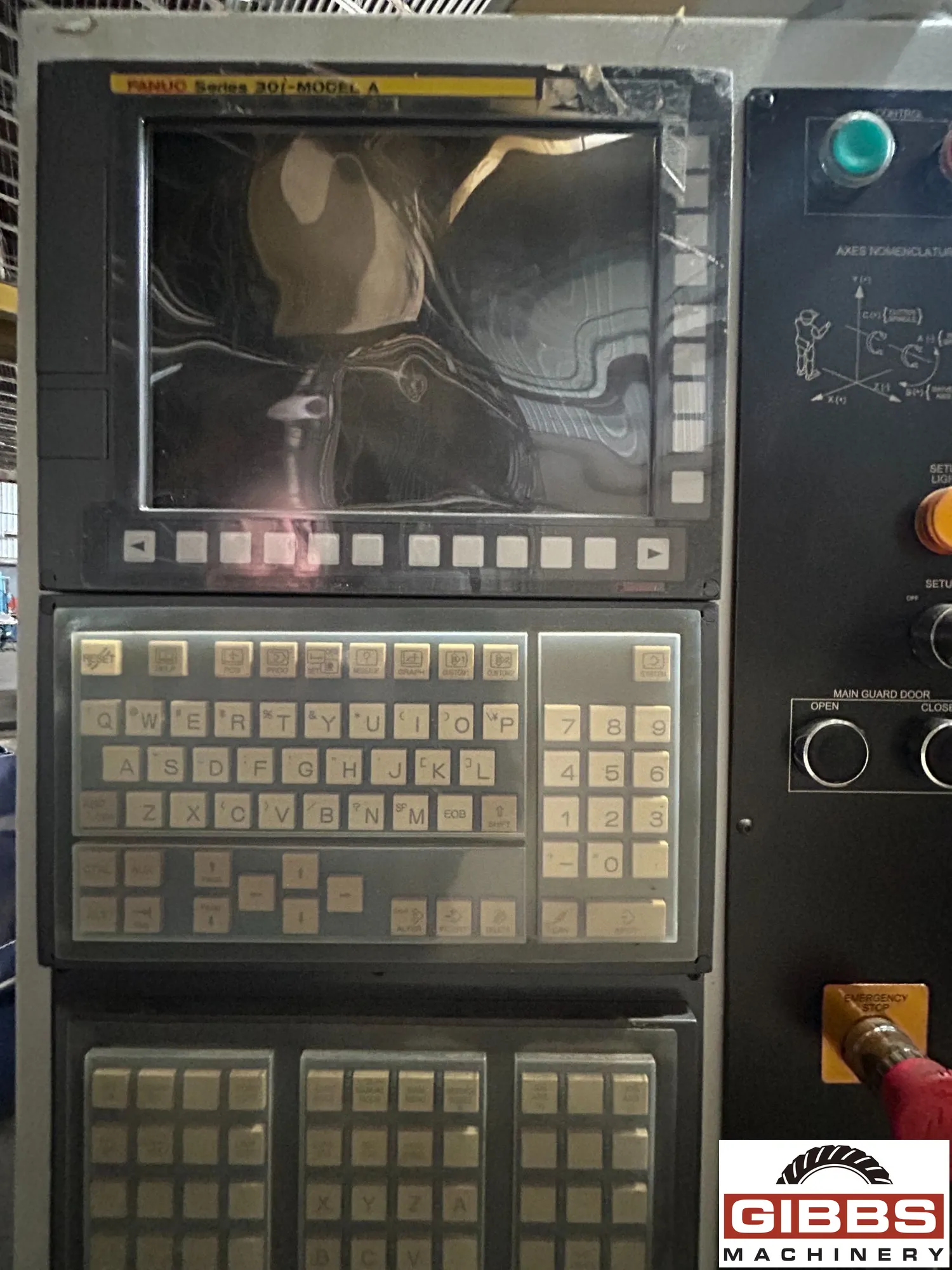

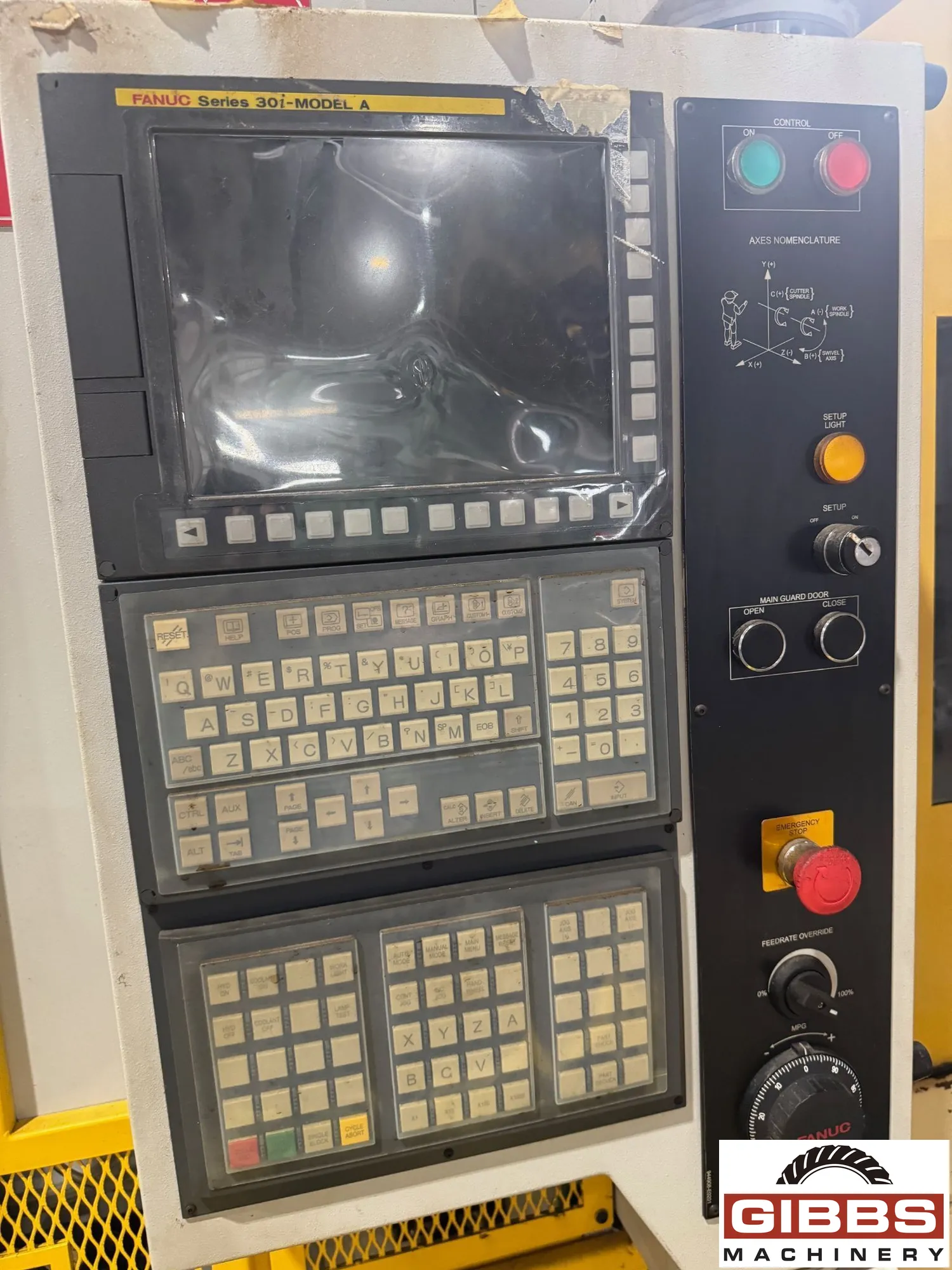

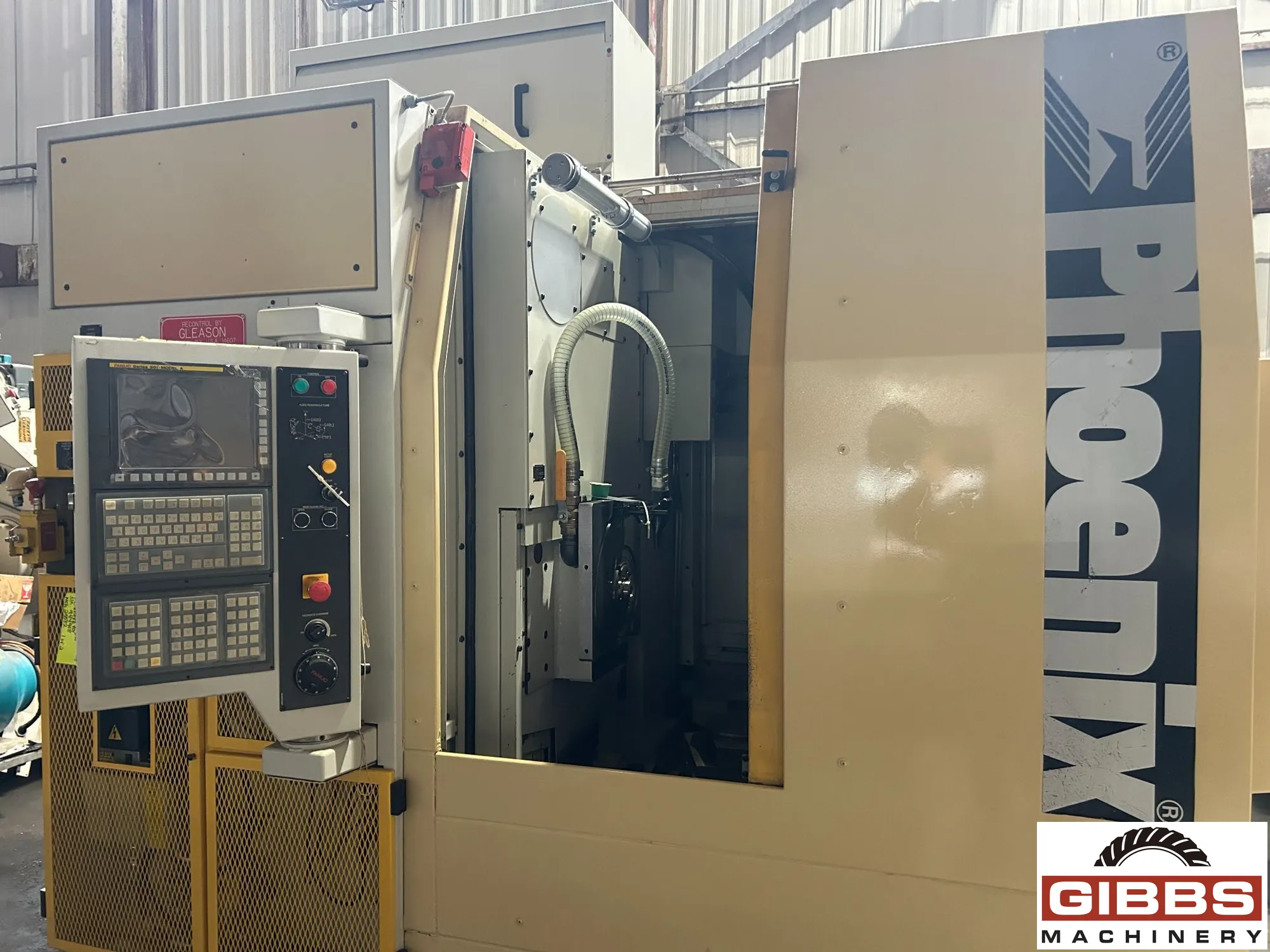

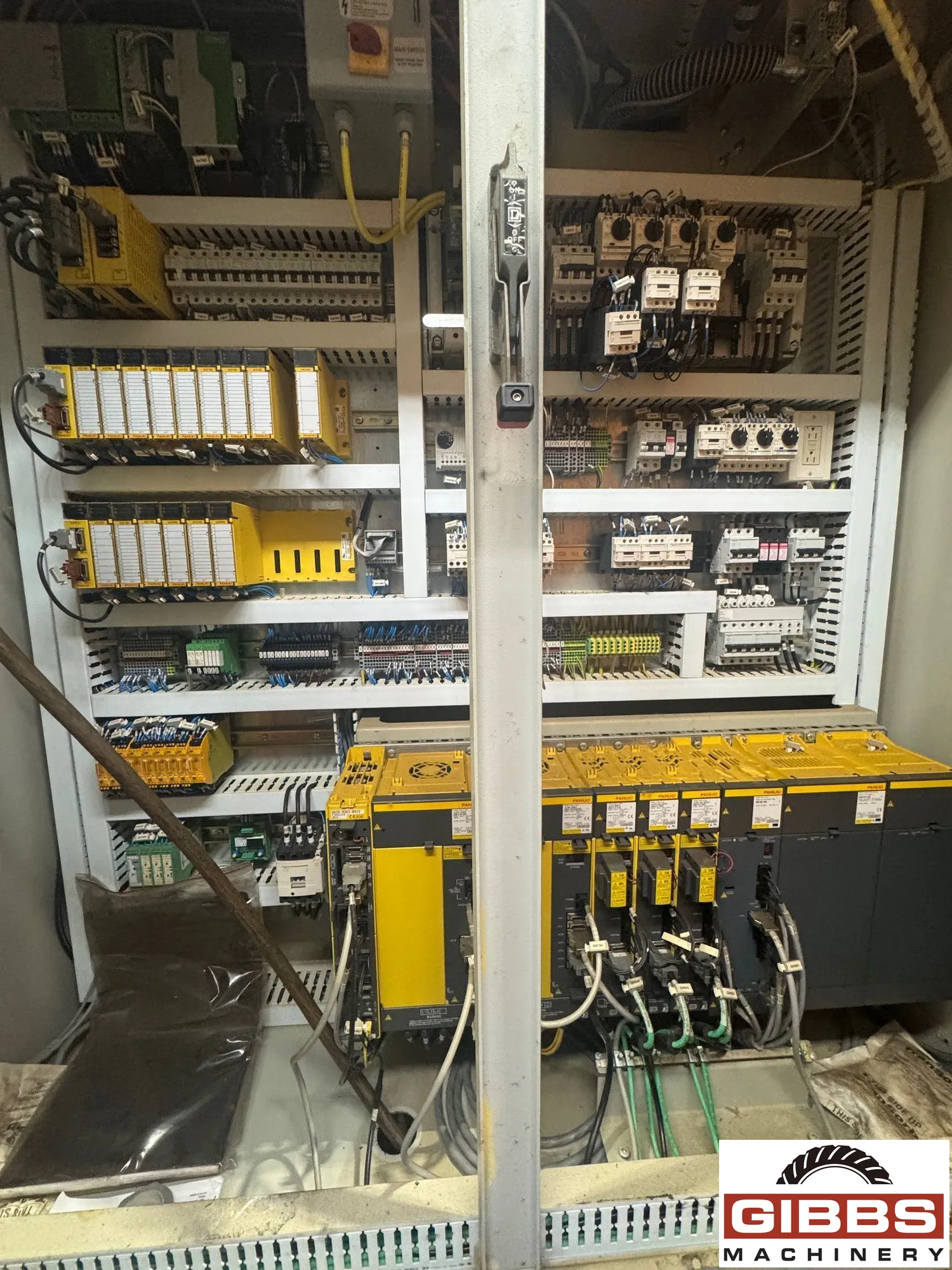

  • Fanuc 30ia Control
  • Heidenhain Scales

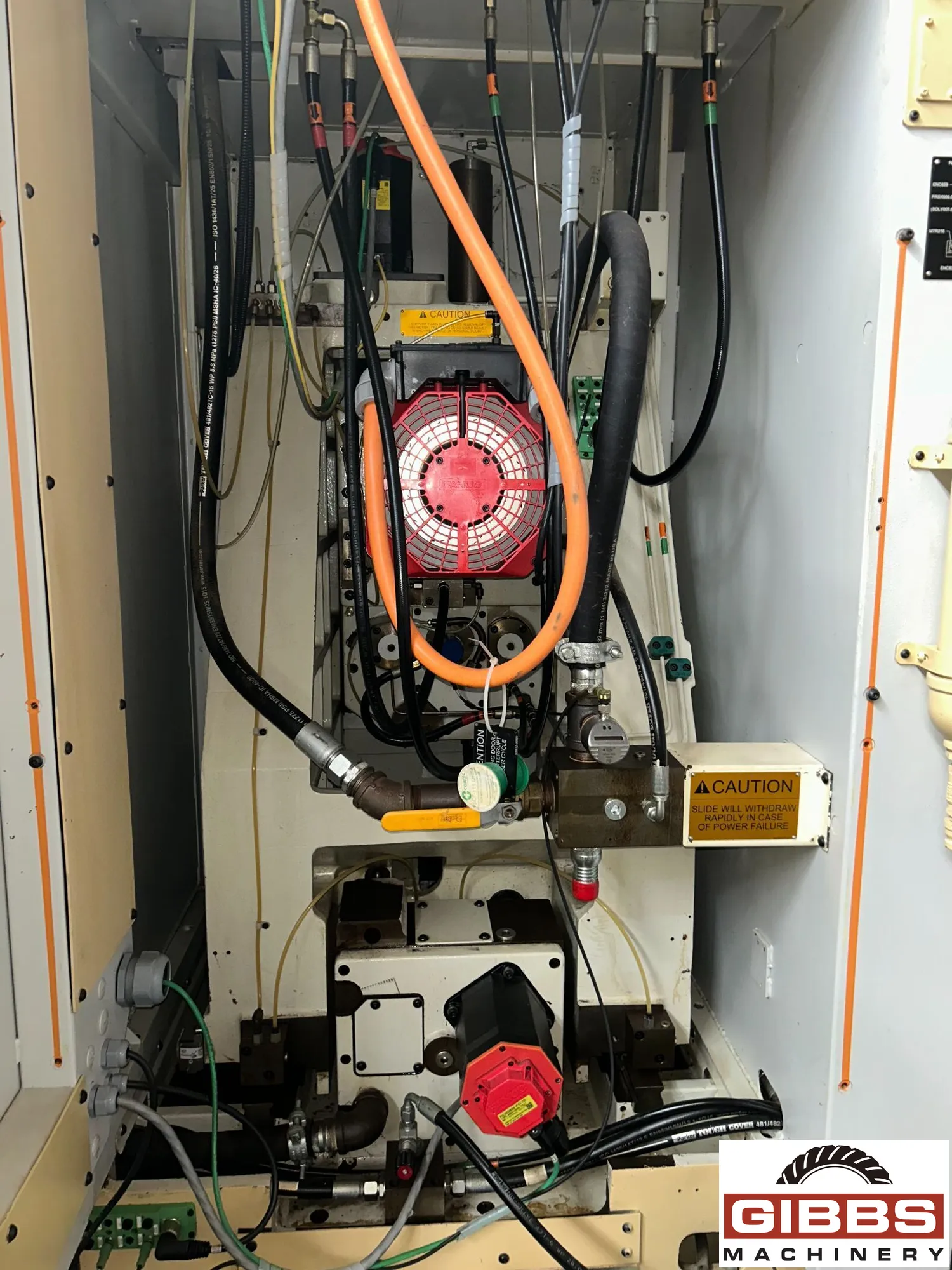

  • Hydraulic System
  • Coolant System
  • Chip Conveyor
  • Pneumatics
  • Lube System
  • Jib Crane
  • Change Gears
  • Mist Collector
  • Transformer
  • Work Light
  • Stack Light
,

Machine Specifications :

  • Year
  • Manufacturer GLEASON
  • Maximum Face Width 1.6"
  • Extreme Ratio 10:1
  • Control Manufacturer Fanuc
,

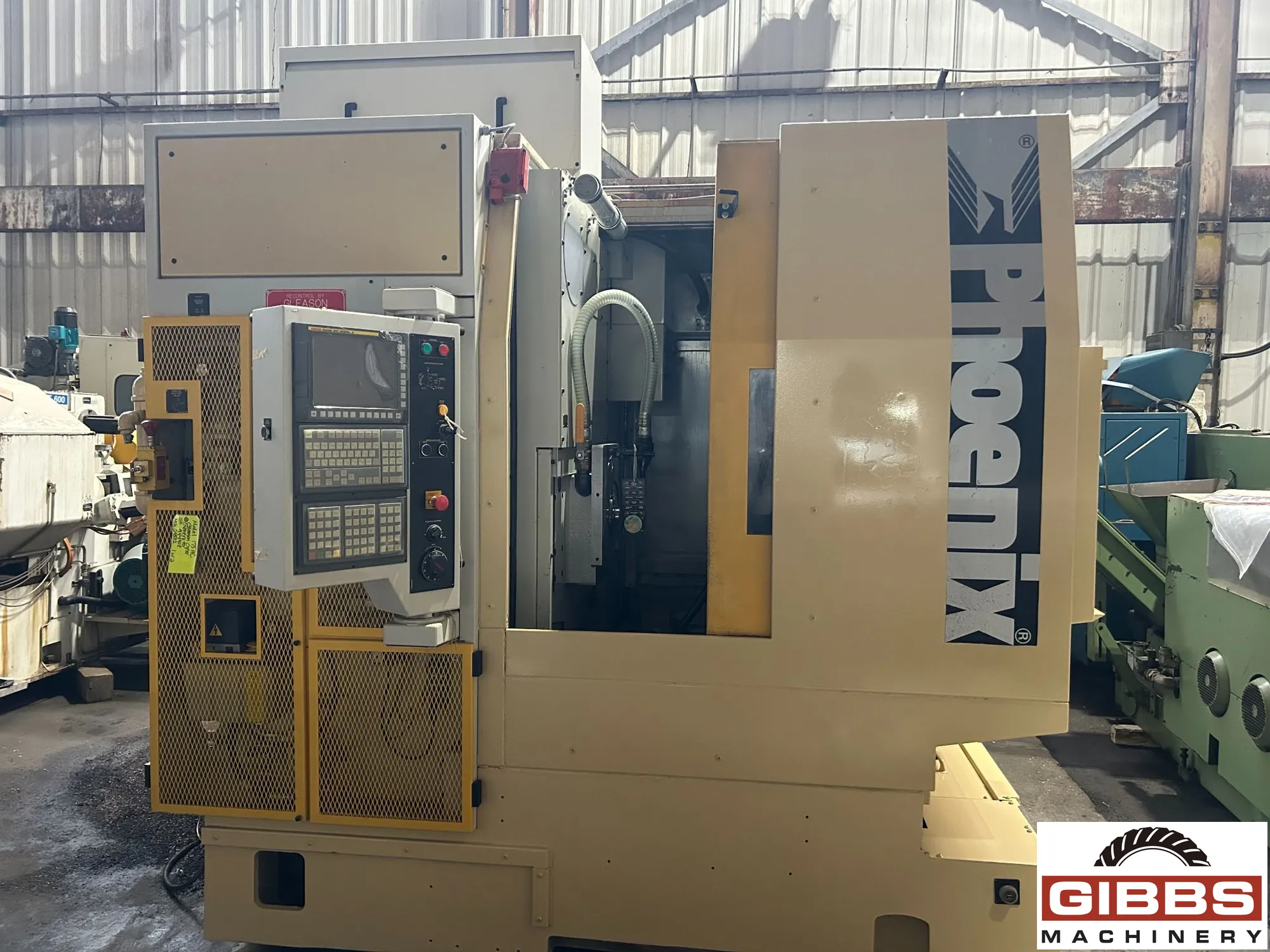

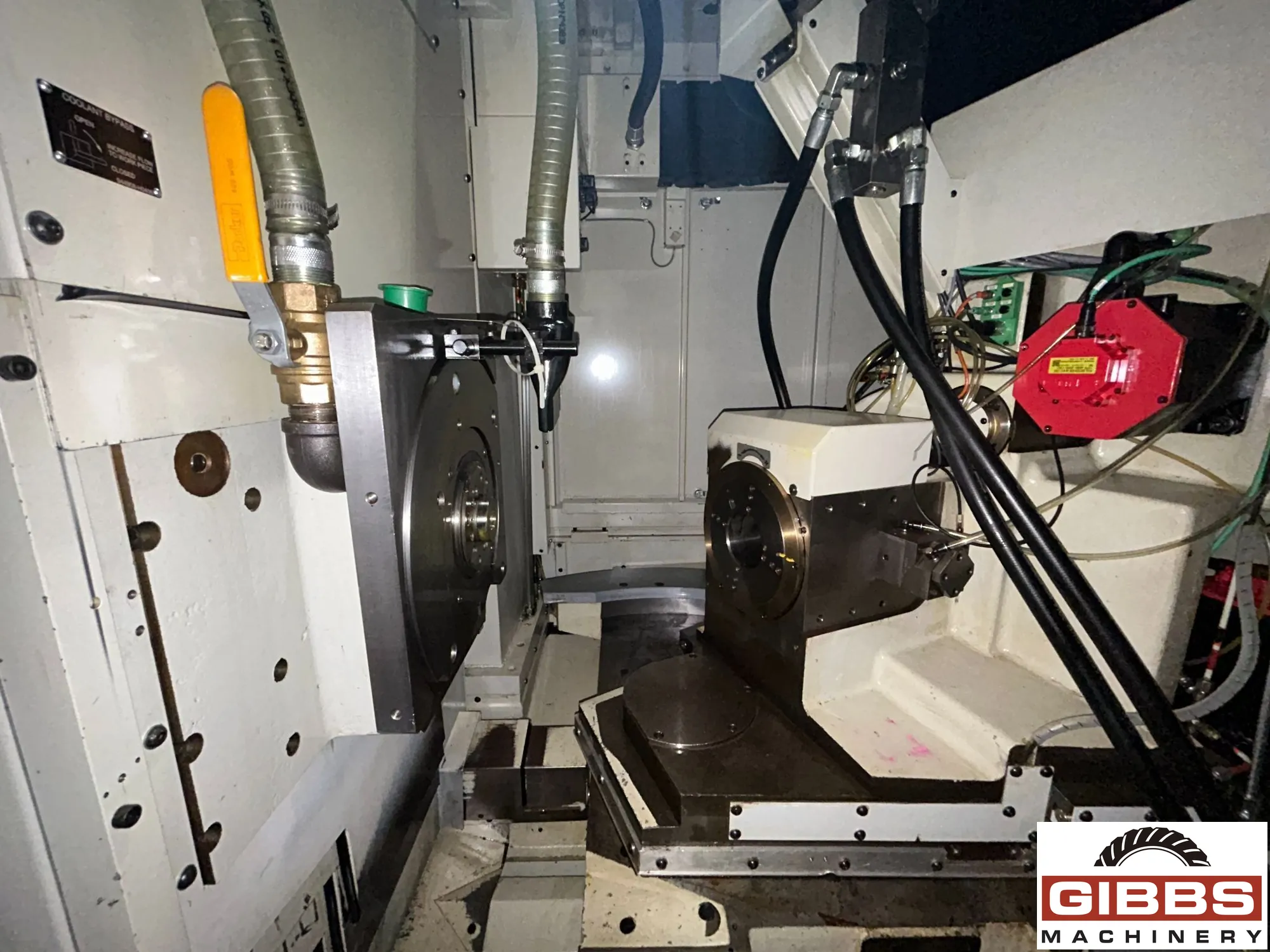

Rebuilt by Gleason, This GLEASON 175HC CNC Spiral Bevel Gear Generator features Fanuc 30ia control, Heidenhain scales, hydraulic and coolant systems, chip conveyor, pneumatics, and more. Inspect under power...like new condition

    Specifications:

  • Extreme Ratio: 10:1
  • Root Angle Range (B-Axis): -5 deg. TO 90 deg.
  • Equivalent Root Angle Range: -8 deg. to 90 deg.
  • (Equivalent refers to cradle type machine.)
  • Face Hobbing:
  • Examples of Maximum Gear Pitch Diameter
  • -35 Degree Spiral
  • -152 mm TRI-AC Cutter w/13 Blade Groups
  • -Max. Pitch Diameter @ the following ratios
  • a.) 1:1: 6"
  • b.) 2:1: 7.5"
  • c.) 5:1: 7.5"
  • Max. Full Depth: 0.550"
  • Max. Face Width: 1.6"
  • Face Milling:
  • Examples of Maximum Gear Pitch Diameter
  • -35 Degree Spiral
  • -7.5" Diameter Cutter
  • -Max. Pitch Diameter @ the following ratios
  • a.) 1:1: 6.750"
  • b.) 2:1: 8.5"
  • c.) 5:1: 8.5"
  • Max. Full Depth: 0.625"
  • Max. Face Width: 1.6"
  • Max. Swinging Base Travel (B-Axis): -5 deg. to 90 deg.
  • Max. Vertical Travel (Y-Axis): -4" to 7"
  • Max. Horizontal Travel (X-Axis): -6" to 4"
  • Sliding Base Travel (Z-Axis): 2" to 12"
  • Machine Center to Work Spindle Face (Fixed): 4.5"
  • Tooth Number: 5 to 200 Inclusive
  • Cutting Diameters:
  • Conventional Face Milling: 1.1" to 7.5"
  • Helixact: 100mm to 200mm
  • Fine Pitch: 102mm to 152mm
  • Coarse Pitch: 152mm only
  • Speeds:
  • B-Axis--Swinging Base (Degrees per Second): 30deg./sec.
  • A-Axis--Work Spindle (Face Milling)(RPM): 0-75
  • A-Axis--Work Spindle (Face Hobbing)(RPM): 0-375
  • C-Axis--Cutter Spindle (RPM): 30-500
  • X-Axis--Horizontal (Inches per Second): 4.92"/sec.
  • Y-Axis--Vertical (Inches per Second): 4.92"
  • Z-Axis--Sliding Base (Inches per Second): 4.92"/sec.

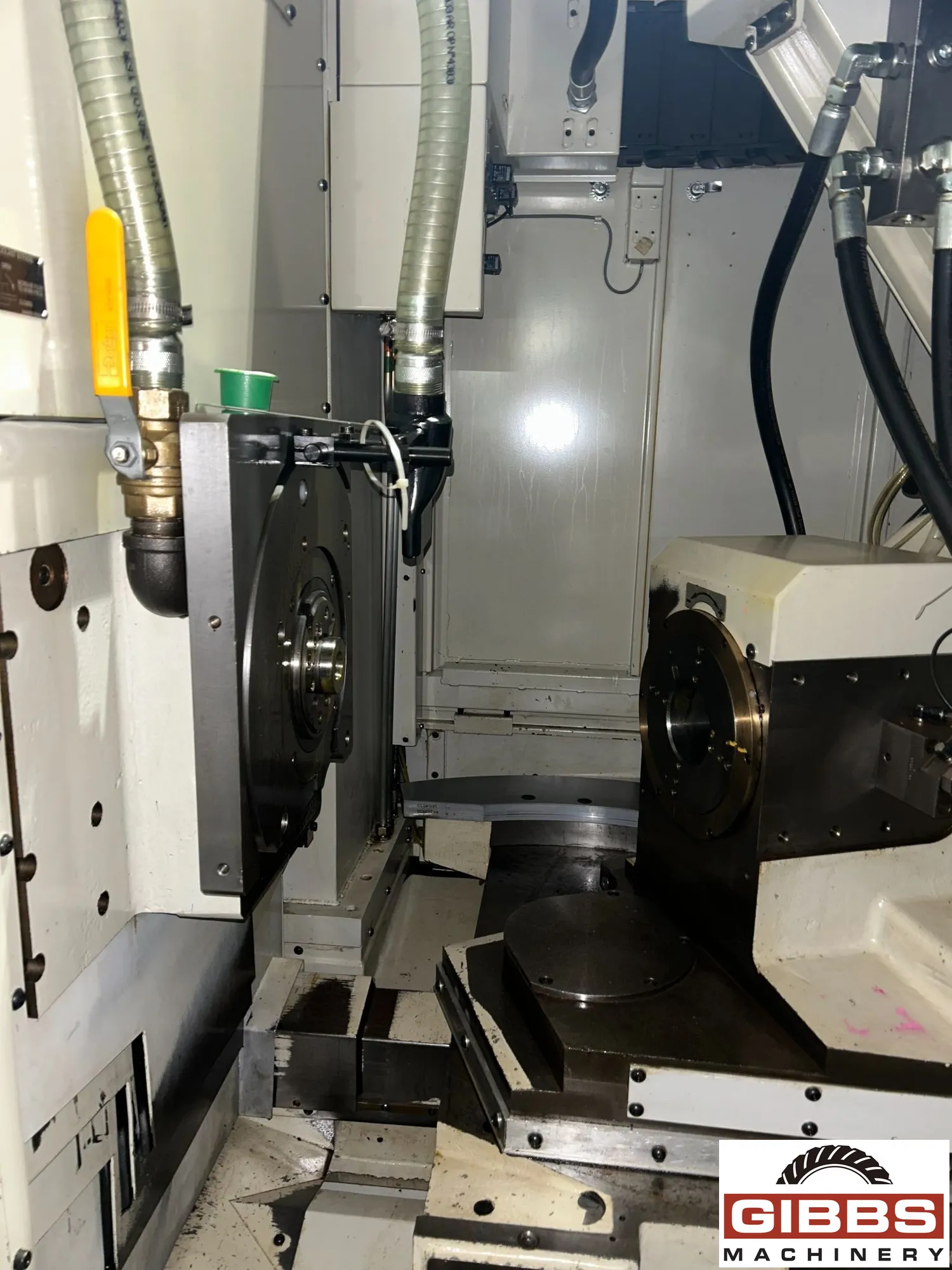

  • Work Spindle:
  • Diameter of Taper at Large End (#39 Taper): 3-29/32"
  • Taper per Foot: 39/64"
  • Depth of Taper: 3"
  • Floor Space: 95.75" x 63.5"
  • Height (less mist collector): 90.75"
  • Approx. Weight: 22,000 lbs
