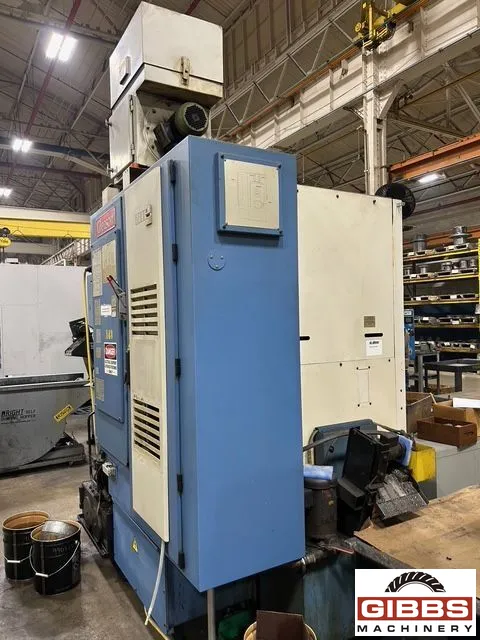

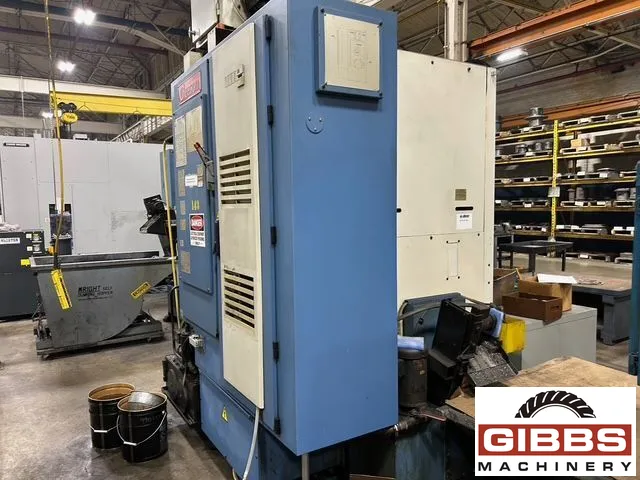

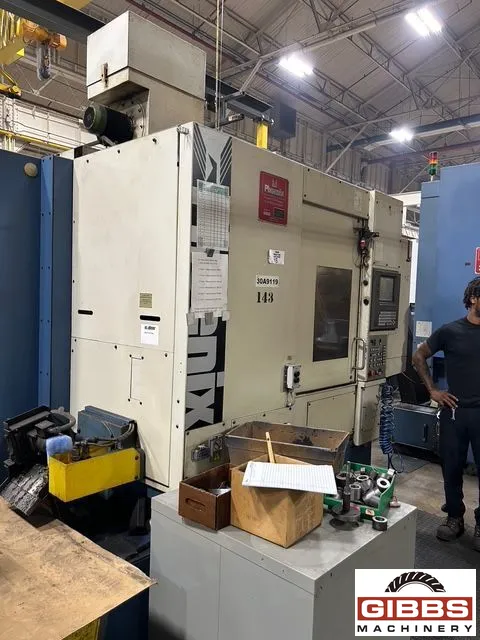

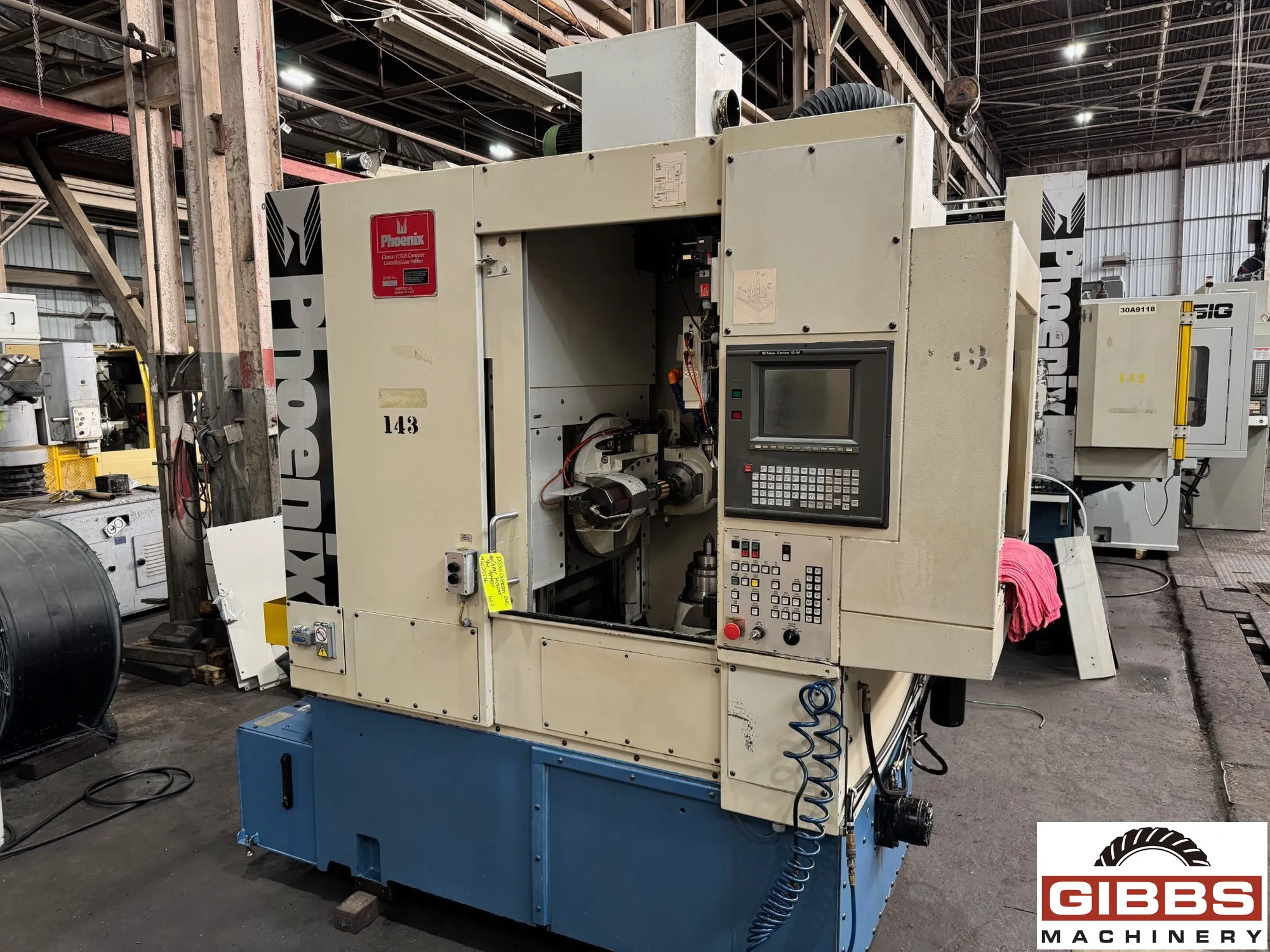

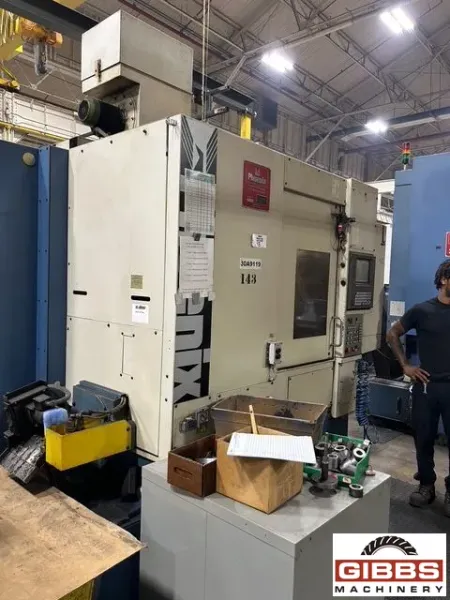

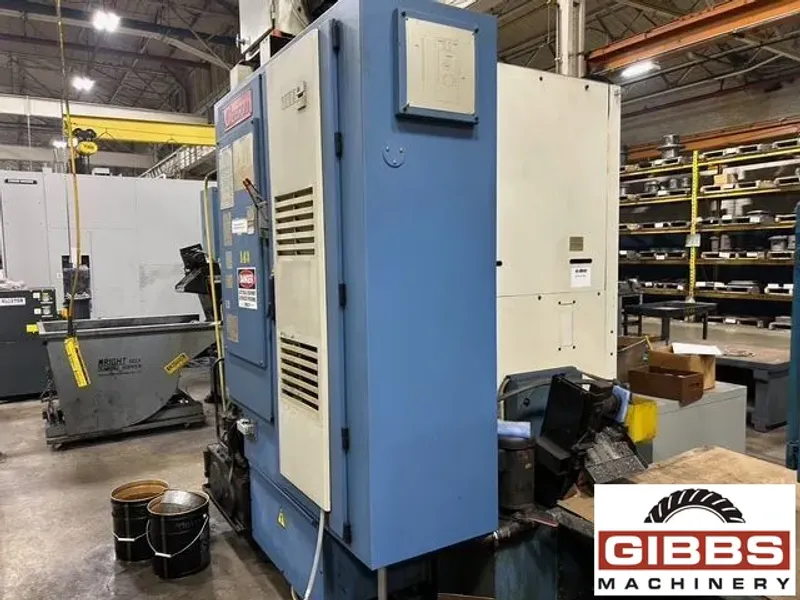

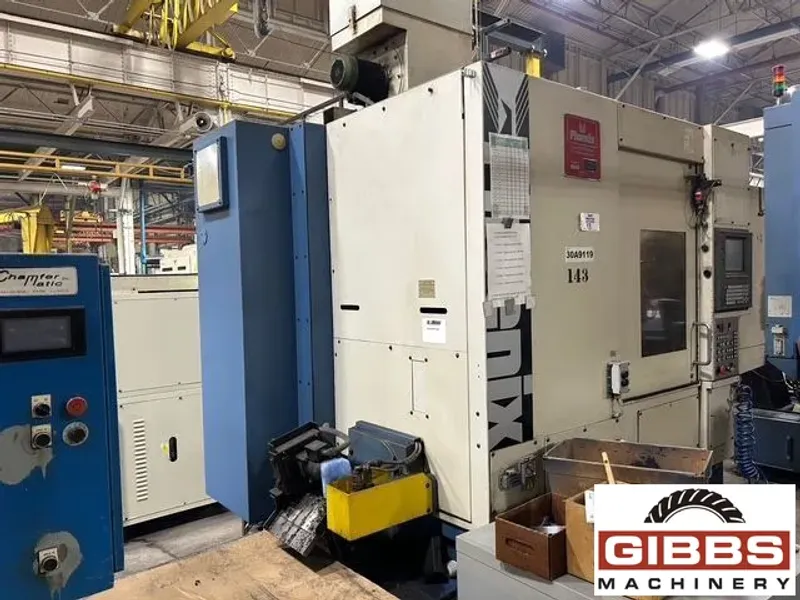

GLEASON PHOENIX 125GH - Gear Hobber

Manufacturer

GLEASON PHOENIX

Category

Gear Machines

Type

GEAR HOBBERS, VERTICAL, CNC

Stock

25736

Model

125GH

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

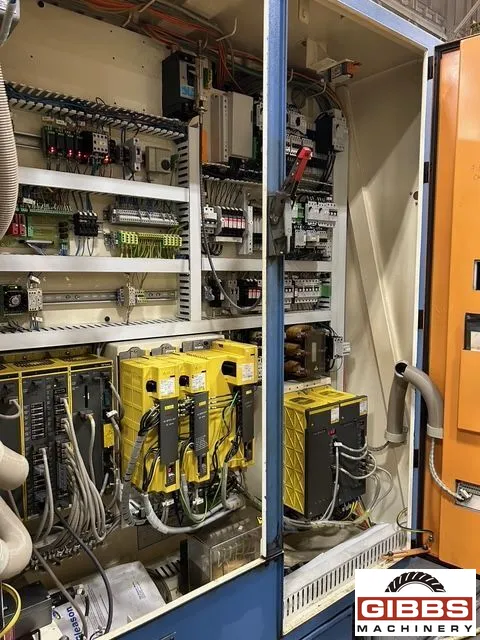

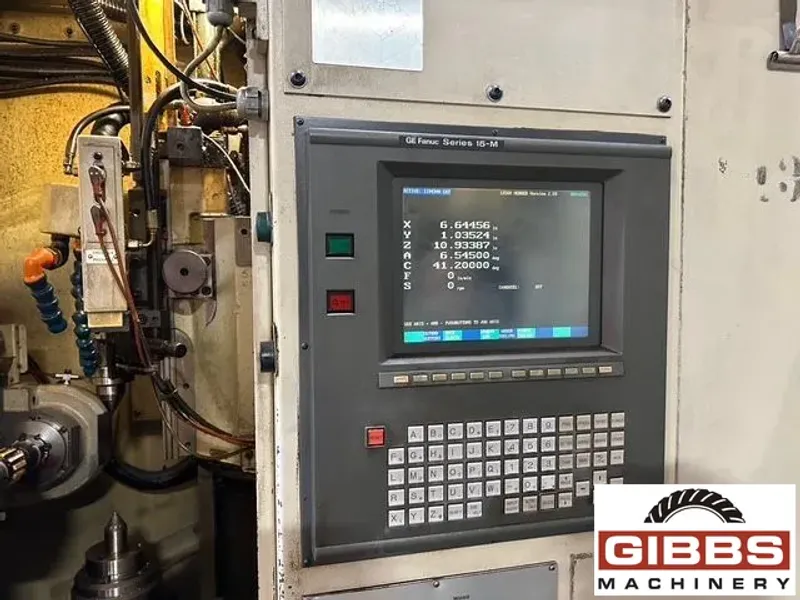

  • Fanuc 150MB Control

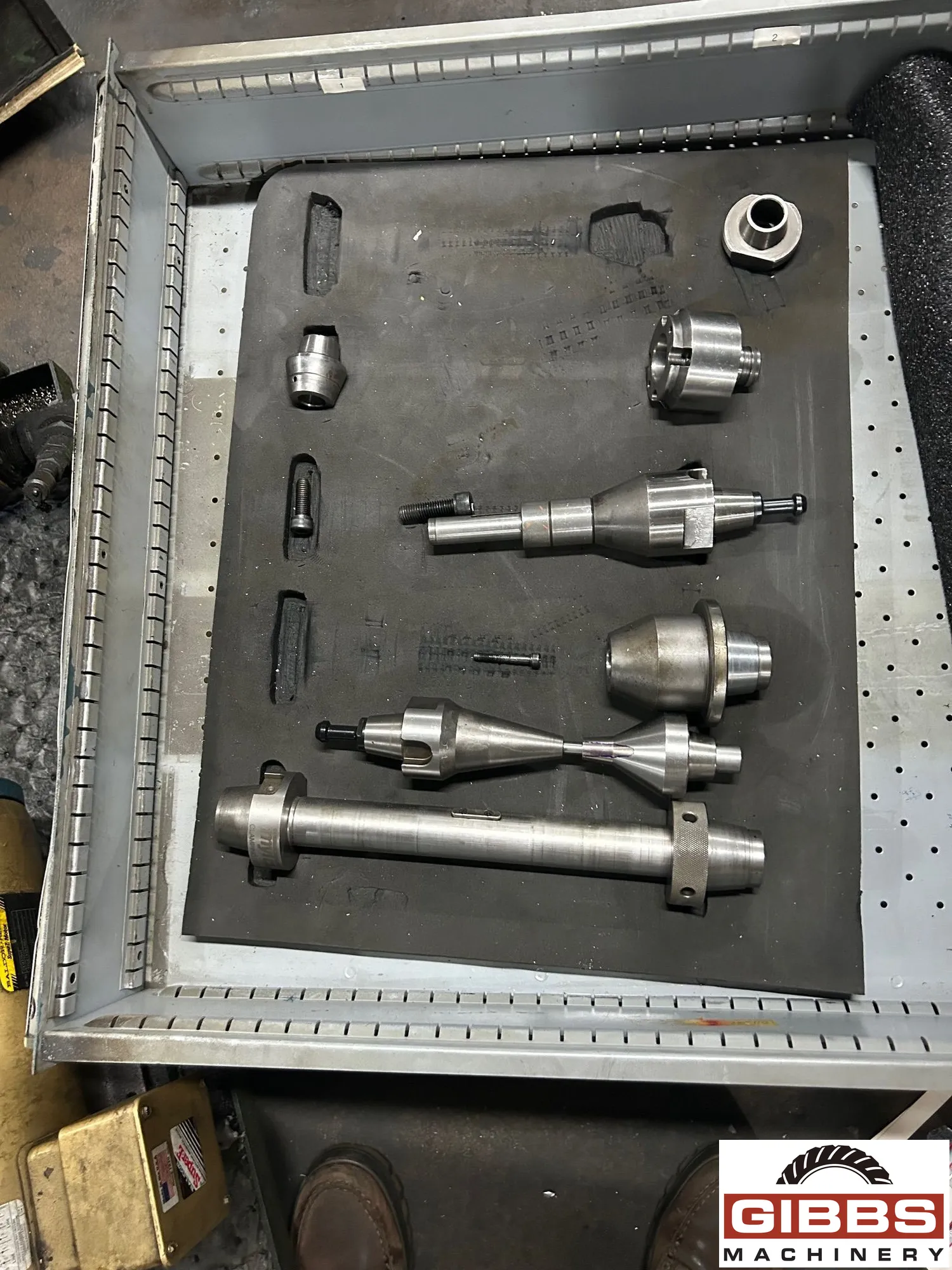

  • 1.25" Hob Arbor
  • Tailstock W/Center
  • 180 Degree Loader
  • Coolant System
  • Chip Conveyor

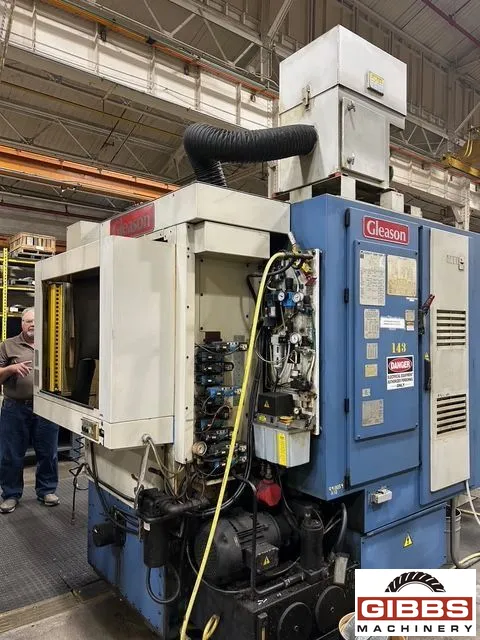

  • Hydraulic System
  • Mist Collector
  • Work Light
  • Light Curtain
  • Manuals
,

Machine Specifications :

  • Year
  • Manufacturer GLEASON PHOENIX
  • Maximum Workpiece Diameter 4.92"
  • Maximum Diametral Pitch 3.2
  • Maximum Hob Diameter 4.53"
  • Hob Arbor Size 1.25"
  • Hob Speed 1,500 RPM
  • Control Manufacturer Fanuc
  • Horz/Vert Vert
  • Maximum Workpiece Diameter 125.0"
  • Module 3.2
  • Axial Travel 11.8"
  • Maximum Hob Diameter 4.5"
  • Hob Arbor Size 1.25"
  • Hob Speed 1,500 RPM
  • Control Manufacturer Fanuc
,

The Gleason 125GH is a CNC vertical gear hobbing machine manufactured by Gleason Corporation, designed for high-speed, automatic gear cutting with a compact footprint. It features a Fanuc control system, can cut gears up to 125 mm (5 inches) in diameter, and can be optionally equipped with software to cut gears up to 200 mm (8 inches) in diameter. The machine includes features like a chip conveyor, mist collection, and an 180-position loader for parts.

    Specifications:

  • Nominal Workpiece Diameter: 125 mm
  • Maximum Diametral Pitch (coarsest): 3.2 module
  • Maximum Hob Setting Angle: +/- 45 deg
  • Total Swivel Motion: -180 deg +40 deg=220 deg
  • Maximum Hob Diameter: 115 mm
  • Hob Lengths Up To ... 215 mm
  • Hob Arbor Diameter (optional): 22,27,32,40mm
  • Tangential Slide Travel (hob shift): 200 mm+
  • Hob Speed Range: 150-1500 rpm+
  • Workspindle Speed: 5-250 rpm+
  • Floor Space: 2578x1650x3117 mm+
  • Net Weight: 6,820 kg
