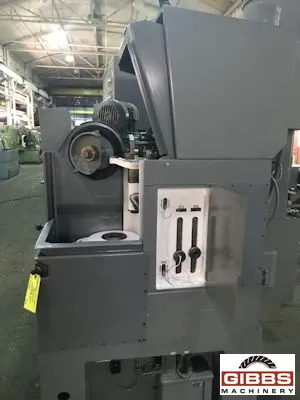

KLINGELNBERG AGW60 - Gear Cutter Sharpener

Manufacturer

KLINGELNBERG

Category

Gear Machines

Type

GEAR CUTTER SHARPENERS (Including CNC)

Stock

14537

Model

AGW60

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Tailstock With (2) Centers
  • (1) Hob Arbor For Mounting Hobs
  • Trabon Lube System

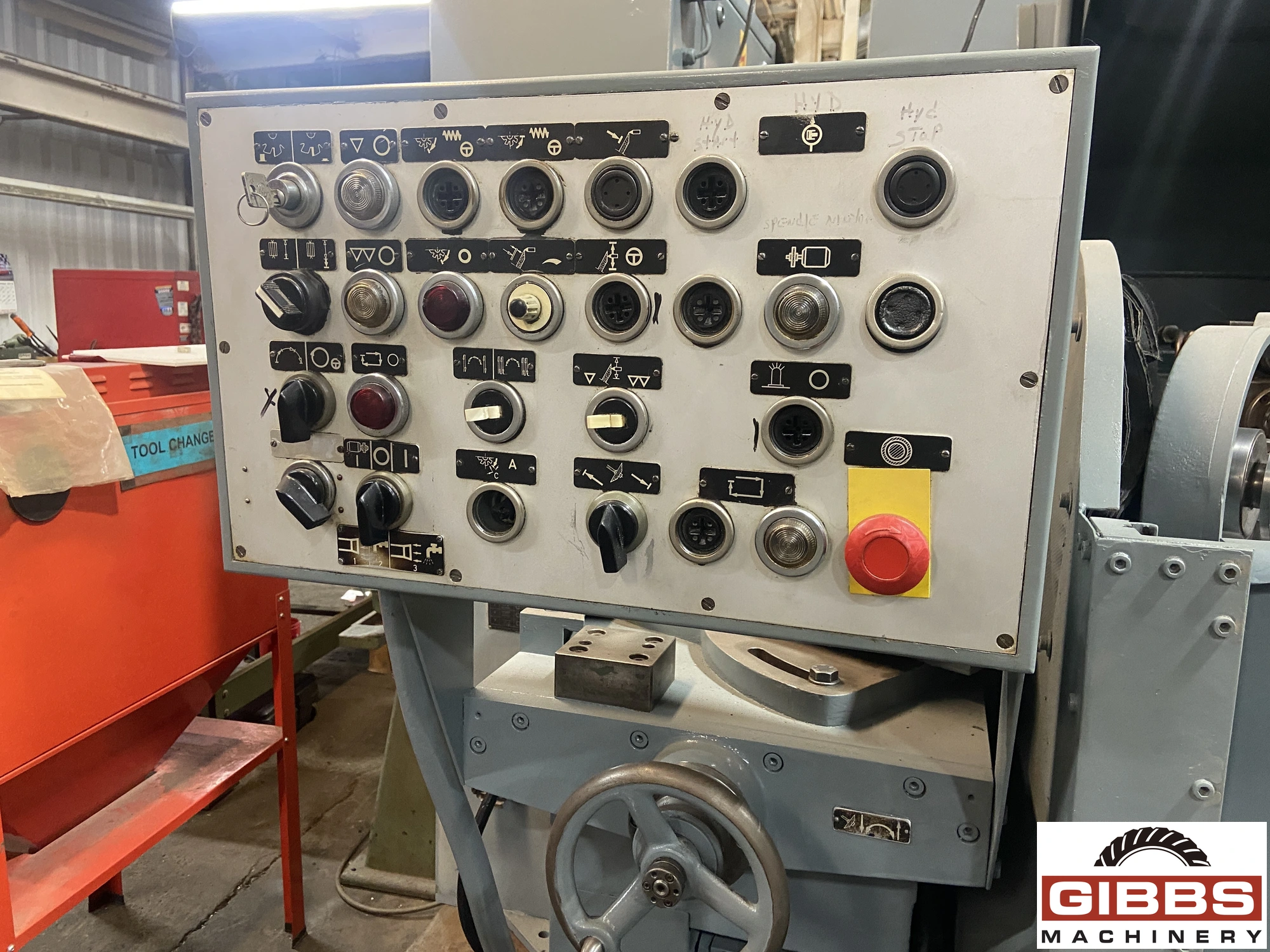

  • 110 Volt Push Button Controls
,

Machine Specifications :

  • Year
  • Manufacturer KLINGELNBERG
,

MODEL AGW60 KLINGELNBERG GEAR CUTTER SHARPENER

    EQUIPPED WITH:

  • Tailstock With (2) Centers
  • (1) Hob Arbor For Mounting Hobs
  • Trabon Lube System
  • 110 Volt Push Button Controls
  • SPECIFICATIONS:
  • Max. Workpiece Diameter: 190mm, 7.480"
  • Min. Workpiece Root Diameter: 0mm, 0"
  • Max. Flute Grinding Depth: 35mm, 1.378"
  • Min./Max. Number of Flutes: 2/40
  • Max. Distance Between Centres: 385mm, 15.160"
  • Min./Max. Grinding Wheel Diameter: 150/200mm, 5.905"/7.875"
  • Max. Grinding Wheel Speed: 35 m/sec., 115 ft/sec.
  • Number of Steps (Standard Version): 6
  • Diameter of Wheel Adaptor: 50.8mm h6
  • Axial Range of Wheel Spindle Axis: 70mm, 2.755"
  • Max. Slide Stroke, Approx.: 440mm, 17.320"
  • Max. Grinding Stroke: 310mm, 12.205"
  • Min./Max. Feed Rate: 0-16 m/min., 0-52.5 ft/min.
  • Min./Max. Between Wheel & Work Axis: 195mm, 7.677"
  • Dia. of Indexing Plates: 200mm, 7.875"
  • Weight: 4000 kg, 8800 lbs.
