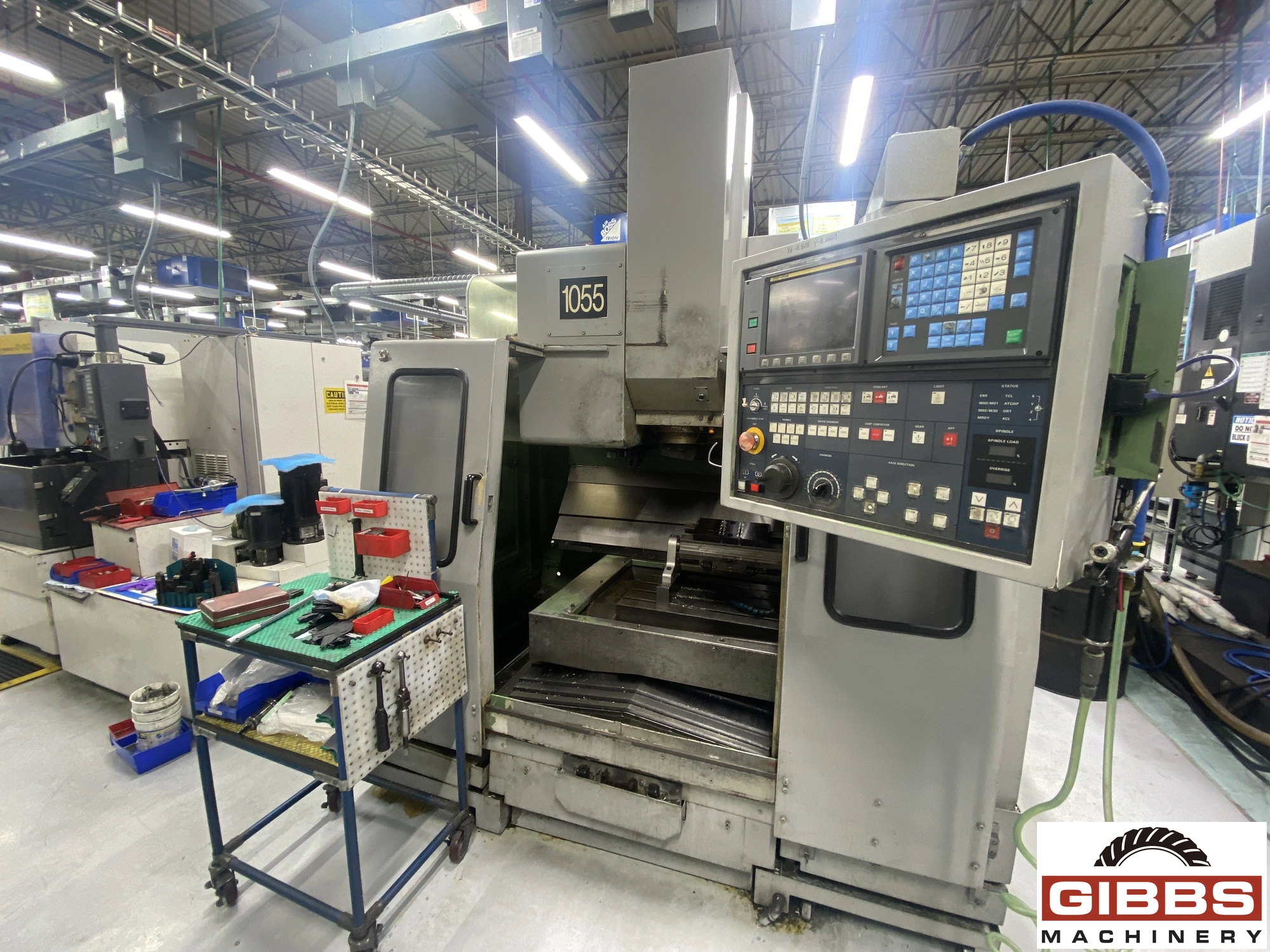

MORI SEIKI MV JR. - Vertical Machining Center

Stock

25327

Model

MV JR.

Dealer Location

Michigan

Spec Sheet

Highlights:

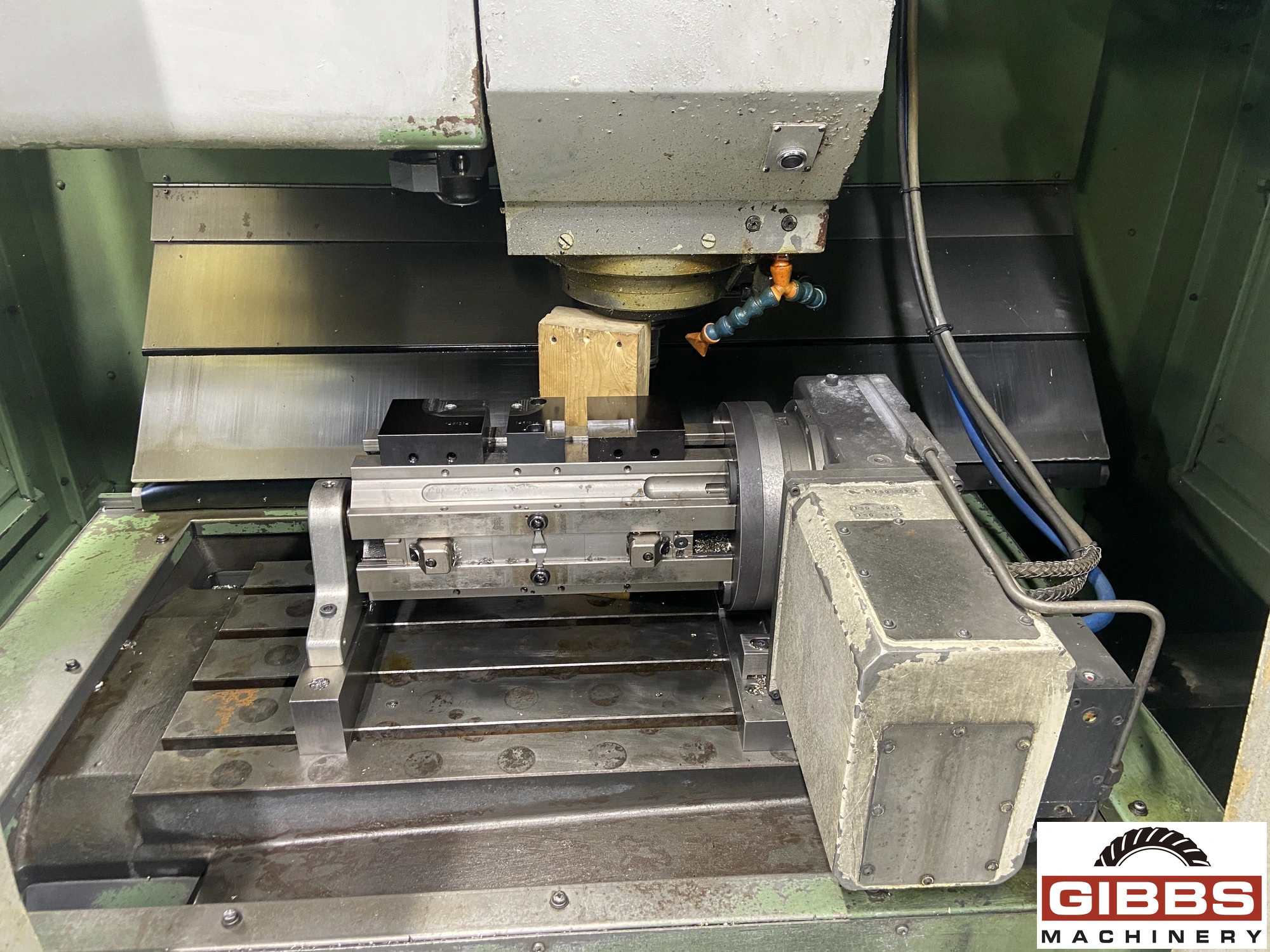

  • 4th Axis
  • Coolant tanks

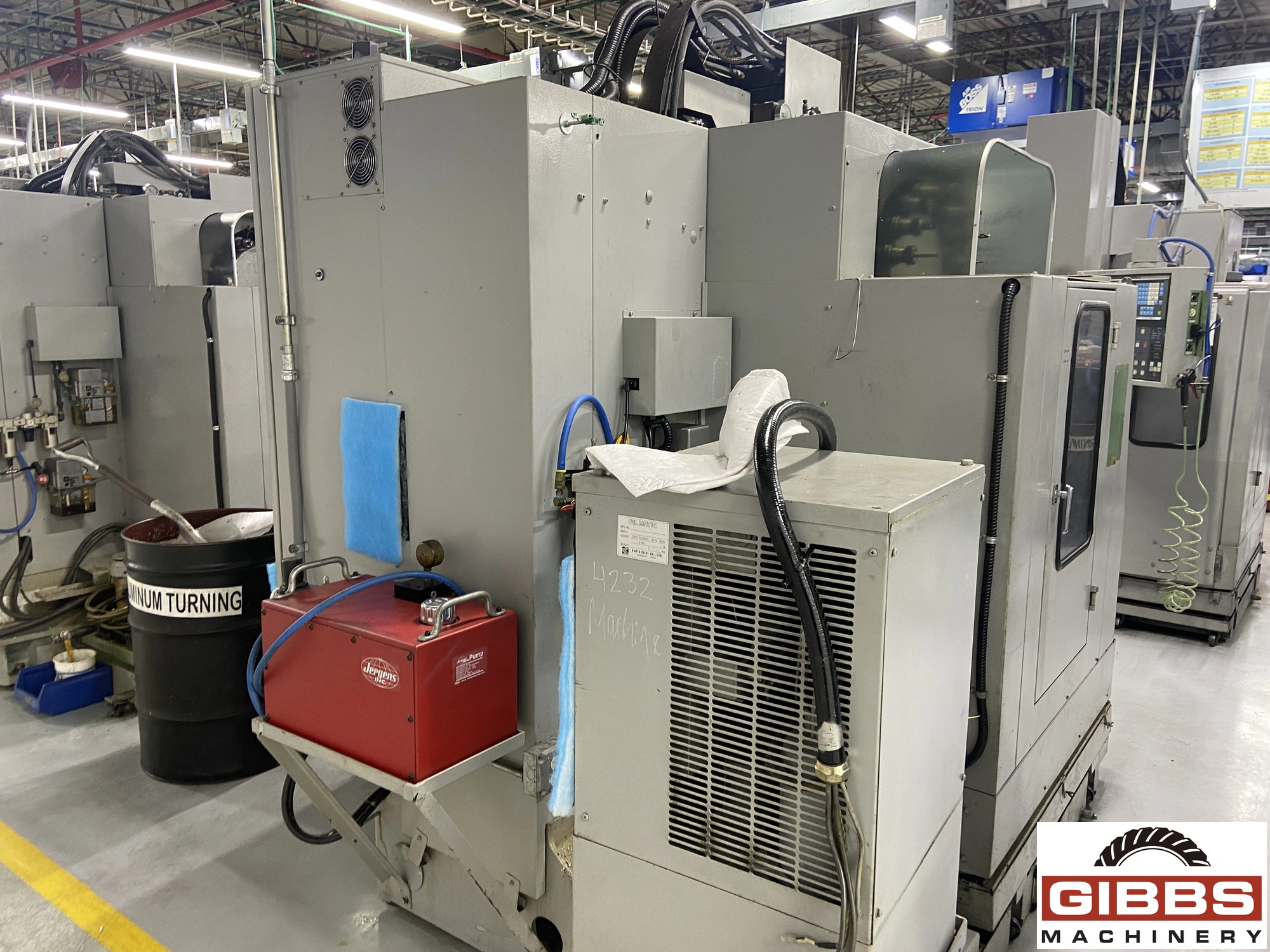

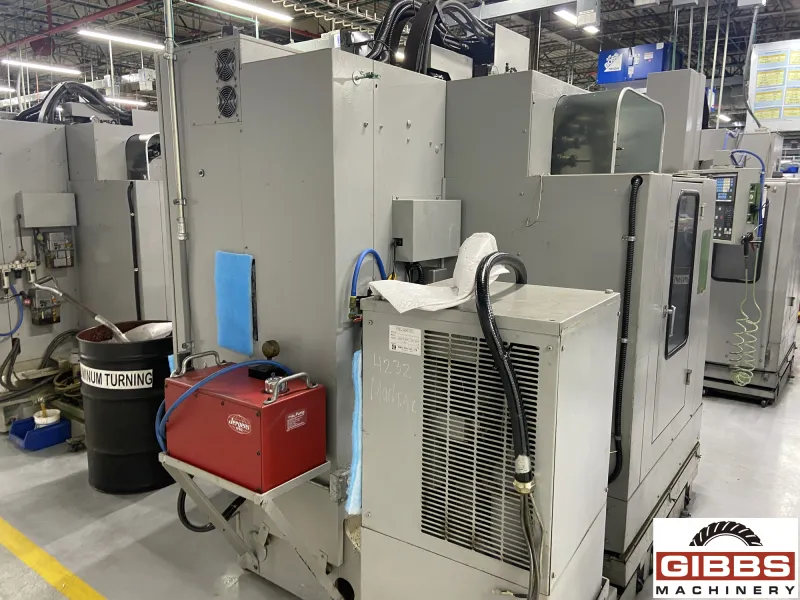

  • Chiller

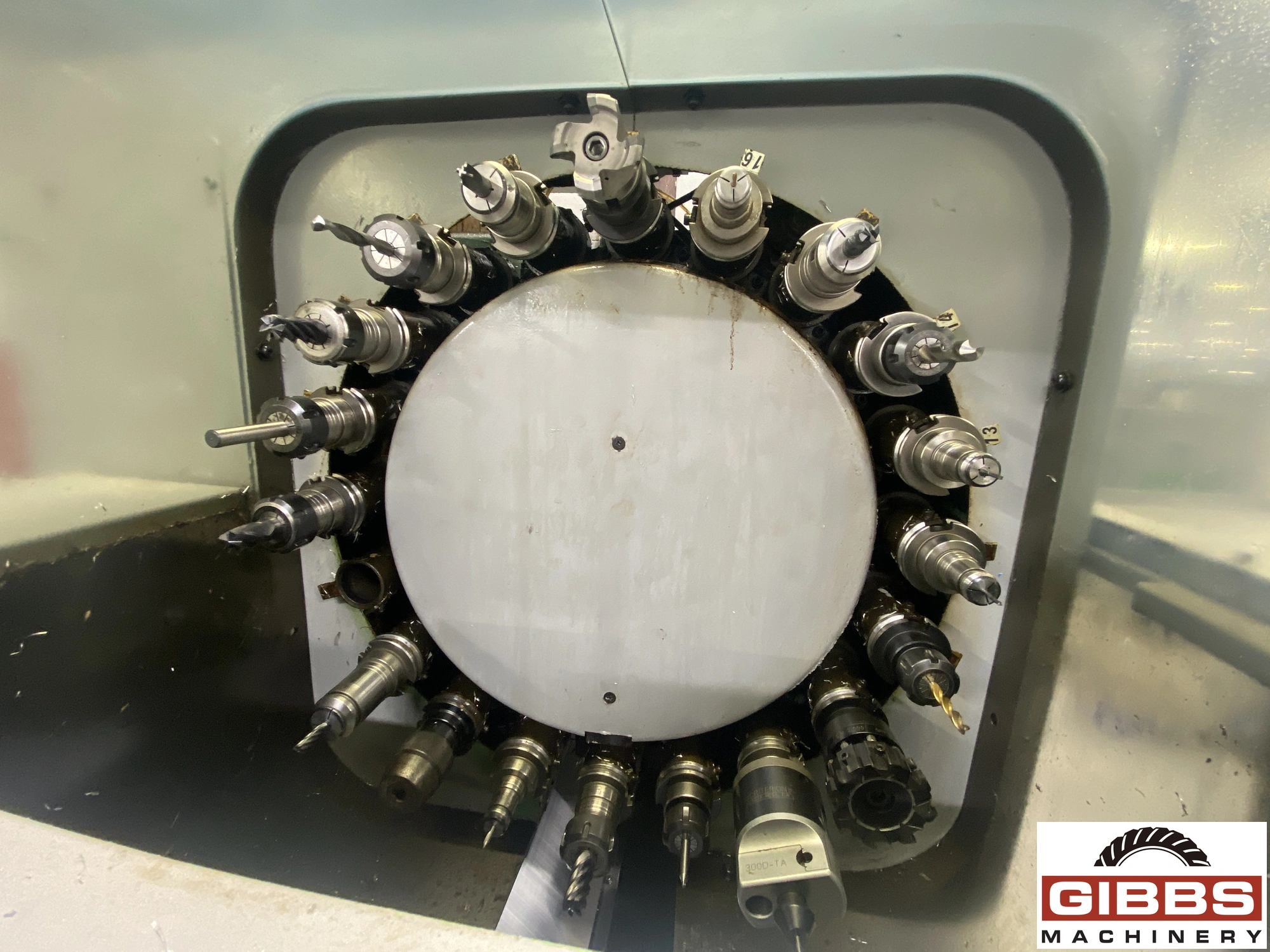

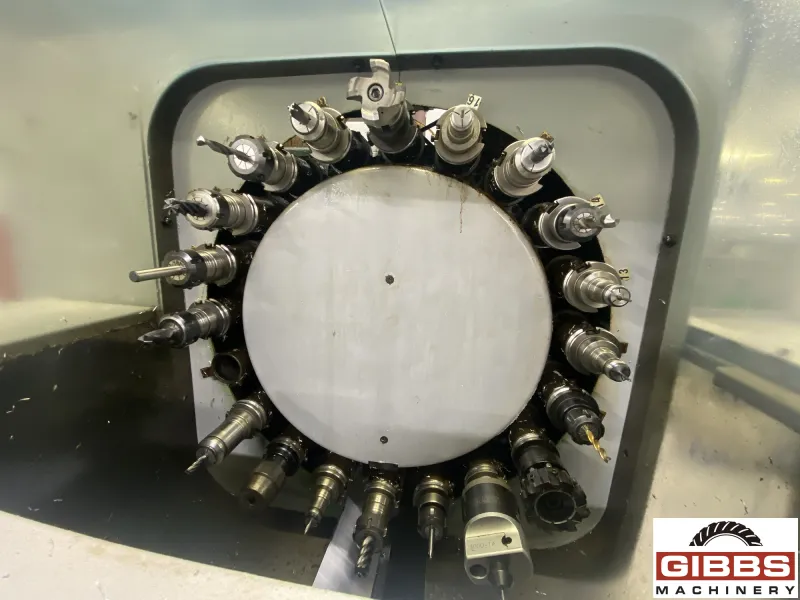

  • 20 ATC
  • Air Gun
  • Work light
,
  • Year
  • # Axis 4.0
  • Table-L 35.0"
  • Table-W 16.0"
  • Taper CAT-40
  • # ATC 20.0
  • RPM 8,000 RPM
  • Power 7.5 HP
  • Z-Axis 18.0"
  • Y-Axis 16.0"
  • X-Axis 22.0"
  • Manufacturer MORI SEIKI
,

MORI SEIKI MV JUNIOR VERTICAL MACHINING CENTER

    Specifications:

  • Table Size: 35" x 17"
  • Maximum Table Load: 660 LBS
  • Spindle Nose to Pallet Top: 6" - 25"
  • X-Axis Travel: 22"
  • Y-Axis Travel: 16"
  • Z-Axis Travel: 18"
  • Rapid Traverse Rate (X & Y Axes): 787 IPM
  • Cutting Feed Rate: 0.1 - 197 IPM
  • Spindle Taper: CAT 40
  • Spindle Speeds: 0 - 8,000 RPM
  • Spindle Motor: 7.5 HP
  • Tool Changer Capacity: 20 ATC
  • Maximum Tool Weight: 17 LBS
  • Approximate Dimension: 85" x 90" x 106"
  • Machine Weight: 8,600 LBS
