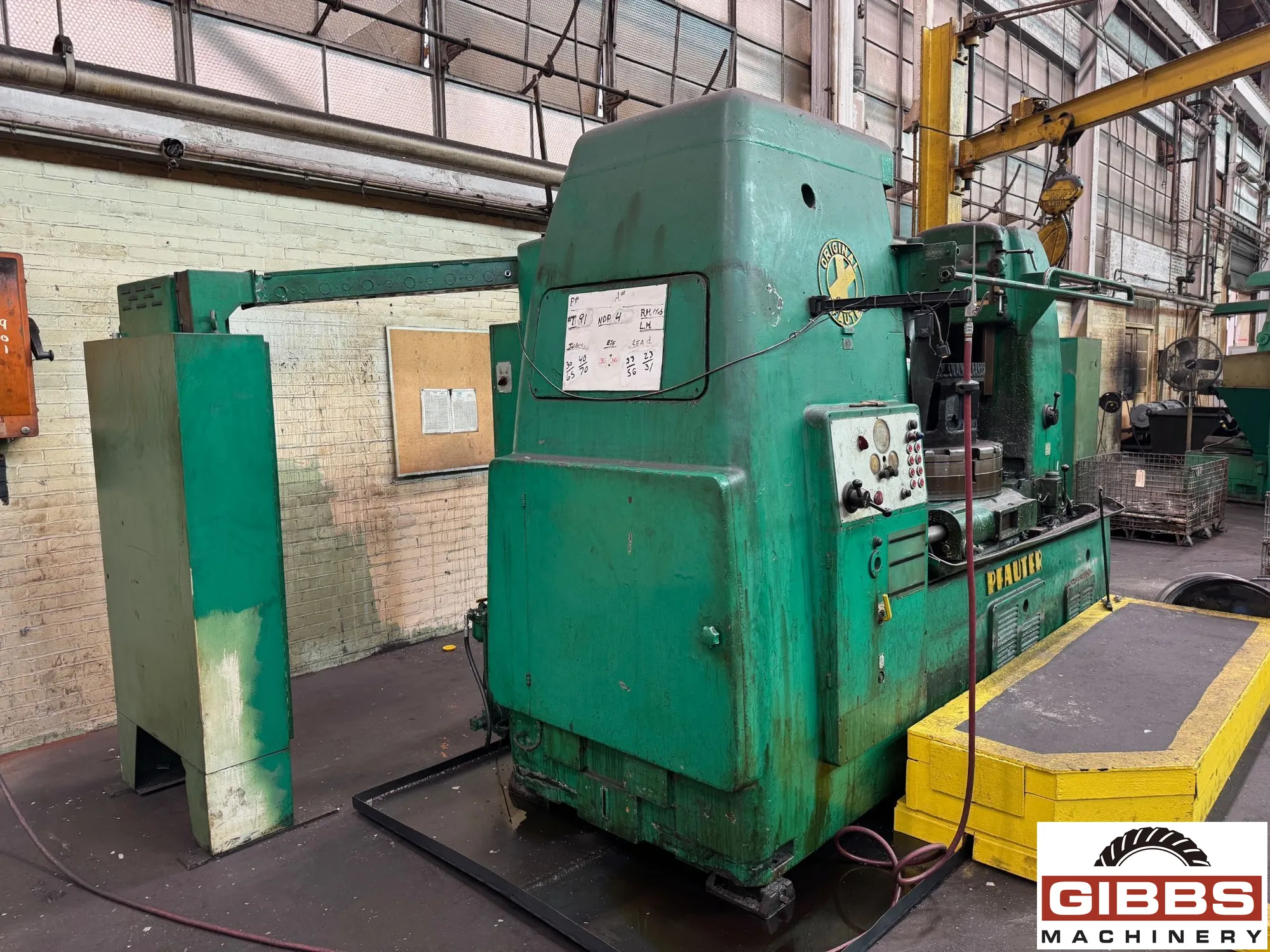

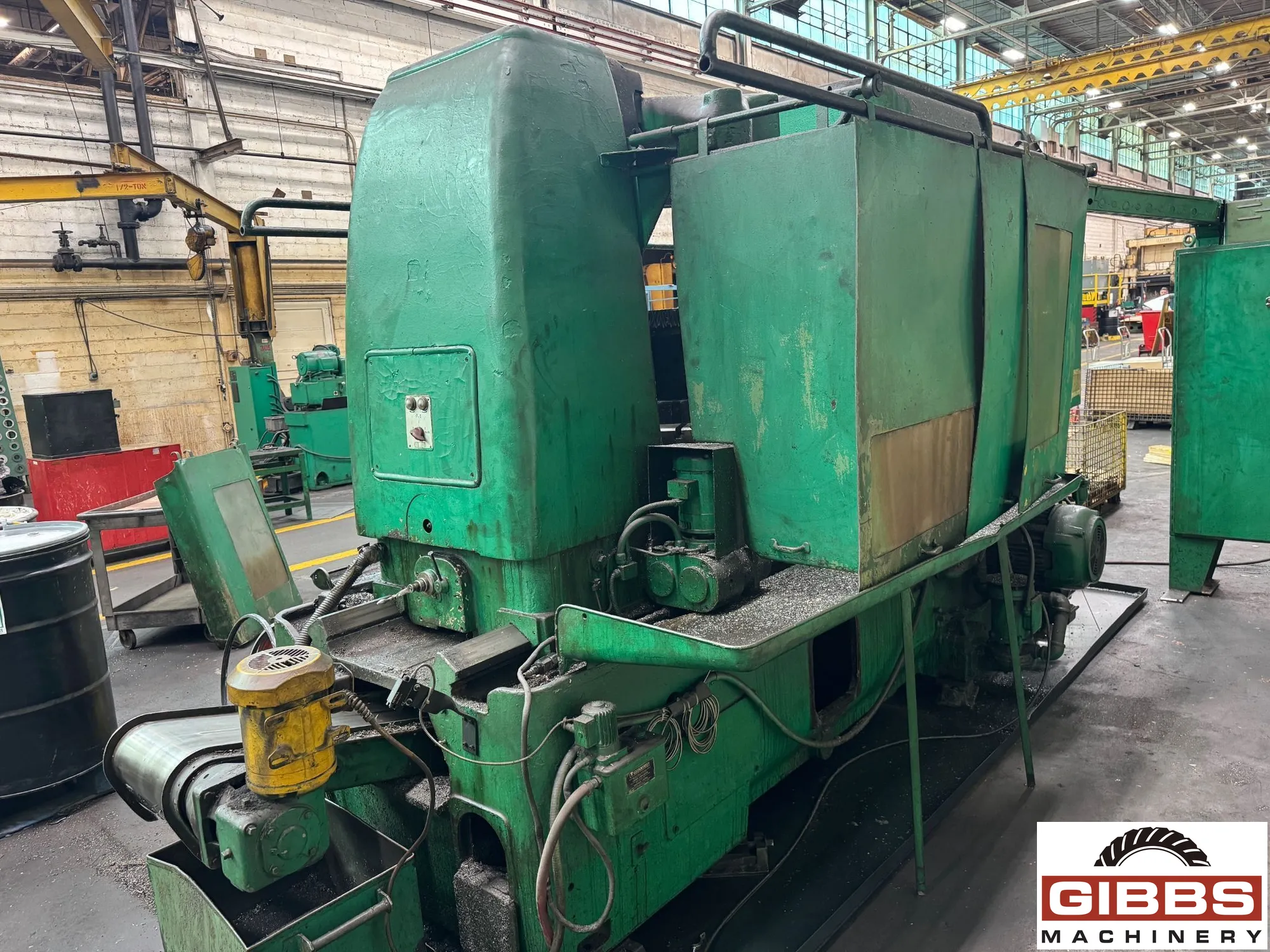

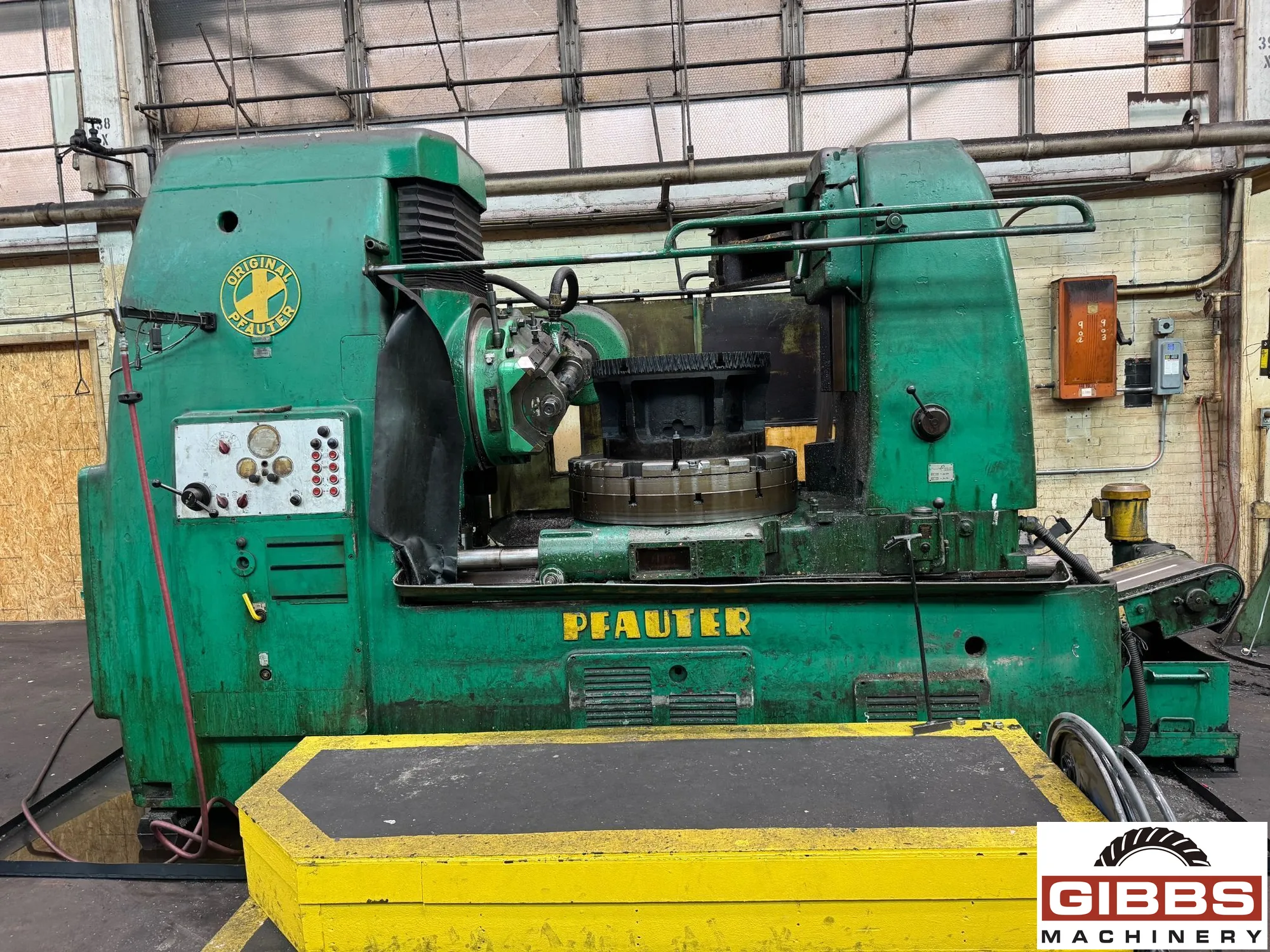

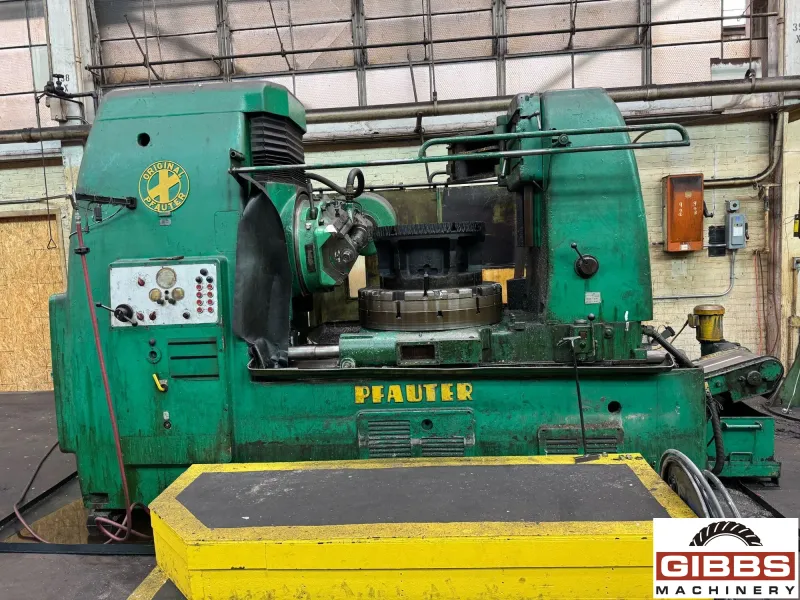

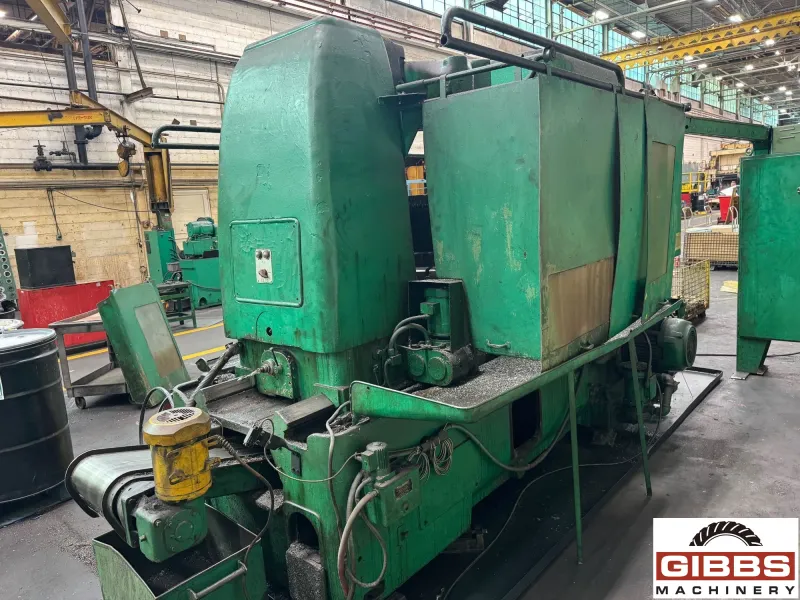

PFAUTER P1250 - Gear Hobber

Manufacturer

PFAUTER

Category

Gear Machines

Type

GEAR HOBBERS, VERTICAL

Stock

25792

Model

P1250

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

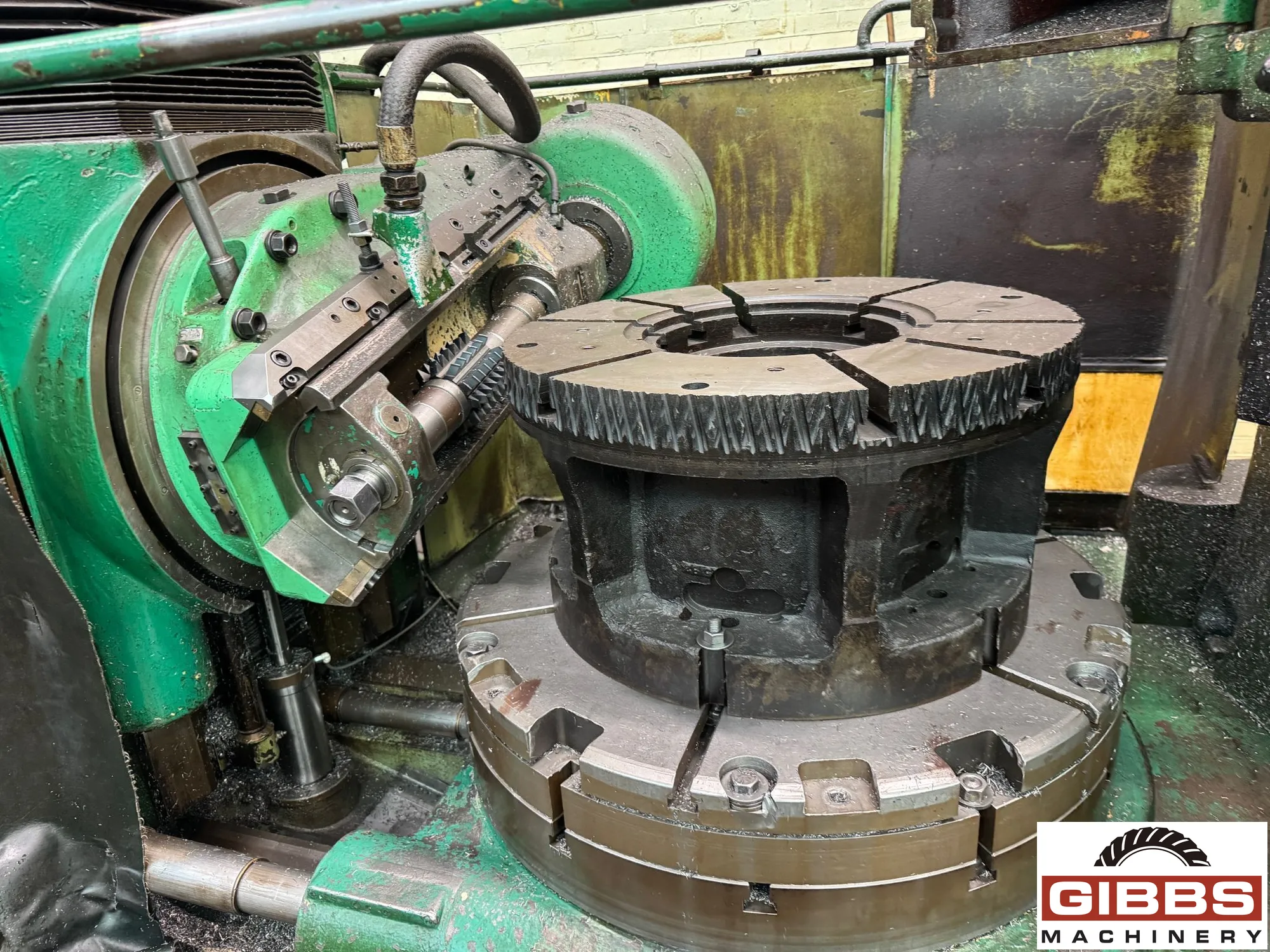

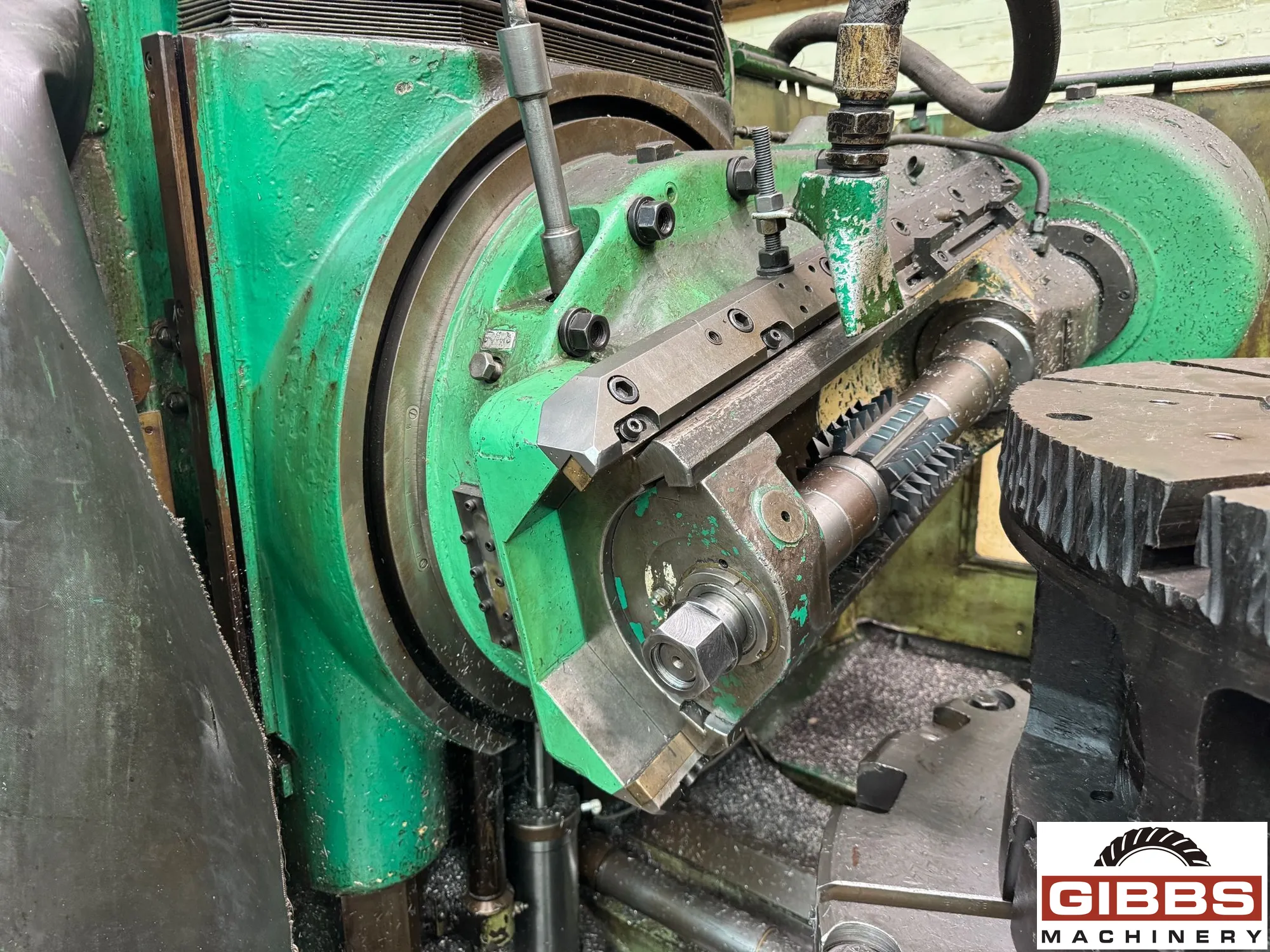

  • Hob Arbor
  • Single Indexing
  • Differential

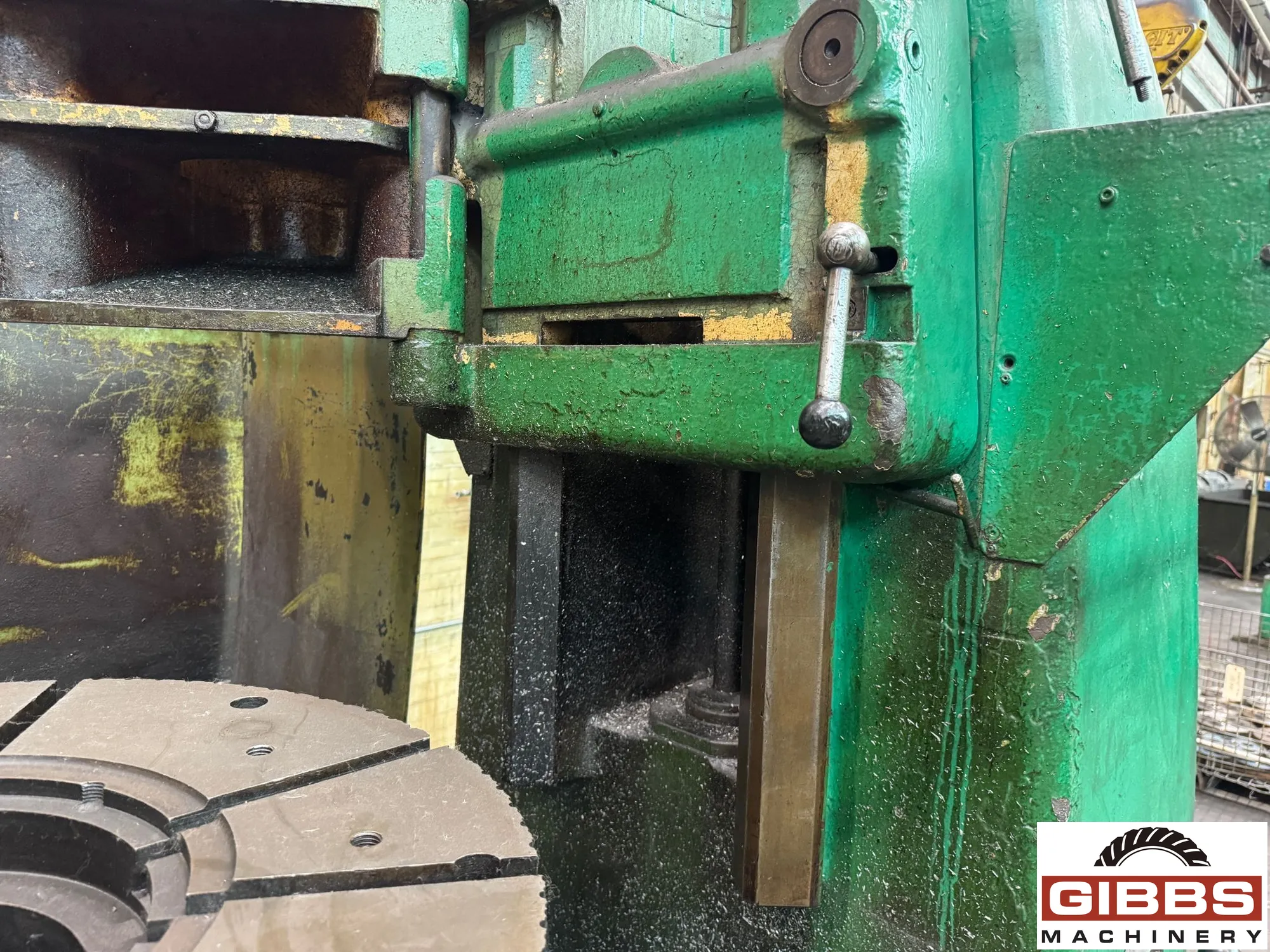

  • Swing Away Tailstock

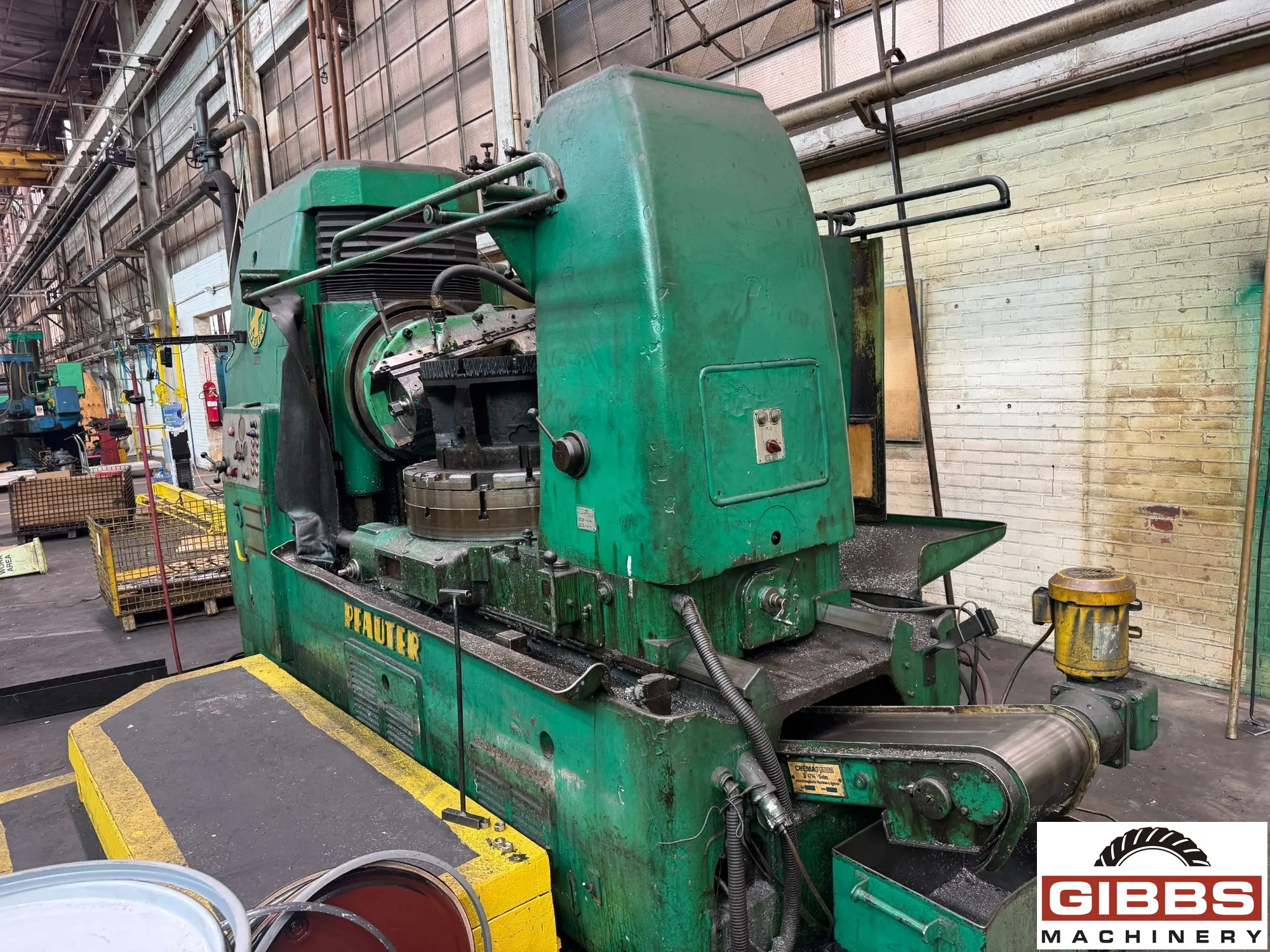

  • Chip Conveyor,
  • Coolant
  • Change Gears
  • Spare Arbors
,

Machine Specifications :

  • Year
  • Manufacturer PFAUTER
  • Maximum Workpiece Diameter 49.2"
  • Horz/Vert Vert
  • Maximum Diametral Pitch 2.0
  • Module 12.0
  • Axial Travel 23"
  • Maximum Hob Diameter 8.7"
  • Hob Arbor Size 2.0"
  • Hob Speed 200 RPM
  • Table Diameter 37.4"
  • Control Manufacturer Conventional
,

Used PFAUTER P1250 Vertical Gear Hobber available. Handles workpiece diameters up to 1,250 mm with a hob speed of 200 RPM. Equipped with a hob arbor, chip conveyor, coolant system, and more. Ideal for precise gear manufacturing. Suitable for large-scale operations.

    Specifications:

  • Maximum Gear Diaemter: 1250 mm
  • Module: 12
  • Hobbing Length: 585 mm
  • Feed Range:
  • -Axial: 0,30 – 6 mm/min
  • -Radial: 0.09 – 1.8 mm/min
  • -Tangential: 0.126 – 2.53 mm/min
  • Hob Spindle Speeds: 32 – 200 RPM
  • Maximum Tool Length: 260 mm
  • Maximum Tool Diameter: 220 mm
  • Minimum Number of Milling Teeth: 12
  • Weight: 14,000 kg
