300-ton Komatsu Straight Side Mechanical Press For Sale Model #E2G-300U

Manufacturer

KOMATSU

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2988

Model

E2G-300U

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Tonnage - 300
Stroke - 14.2 inches
Shut Height - 32.3 inches
Adjustment - 10.2 inches
Bed Size - 98.4 LR x 49.2 FB
Ram Area - 98.4 LR x 49.2 FB
SPM - 20-40 VSPM

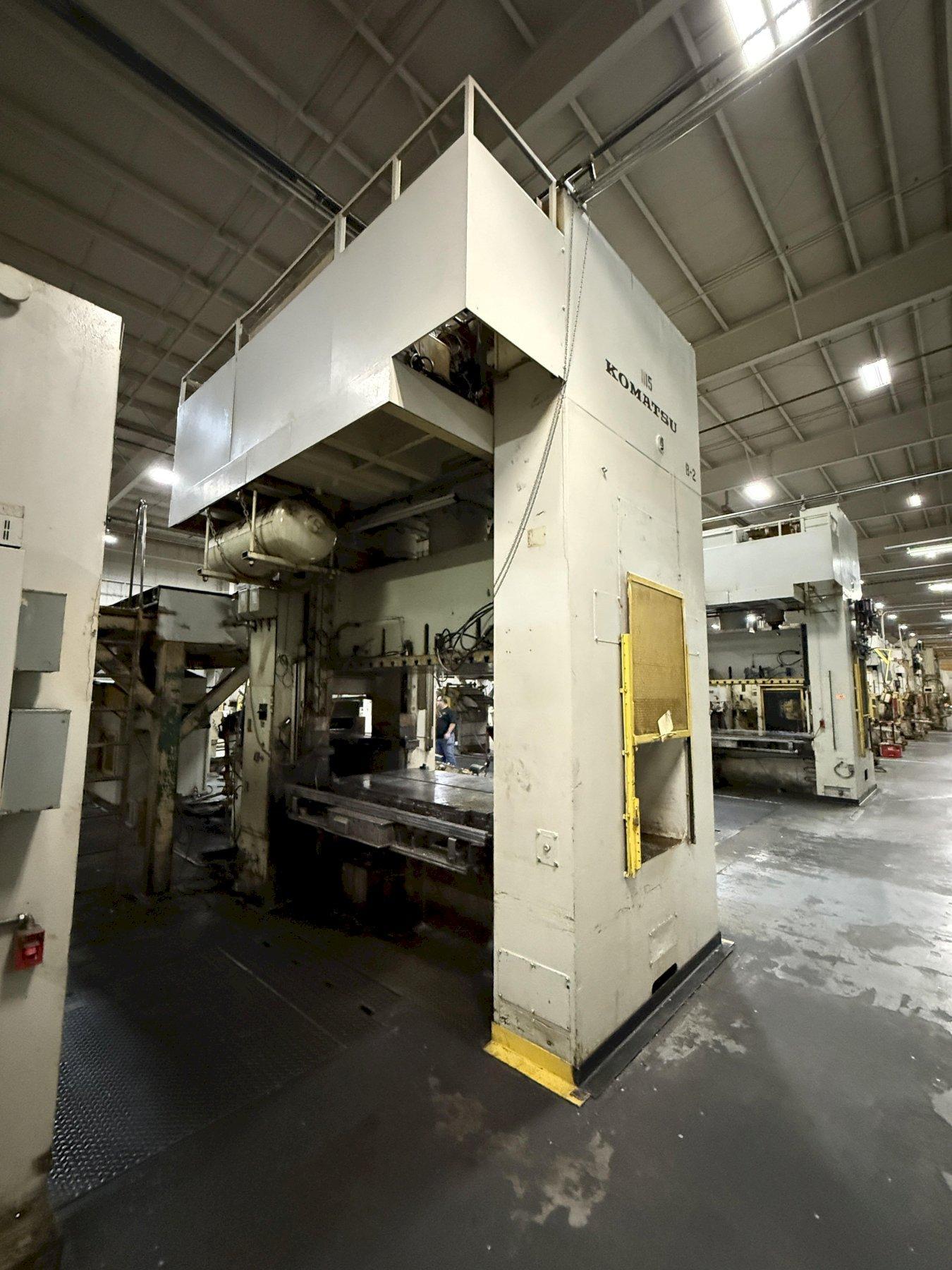

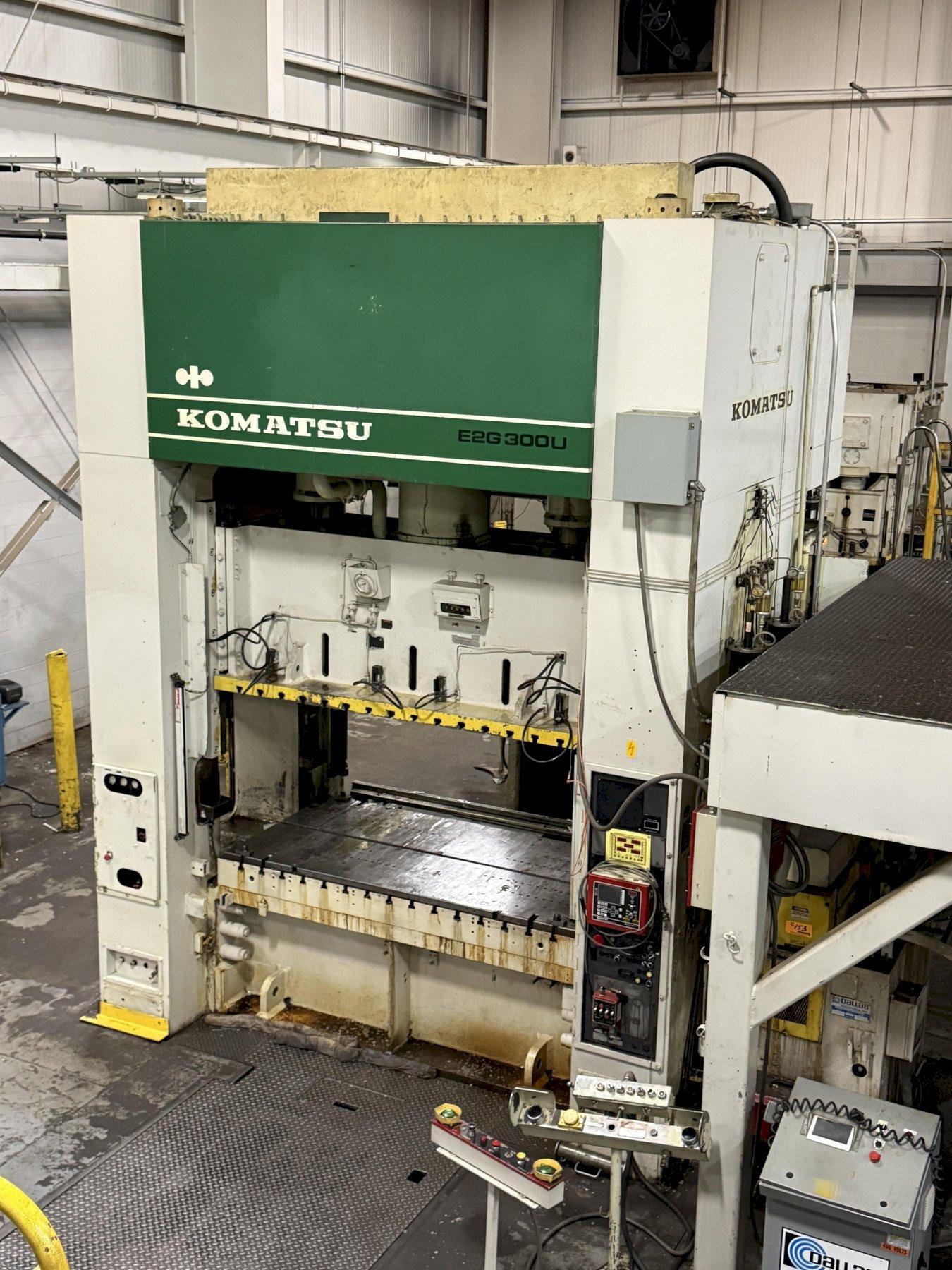

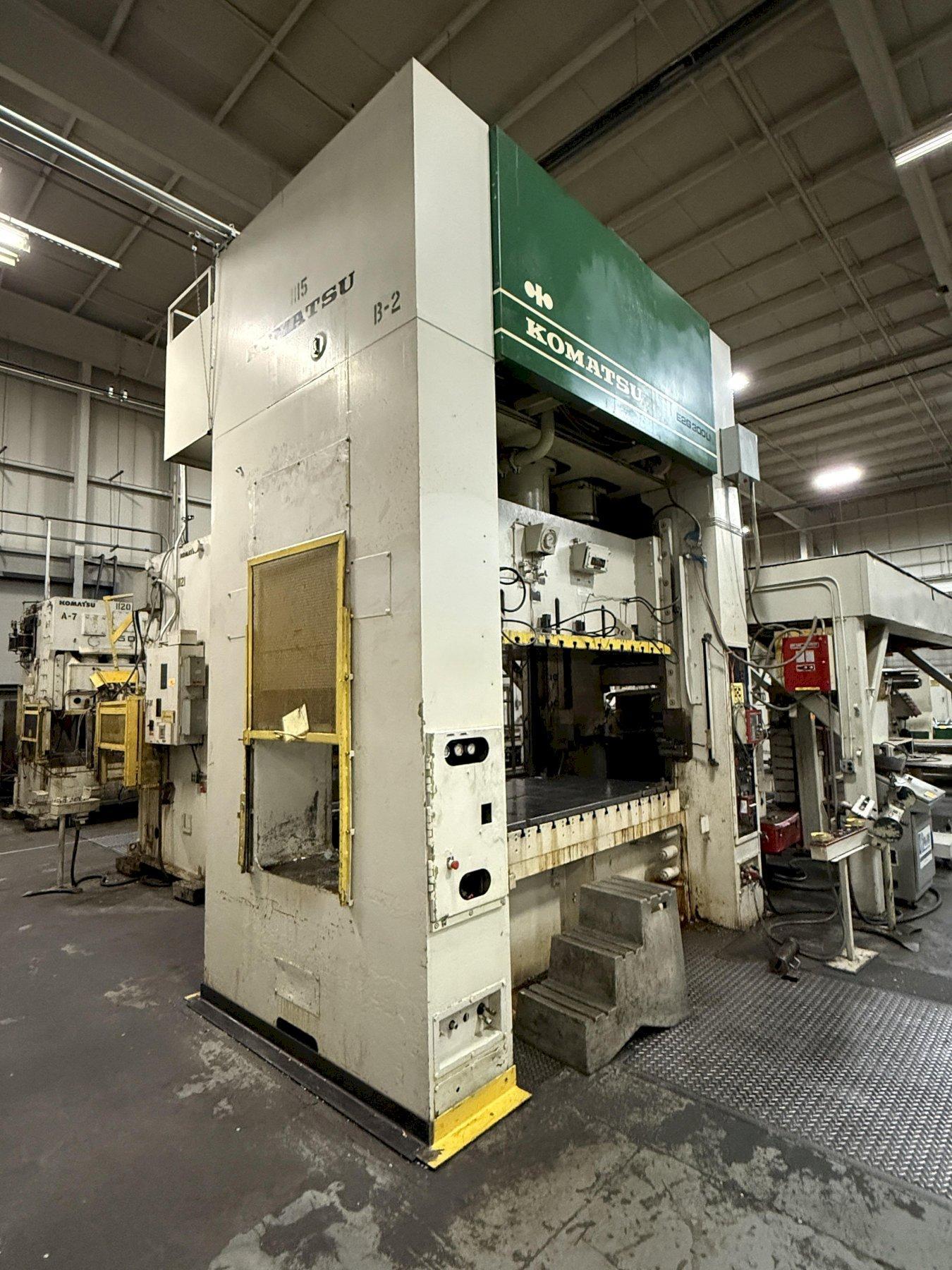

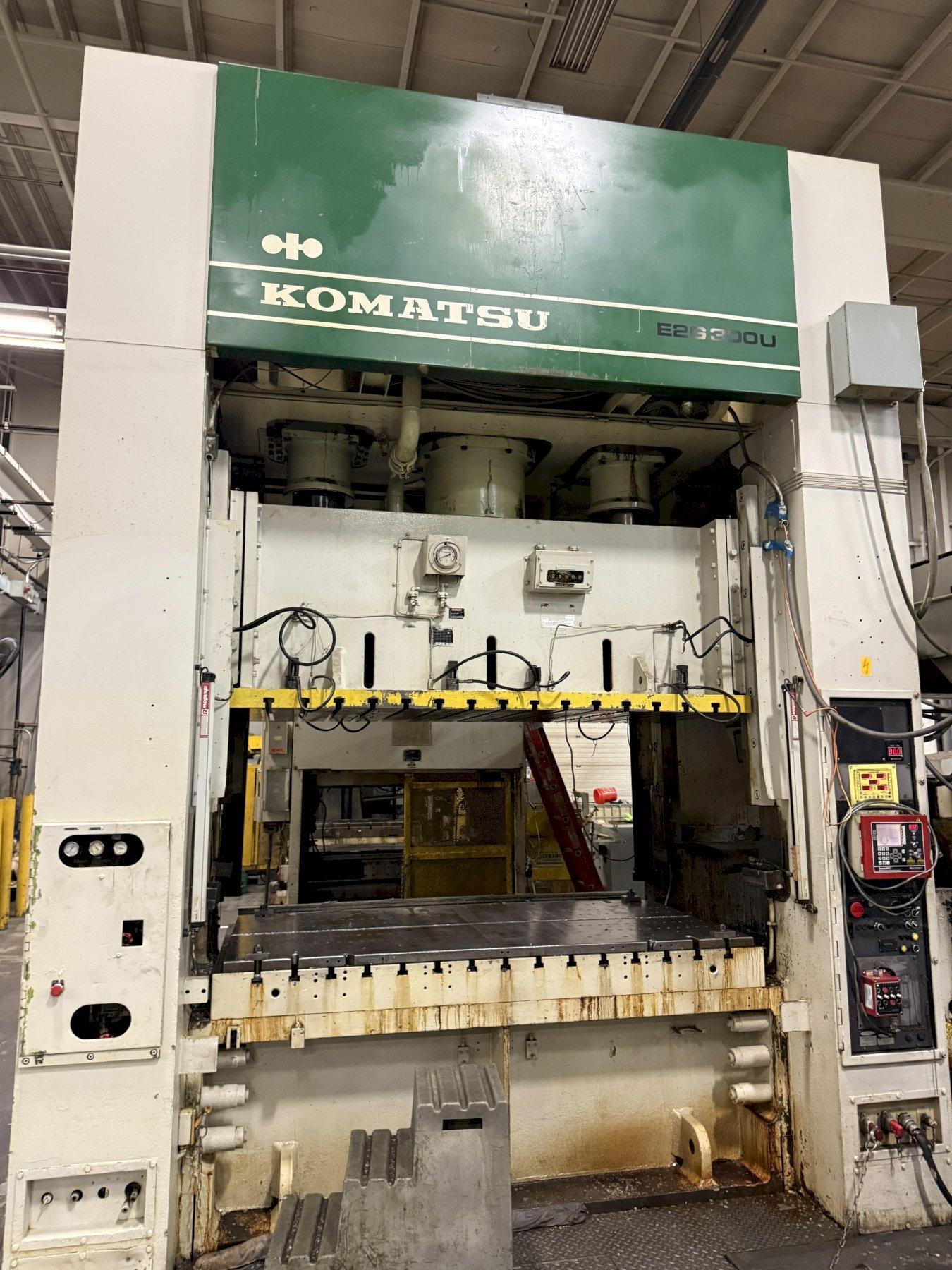

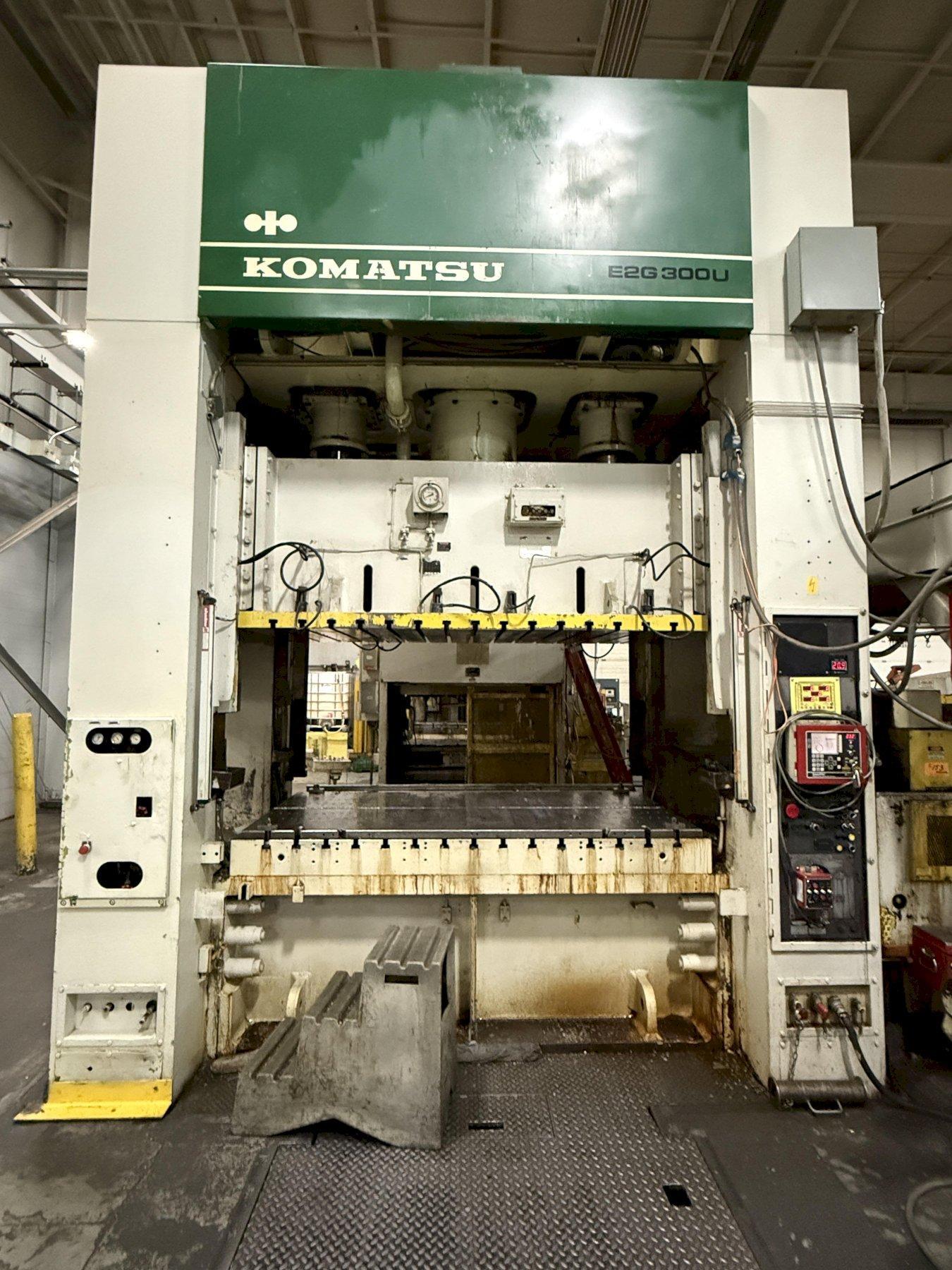

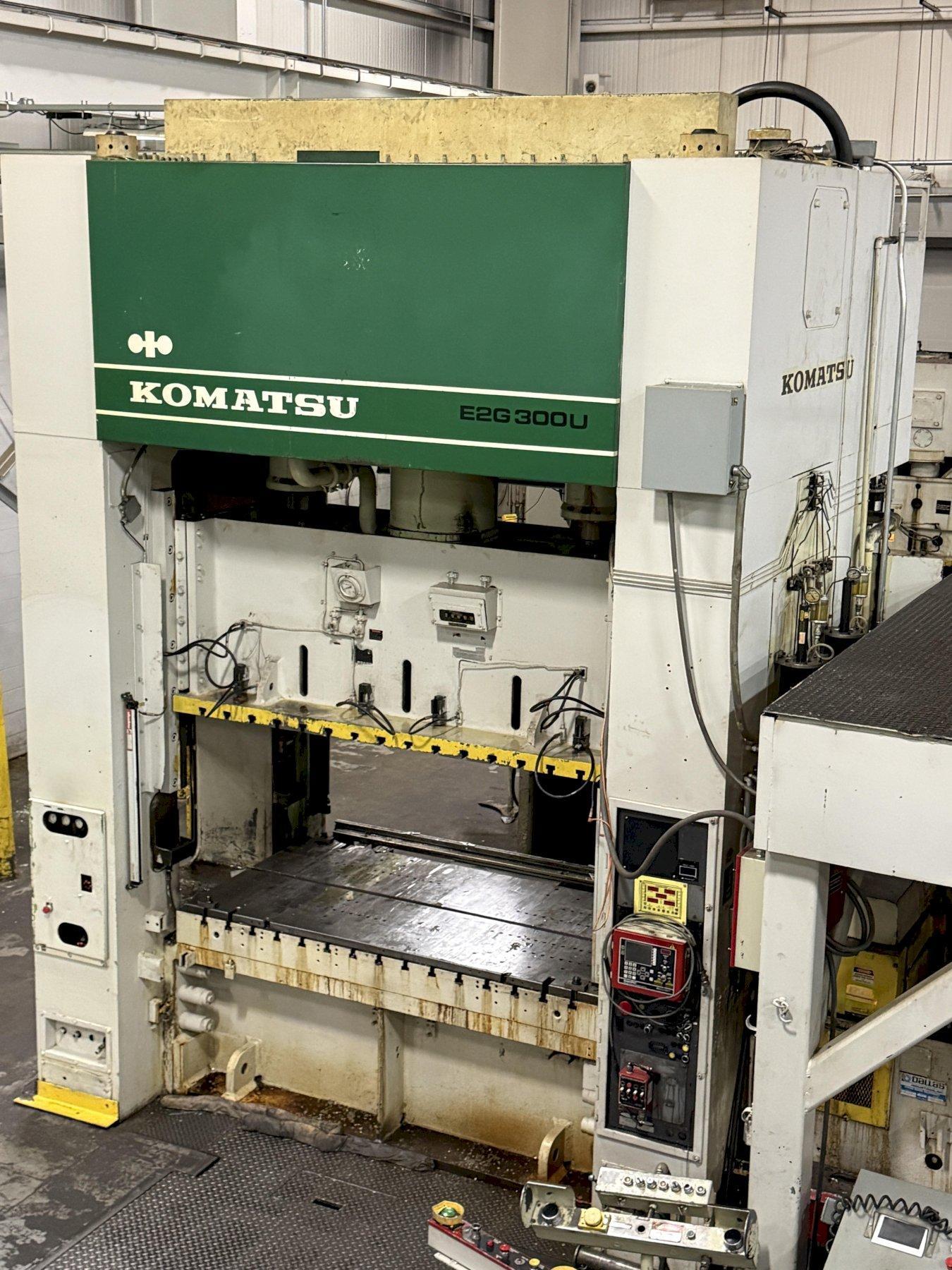

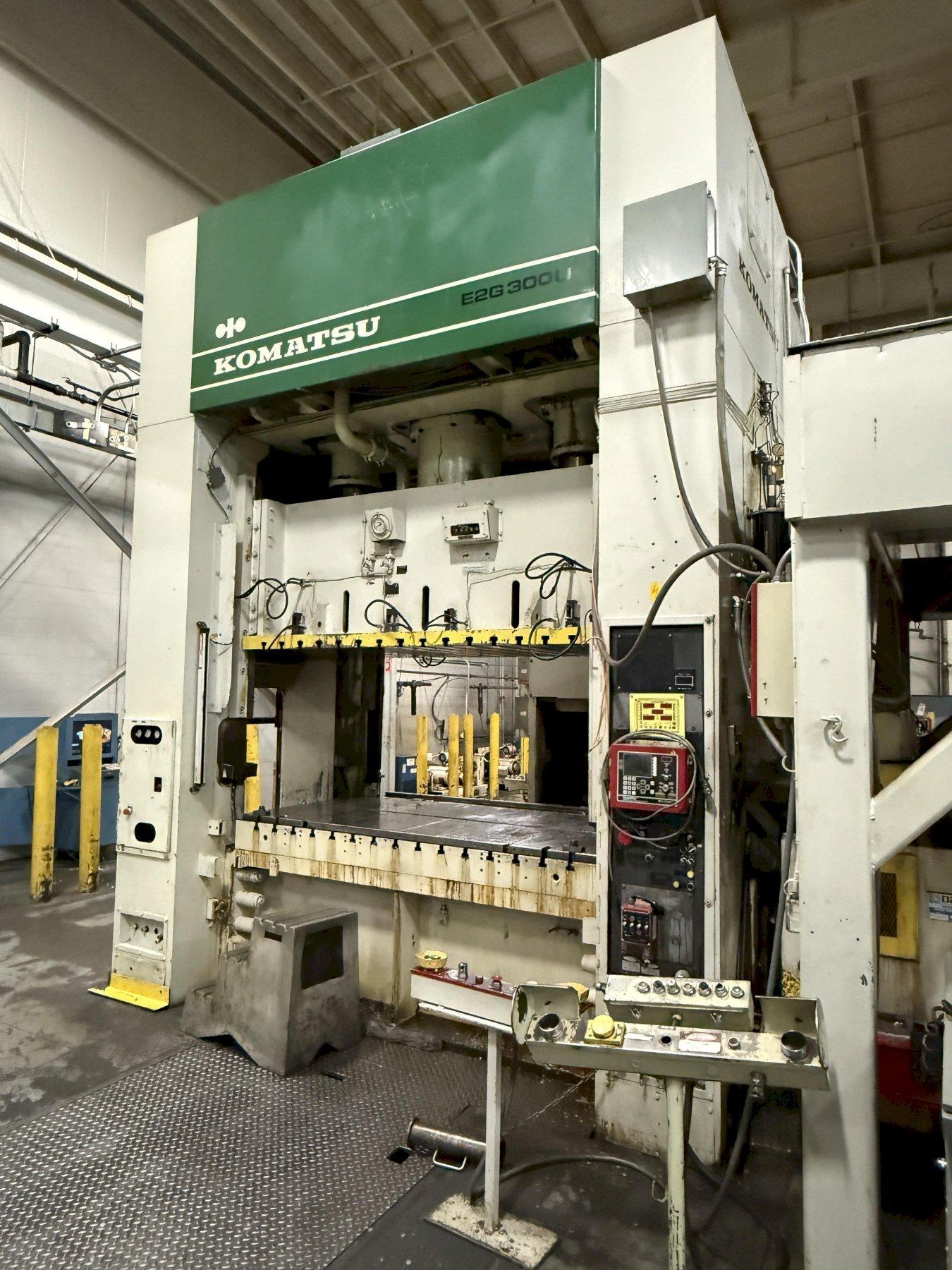

300-ton Komatsu Model E2G-300U
Straight Side Mechanical Stamping Press
Year 1990

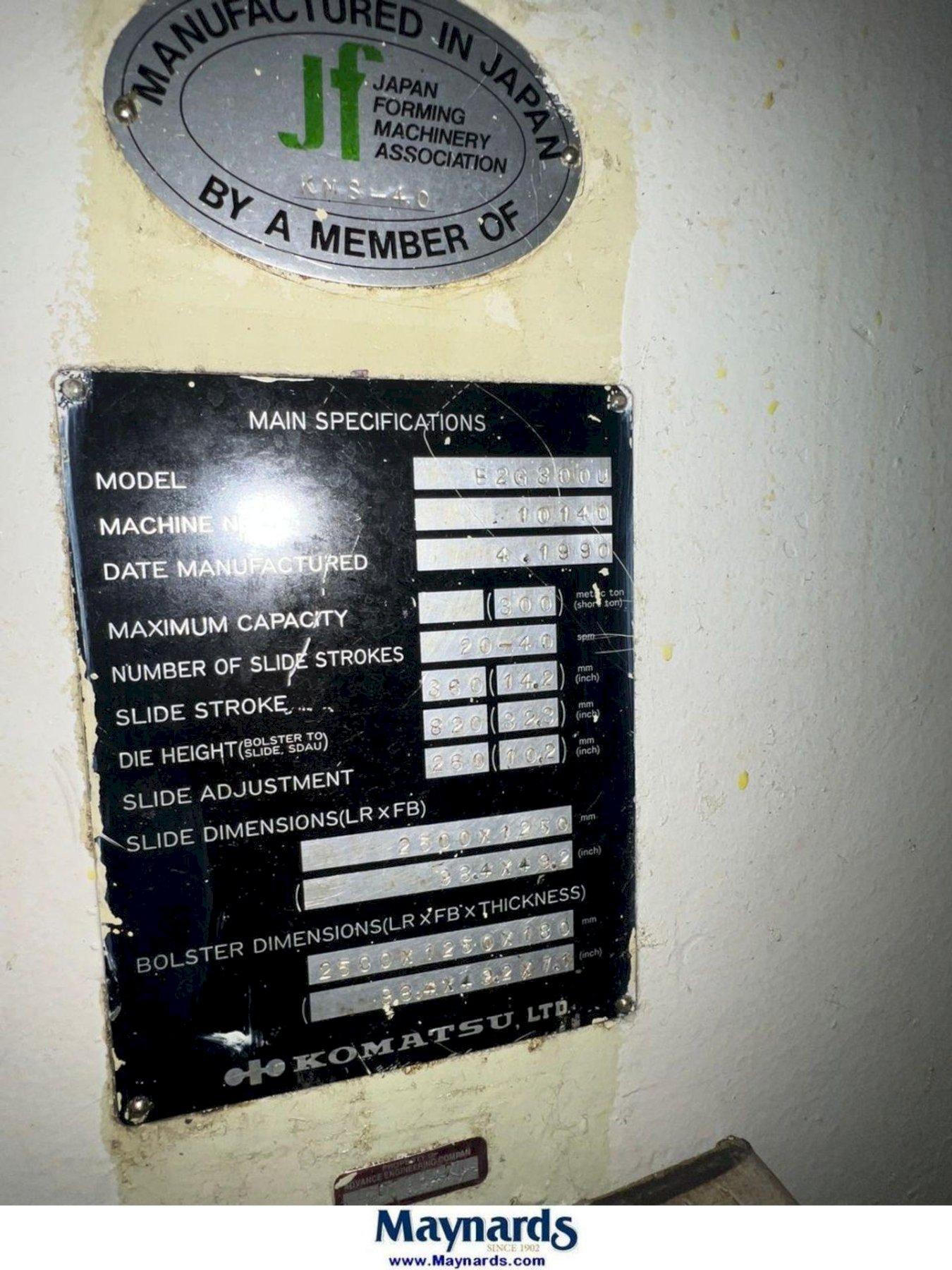

Standard Specification
300-ton US Capacity
Rated @ 1/2" Off Bottom Dead Center
14.2" Stroke
32.3" Shut Height Over Bolster
39.8" Shut Heigh On Bed
10.2" Adjustment
98.4" LR x 49.2" FB Bed Area
98.4" LR x 49.2" FB Slide Area
20-40 VSPM

Equipment and Features
Hydraulic (Air Actuated) Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
7.5" Thick Bolster Plate
36" Wide Windows in Side Columns
Hydraulic Overloads
Wintriss Smart Pac Press Controller
DSI   Wintriss Die Protection (8 Inputs)
Wintriss Light Curtains (1) Set
Wintriss Palm Button Stand
60 HP Main Drive Motor
480V/60 HZ/3 Phase Power
8-Point Gibbing
Vibro Dynamic Isolation Pads
Floor Standing

Dimensions:
18'4"  Overall Height - Floor to Top of Press
149" LR x 118" FB Foot Print

Can be seen under power in the S&G Press Livonia Michigan Warehouse!

This 300-ton Komatsu E2G-300U Straight Side Mechanical Stamping Press is a high-performance powerhouse for precision metalforming. Built in 1990, this floor-standing press offers a 300-ton US capacity with a generous 98.4" x 49.2" bed area and 8-point gibbing for superior accuracy. Optimized for modern production, it features a Wintriss Smart Pac controller, die protection, and light curtains. With a 14.2" stroke and 20-40 VSPM, this mechanical power press is engineered for durability. Key features include hydraulic overloads, and 36" side windows making it ideal for heavy-duty industrial stamping.
