LIEBHERR L1500 - Gear Hobber

Manufacturer

LIEBHERR

Category

Presses

Type

PRESSES, MECHANICAL

Stock

25790

Model

L1500

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Single Indexing
  • Differential

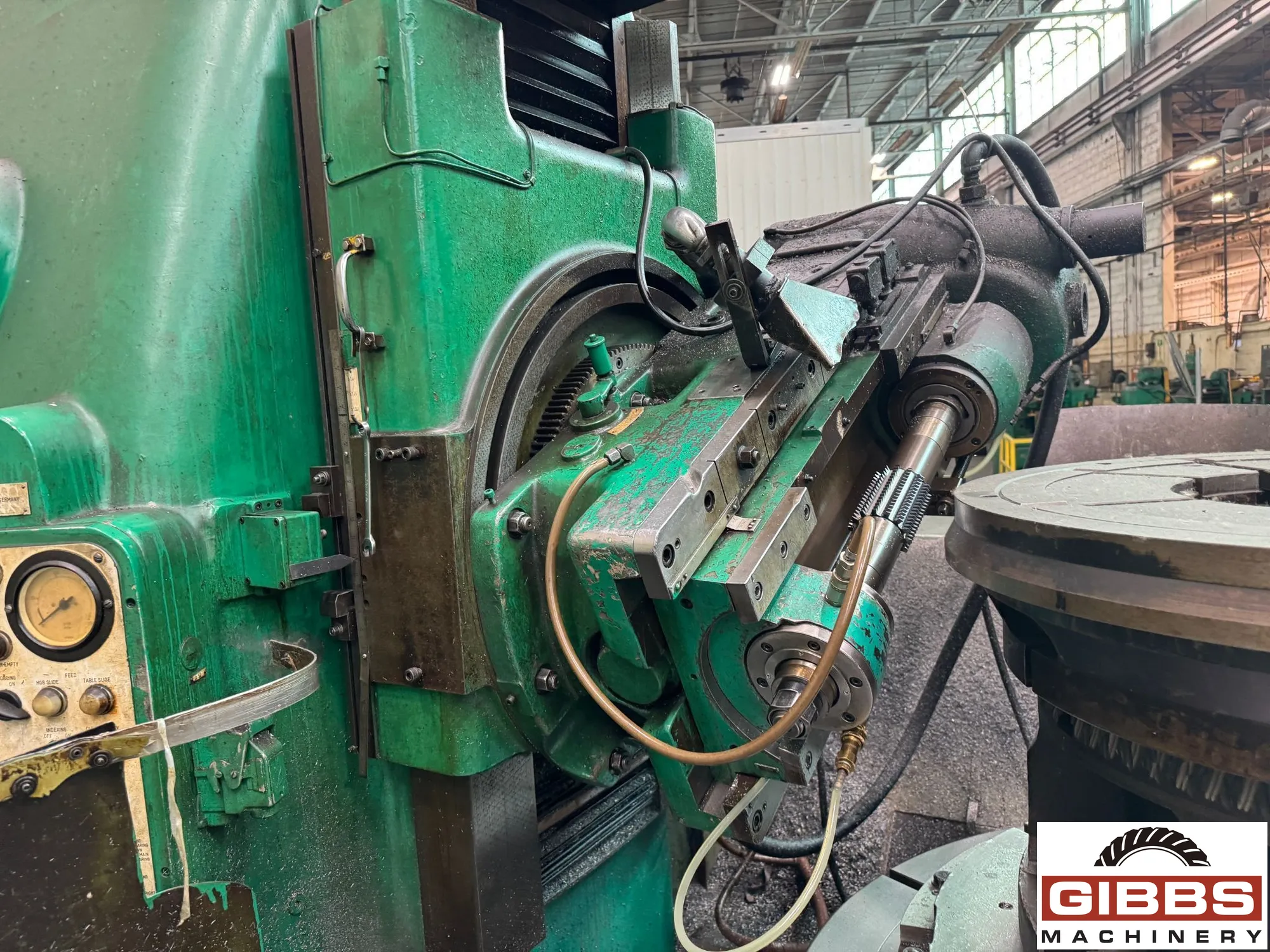

  • Hob Arbor & Support

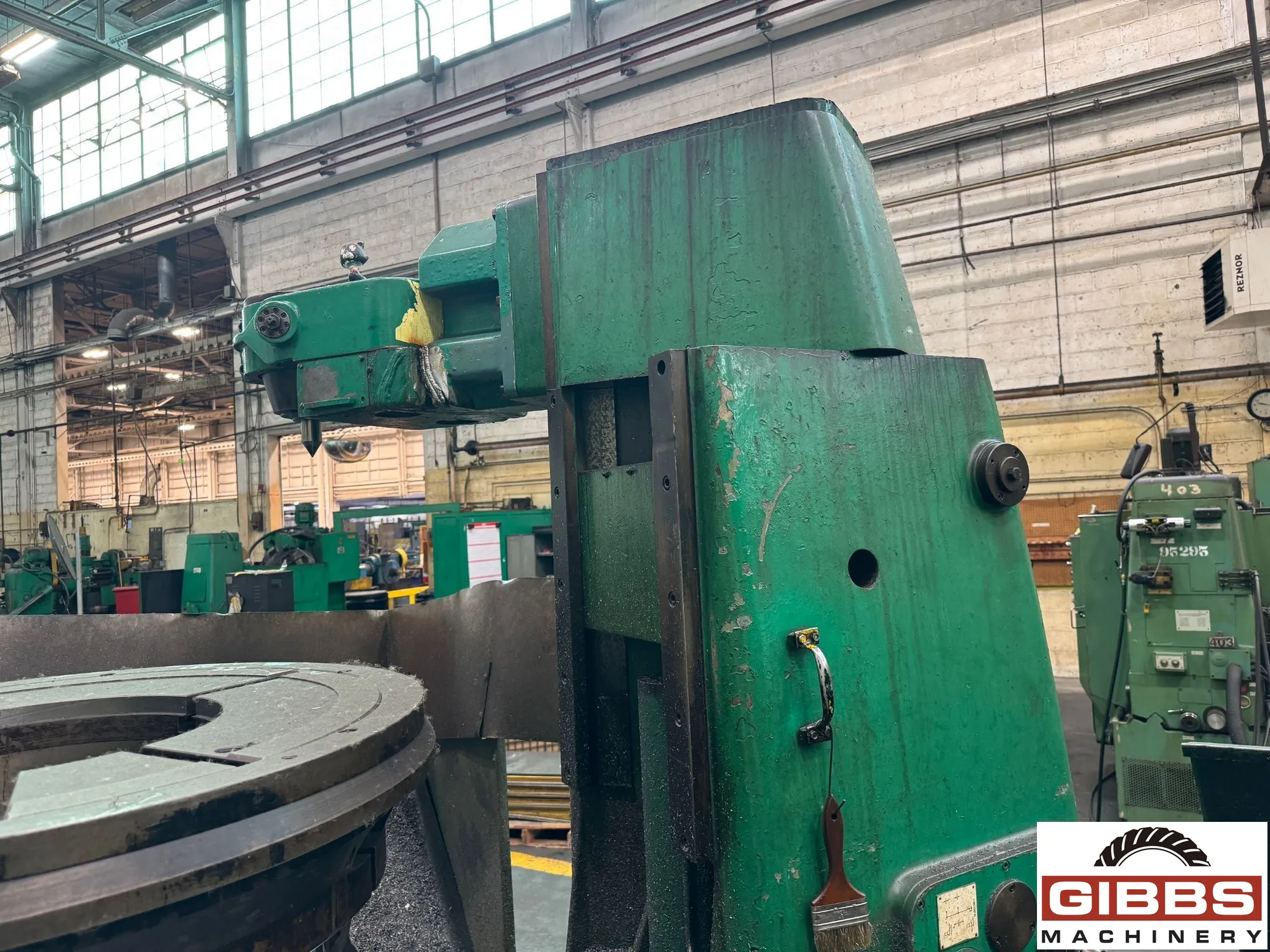

  • Swing Away Tailstock

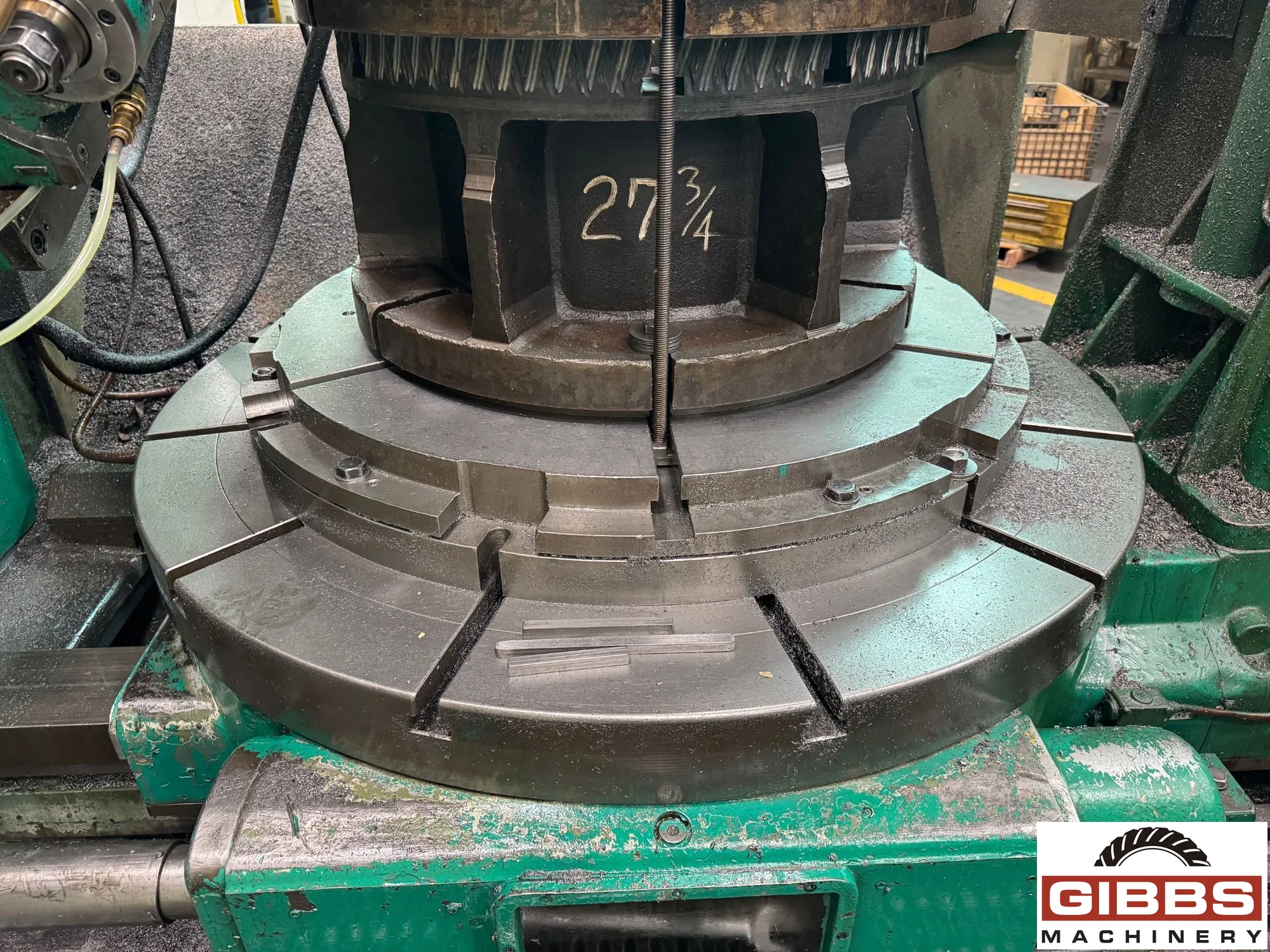

  • 54” Table Diameter
  • Arbor W/Support
  • Overarm
  • Coolant System
  • Extra Hob Arbors
  • Change Gears
,

Machine Specifications :

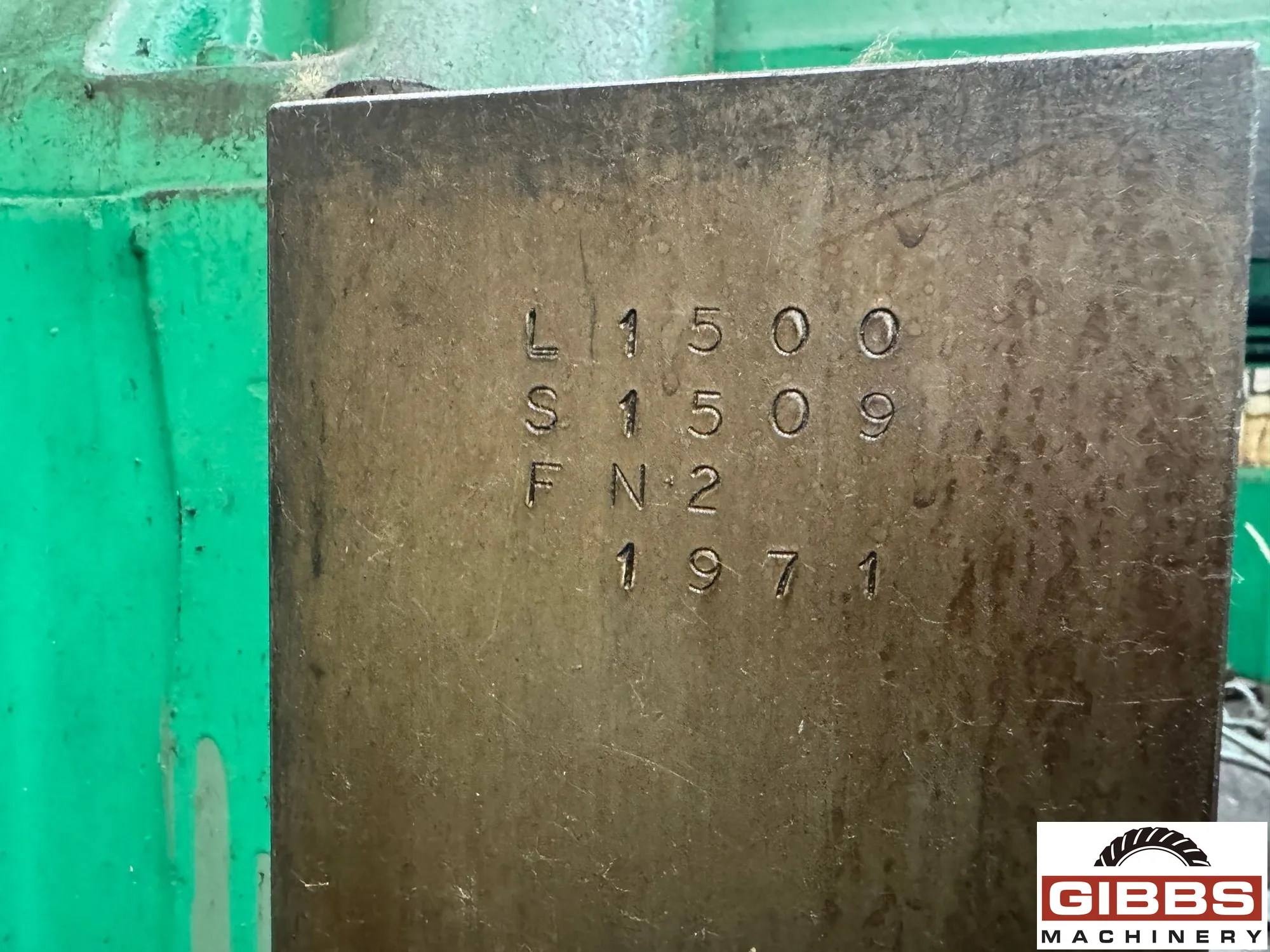

  • Year 1971
  • Manufacturer LIEBHERR
  • Maximum Workpiece Diameter 59.1"
  • Horz/Vert Vert
  • Maximum Diametral Pitch 2.0
  • Module 12.0
  • Axial Travel 22.6"
  • Maximum Hob Diameter 9.8"
  • Hob Arbor Size 2.0"
  • Hob Speed 174 RPM
  • Table Diameter 53.9"
  • Control Manufacturer Conventional
,

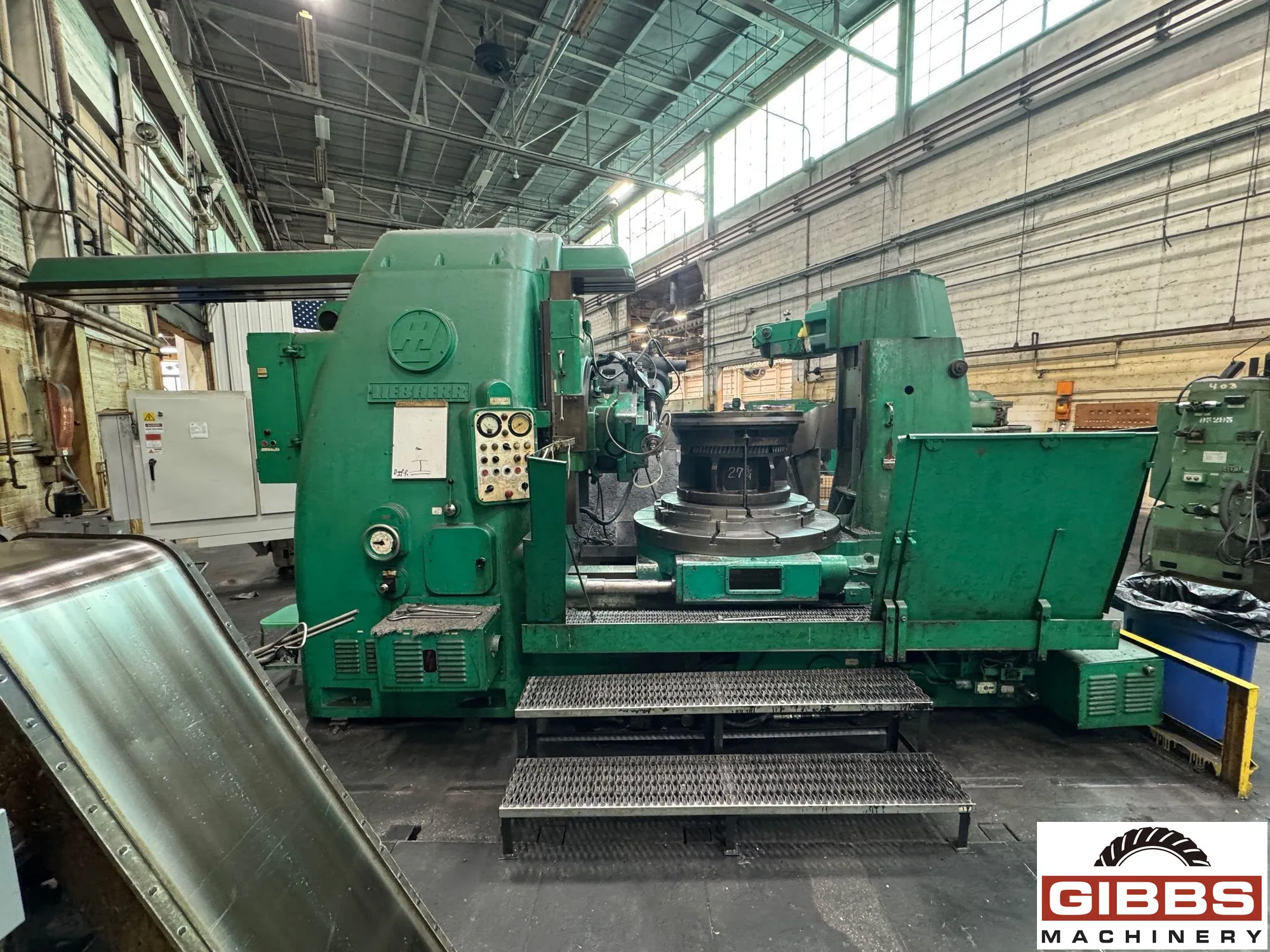

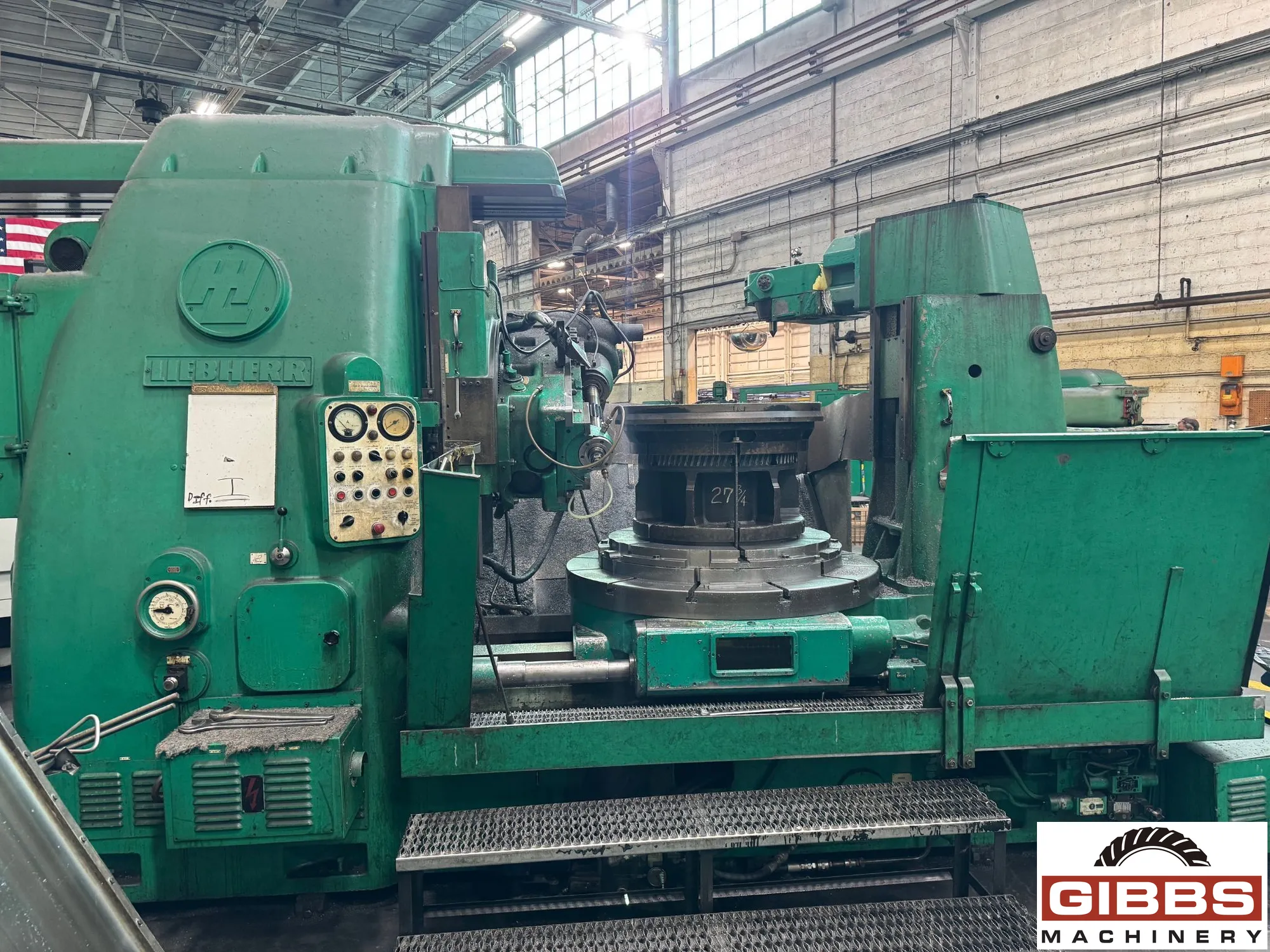

LIEBHERR L1500 Vertical Gear Hobber. Max workpiece diameter 1500 mm, axial travel 575 mm, hob speed 29-174 RPM. Equipped with differential, overarm, coolant system, swing away tailstock, and extra hob arbors. Ideal for precise gear cutting.

    Specifications:

  • Max. Gear Diameter : 1500 mm
  • Gear Face Width: 575 mm
  • Max. Module : 12
  • Table Diameter : 1370 mm
  • Maximum Hob/Worm Diameter: 245 mm
  • Centre Distance of spindles min./max. : 95/885 mm
  • Table bore diameter : 200 H6, MK6 mm
  • Feeds – axial : 0,6-9 mm/U
  • Feeds – radial : 0,2-12 mm/min
  • Feeds – tangential : 0,31-4,5 mm/U
  • Hob Speed : 29-174 RPM
