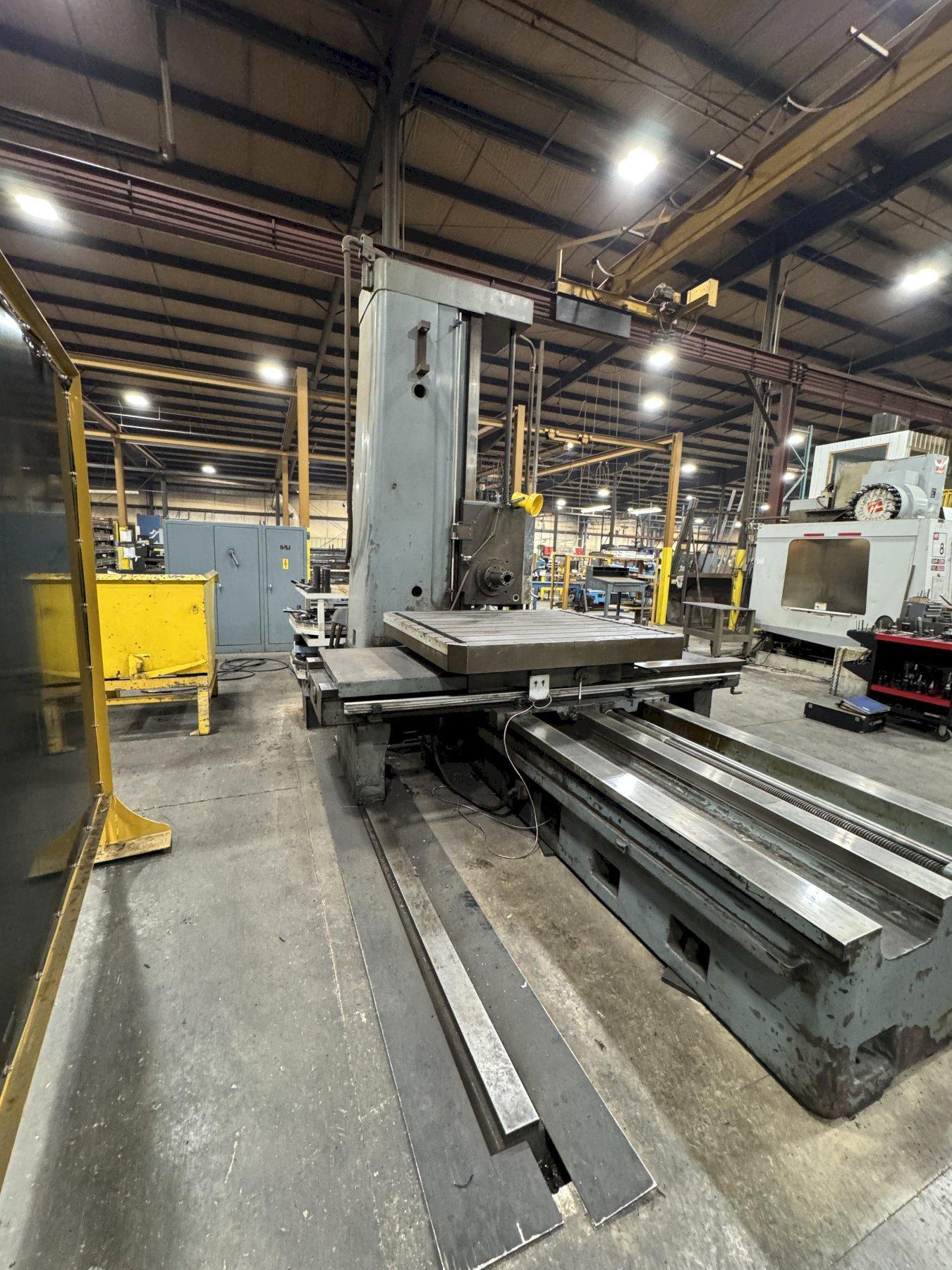

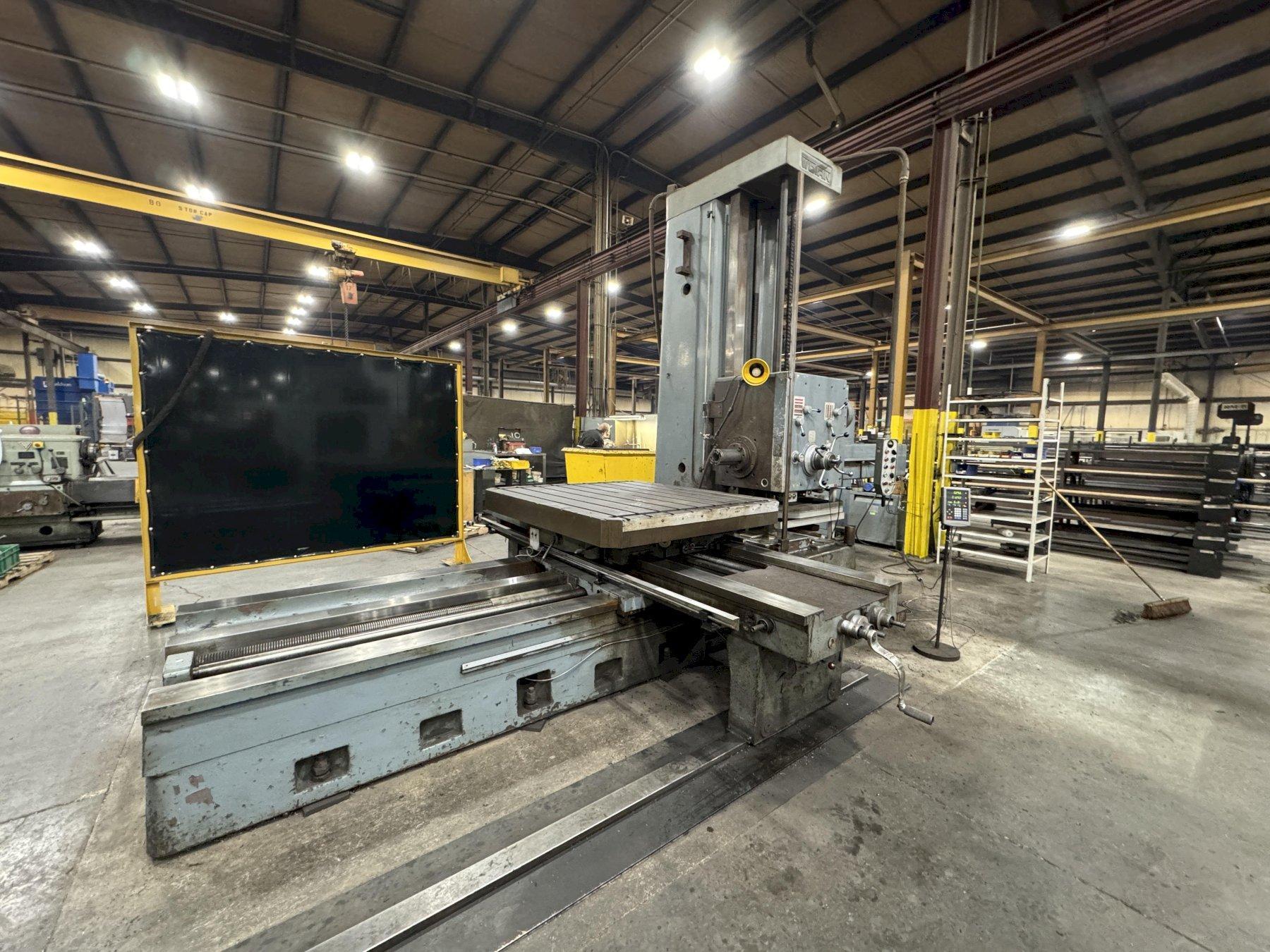

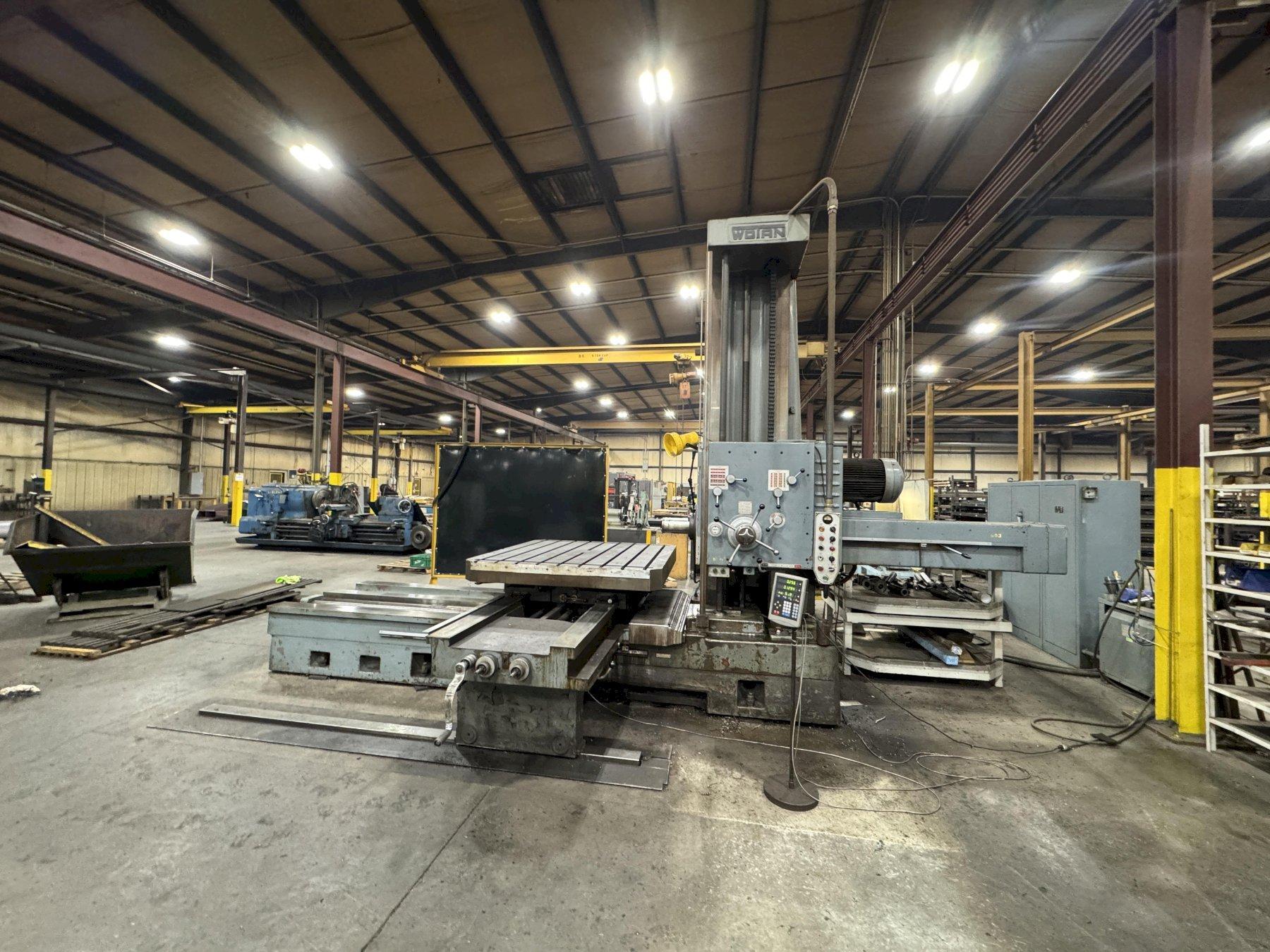

5-1/8" WOTAN HORIZONTAL BORING MILL: STOCK #80660

Manufacturer

WOTAN

Category

Milling Machines

Type

BORING MACHINES, HORIZONTAL, CNC

Stock

80660

Model

null

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL ........................ 54936

MODEL ......................... B-130S

YEAR NEW ...................... 1975

QUILL DIAMETER ................ 5-1/8"

SPINDLE TAPER ................. #50 Taper

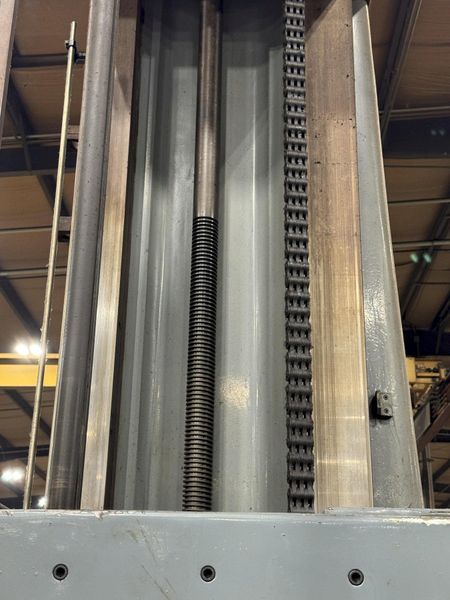

VERTICAL TRAVEL ............... 63"(Y-Axis)

LONGITUDINAL TRAVEL ........... 69" (X-Axis)

SADDLE CROSS TRAVEL .......... 78" (Z-Axis)

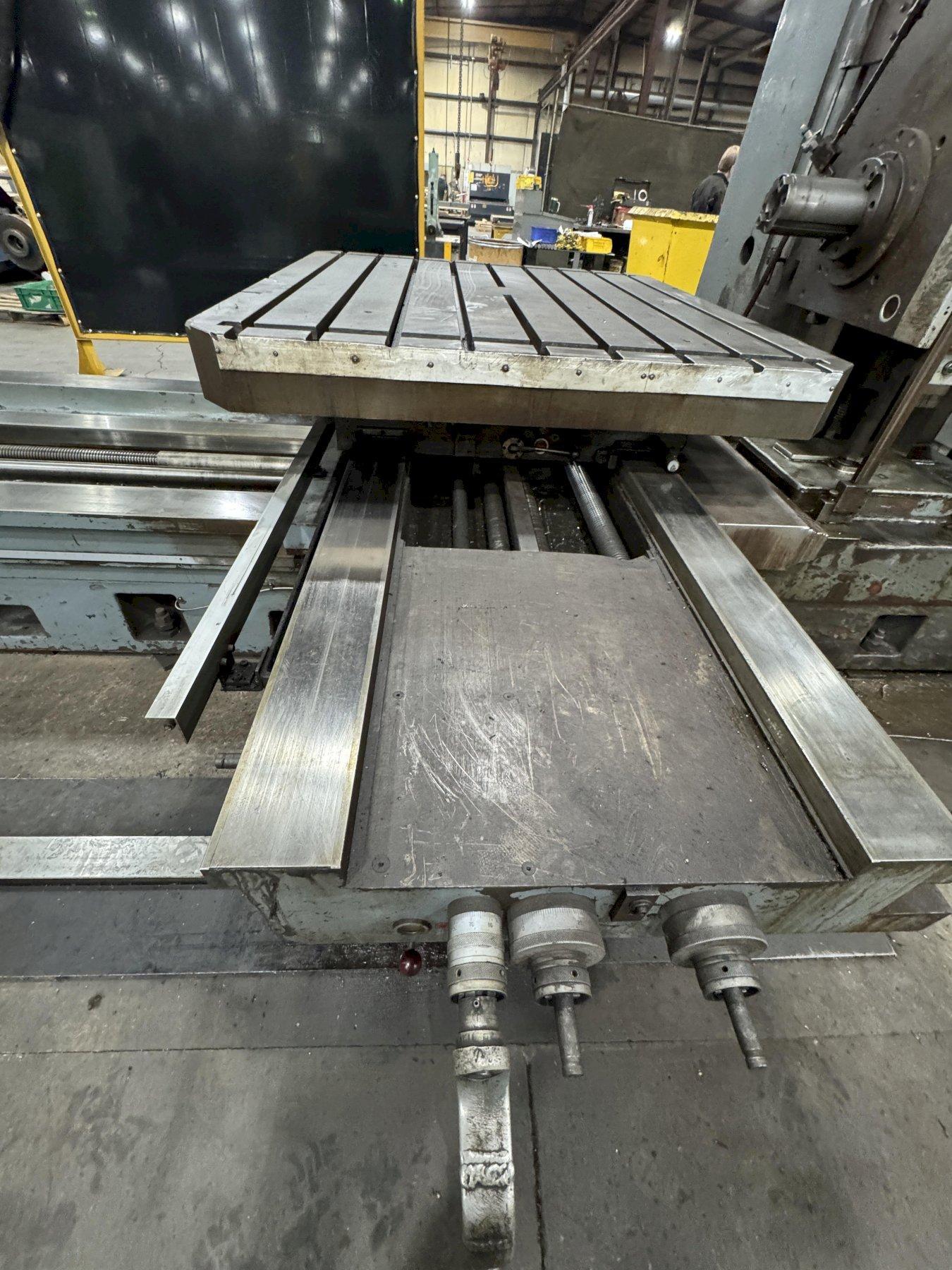

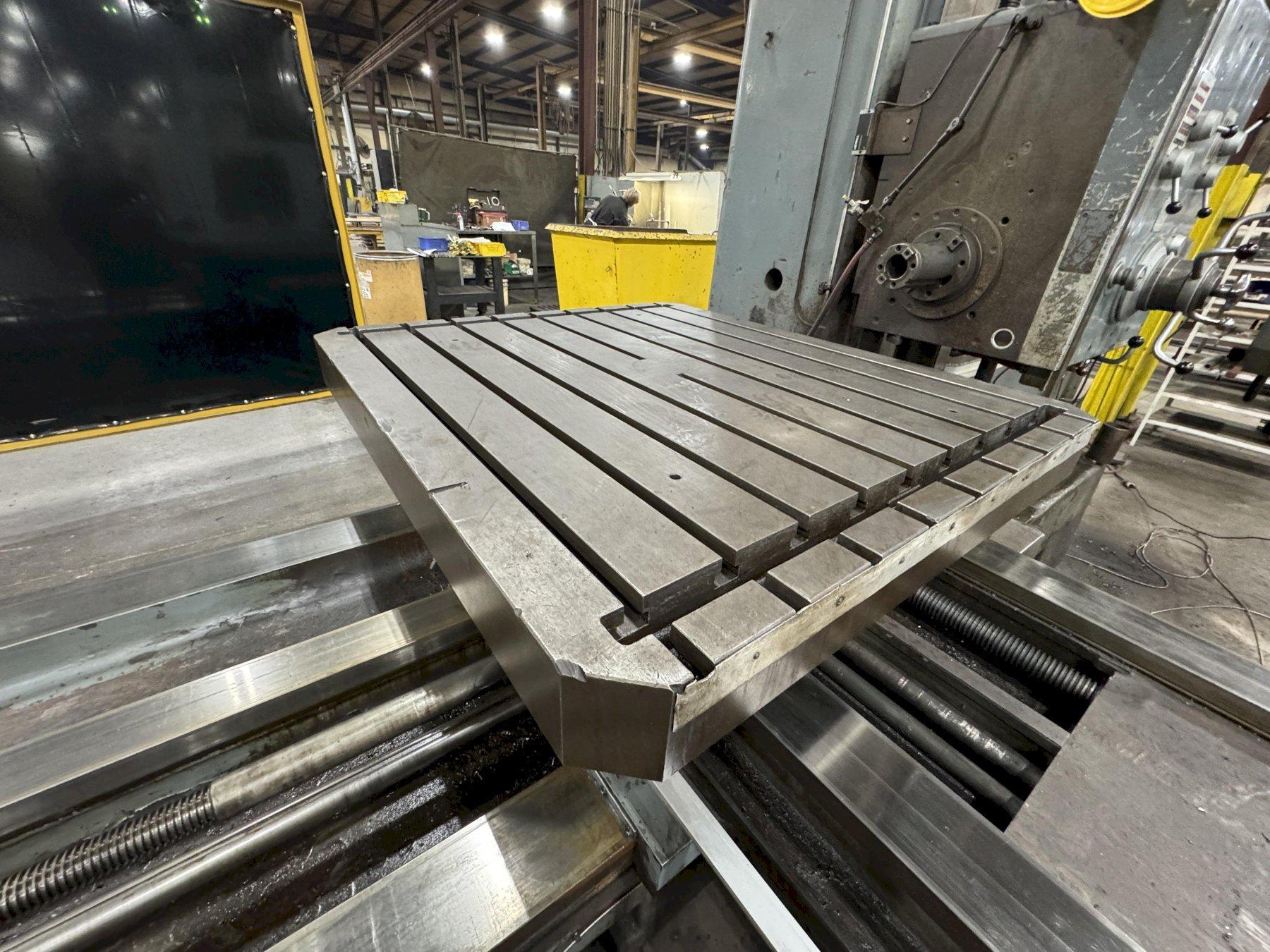

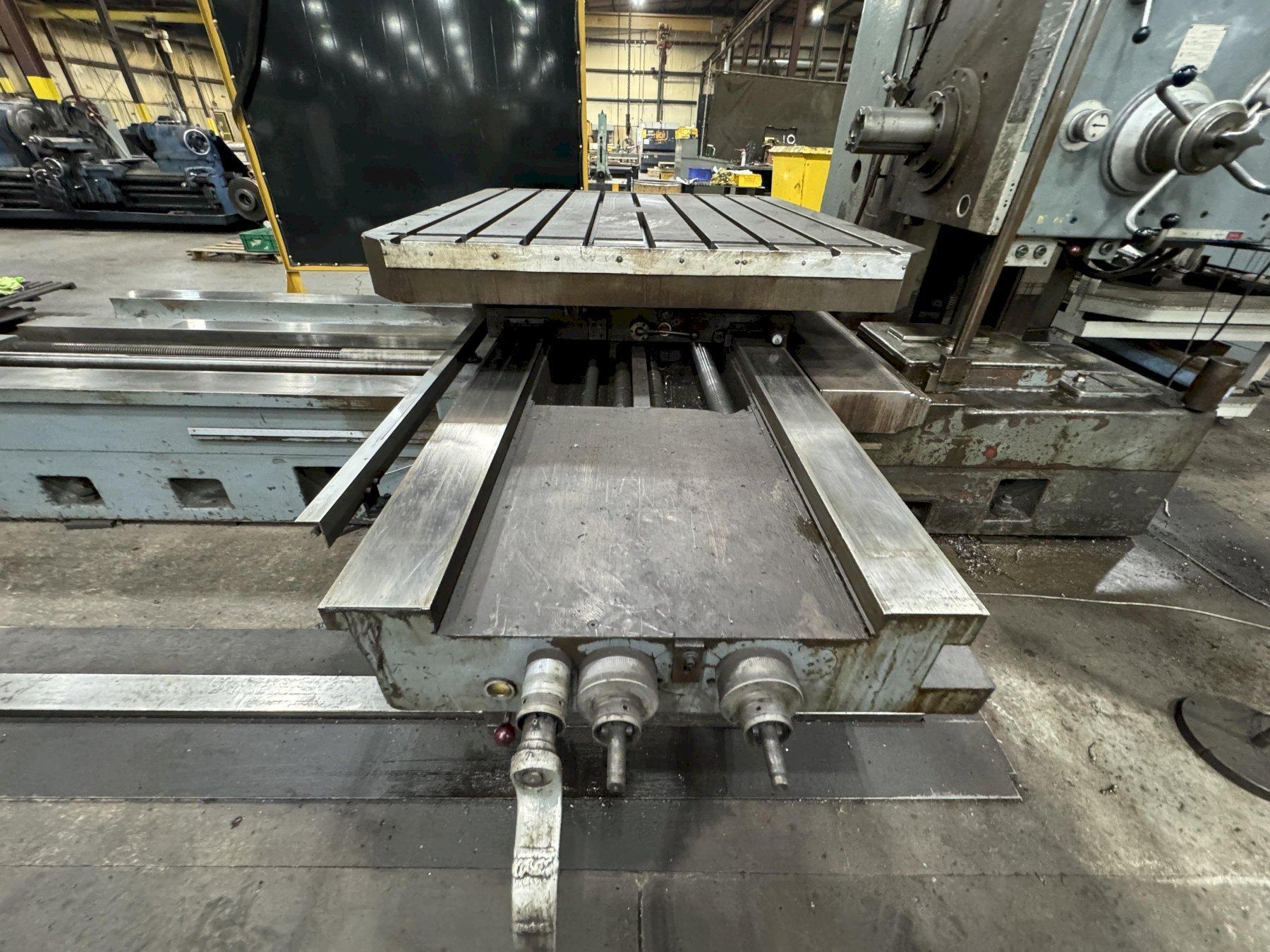

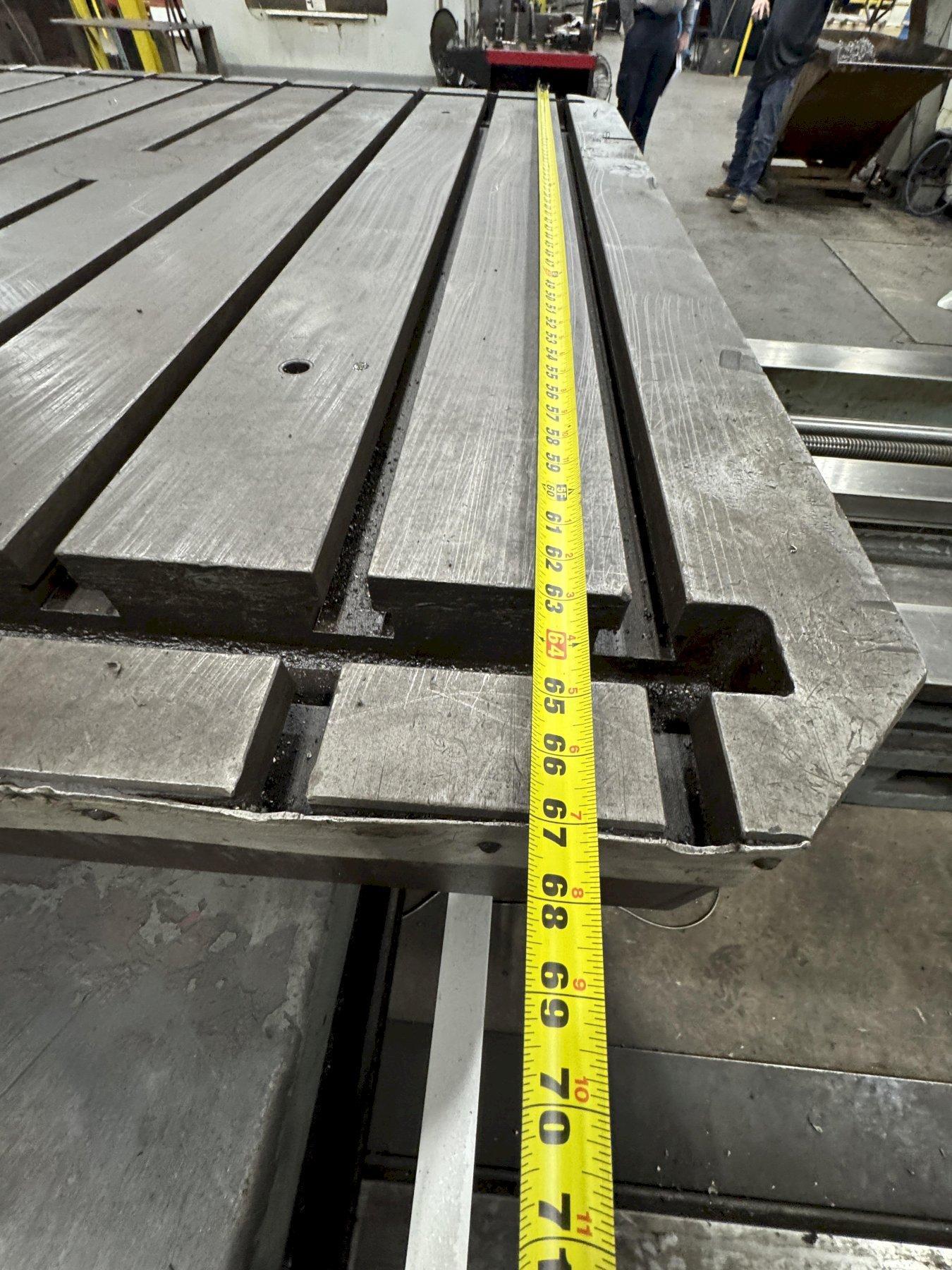

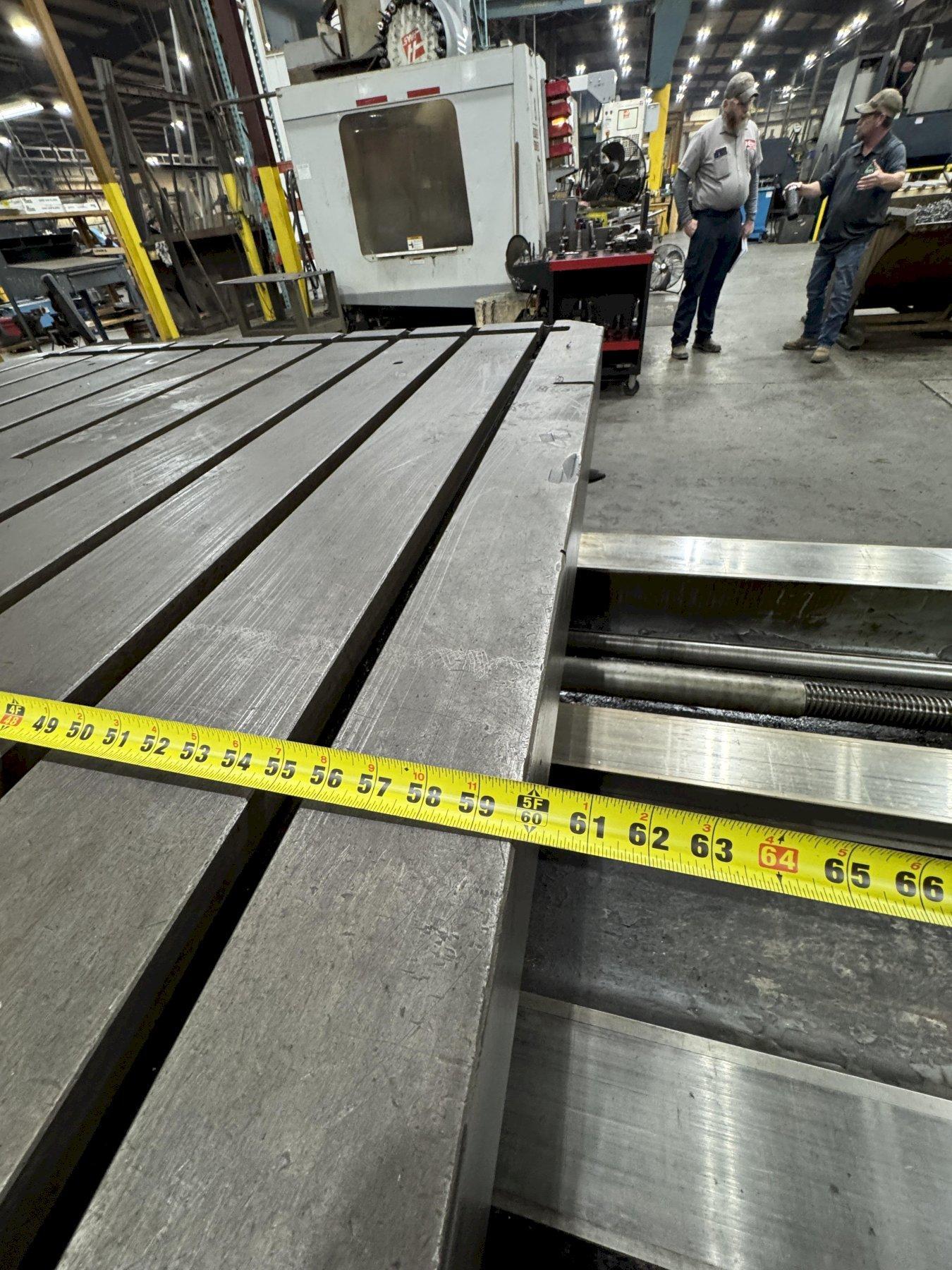

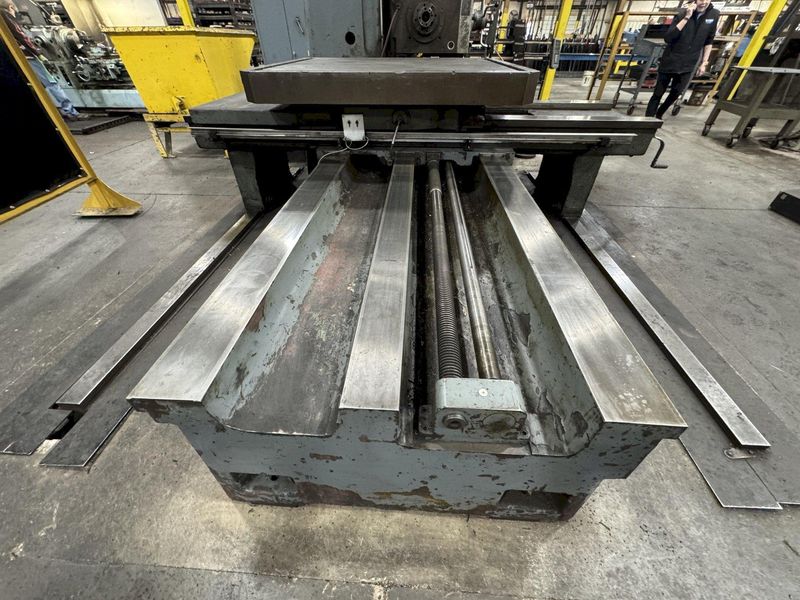

TABLE SIZE ................... 60" x 67"

TABLE INDEXING ............... POWERED BUILT IN ROTARY

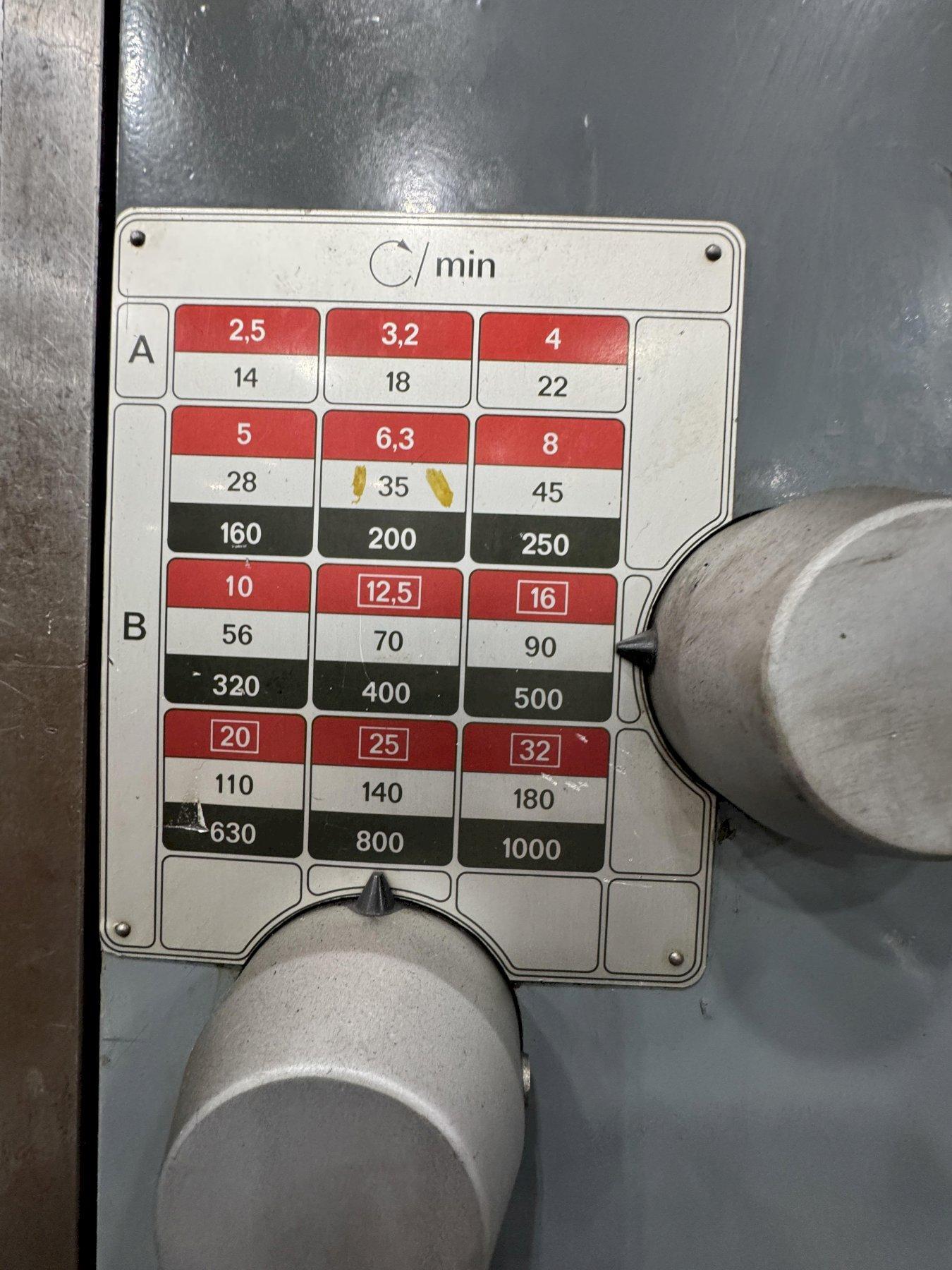

SPINDLE SPEEDS ............... 2.5 TO 1,000 RPM

QUILL TRAVEL ................. 35"

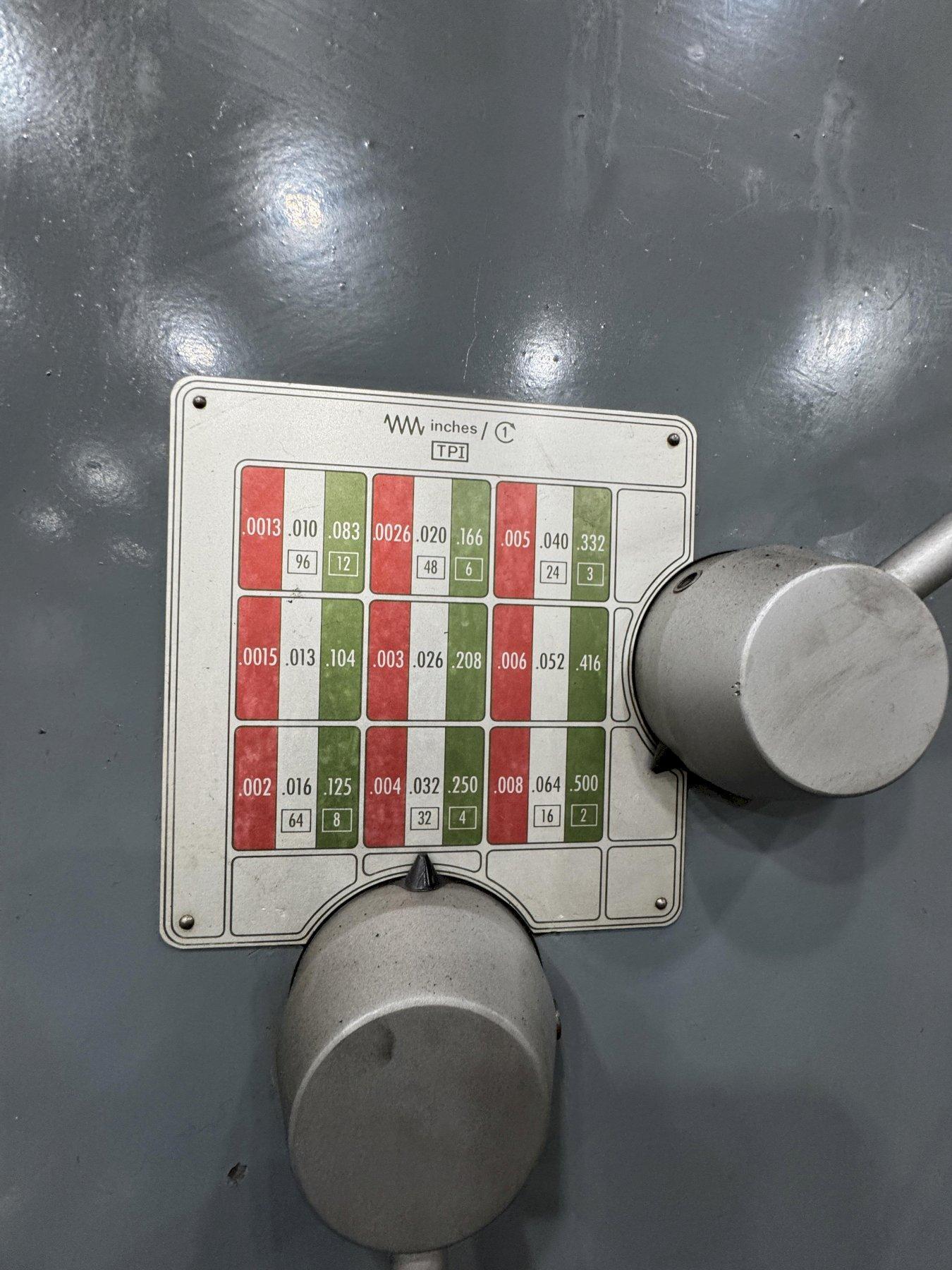

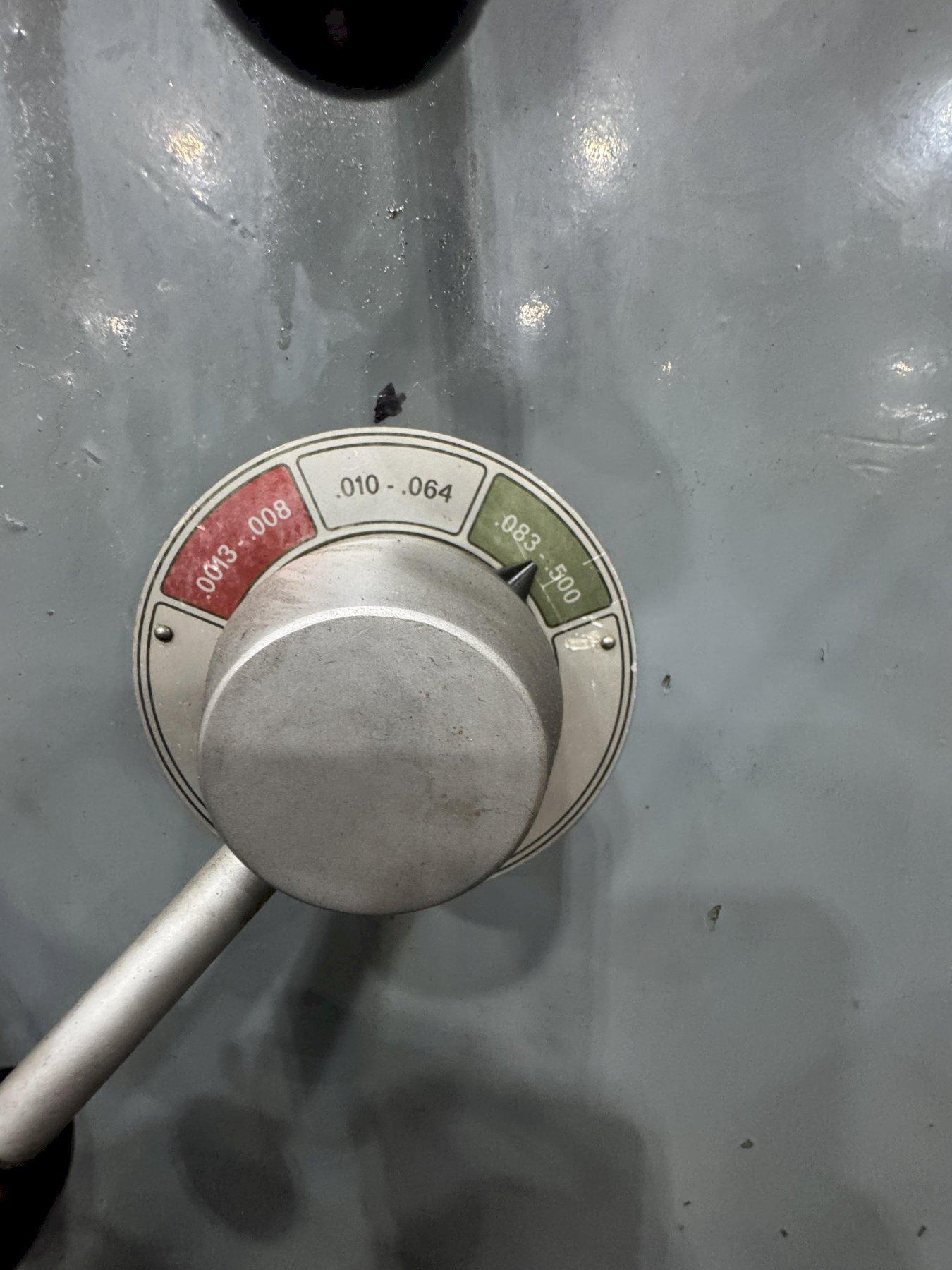

SPINDLE FEEDS ................ 0.001 TO 1/2 IPR

RAPID TRAVERSE ............... 100 IPM

TABLE CAPACITY ............... 13,200 LBS

THREADS ...................... 2 - 48 TPI WITH CHANGE GEARS

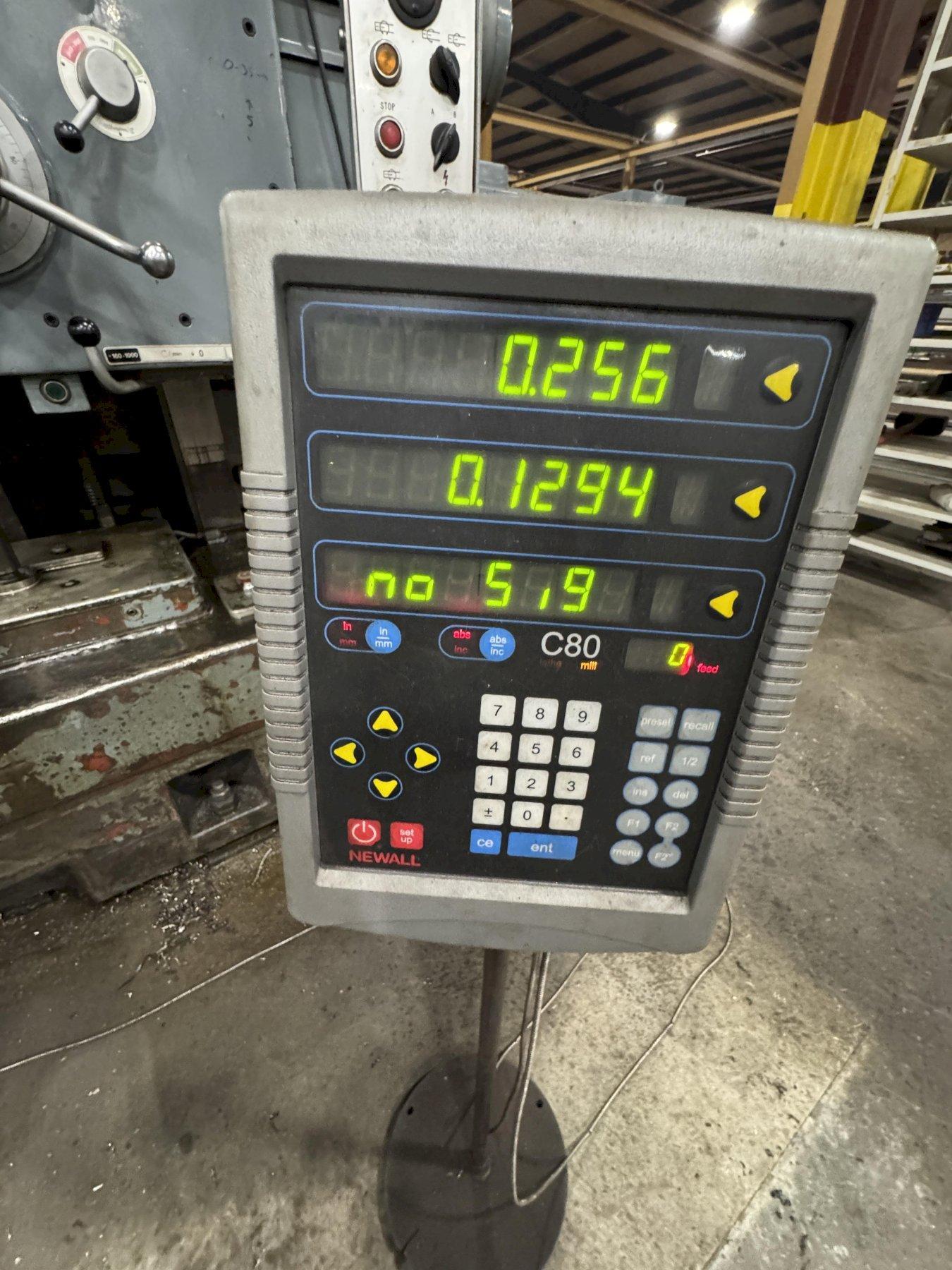

2 AXIS DIGITAL READOUTS ...... NEWALL C-80

HARDEN WAYS .................. YES

OUTBOARD TABLE SUPPORTS ...... YES

COOLANT ...................... YES

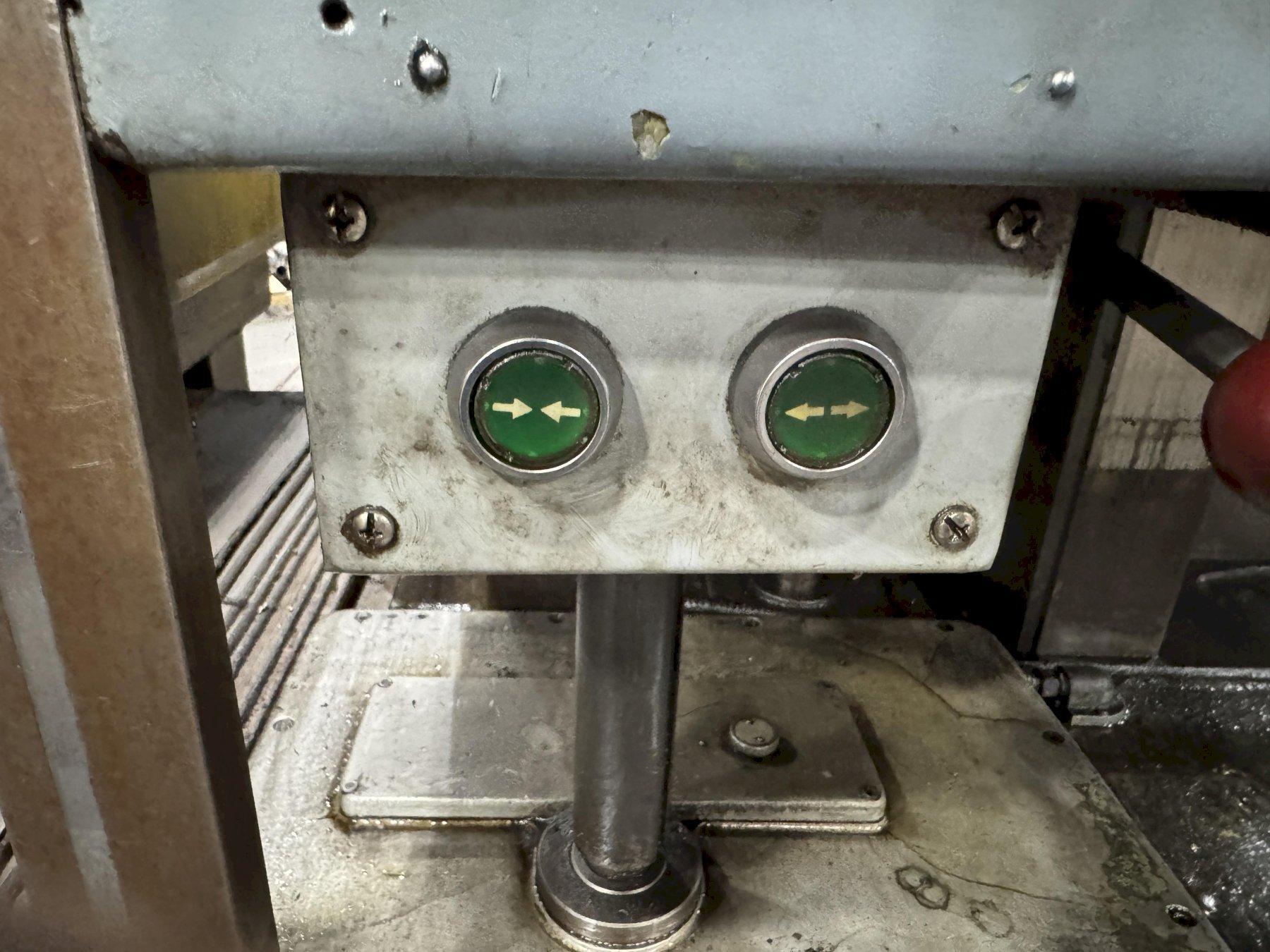

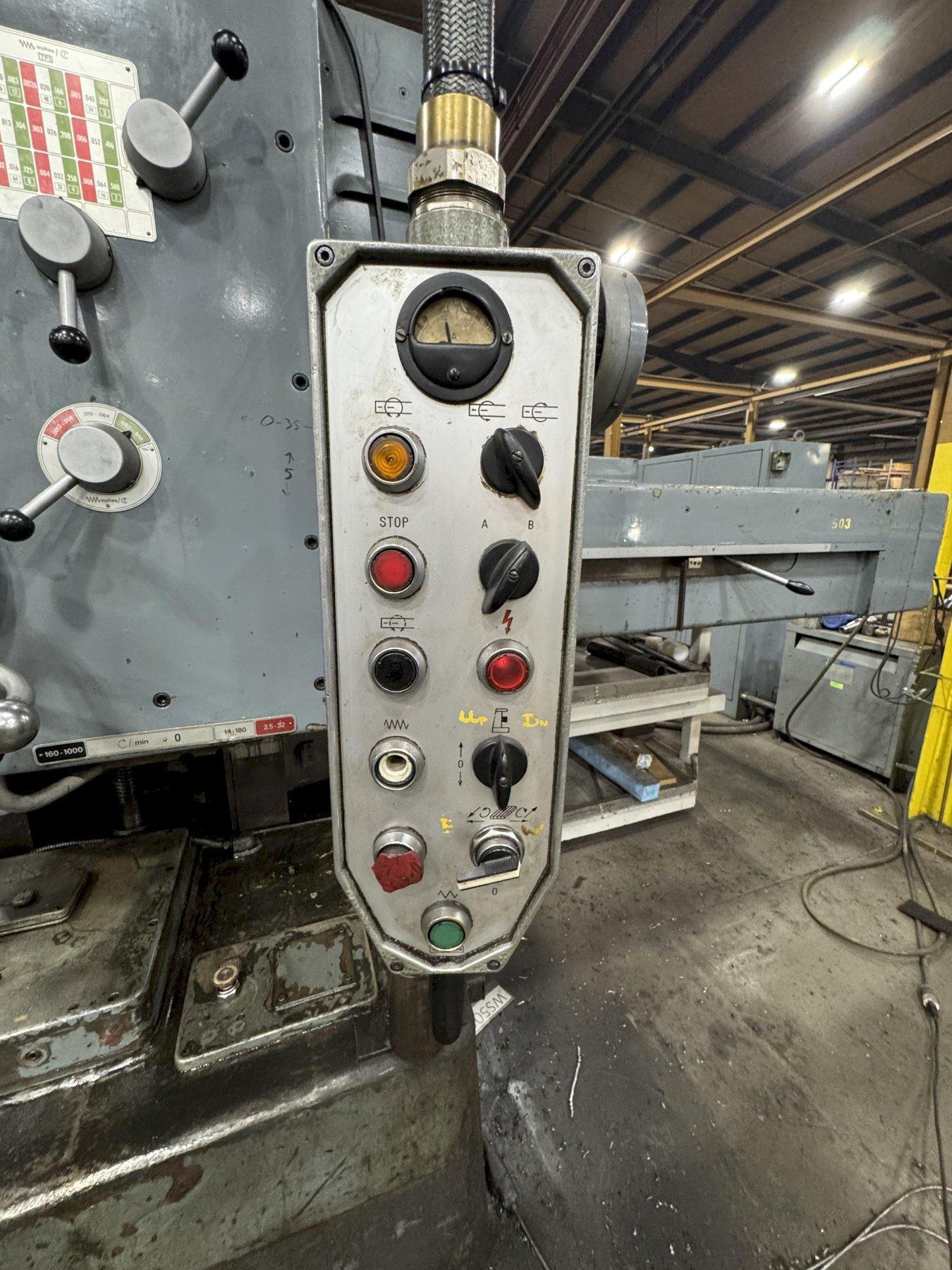

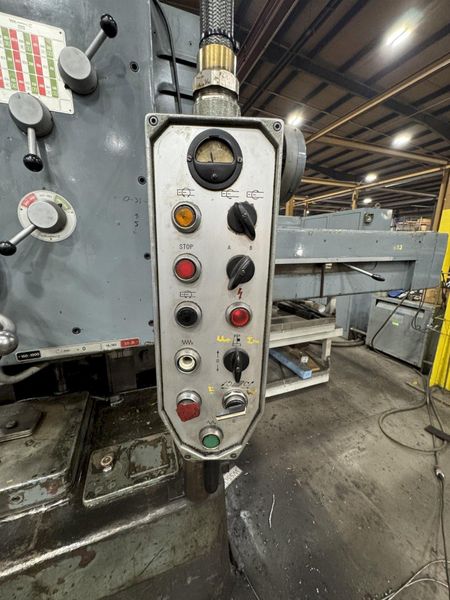

PENDANT CONTROL .............. YES

MOTOR ........................ 17.5 HP
