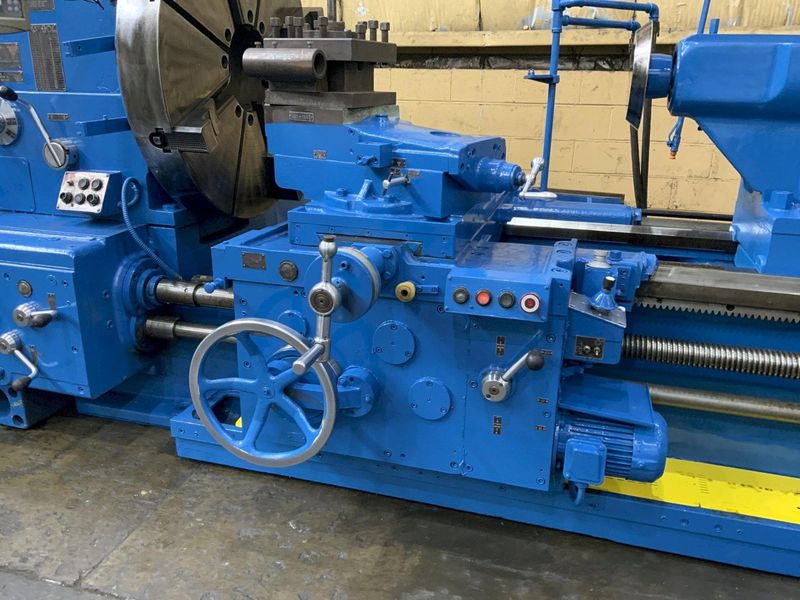

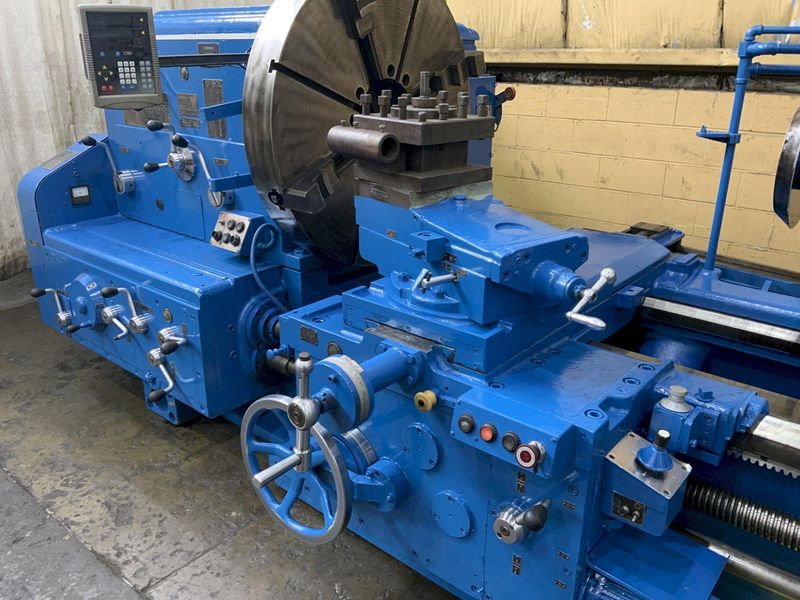

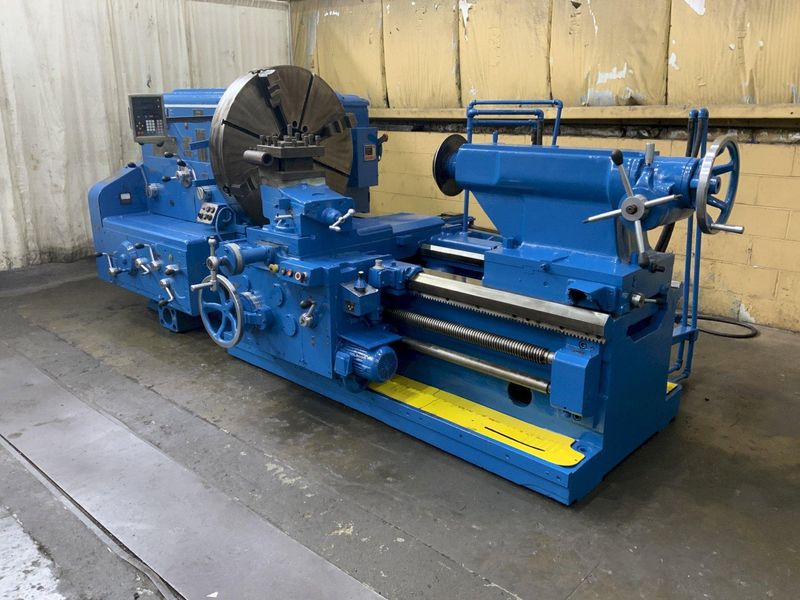

40" X 50" RYAZAN GAP BED ENGINE LATHE: STOCK #80596

Manufacturer

RYAZAN

Category

Lathes

Type

LATHES, ENGINE

Stock

80596

Model

3

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL .......................... 286-01

MODEL ........................... 3

YEAR NEW ........................ 1990

SWING OVER WAYS ................. 40.5"

SWING IN GAP .................... 58"

DISTANCE BETWEEN CENTERS ........ 50"

SPINDLE SPEEDS .................. 5 TO 500 RPM

FEEDS ........................... 0.0075 TO 0.0109 IPR

THREADS ......................... 2 TO 28 TPI

METRIC THREADS .................. 05. TO 28 MM PR

CHUCK ........................... 39" 4 JAW

DIAMETER OF SPINDLE HOLE ........ 5.25"

TAOER ATTACHMENT ................ YES

RAPID TRAVERSE .................. 4 WAY

TOOL POST ....................... 4 WAY

THREAD DIAL ..................... YES

2 AXIS DIGITAL READOUTS ......... NEWALL C80

MOTOR HORSEPOWER ................ 20
