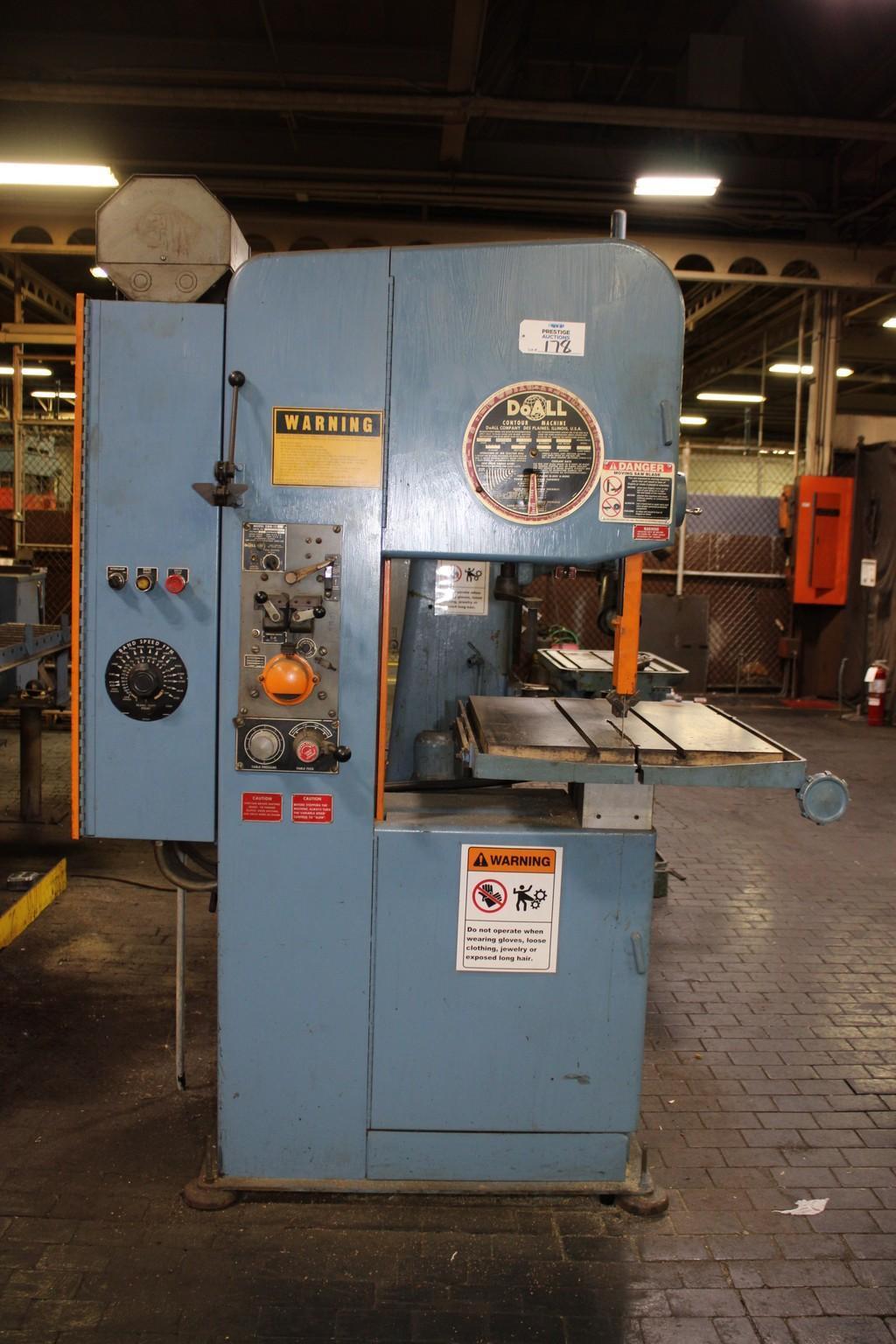

20" DOALL MODEL #2012-2H VERTICAL BAND SAW: STOCK #78705

Manufacturer

DOALL

Category

Saws

Type

SAWS, BAND, VERTICAL

Stock

78705

Model

2012-2H 20

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

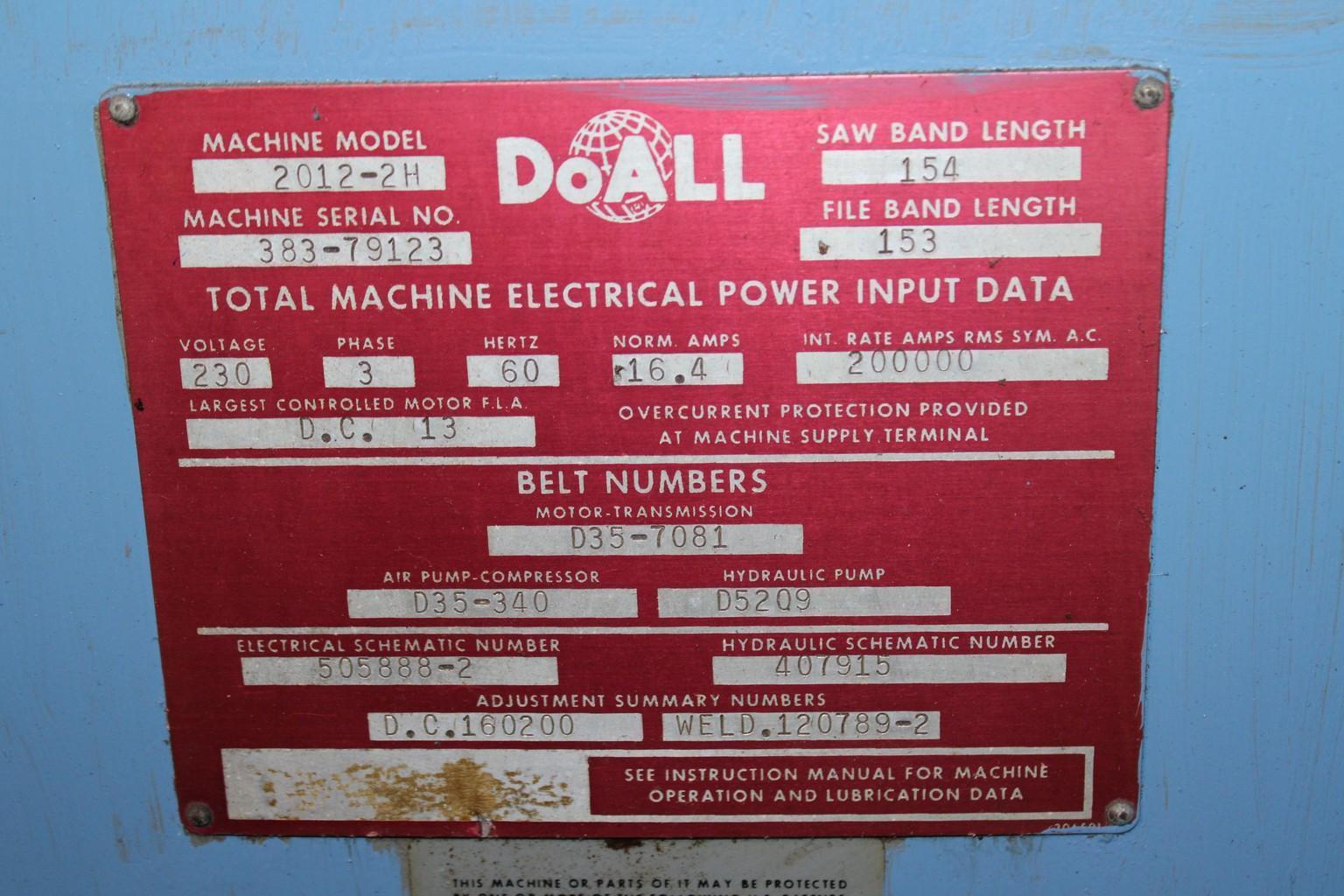

SERIAL ......................... 383-79123

MODEL .......................... 2012-2H

YEAR NEW ....................... 1979

THROAT, BAND TO COLUMN ......... 20"

MAXIMUM WORK HEIGHT ............ 12"

BAND WIDTH CAPACITY ............ 1-1/16" TO 1"

SAW BAND LENGTH ................ 154"

BAND SPEED RANGE ............... 5 TO 5200 FPM, VARIABLE

TABLE SIZE ..................... 26-1/2" X 33-1/2"

TABLE STROKE ................... 12"

TABLE FEED, HYDRAULIC .......... 0 TO 6 FPM

TABLE FEEDING FORCE ............ 0 TO 175 LBS

TABLE TILTS .................... 45 DEGREES LEFT, 10 RIGHT

TABLE WEIGHT CAPACITY .......... 500 LBS

HI TORQUE DC ELECTRIC DRIVE .... YES

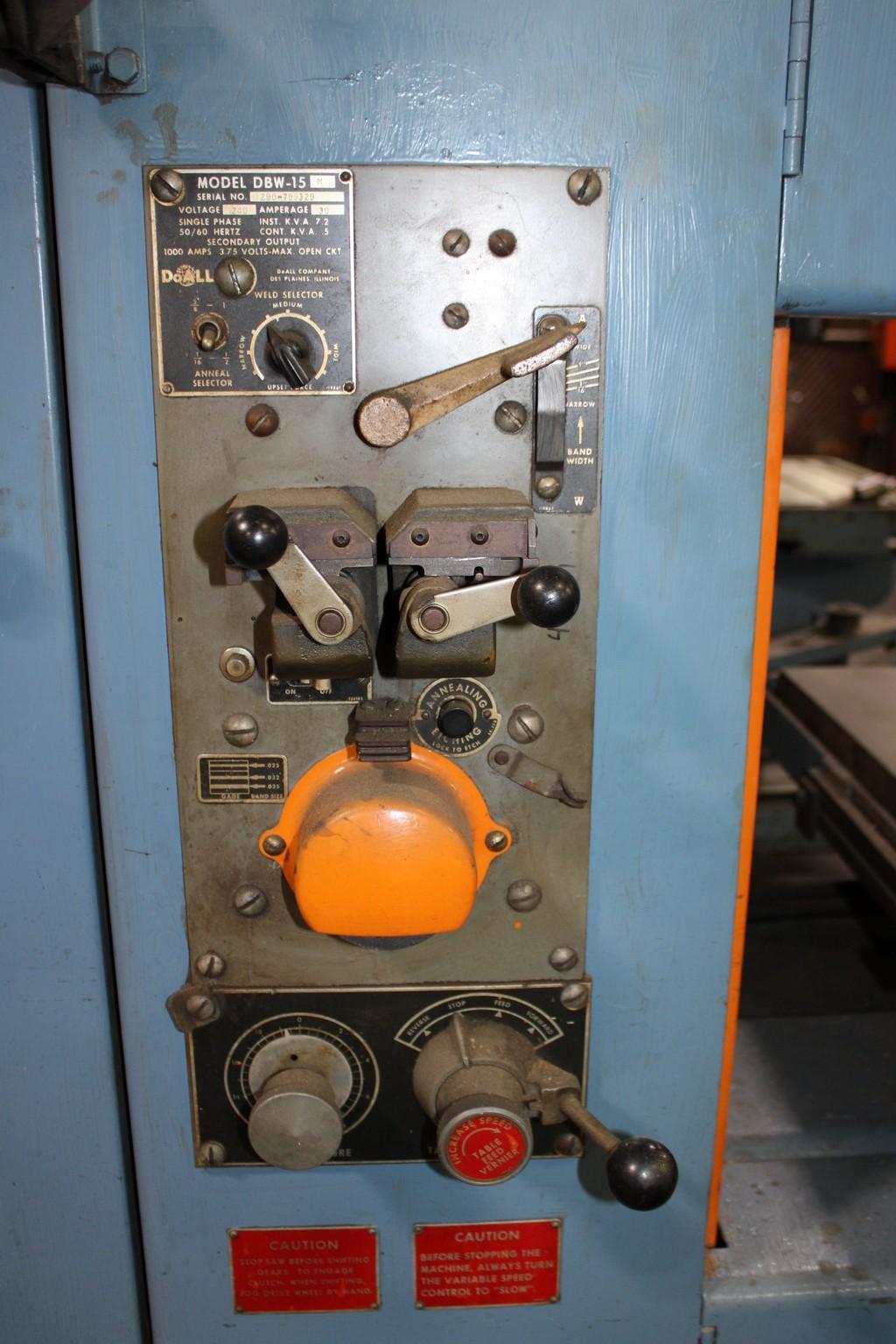

WELDER/GRINDER/SHEAR ........... DOALL MODEL DBW-15

MOTOR .......................... 5 HORSEPOWER
