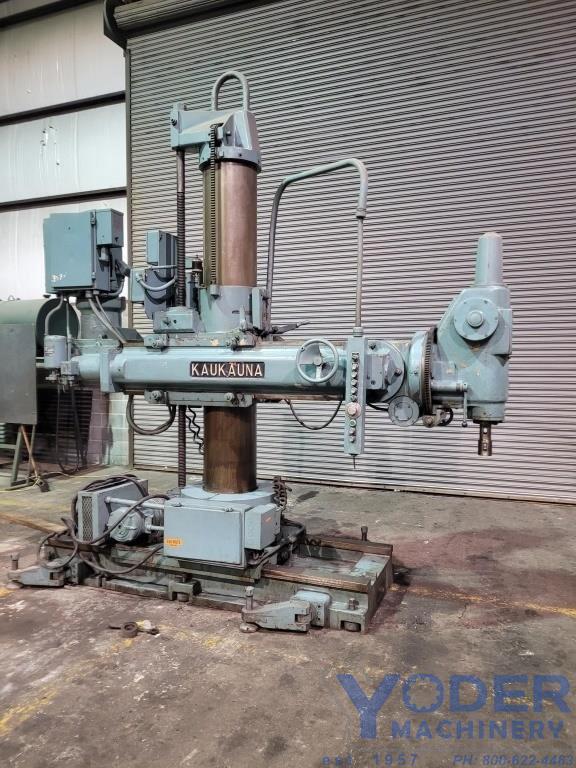

4' X 14" KAUKAUNA MODEL # 125U-44 UNIVERSAL RADIAL DRILL: STOCK #78106

Manufacturer

KAUKAUNA

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

78106

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL ................................ 306

MODEL ................................. 125U-44

LENGTH OF ARM ......................... 4'

DIAMETER OF COLUMN .................... 14"

SPINDLE SPEEDS ........................ (9) 45 TO 800 RPM

SPINDLE FEEDS ......................... (3) .003..007.012 IPR

RAPID TRAVERSE ........................ 80" IPM

SPINDLE TRAVEL ........................ 12"

VERTICAL HEAD TRAVEL OF COLUMN ........ 54"

HORIZONTAL ARM TRAVEL ON HEAD ......... 24"

HORIZONTAL TRAVEL OF COLUMN ........... 48"

SWIVEL OF COLUMN ON BASE............... 360 DEGREES MANUAL

SWIVEL OF TRUNNION .................... 180 DEGREES

SWIVEL OF SPINDLE ..................... 90 DEGREES

TAPER IN SPINDLE ...................... #4 MT

POWER ELEVATION ....................... YES

ARM TRAVERSE .......................... YES

PENDANT CONTROL ....................... YES

MAIN MOTOR ............................ 7-1/2 HORSEPOWER

TRAVELING BASE MOTOR .................. 3 HORSEPOWER
