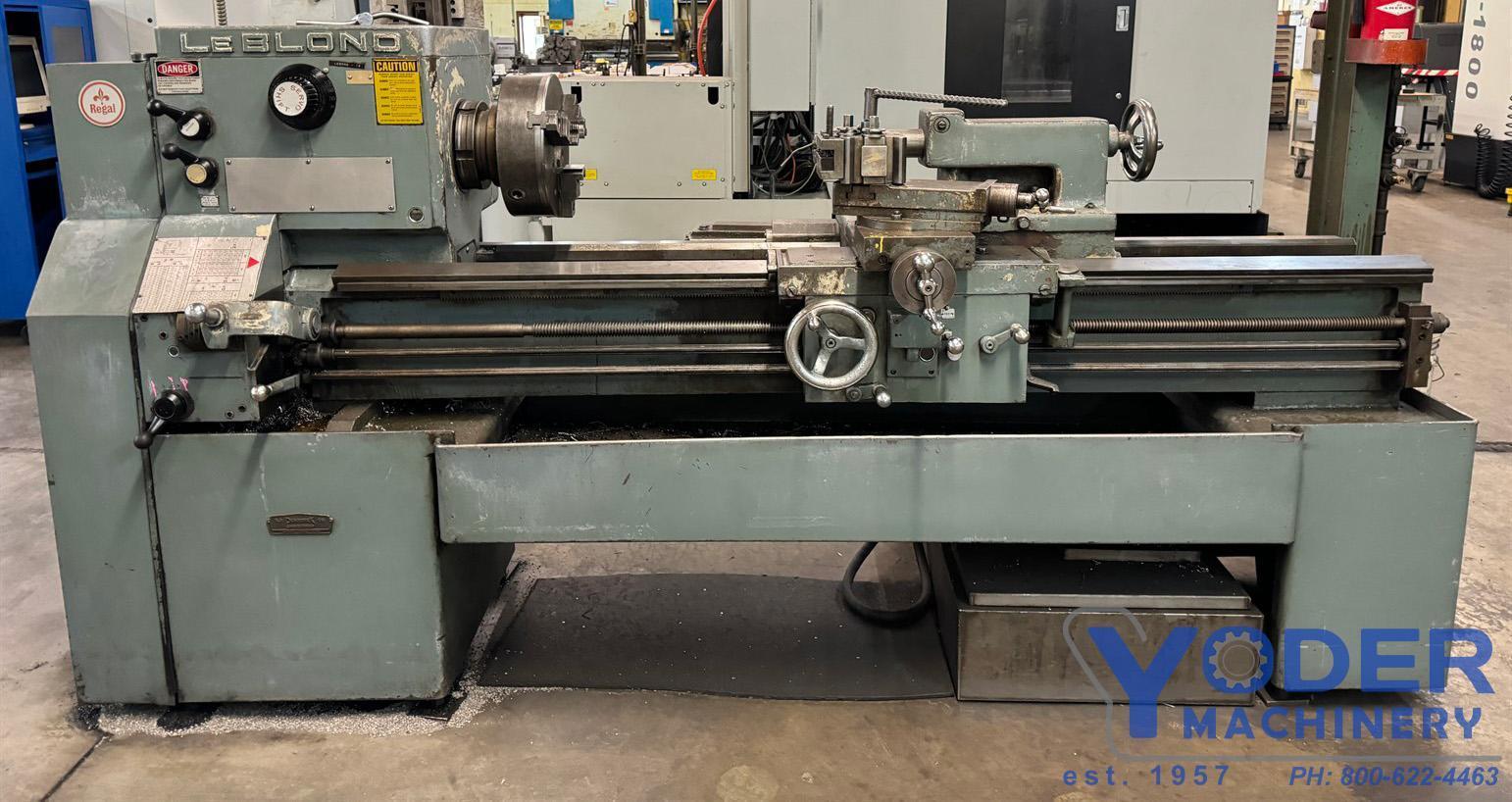

19” X 60" LEBLOND REGAL ENGINE LATHE: STOCK #77818

Manufacturer

LEBLOND REGAL

Category

Lathes

Type

LATHES, ENGINE

Stock

77818

Model

REGAL

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL ............................ 9E-530

MODEL ............................ REGAL

MAXIMUM SWING OVER BED ............ 19-1/4"

SWING OVER CROSS SLIDE ............ 12"

DISTANCE BETWEEN CENTERS .......... 60"

SPINDLE SPEEDS .................... (12) 40-1600 RPM

HOLE THRU SPINDLE ................. 3-1/16"

LONGITUDINAL FEEDS - ENGLISH ...... (48) .0018-.104 IPR

LONGITUDINAL FEEDS - METRIC ....... (48) .05-2.6 MMPR

THREADS ENGLISH ................... (48) 2-112 TPI

THREADS METRIC .................... .25 TO 14MM

TAPER ATTCHMENT .. YES

3-JAW CHUCK ....................... 15"

THREAD DIAL ....................... YES

HARDENED REPLACEABLE BED WAYS ..... YES

COOLANT CHIP PAN .................. YES

HORSEPOWER SPINDLE MOTOR .......... 10 HORSEPOWER
