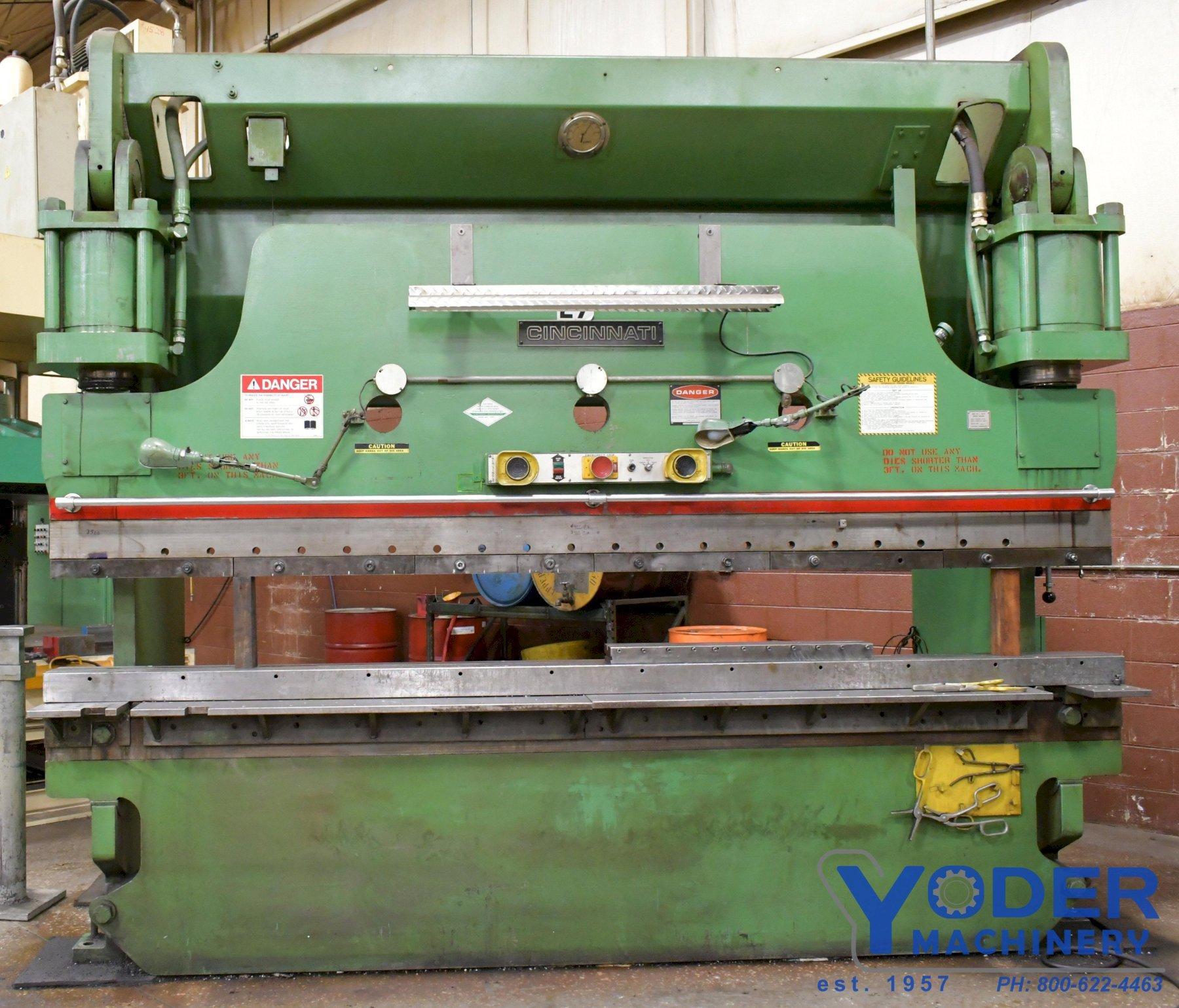

230 TON X 12' CINCINNATI MODEL 230 CB-10 HYDRAULIC PRESS BRAKE: STOCK #77786

Manufacturer

CINCINNATI

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

77786

Model

230 CB-10

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL ........................... 40536

MODEL ............................ 230CB10

YEAR NEW ......................... 1979

CAPACITY ......................... 230 TON

OVERALL LENGTH OF BED AND RAM .... 10'

DISTANCE BETWEEN HOUSING ......... 8'6"

STROKE OF RAM .................... 10"

OPEN HEIGHT ...................... 17"

CLOSED HEIGHT .................... 7"

DEPTH OF THROAT .................. 8"

RAM SPEED HIGH ................... 101 IPM

RAM SPEED MEDIUM ................. 49 IPM

RAM SPEEDS LOW ................... 14 IPM

RAM SPEEDS RETURN ................ 95 IPM

MILLED & DRILL FOR ANGLES ........ YES

FLOOR STANDING NO PIT REQUIRED ... YES

ELECTRIC FOOT TRIP ............... YES

MOTOR ............................ 30 HORSEPOWER
