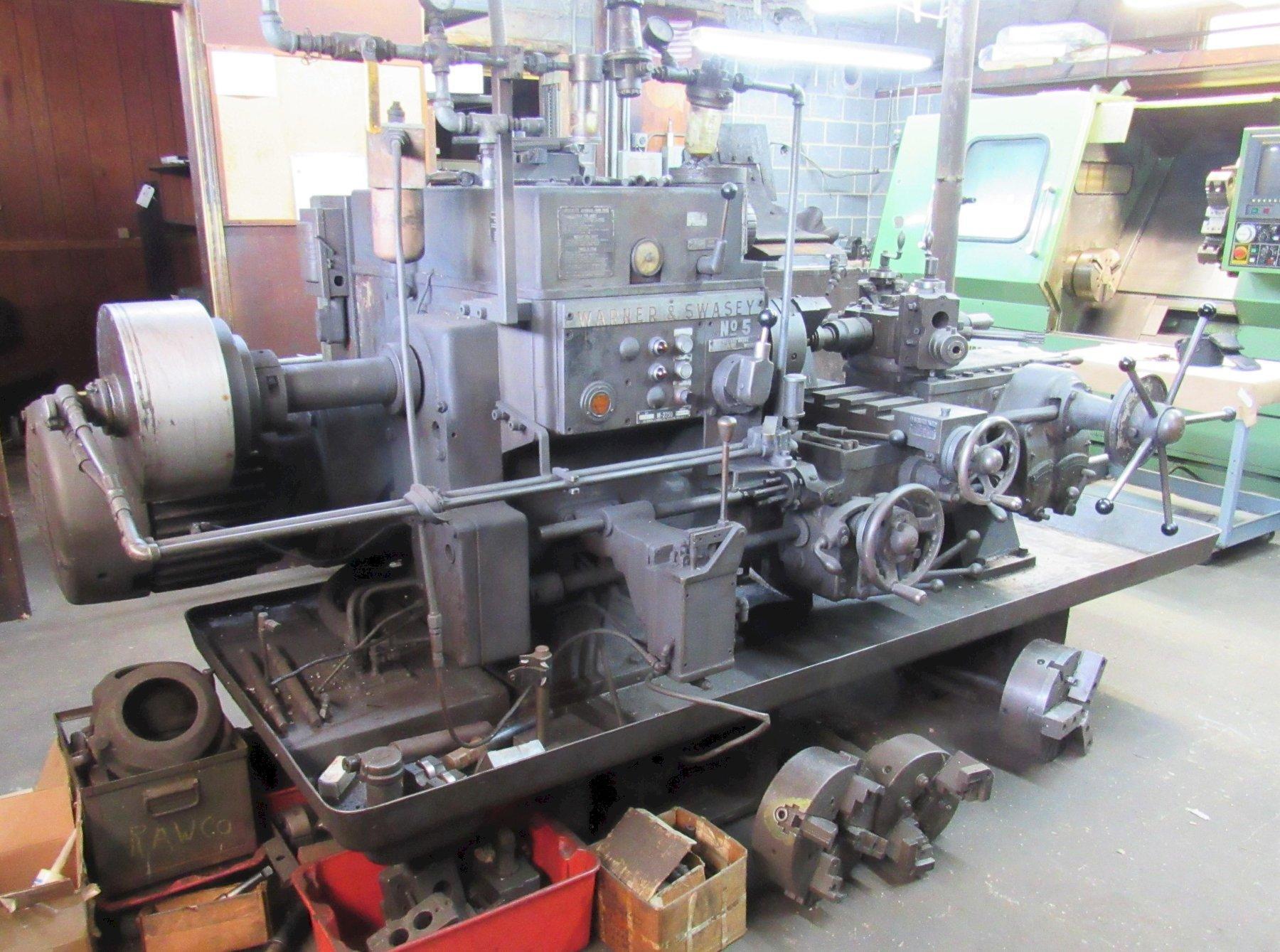

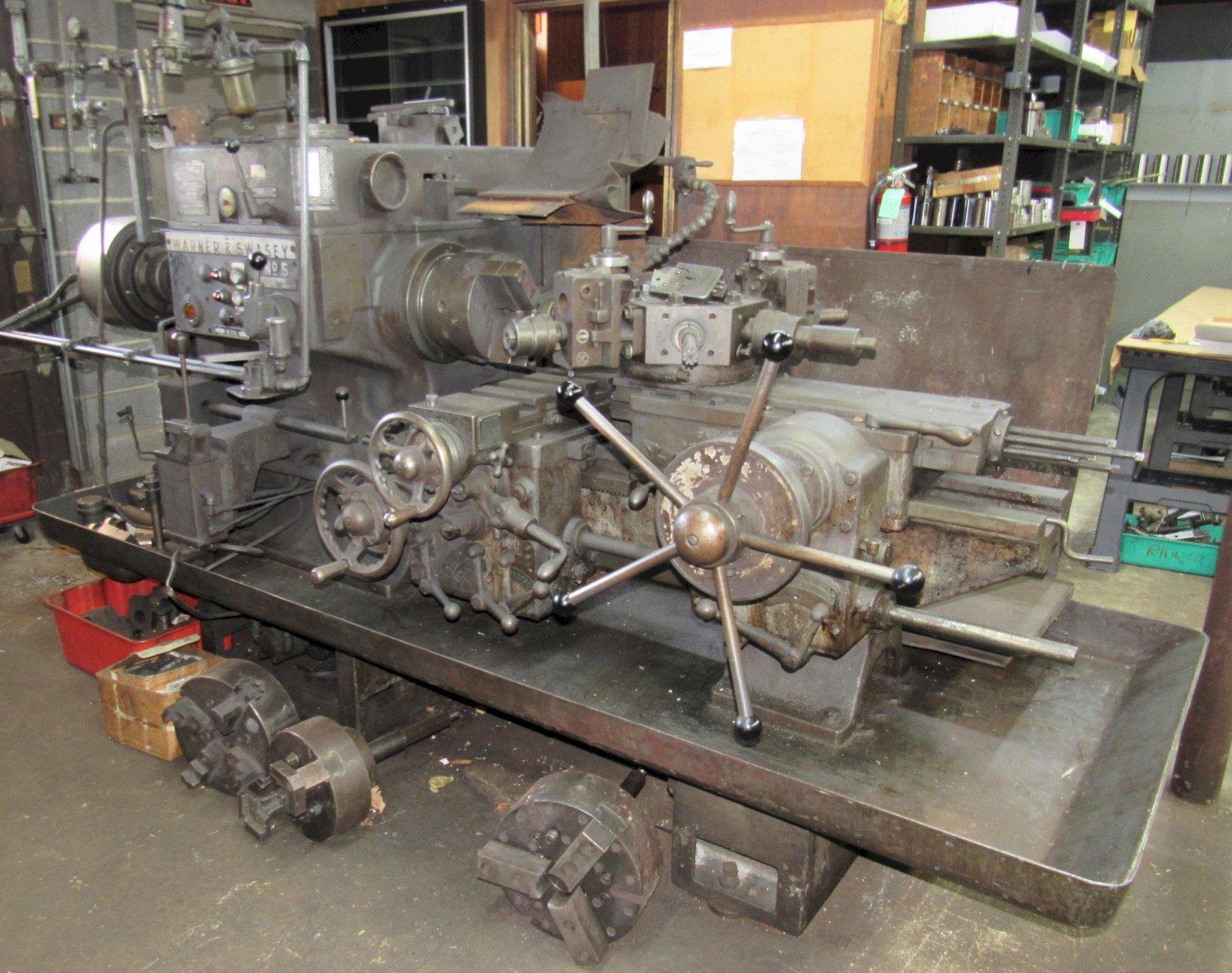

#5 WARNER & SWASEY MODEL #2250 RAM TYPE TURRET LATHE: STOCK #77721

Manufacturer

WARNER & SWASEY

Category

Lathes

Type

LATHES, TURRET, SADDLE TYPE

Stock

77721

Model

NO.5 M-2250

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL .............................. 1535342

MODEL ............................... M2250

SWING OVER BED ...................... 20"

SWING OVER CROSS SLIDE .............. 10-1/4"

SPINDLE NOSE TO TURRET FACE (MAX.) .. 36-1/2"

HOLE THRU SPINDLE ................... 2-7/8"

SPINDLE SPEEDS ...................... (24) 25 TO 1556 RPM

CARRIAGE LONGITUDINAL FEEDS ......... (6) .0023 TO .022 IPR

CARRIAGE CROSS FEEDS ................ (6) .0015 TO .014 IPR

TURRET FEEDS ........................ (6) .003 TO .024 IPR

CHUCK ............................... 3 JAW

AIR CLOSER .. YES

CHIP PAN ............................ YES

COOLANT ............................. YES

TOOLING (ADJUSTABLE SLIDE) .......... 2

SPINDLE MOTOR (2-SPEED) ............. 20/10 HORSEPOWER
