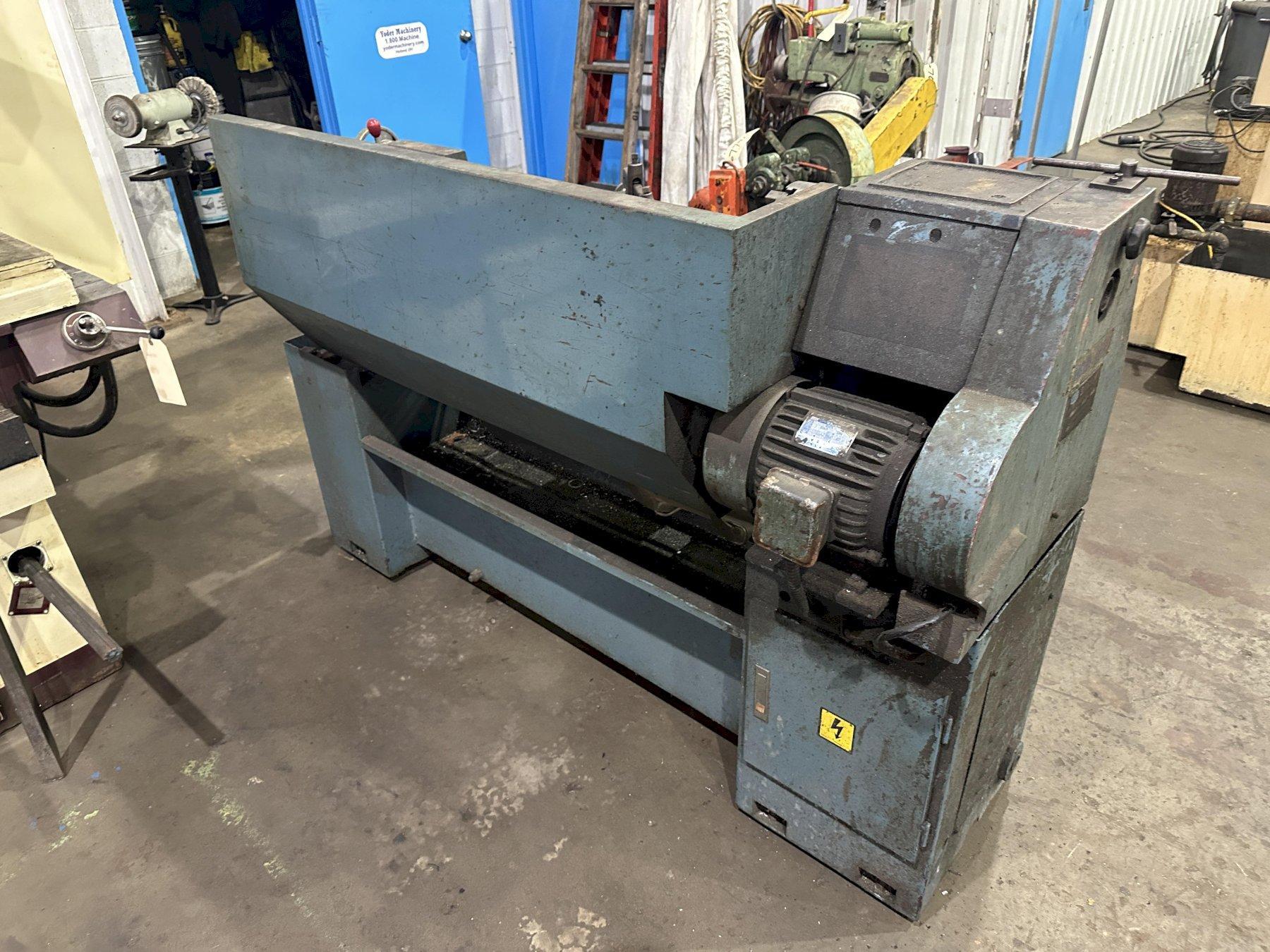

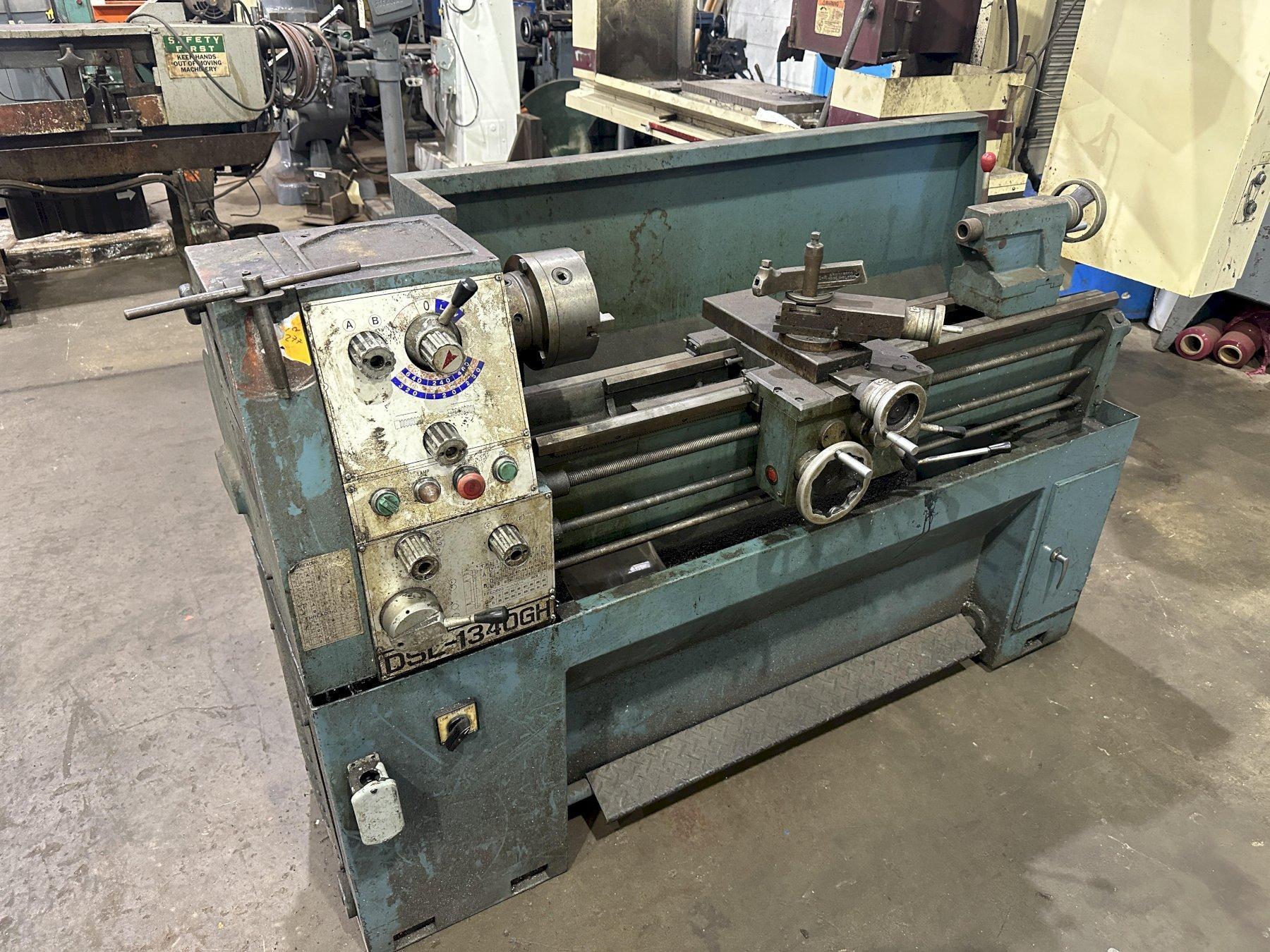

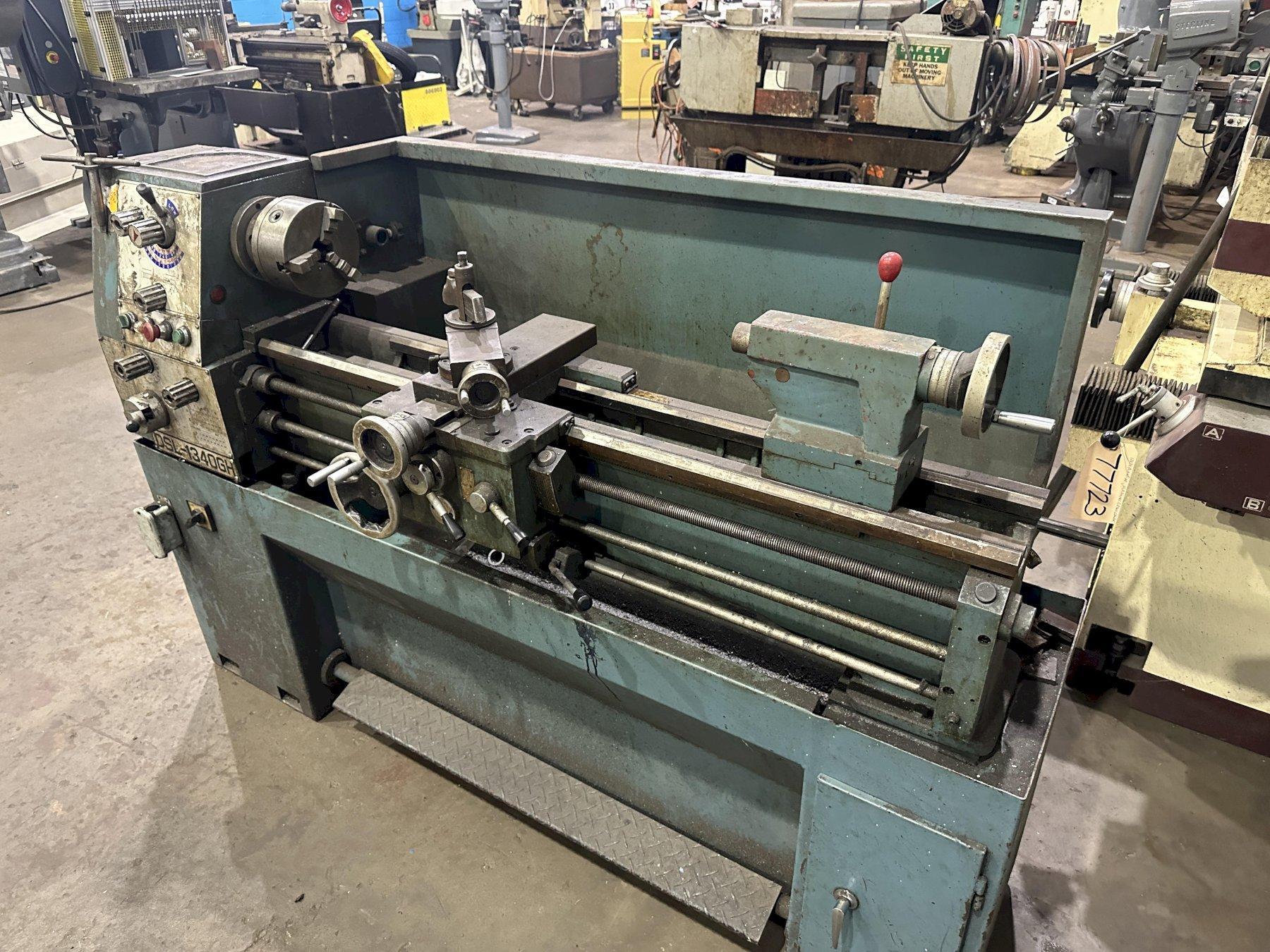

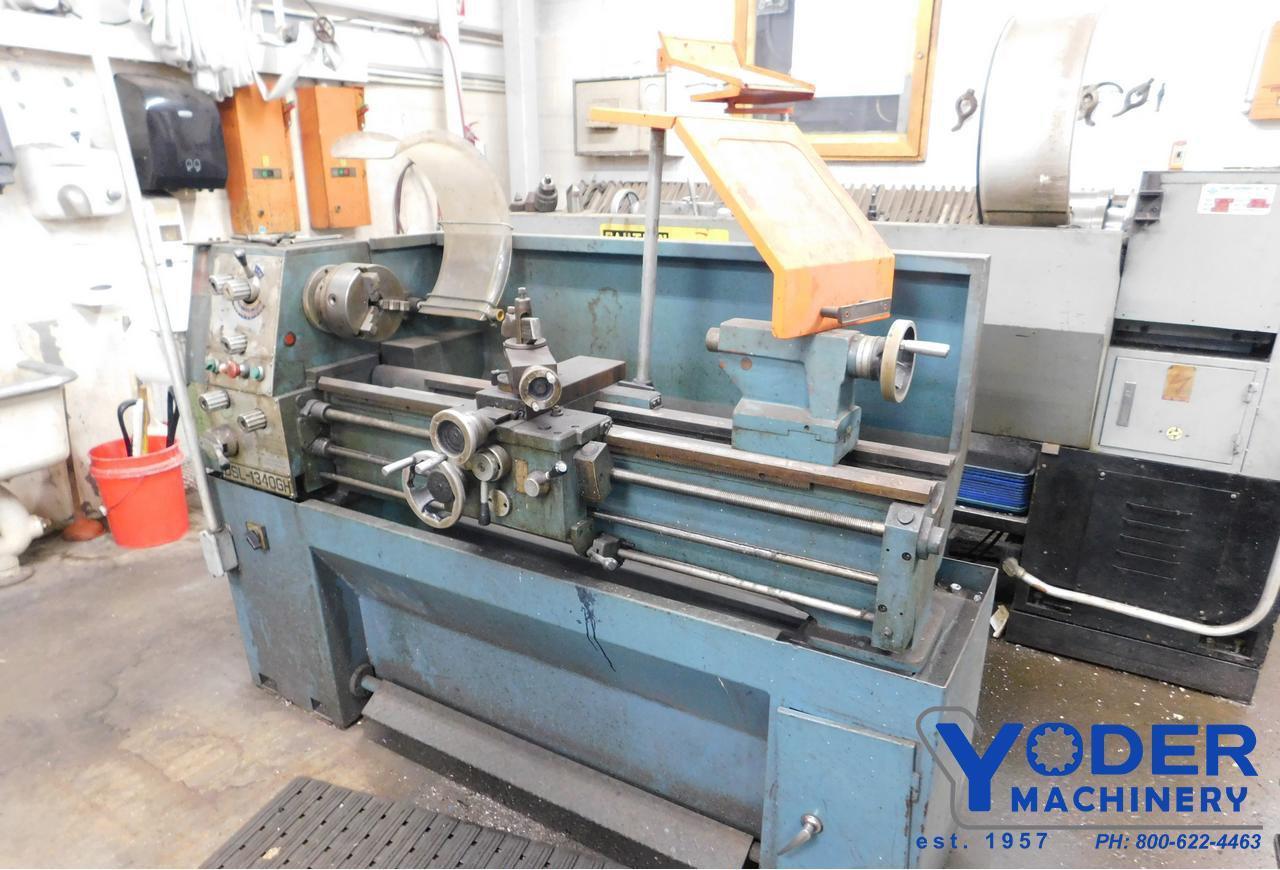

13" X 40" DARSIN DSL1340 GH GAP ENGINE LATHE: STOCK #77716

Manufacturer

Category

Lathes

Type

LATHES, GAP, SLIDING BED

Stock

77716

Model

DSL1340

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL ..................... 78100

MODEL ...................... DSL1340

SWING OVER WAYS ............ 13"

SWING IN GAP ............... 18-3/4"

LENGTH OF GAP .............. 8-1/8"

SWING OVER CROSS SLIDE ..... 7-25/32"

DISTANCE BETWEEN CENTERS ... 40"

SPINDLE SPEEDS ............. 40 TO 2000 RPM

DIAMETER OF SPINDLE HOLE ... 1-1/2"

ENGLISH THREADS ............ 4 TO 28 TPI

METRIC THREADS ............. .25 TO 7.5 MMPI

FEEDS LONGITUDINAL ......... .005 TO .0057 IPE

TAPER IN TAILSTOCK ......... 3 MT

COOLANT WITH CHIP PANS ..... YES

MAIN MOTOR ................. 2 HORSEPOWER
