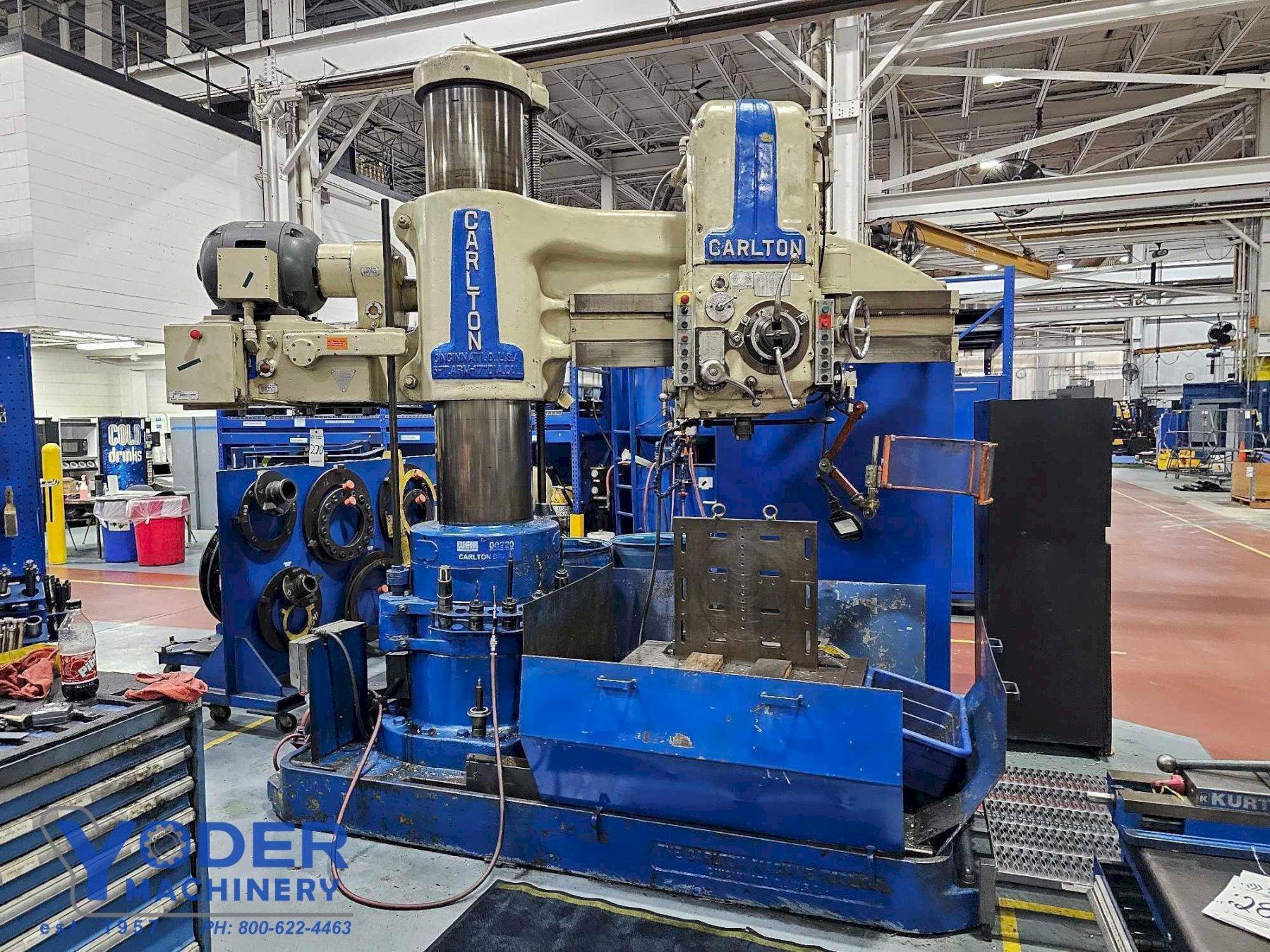

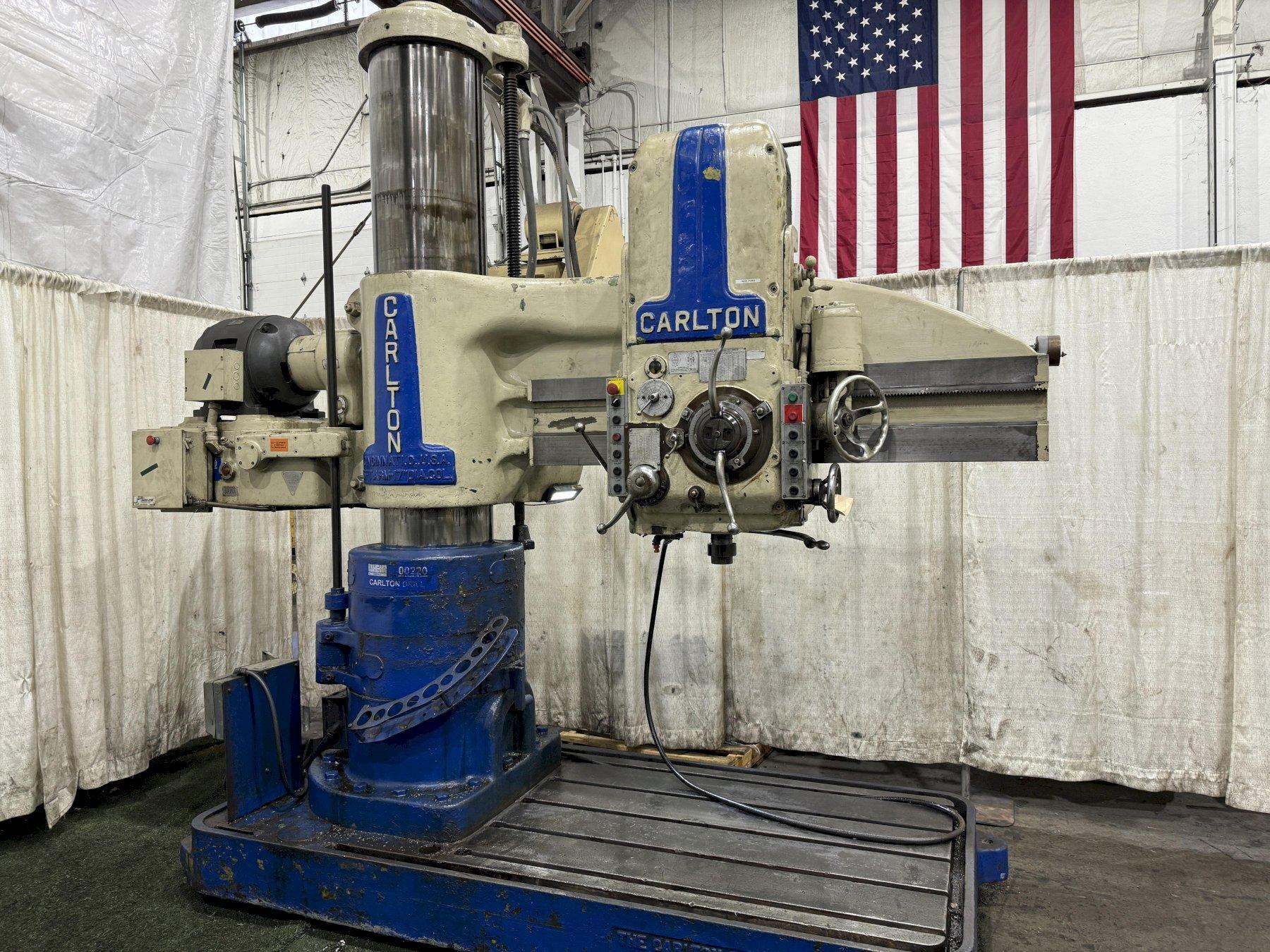

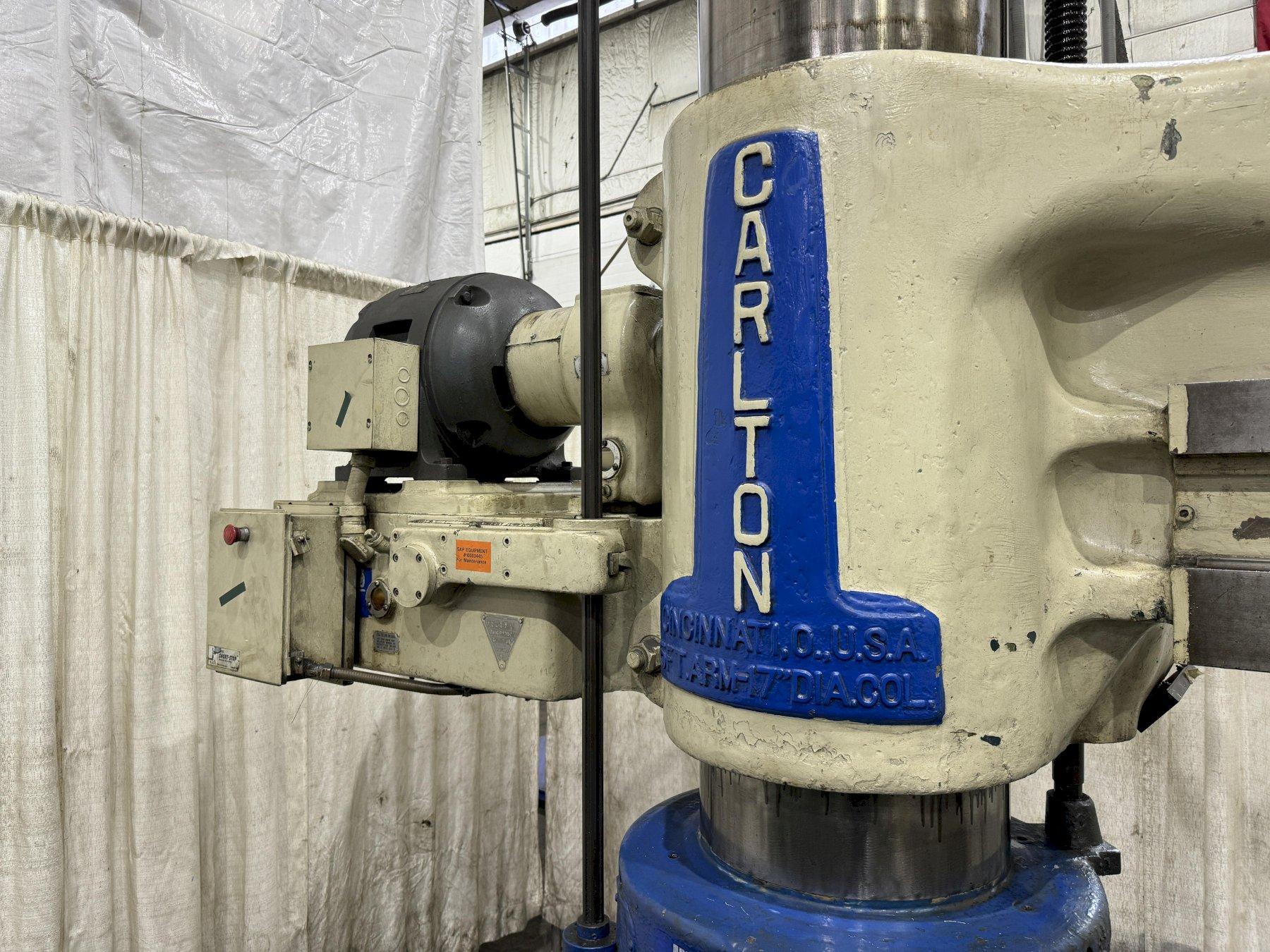

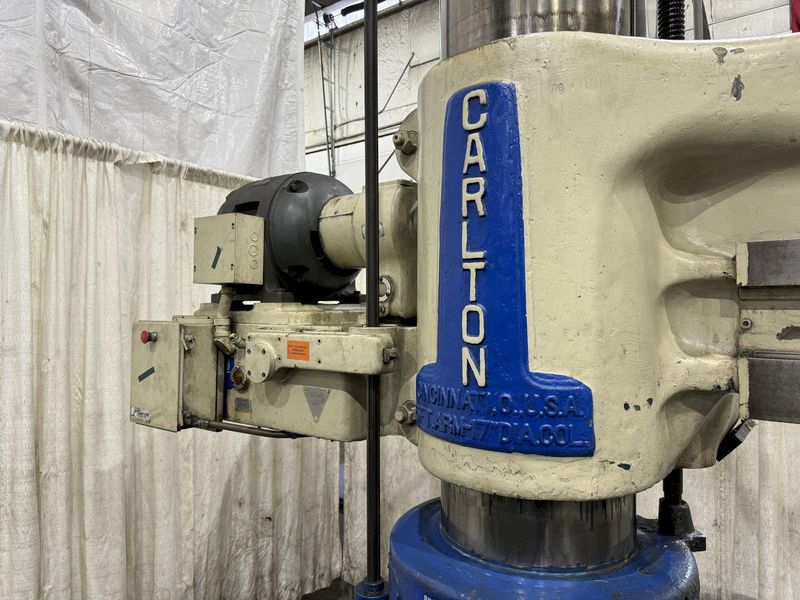

5' X 17" CARLTON RADIAL ARM DRILL: STOCK #77676

Manufacturer

CARLTON

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

77676

Model

4A

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL ................................. 3A3487

MODEL .................................. 3A

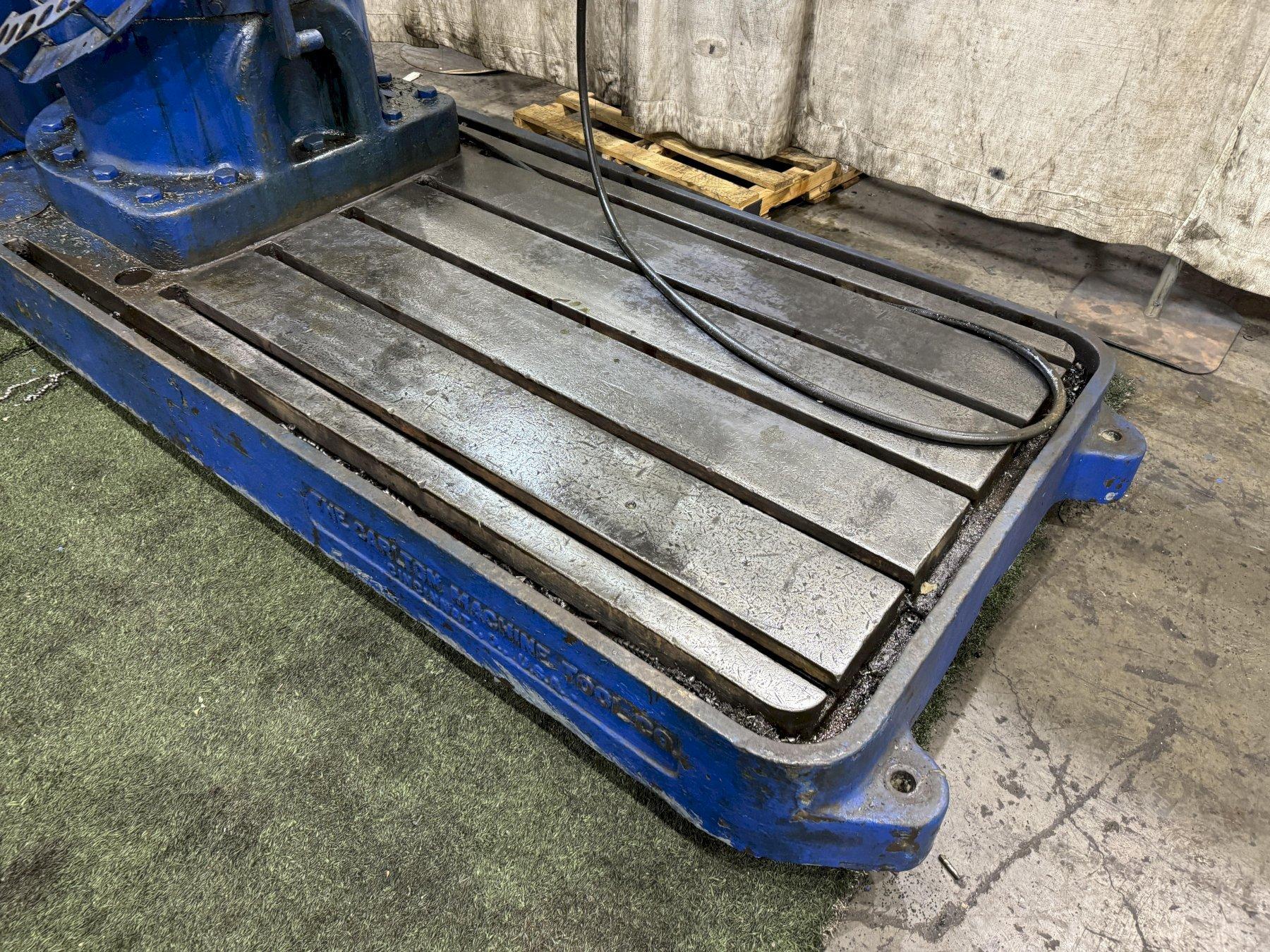

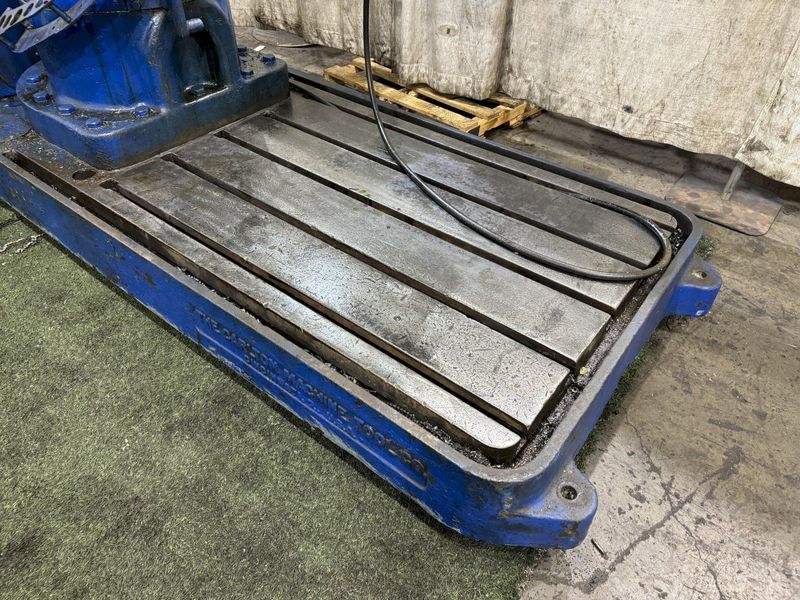

AREA OF BASE ........................... 64" X 50"

SPINDLE SPEEDS ......................... (36) 12 TO 1200 RPM

FEEDS .................................. (18) .004 TO .125 IPR

TAP LEADS .............................. 8, 11-1/2, 14, 18 TPI

SPINDLE TRAVEL ......................... 20"

DIAMETER OF SPINDLE .................... 4"

TAPER IN SPINDLE ....................... #6MT

DISTANCE SPINDLE TO COLUMN ............. 13-1/4" MIN, 60" MAX

DISTANCE SPINDLE TO BASE ............... 14-1/2" MIN, 72" MAX

POWER ARM ELEVATION .................... YES

POWER HEAD TRAVERSE .................... YES

POWER CLAMPING ......................... YES

MOTOR HORSEPOWER ....................... 15
