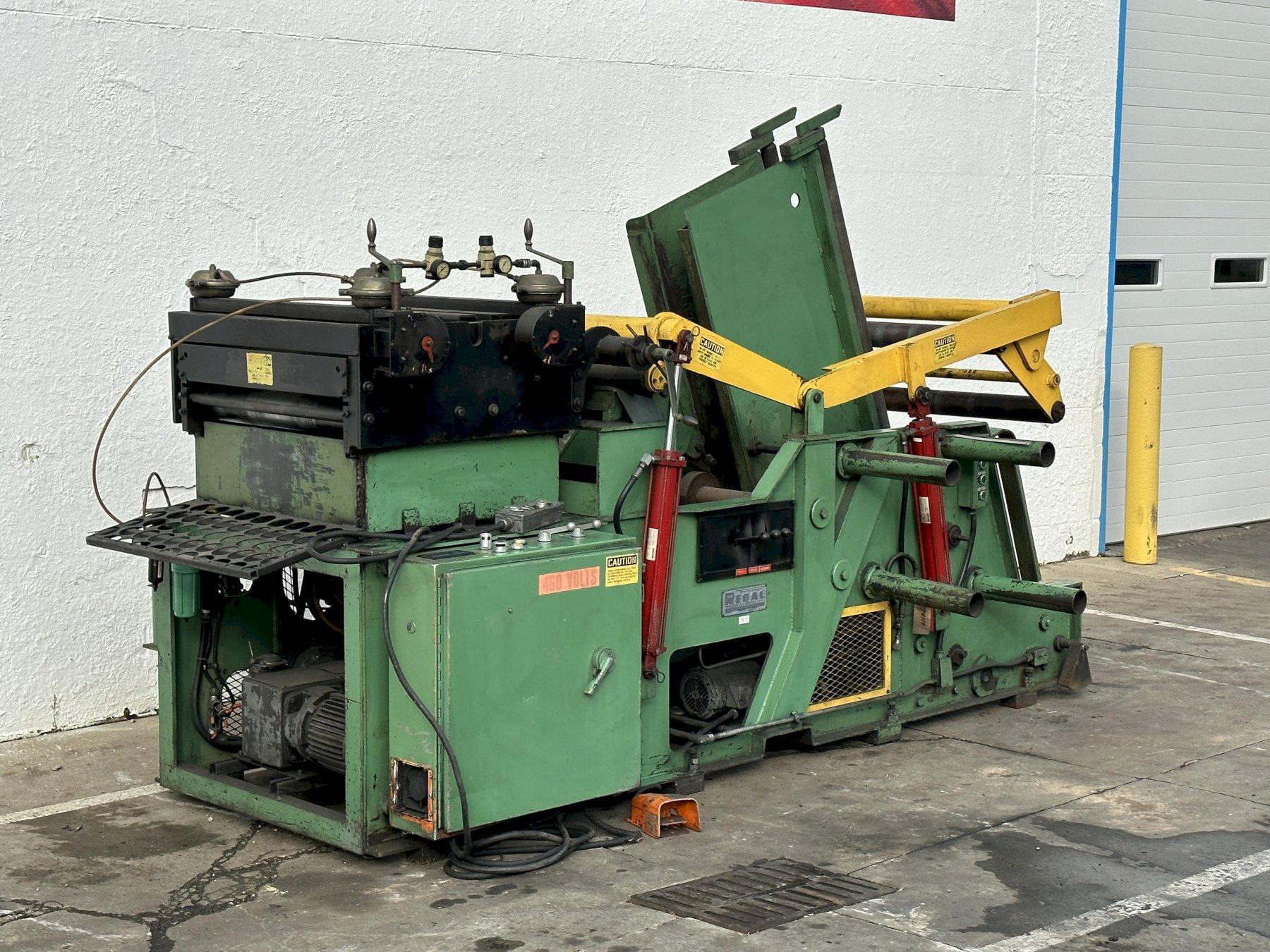

10,000 LB X 30" REGAL COIL CRADLE & STRAIGHTENER: STOCK#77222

Manufacturer

REGAL

Category

Reels

Type

REELS, COIL

Stock

77222

Model

3577-CC/CSF 30-62

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

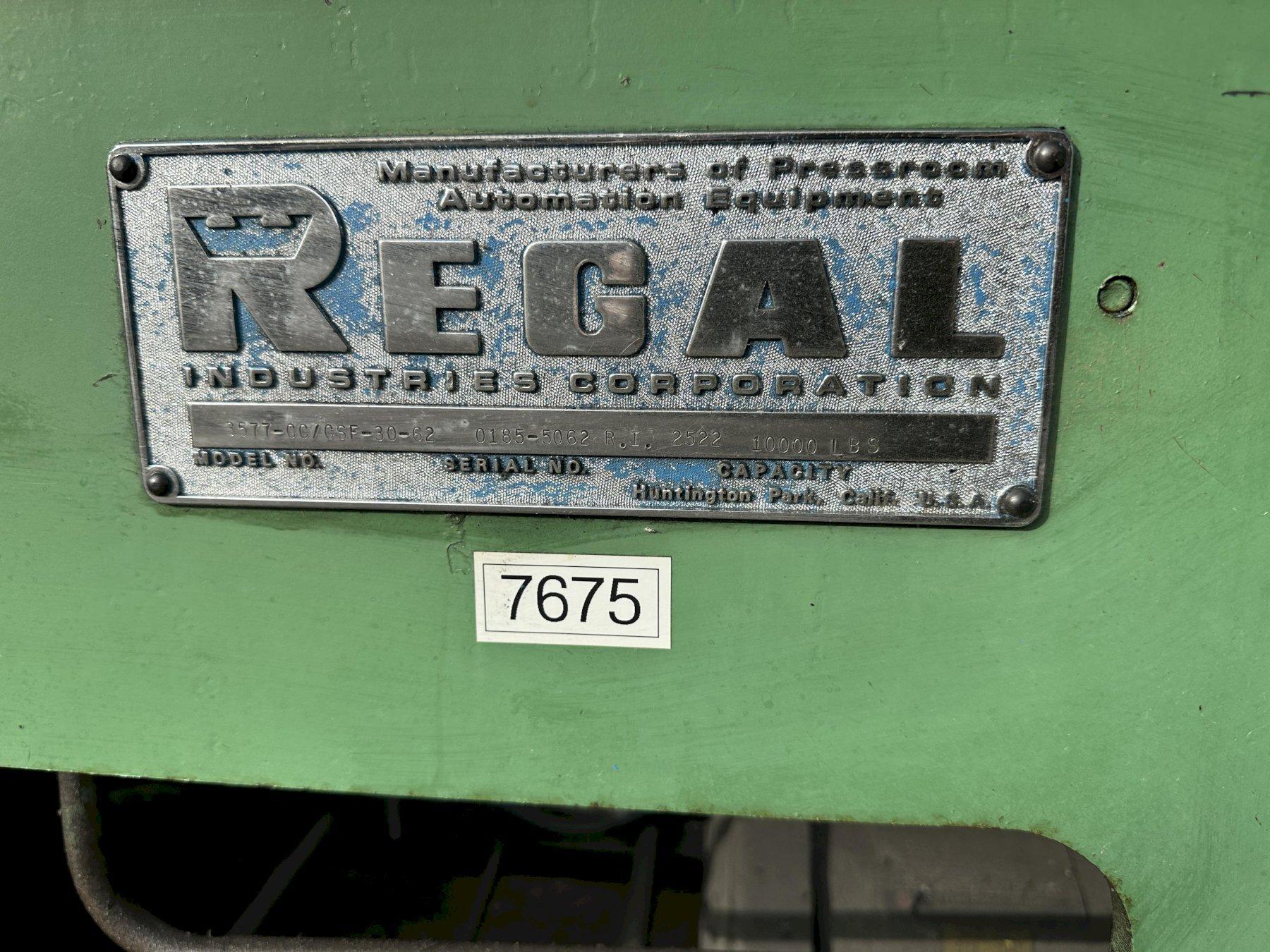

SERIAL ........................01885-5062

MODEL ........................ 3577-CC/CSF 30-62

YER NEW ..................... 1985

COIL CAPACITY .................... 10,000 LBS.

MAXIMUM COIL WIDTH ............... 30"

MATERIAL THICKNESS RANGE ......... .018 TO .200

MAXIMUM COIL O.D. ................ 62"

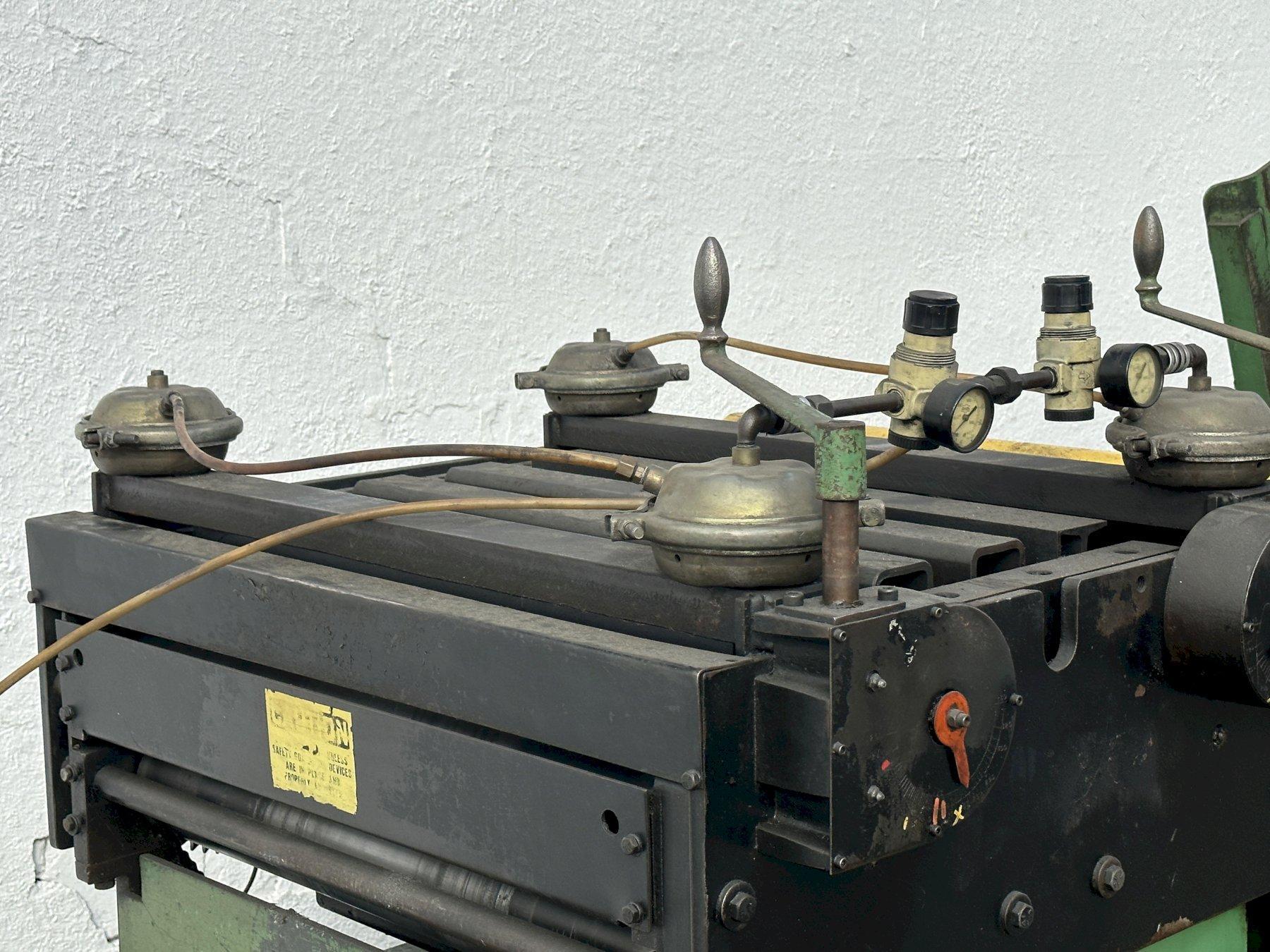

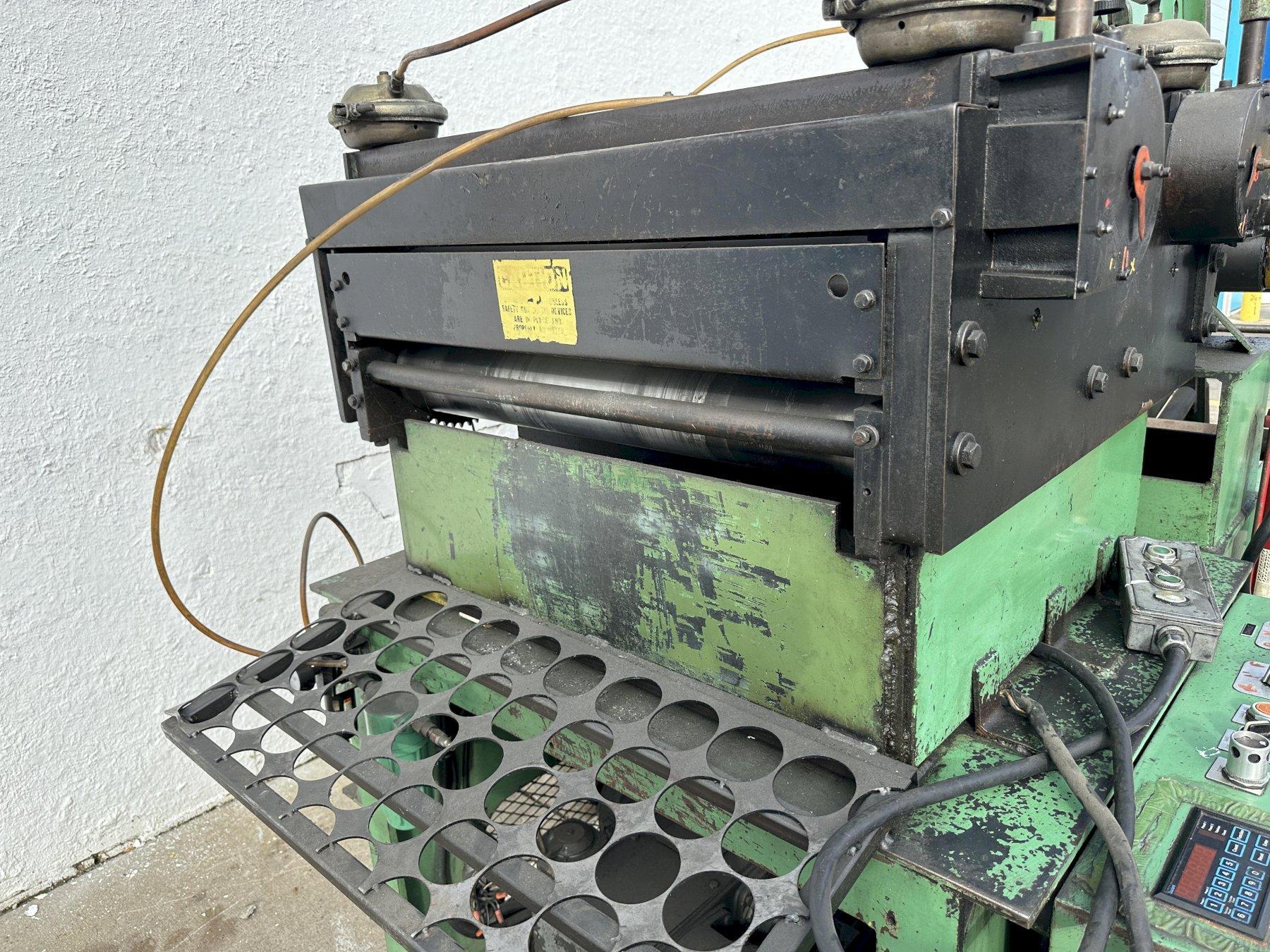

STRAIGHTENING ROLL SIZE .......... (7) 3 -1/2" DIA. X 30L

PINCH ROLL SIZE .................. (2) 4-1/2"

SPEED ..................................... 50 FPM

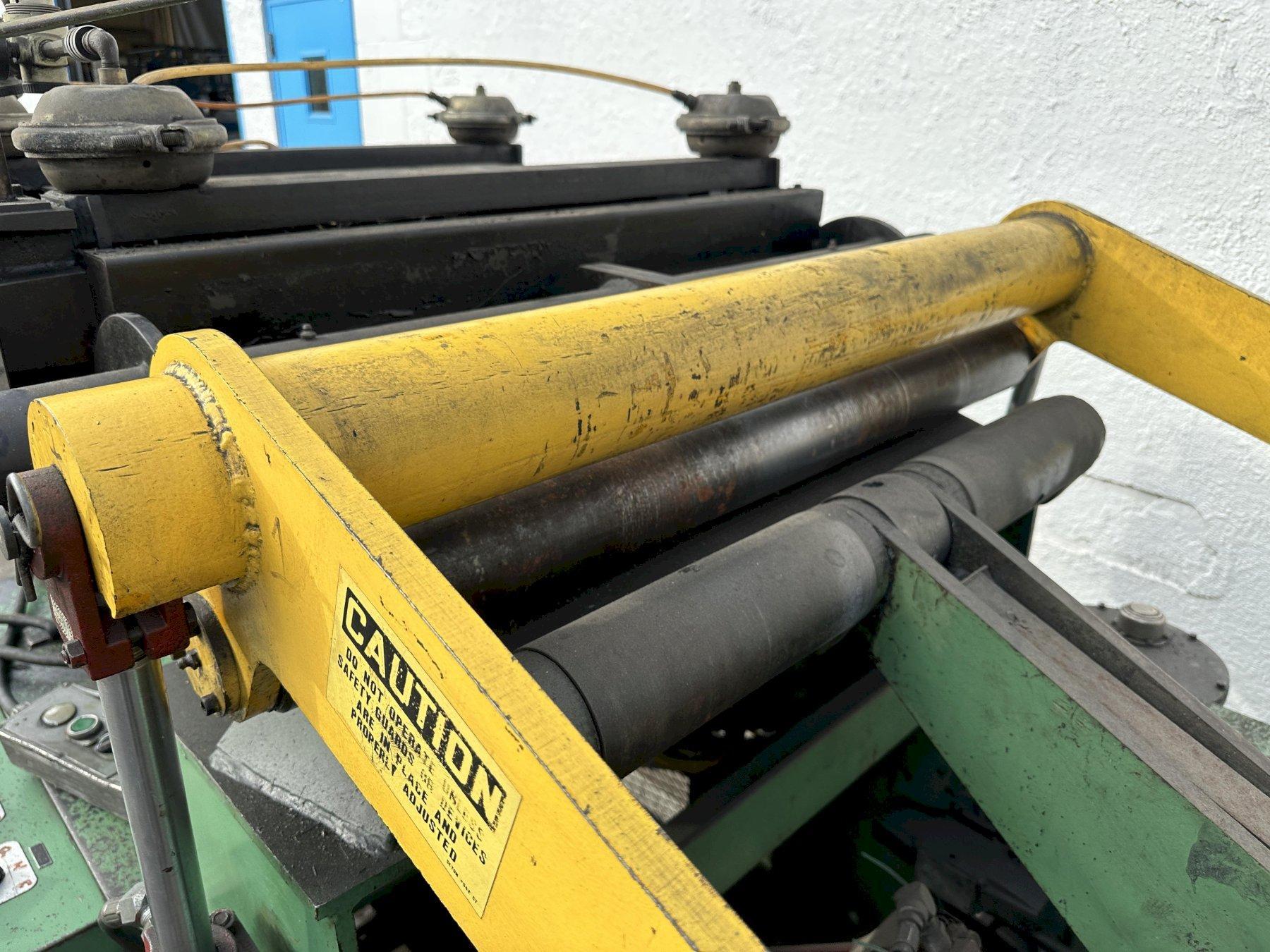

HYDRAULIC HOLDDOWN ROLL ... YES

HYDRAULIC PEELER ...................... YES

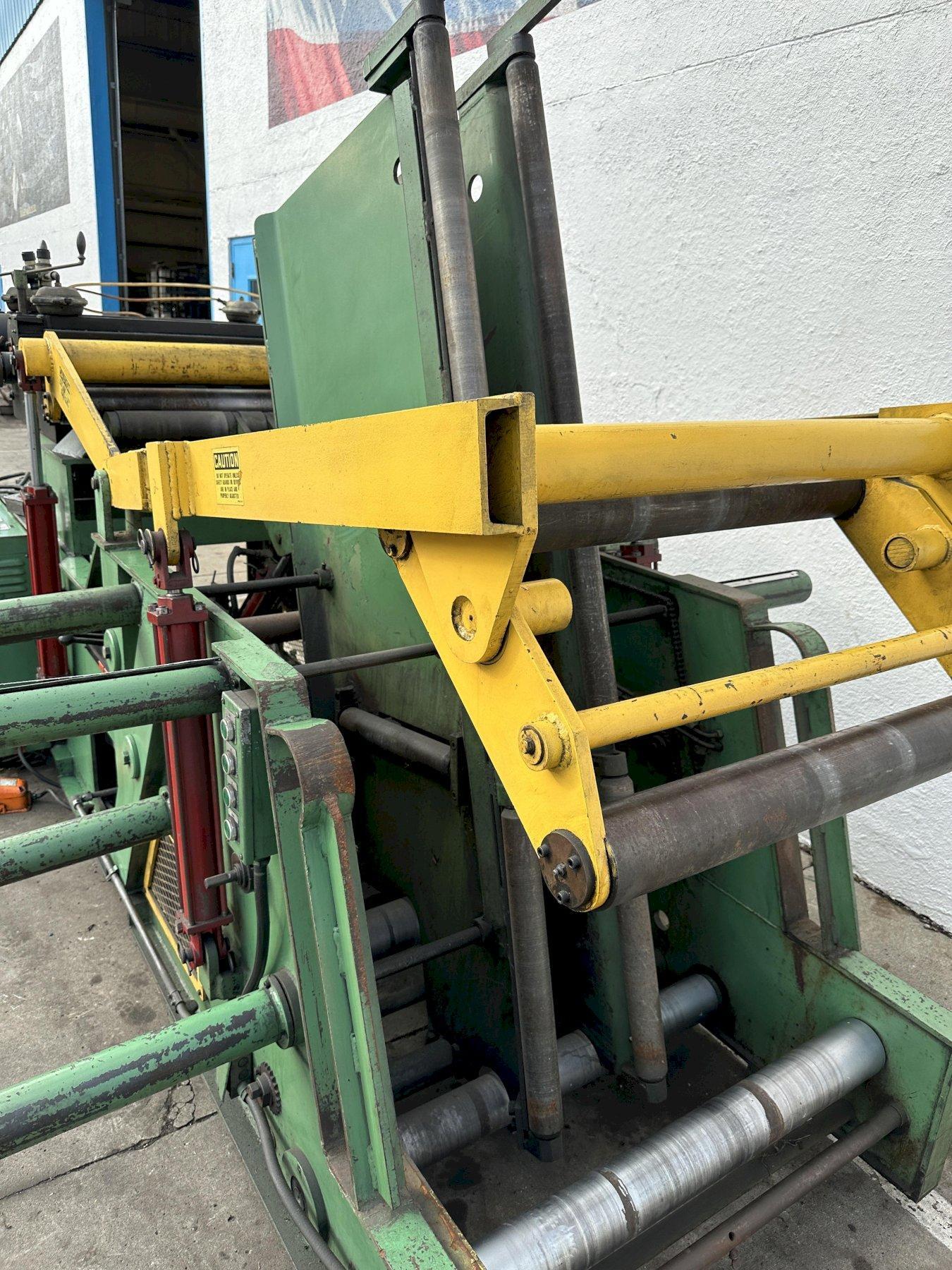

DRIVEN CRADLE ROLLS ........................... YES

CRADLE ROLLER EDGE GUIDES ........ YES

ENTRY ROLLER EDGE GUIDES .............. YES

ENTRY & EXIT PNEUMATIC PINCH ROLLS.. YES

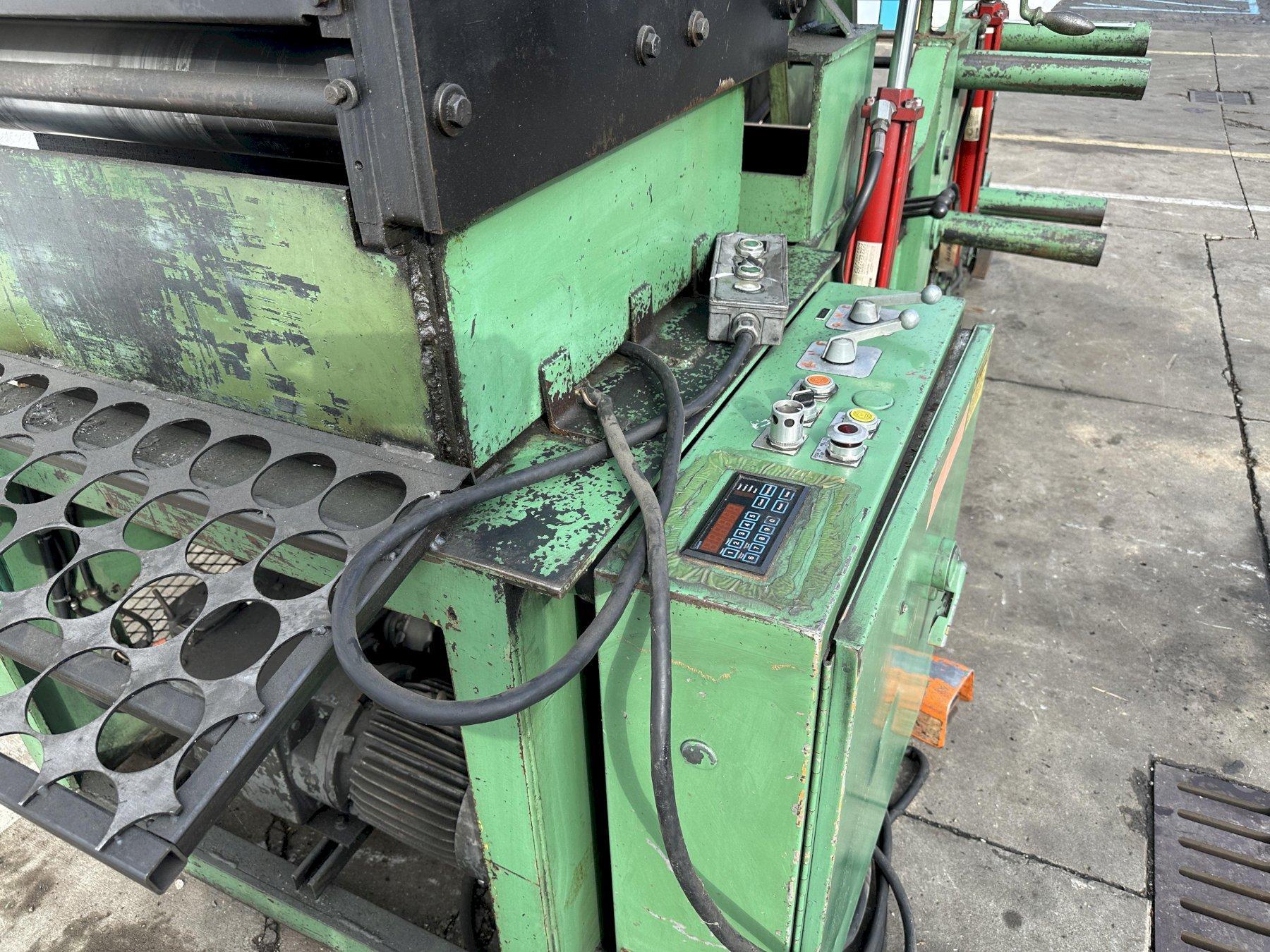

FORWARD/REVERSE SWITCH ................. YES

ELECTRIC FOOT PEDAL ...................... YES

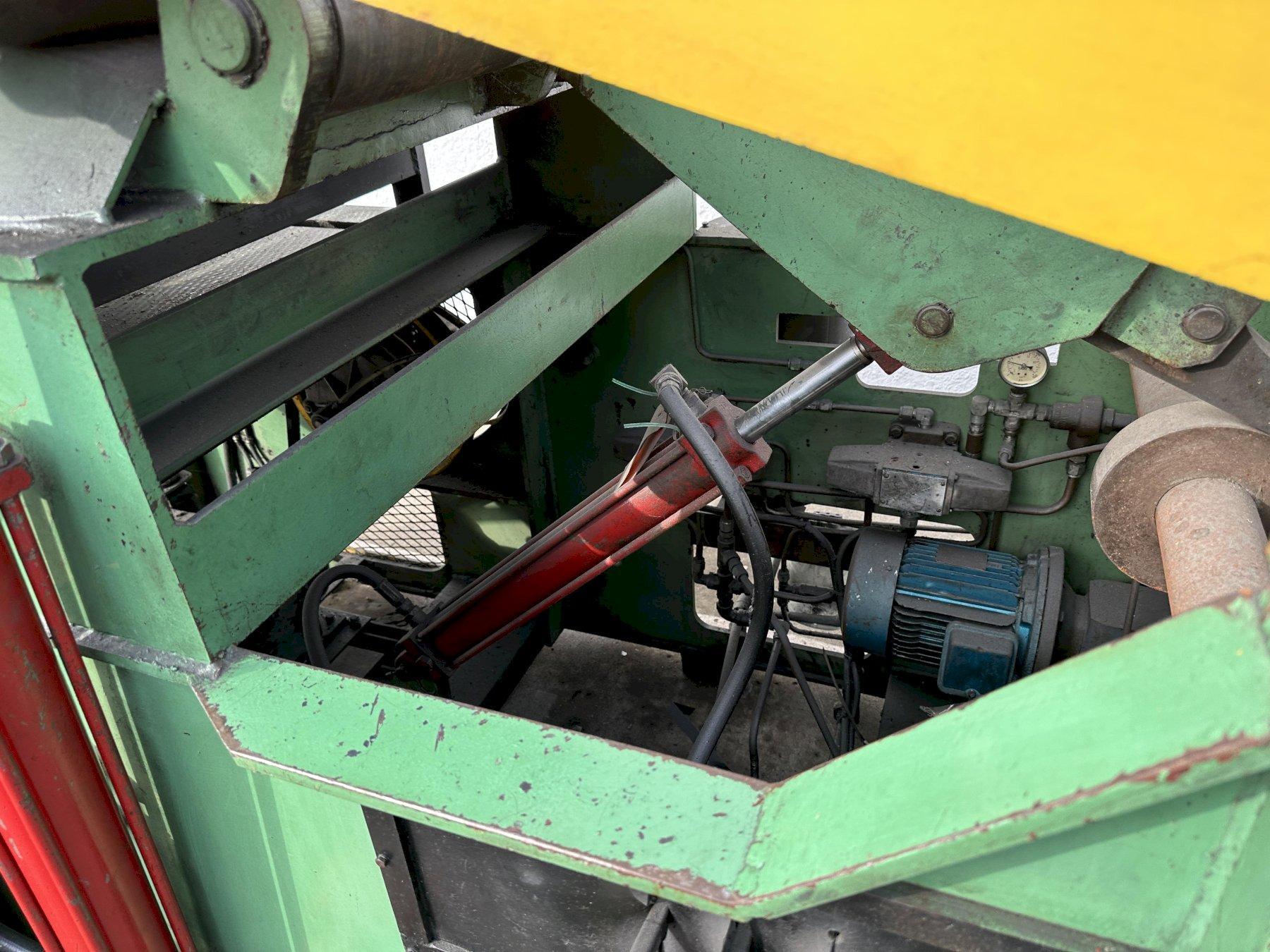

7-1/2 HORSEPOWER VARIABLE SPEED DRIVE MOTOR
