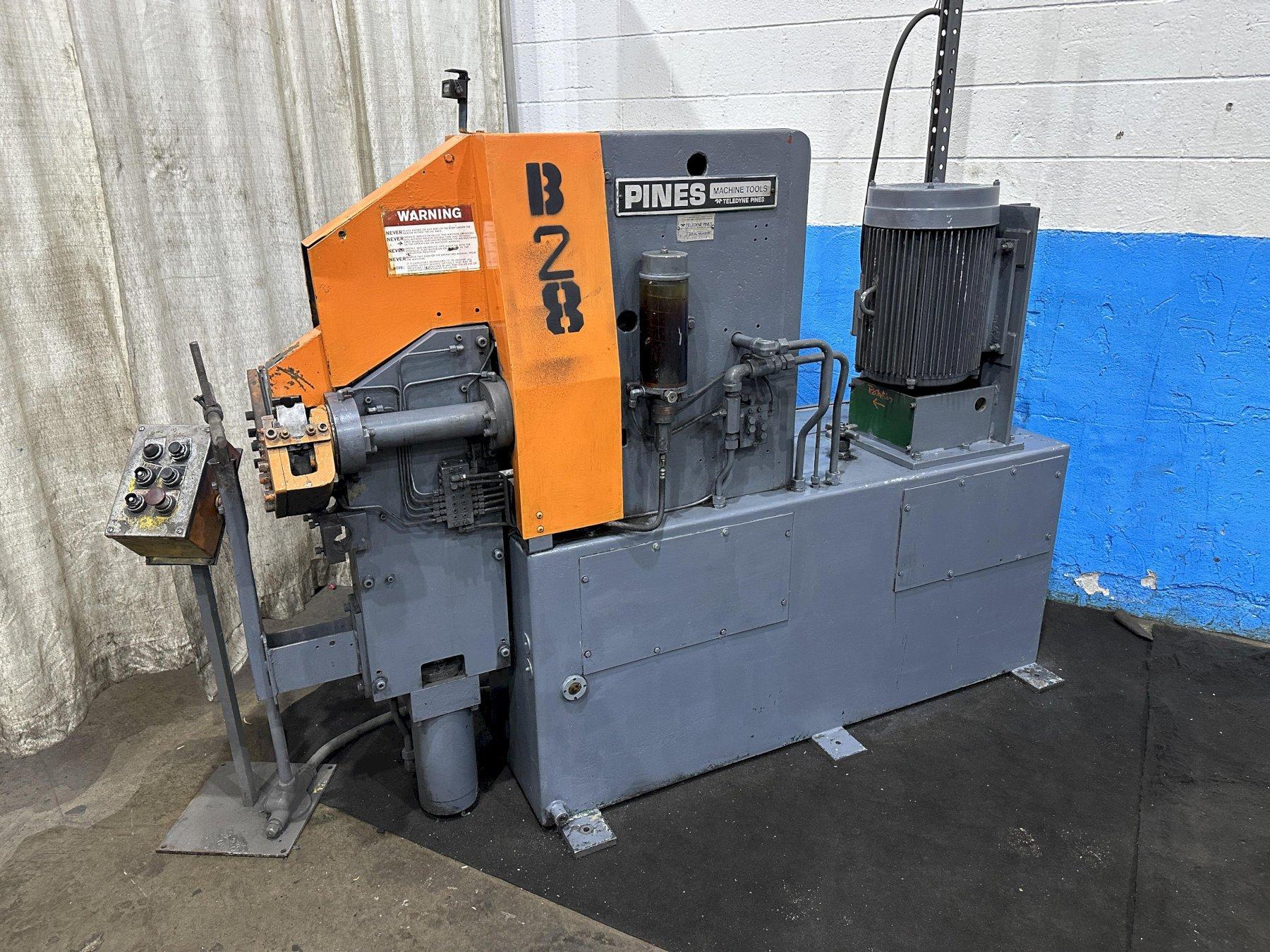

1" PINES MODEL # 3T VERTICAL HYDRAULIC TUBE BENDER: STOCK #77228

Manufacturer

PINES

Category

Tube Machinery

Type

TUBE BENDERS

Stock

77228

Model

3T

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL ................ #44362-79040

MODEL ................. #3T

YEAR NEW .............. 1979

CAPACITY .................................. 3 TON

NON-FERROUS TUBING (25,000 PSI) ........... 1" X .083" WALL

MILD STEEL TUBING (40,000 PSI) ............ 1-1/4" X .065" WALL

STAINLESS STEEL TUBING (60,000 PSI) ....... 1-1/4" X .049" WALL

SQUARE TUBING, MILD STEEL ................. 1" X .065" WALL

ROUND BAR (MILD STEEL) .................... 3/4"

SQUARE BAR (MILD STEEL) ................... 9/16"

CENTERLINE RADIUS ......................... 4-1/2" MAX

BEND ANGLE WITH NORMAL TOOLING ............ 140 DEGREE MAX

BEND ANGLE WITH SPECIAL TOOLING ........... 165 DEGREE MAX

PRODUCTION SPEED .......................... 1500 BENDS PER HOUR

AUTOMATIC 10 STATION ANGLE BEND SELECTOR .. YES

KNEE MOUNTED WING DIE ..................... YES

CUSHION CYLINDER .......................... YES

OIL COOLER ................................ YES

MOTOR, HORSEPOWER ......................... 20
