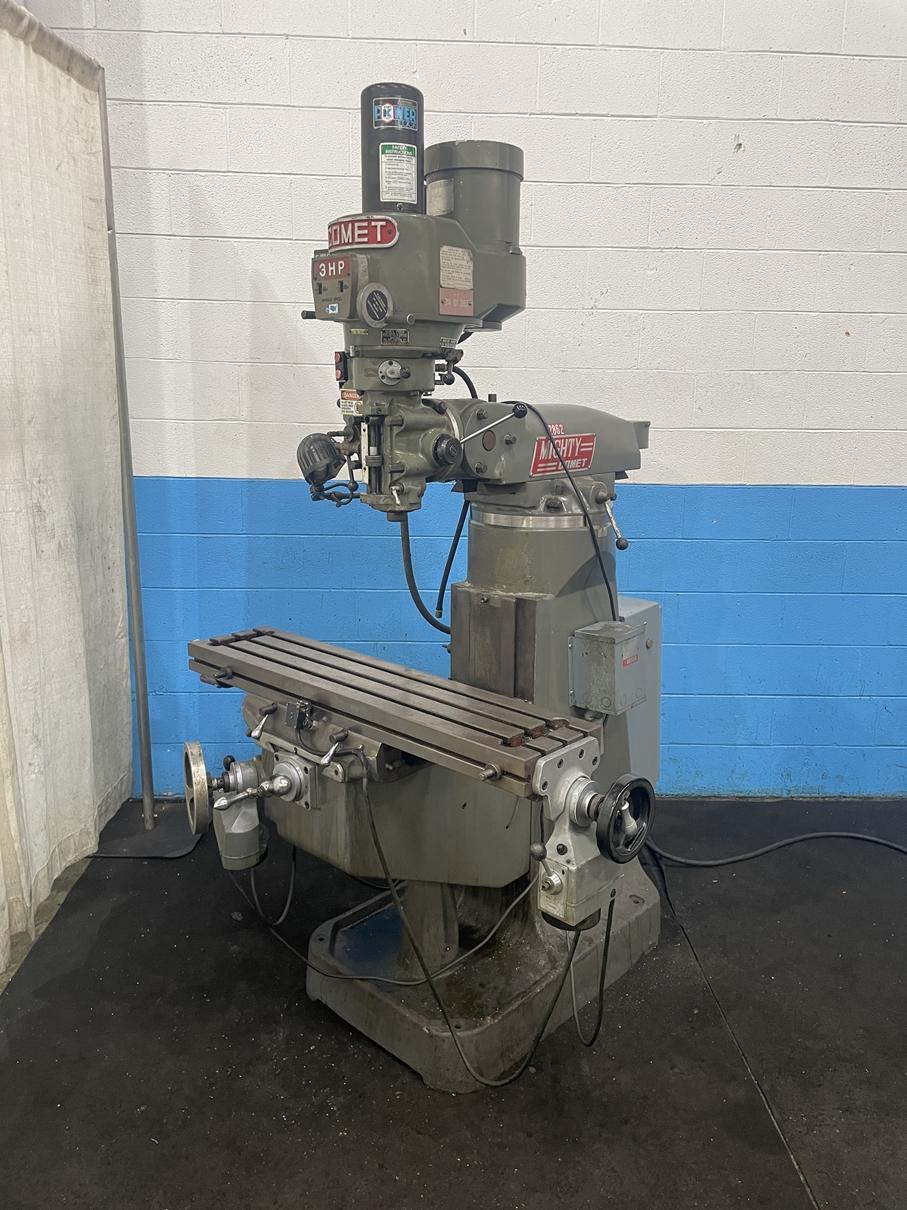

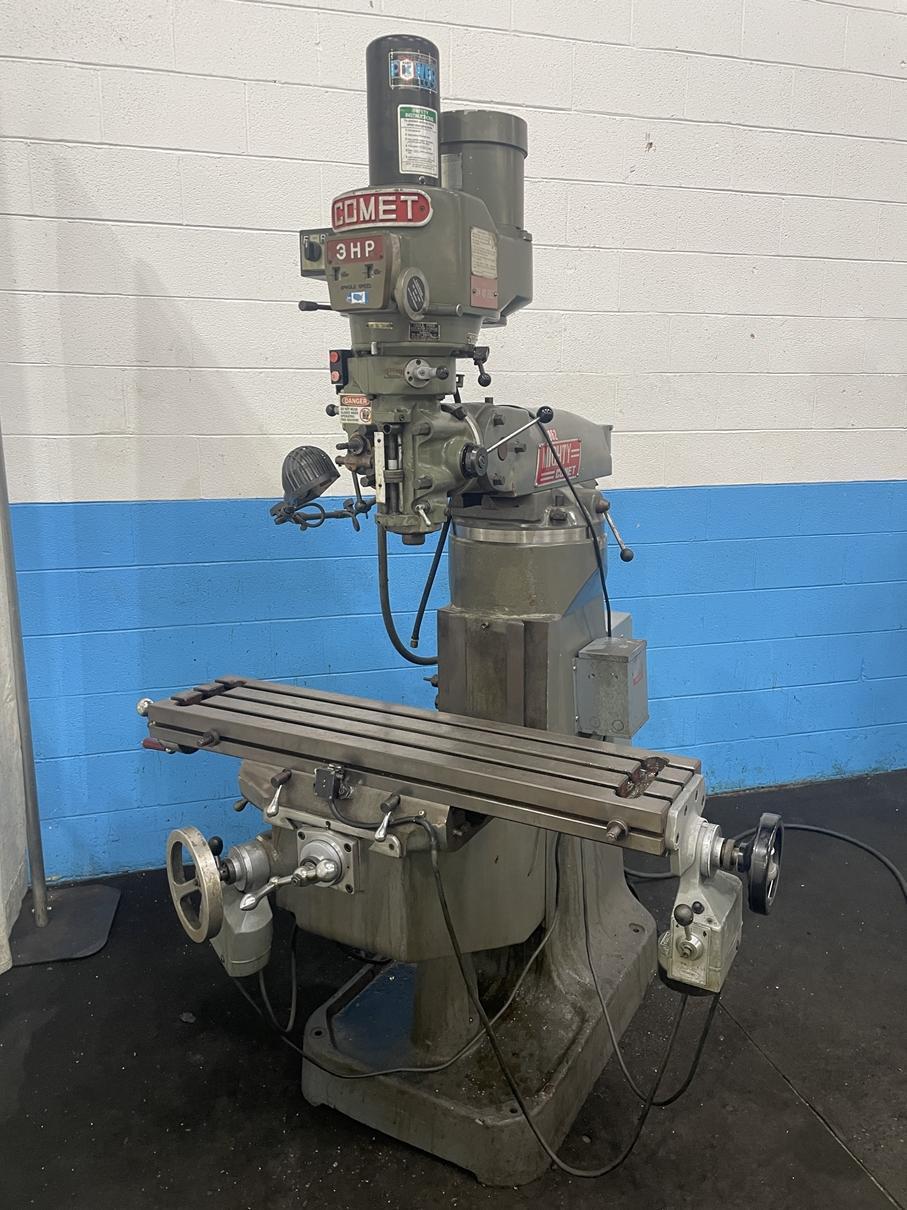

3 HP COMET RAM TYPE VERTICAL MILL: STOCK #76559

Manufacturer

COMET

Category

Milling Machines

Type

MILLERS, VERTICAL

Stock

76559

Model

null

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL ................................... 1260
MODEL .................................... 3-VHG

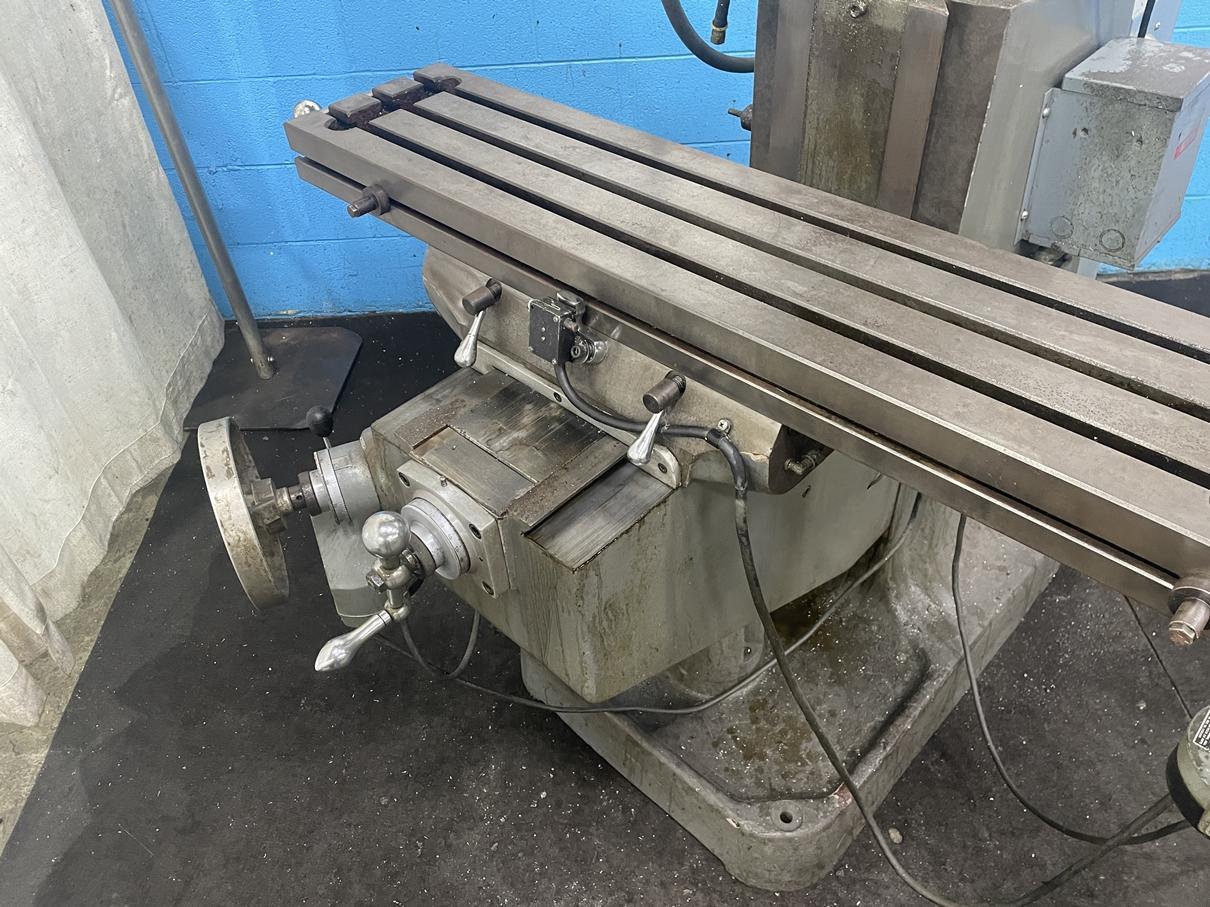

AREA OF TABLE ............................ 9" X 42"
LONGITUDINAL TABLE TRAVEL ................ 30"
CROSS TABLE TRAVEL ....................... 16"
VERTICAL KNEE TRAVEL ..................... 16"
QUILL TRAVEL ............................. 5"
RAM TRAVEL IN/OUT ........................ 24"
SPINDLE SPEEDS VARIABLE SPEED ............ 60 TO 4,200 RPM
SPINDLE TAPER ............................ R-8
POWER QUILL FEEDS ........................ 0015, .003 & .006 IPR
POWER DRAWBAR  ........................... YES
POWER LONGITUDINAL TRAVEL ................ YES
DISTANCE, SPINDLE NOSE TO TABLE .......... 2" MINIMUM 18" MAXIMUM
DISTANCE SPINDLE CENTERLINE OF COLUMN .... 4" MINIMUM 28" MAXIMUM
HEAD TILTS ............................... 45 DEGREES (BACK & FORWARD)
HEAD ROTATES ............................. 90 DEGREES (RIGHT & LEFT)
MOTOR .................................... 3 HORSEPOWER
