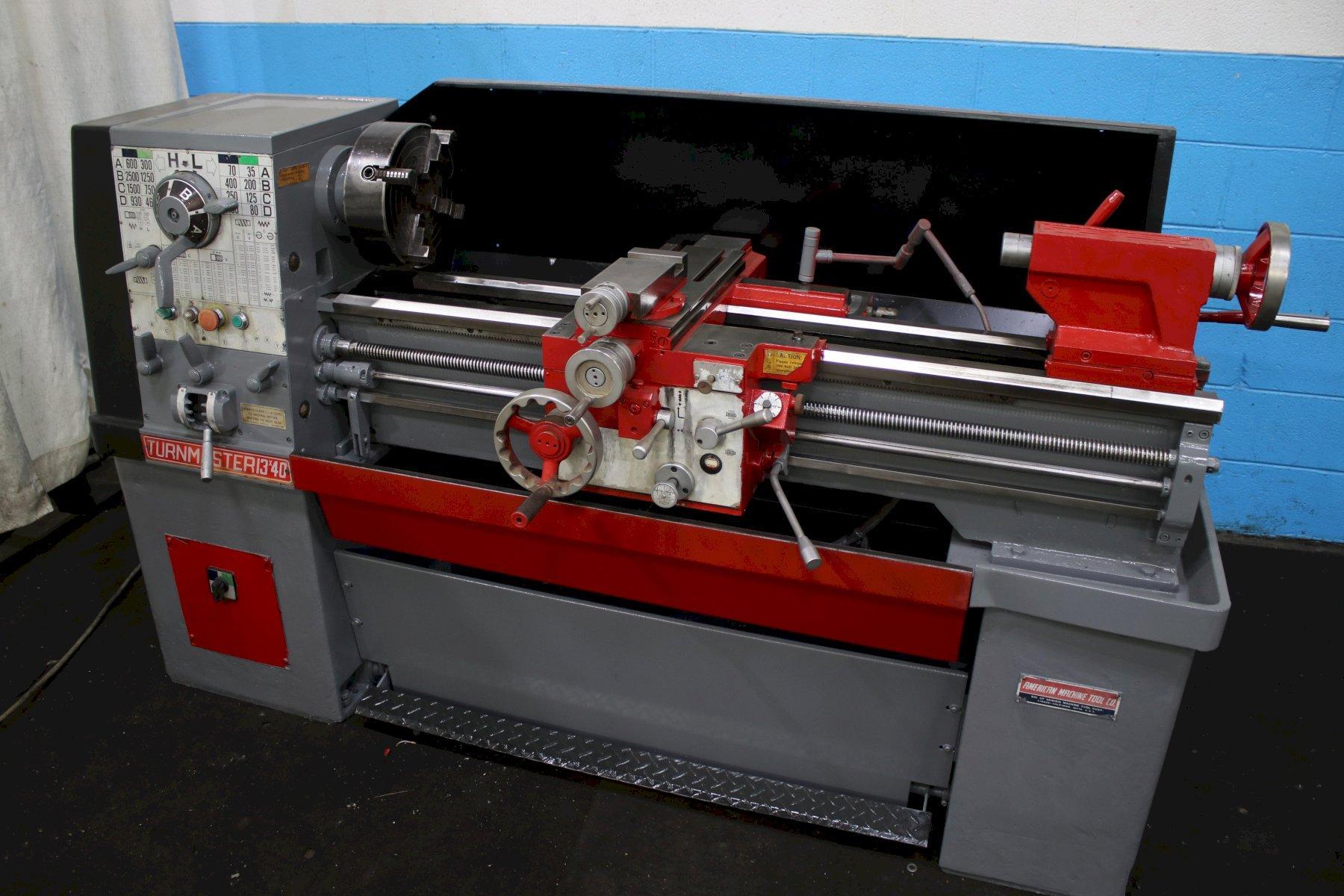

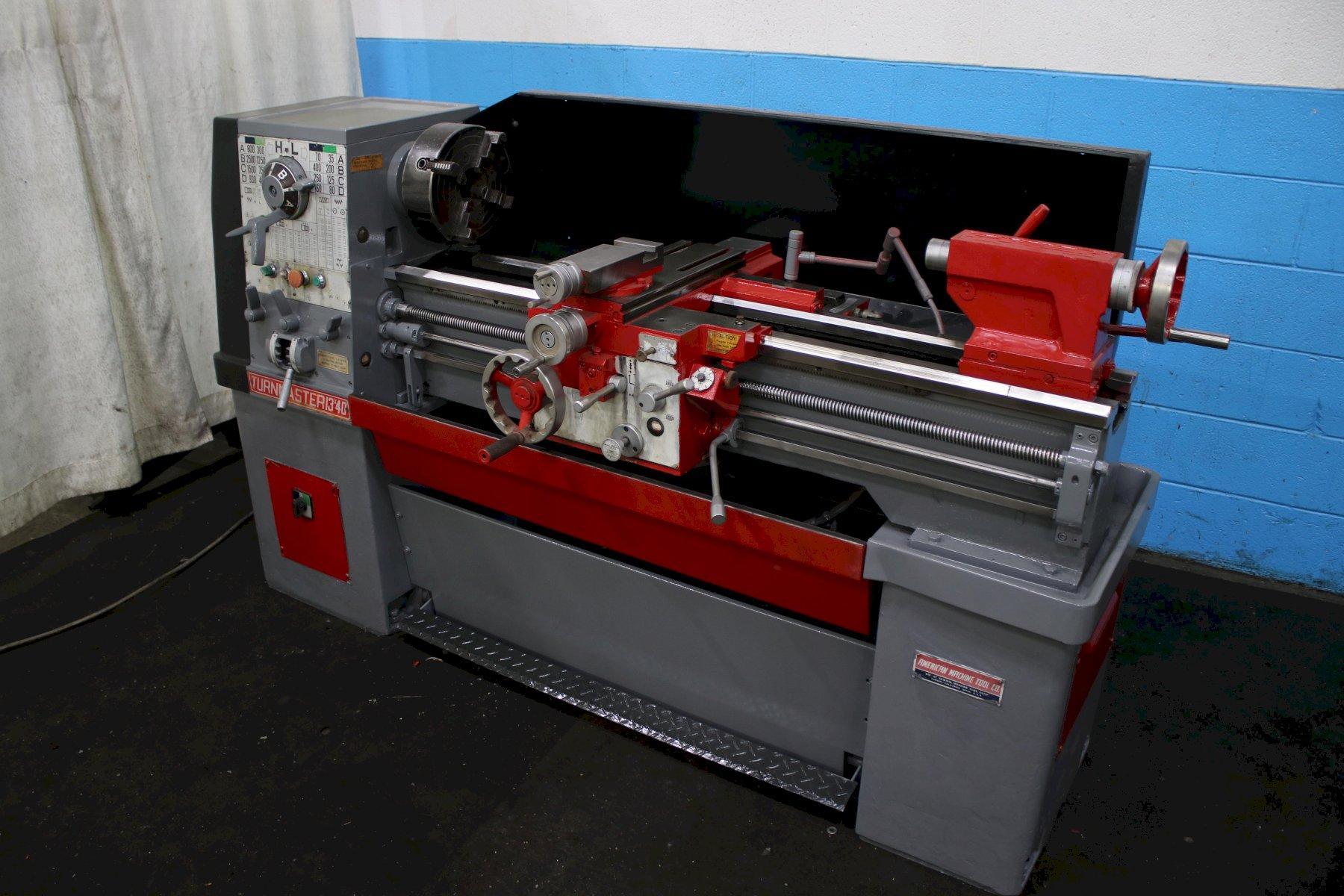

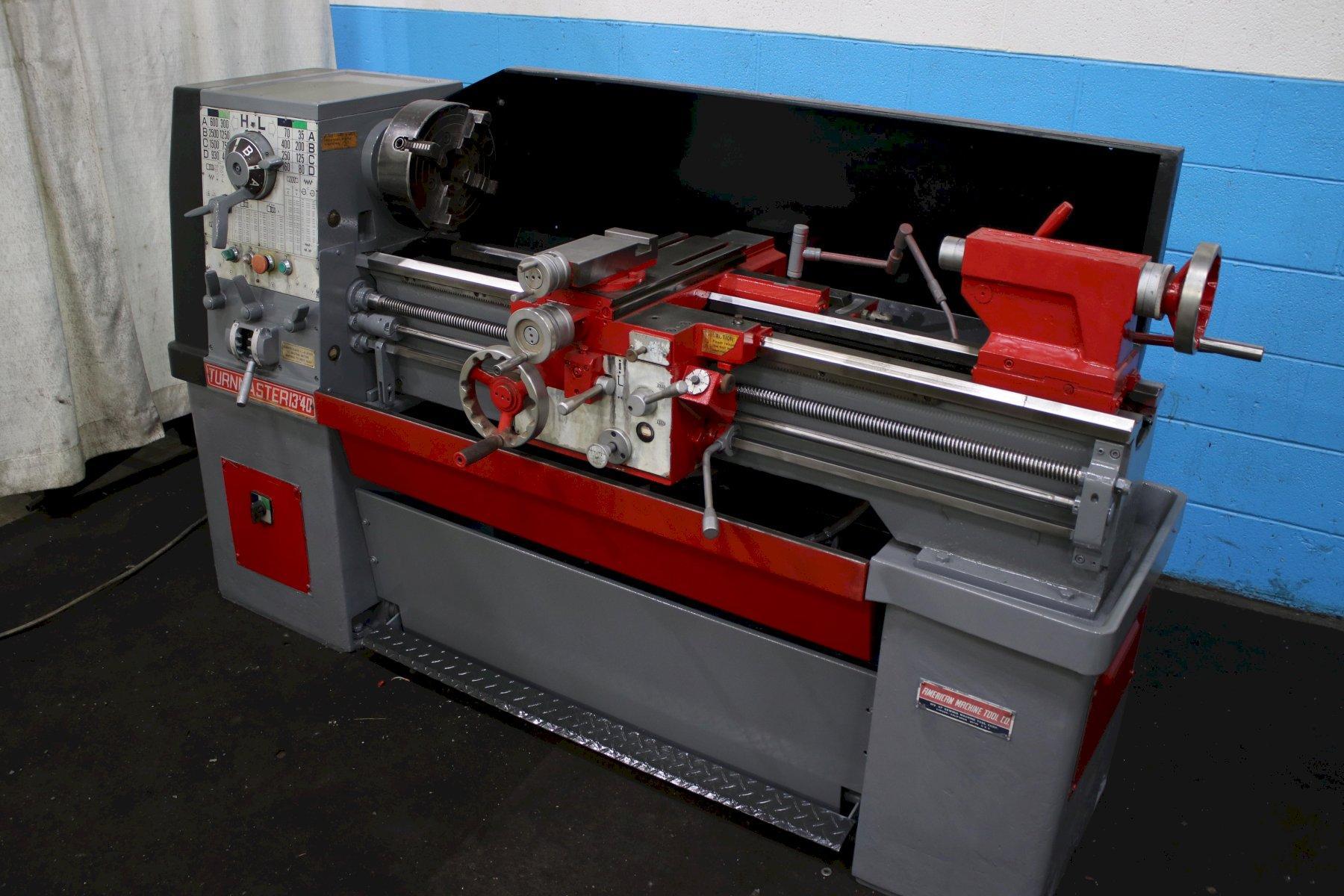

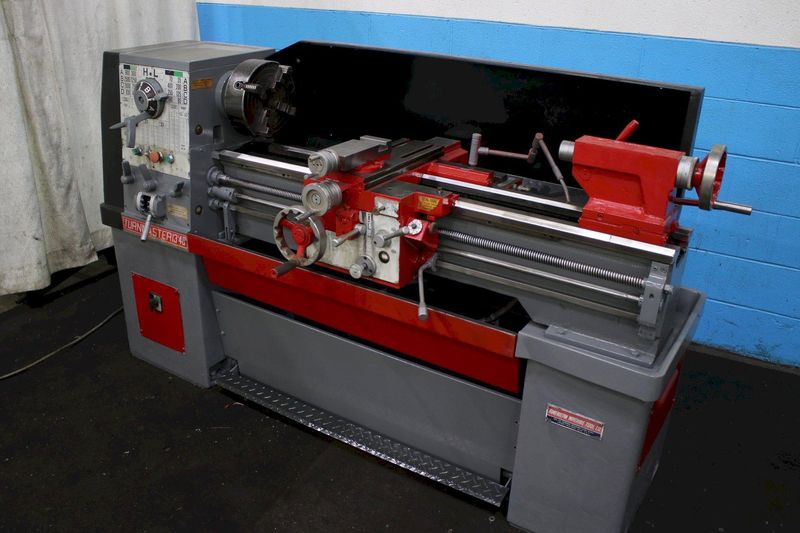

13" X 40" TURNMASTER ENGINE LATHE: STOCK #76492

Manufacturer

TURNMASTER

Category

Lathes

Type

LATHES, ENGINE

Stock

76492

Model

null

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL ......................... 13484120878D
MODEL .......................... 1340
YEAR NEW ....................... 1986
SWING OVER WAYS ................ 13-3/8"
SWING OVER CROSS SLIDE ......... 8-1/4"
DISTANCE BETWEEN CENTERS ....... 40"
SPINDLE SPEEDS ................. (16) 35 TO 2500 RPM
DIAMETER OF SPINDLE HOLE ....... 1.5"
THREADS (ENGLISH) .............. (45) 2 TO 72 TPI
THREADS (METRIC) ............... (39) O.2 TO 14 TPMM
LONGITUDINAL FEEDS ............. 0.002 TO 0.067 IPR
CROSS FEEDS .................... 0.001 TO 0.0034 IPR
CROSS SLIDE TRAVEL ............. 7"

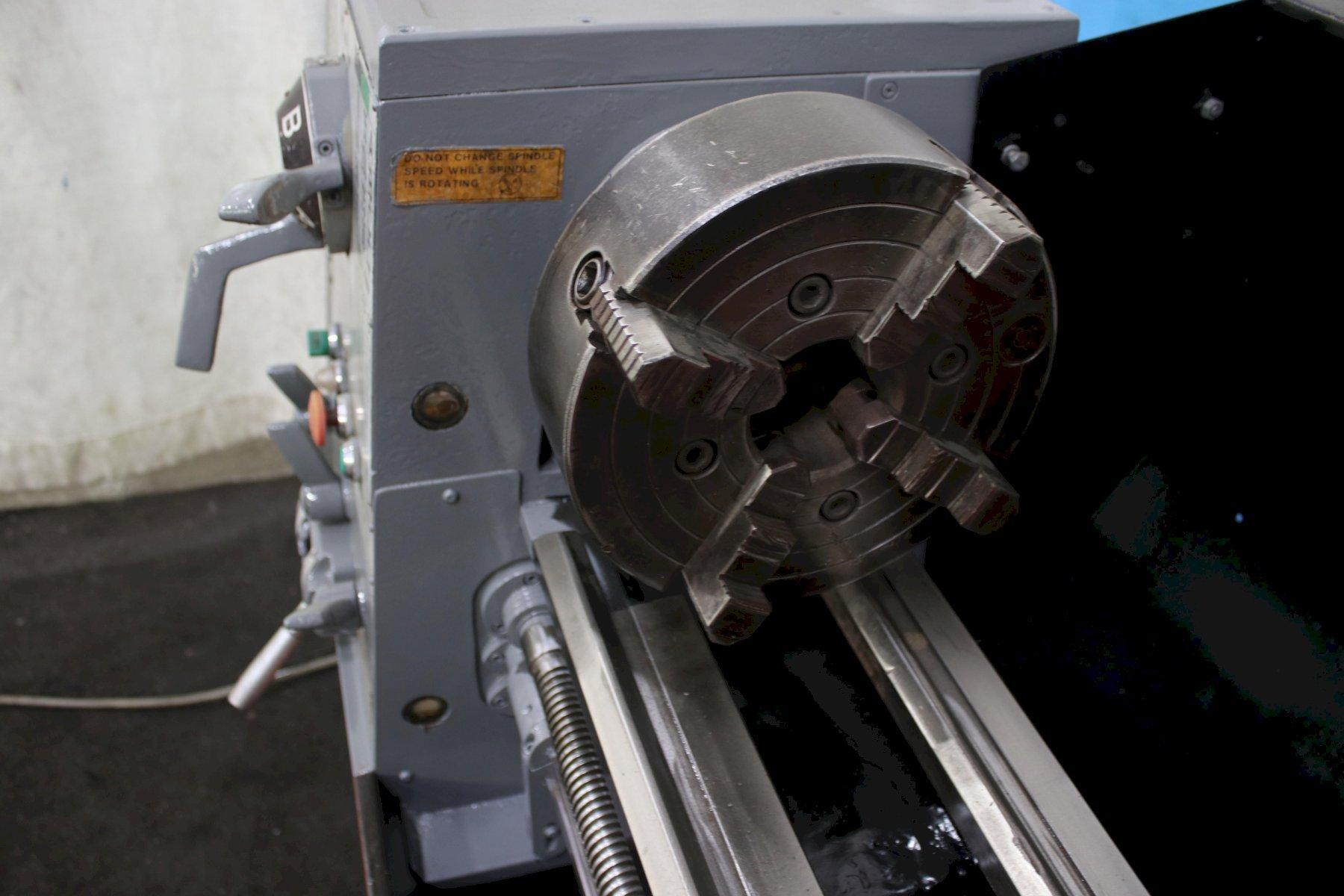

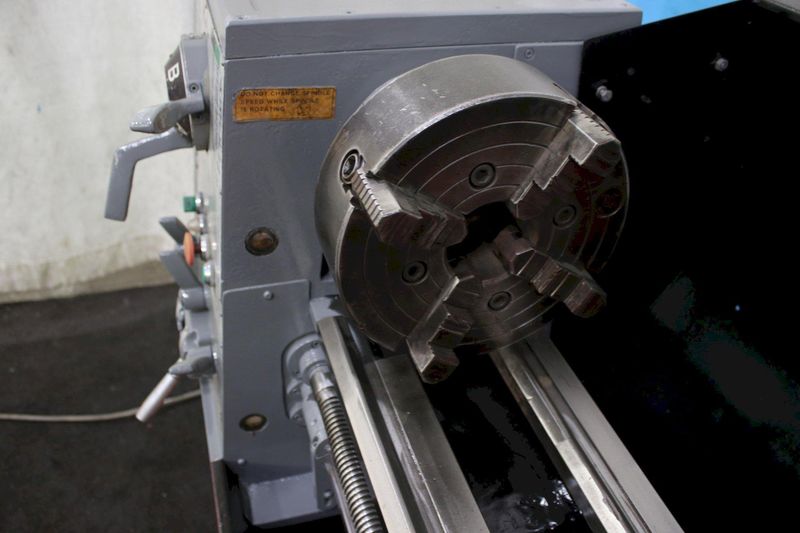

CHUCK 4 JAW .................... 10".

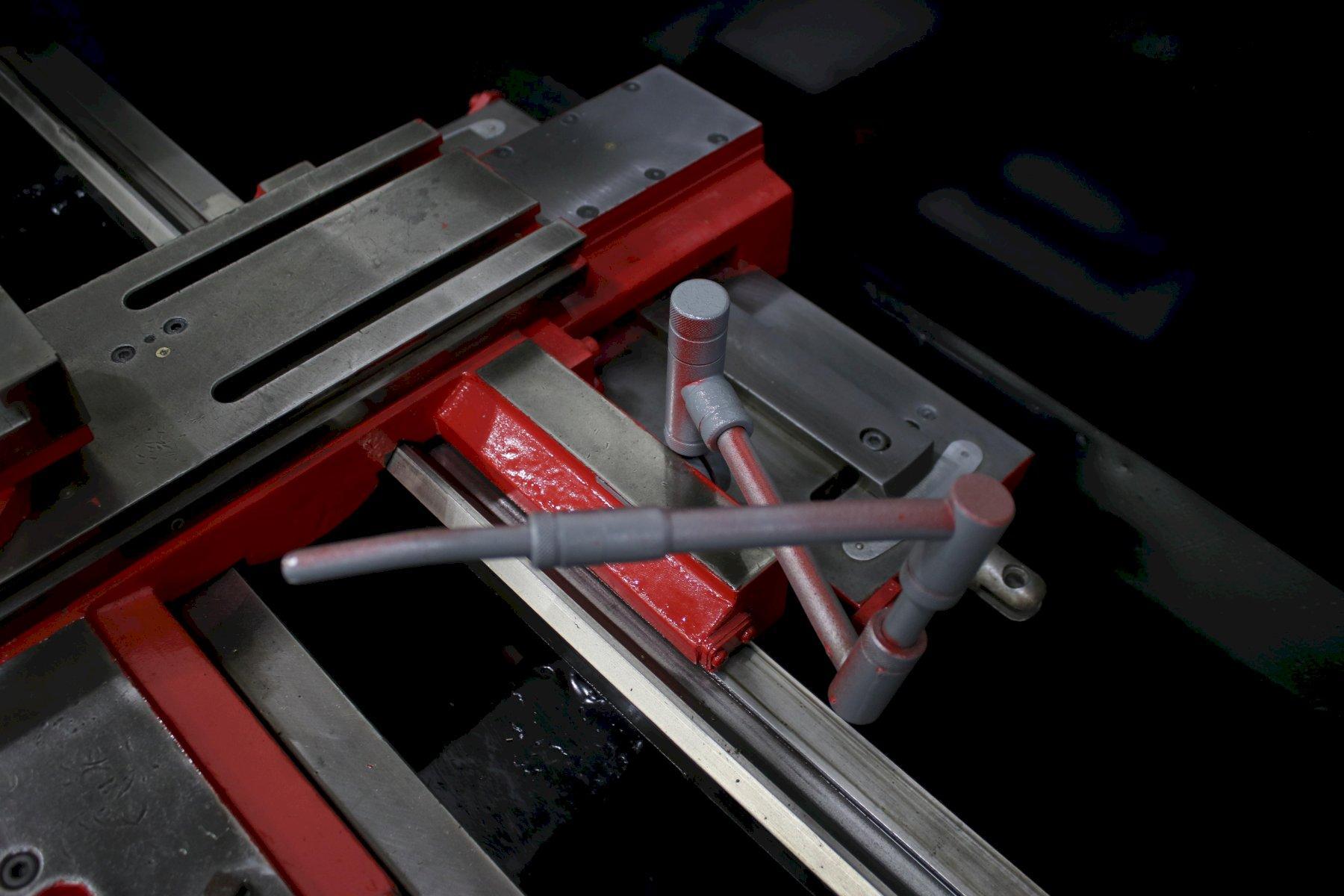

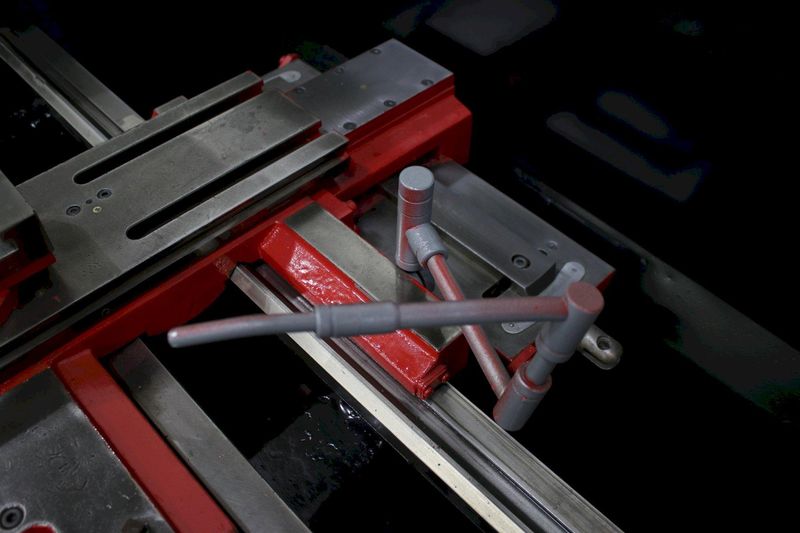

TAPER ATTACHMENT ............... YES
FOOT BRAKE ..................... YES
COOLANT ........................ YES
MOTOR .......................... 5 HORSEPOWER
