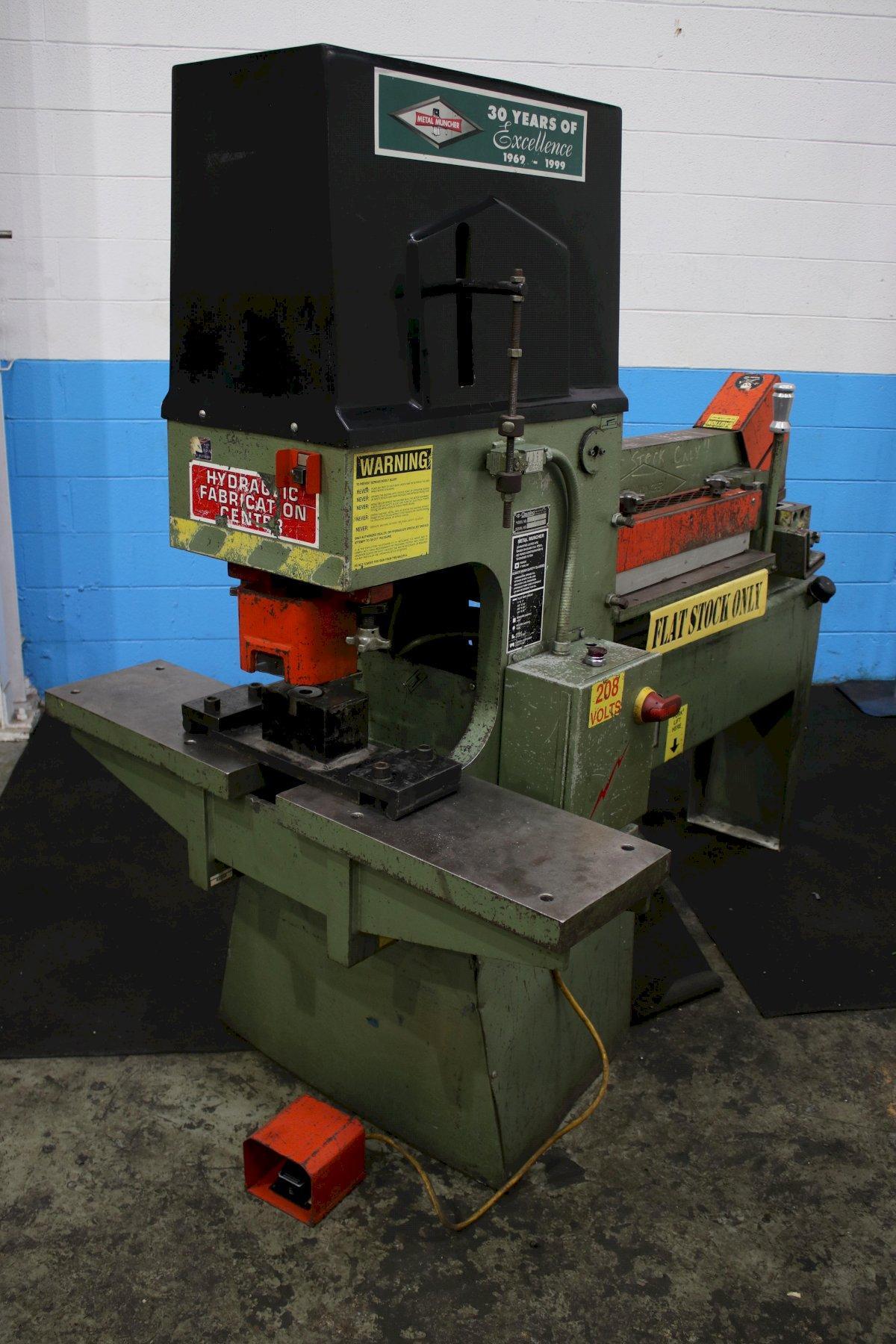

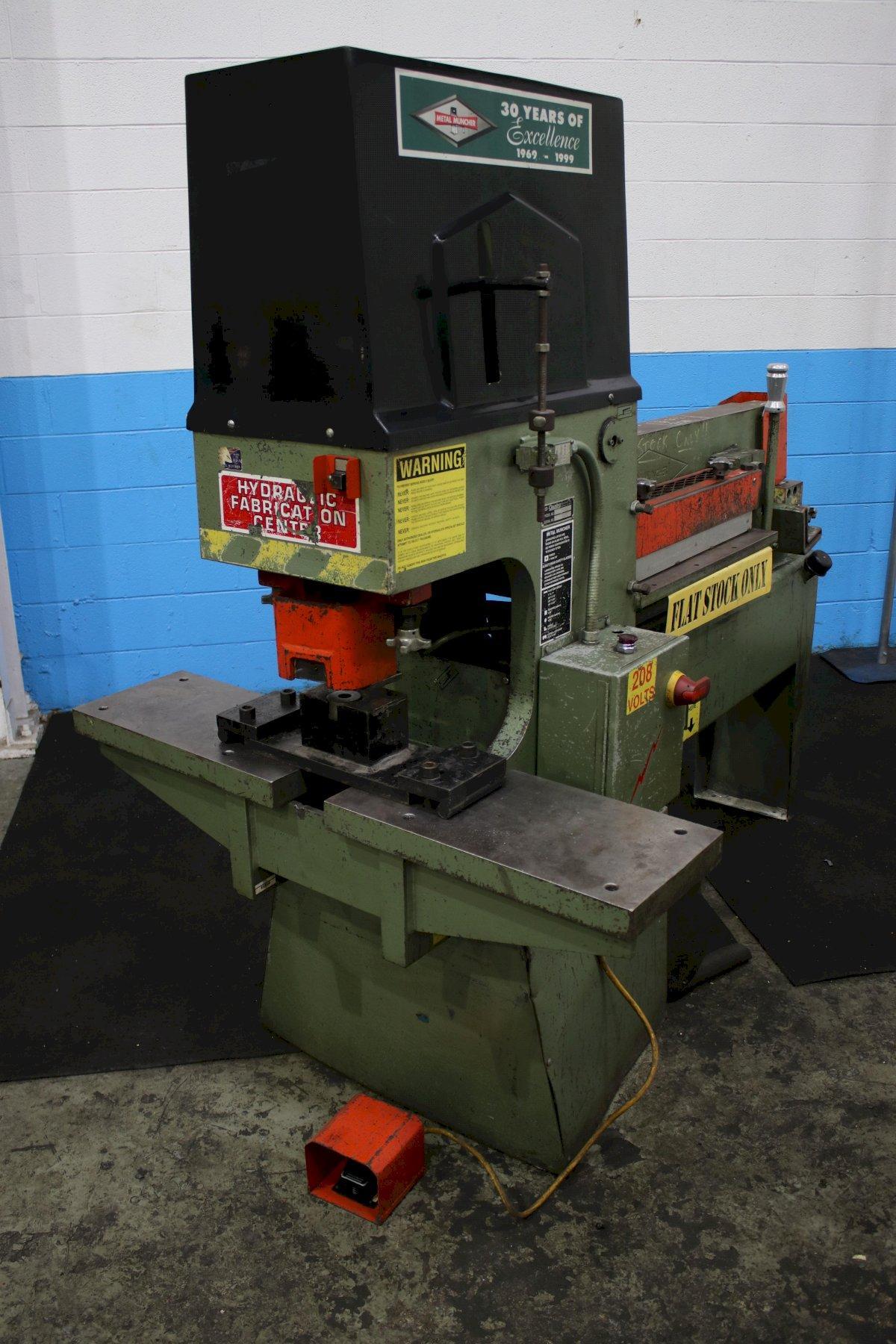

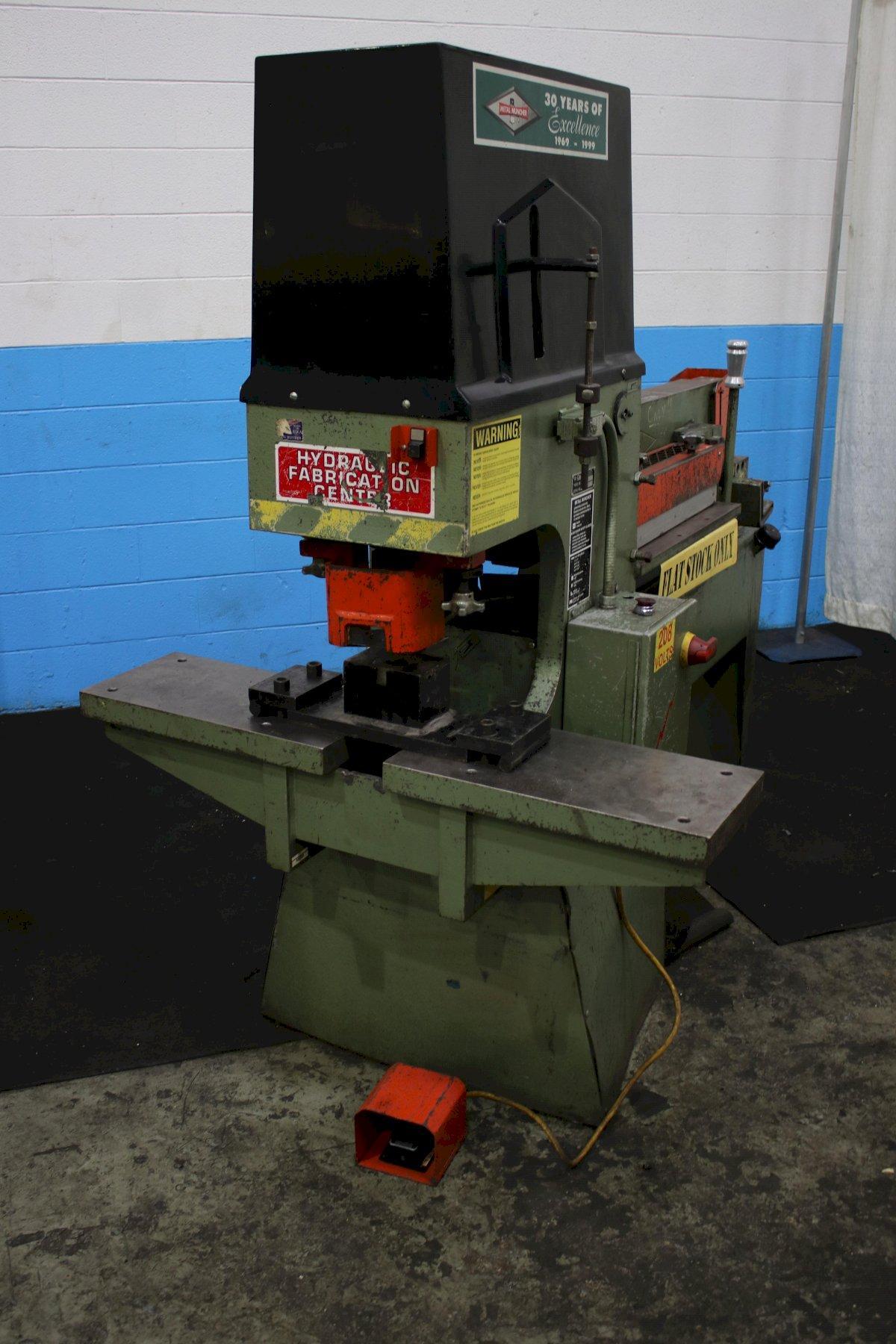

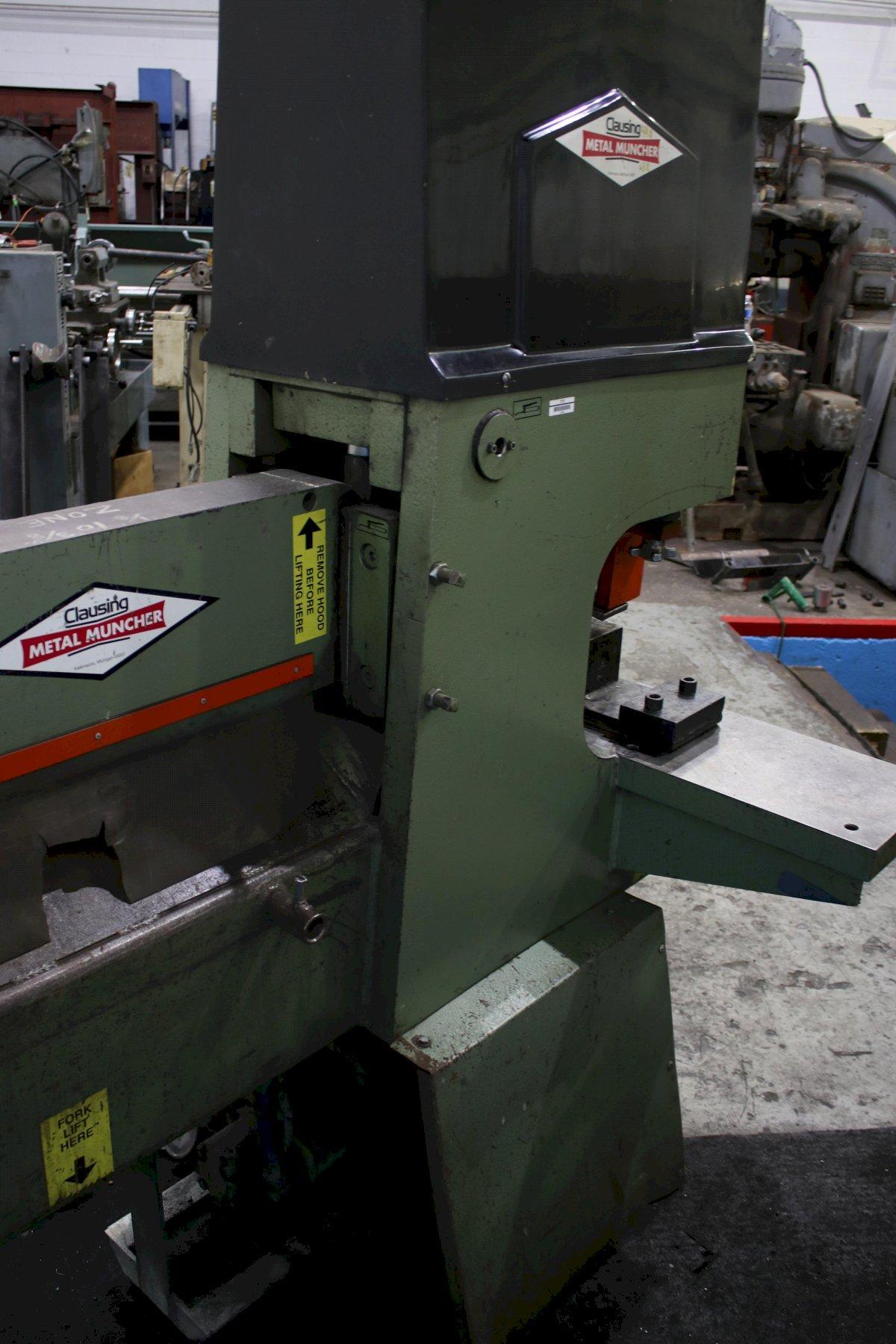

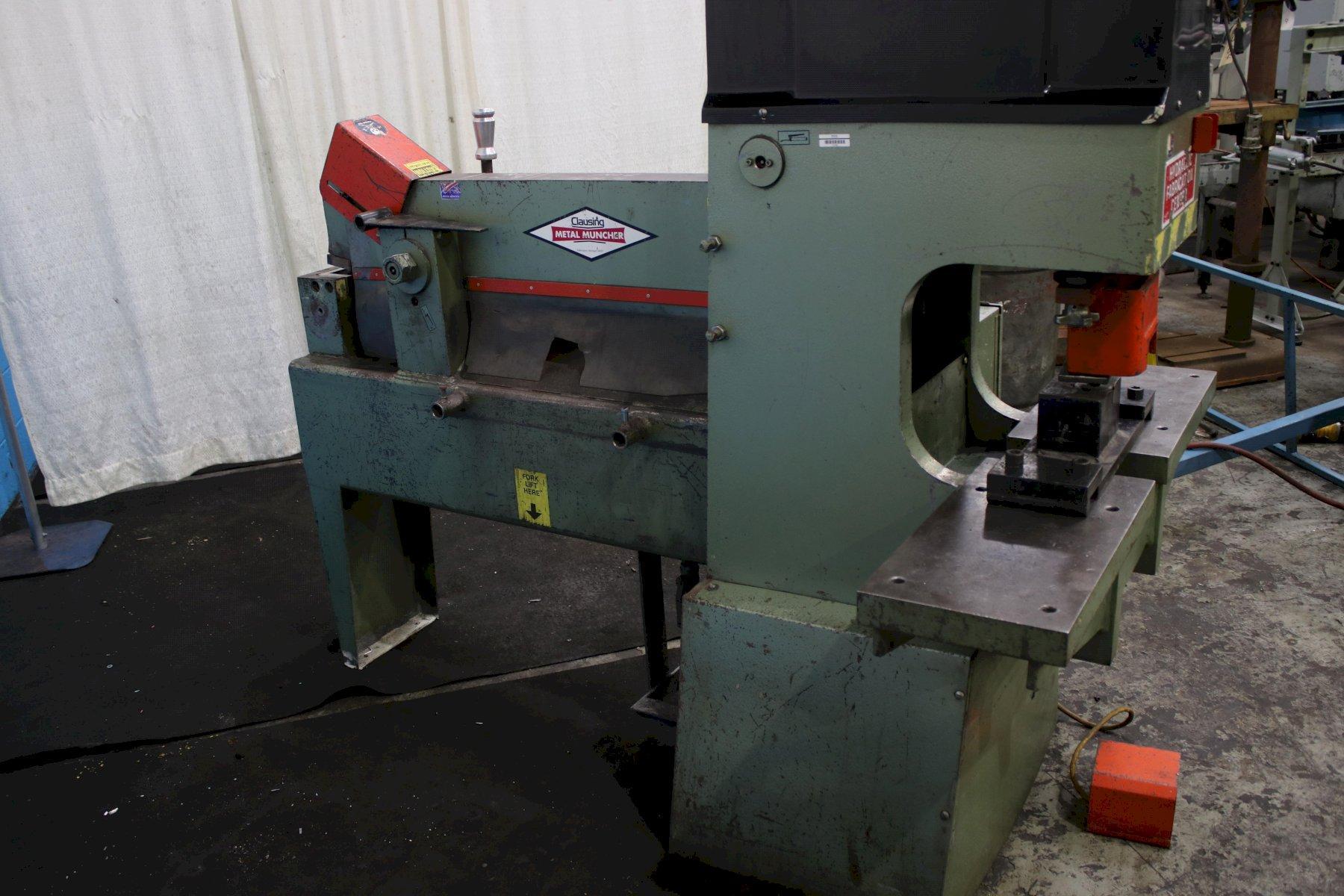

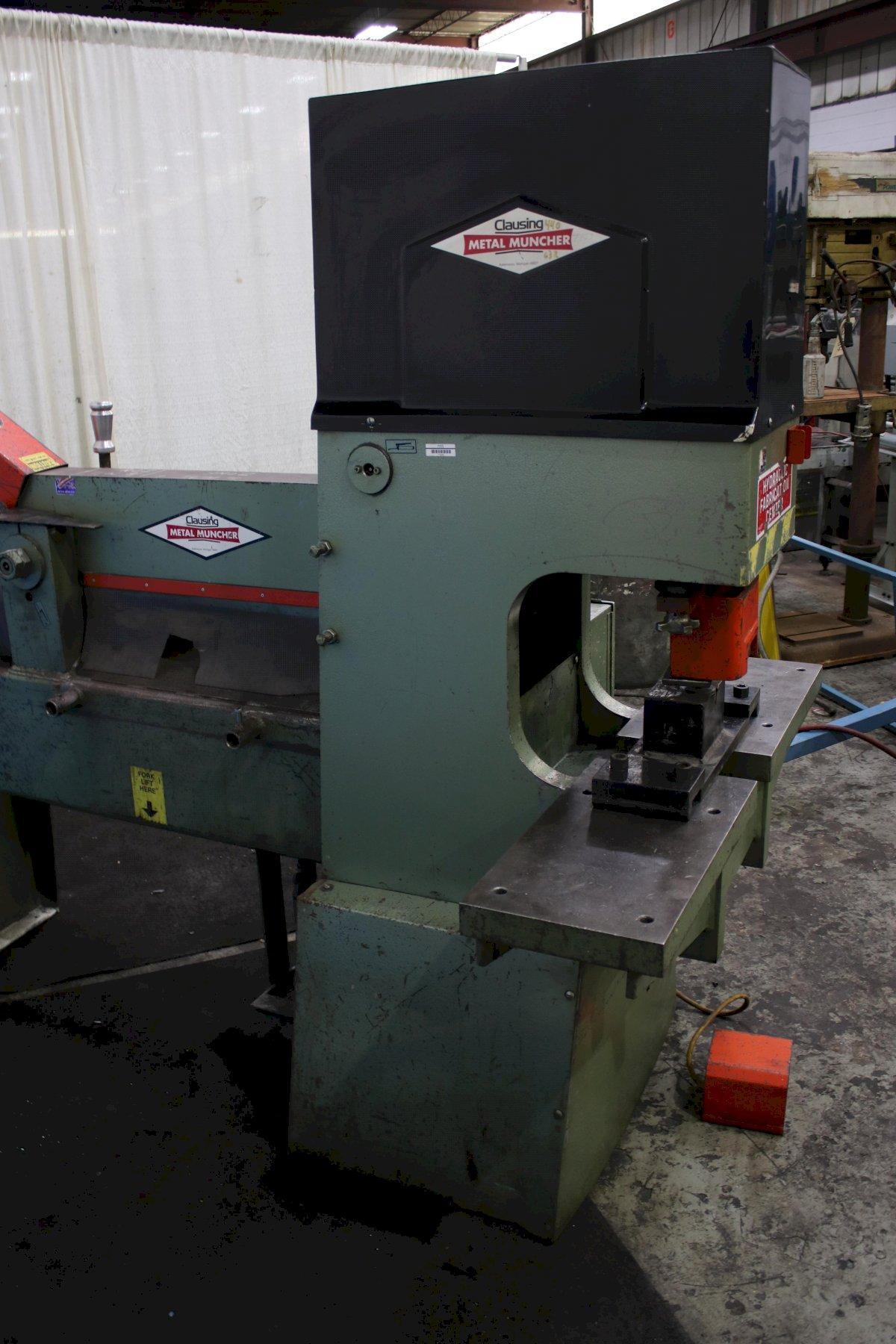

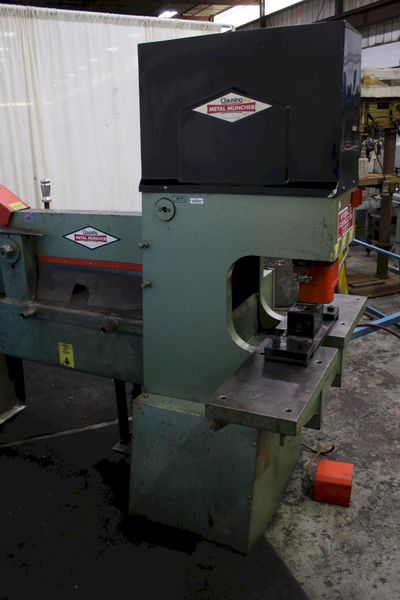

4" X 4" X 3/8" METAL MUNCHER HYDRAULIC IRONWORKER: STOCK #75682

Manufacturer

METAL MUNCHER

Category

Punches

Type

IRONWORKERS

Stock

75682

Model

MM70A

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

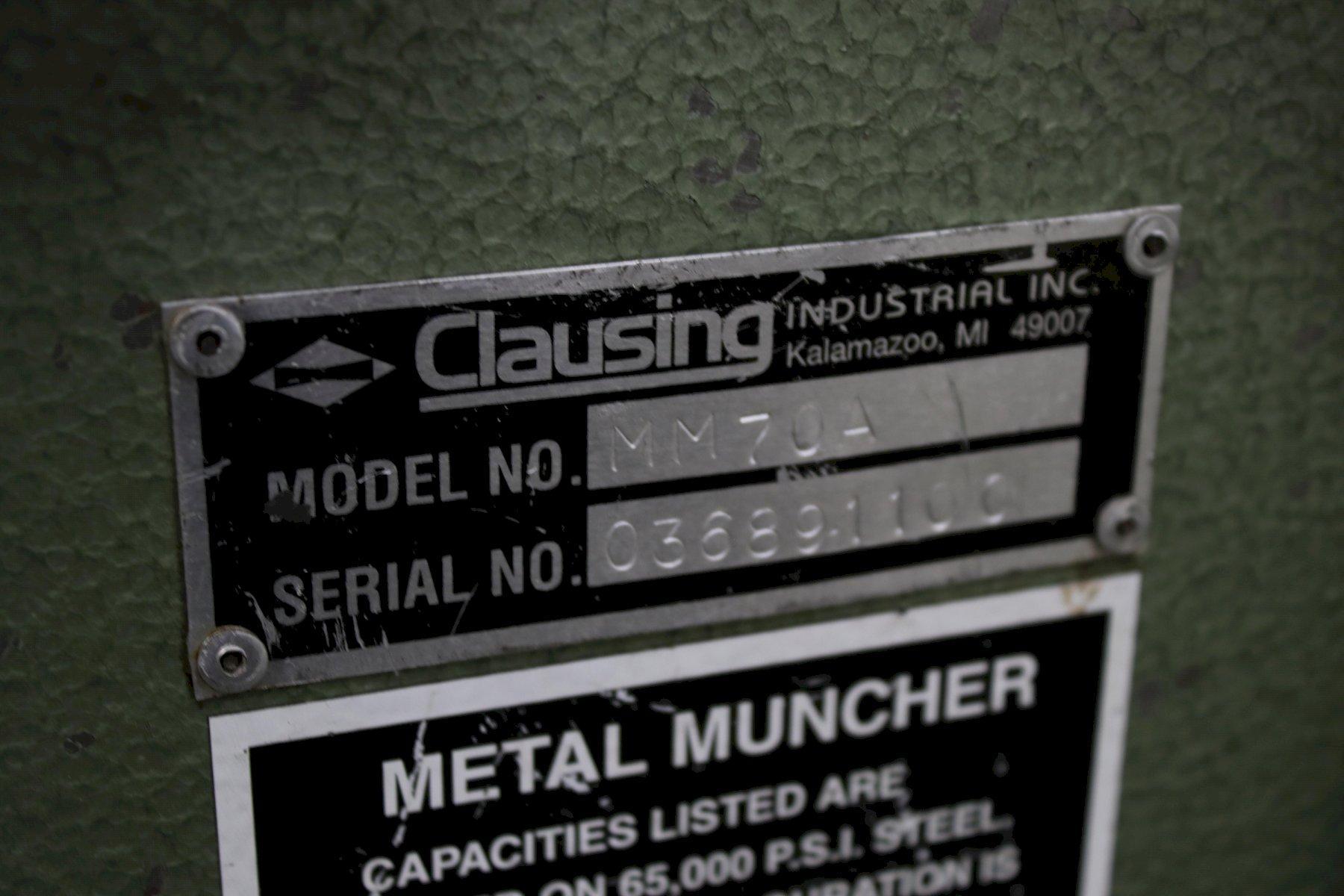

SERIAL ................................ 036891100
MODEL ................................. MM70A
YEAR NEW .............................. 2000

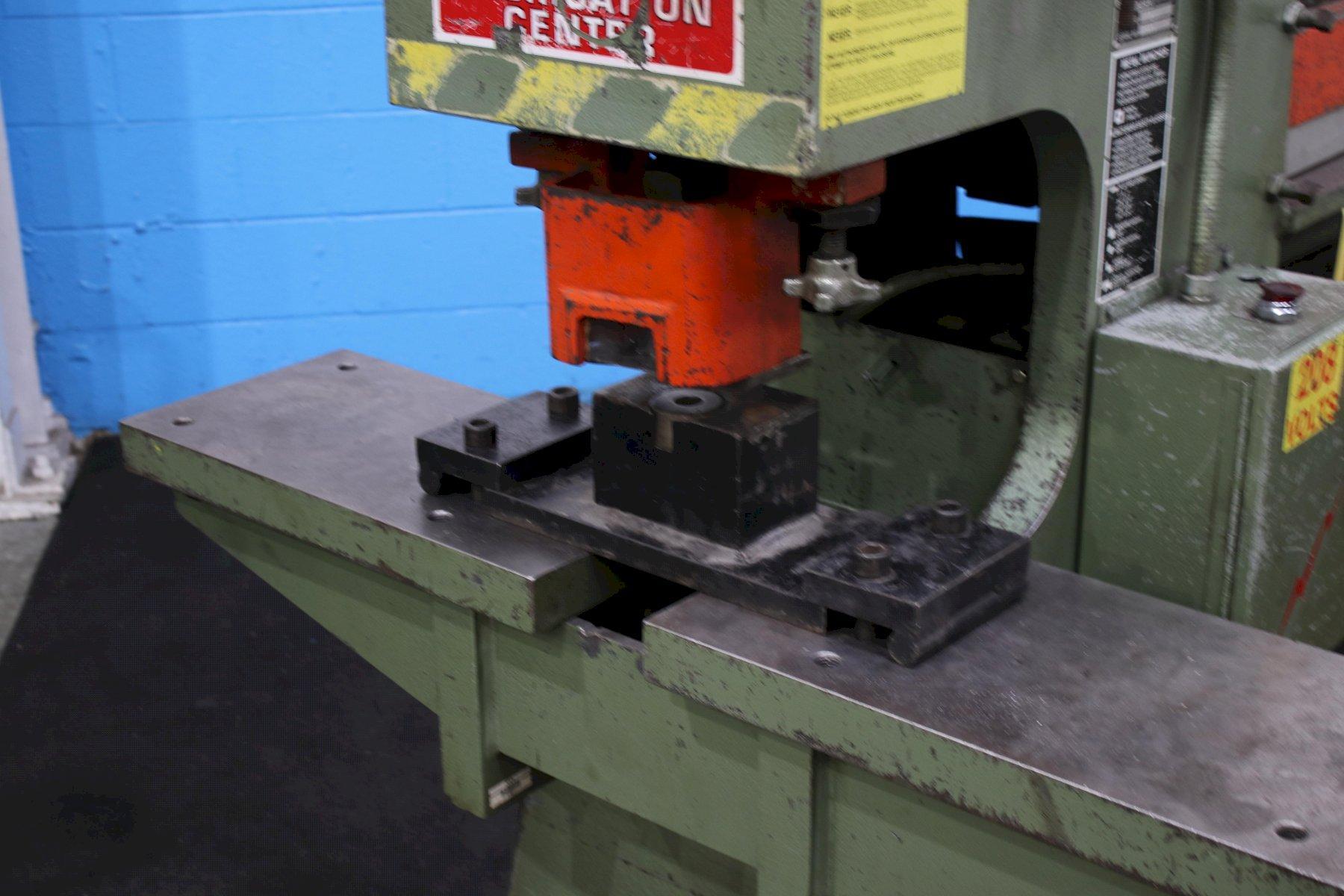

PUNCHING CAPACITY ..................... 70 TONS
MAXIMUM HOLE DIAMETER THROUGH ......... 1" X 7/8" PLATE
MAXIMUM HOLE DIAMETER THROUGH ......... 4-1/2 X 3/16" PLATE
STROKE ................................ 7"
OPEN HEIGHT ........................... 14"
DEPTH OF THROAT ....................... 9"

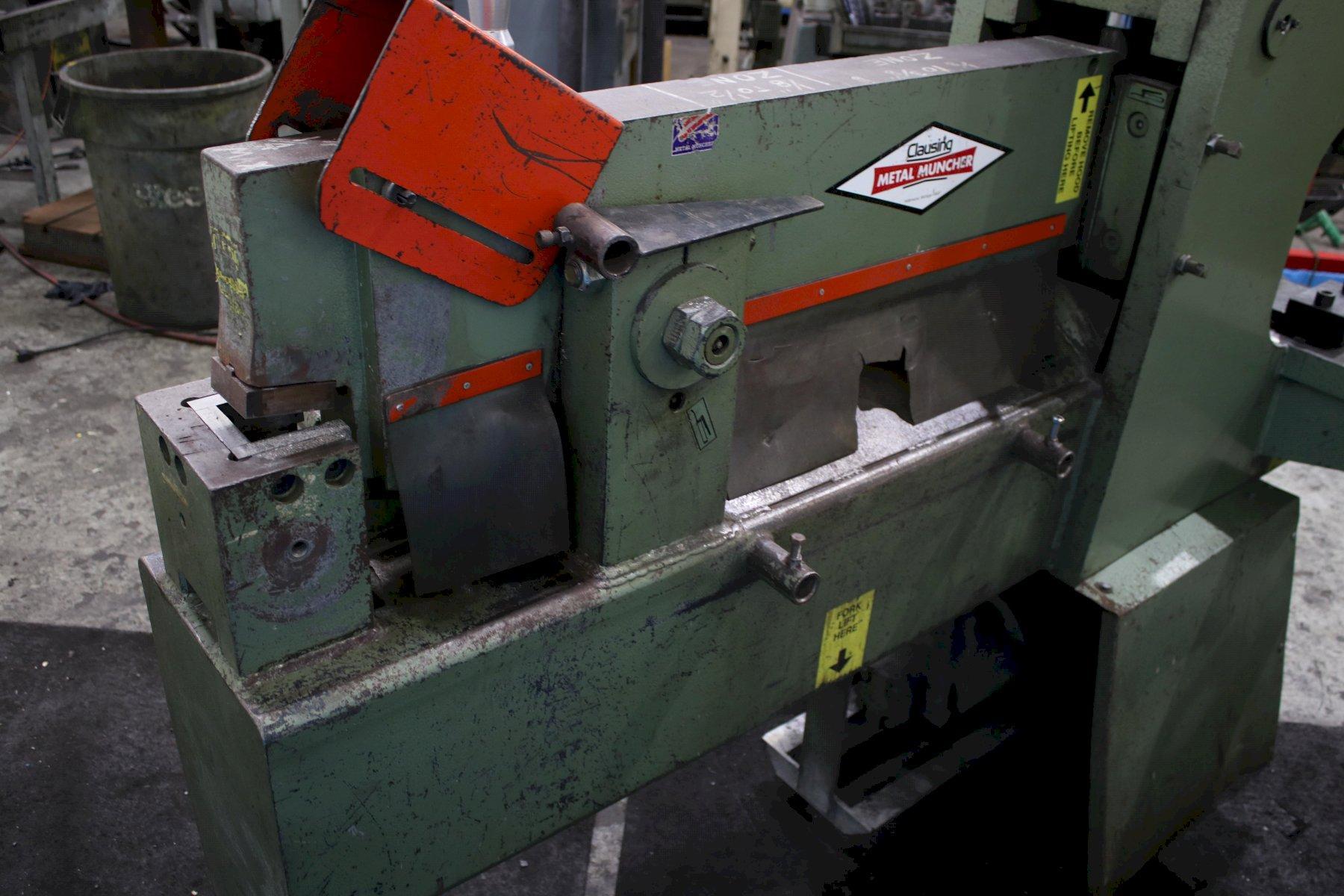

SHEAR CAPACITY LENGTH ................. 24"

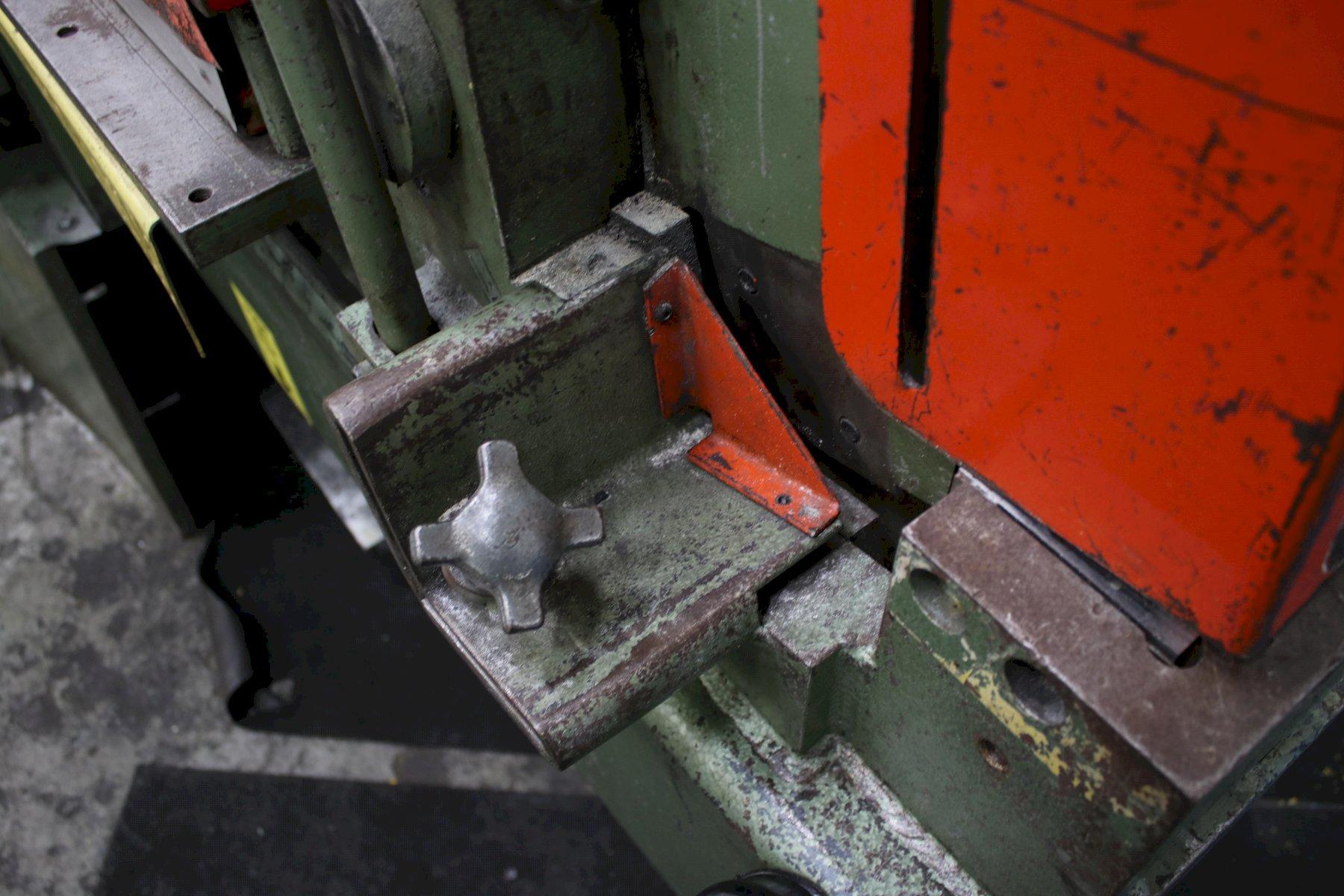

ANGLES @ 90 DEGRESS ................... 4" X 4" 3/8"
ANGLES @ 45 DEGRESS ................... 3" X 3" X 1/2"
STOKES PER MINUTE ..................... 40 @ 1/2"
ROUNDS ................................ 1-1/8"
SQUARES ............................... 1-1/8"

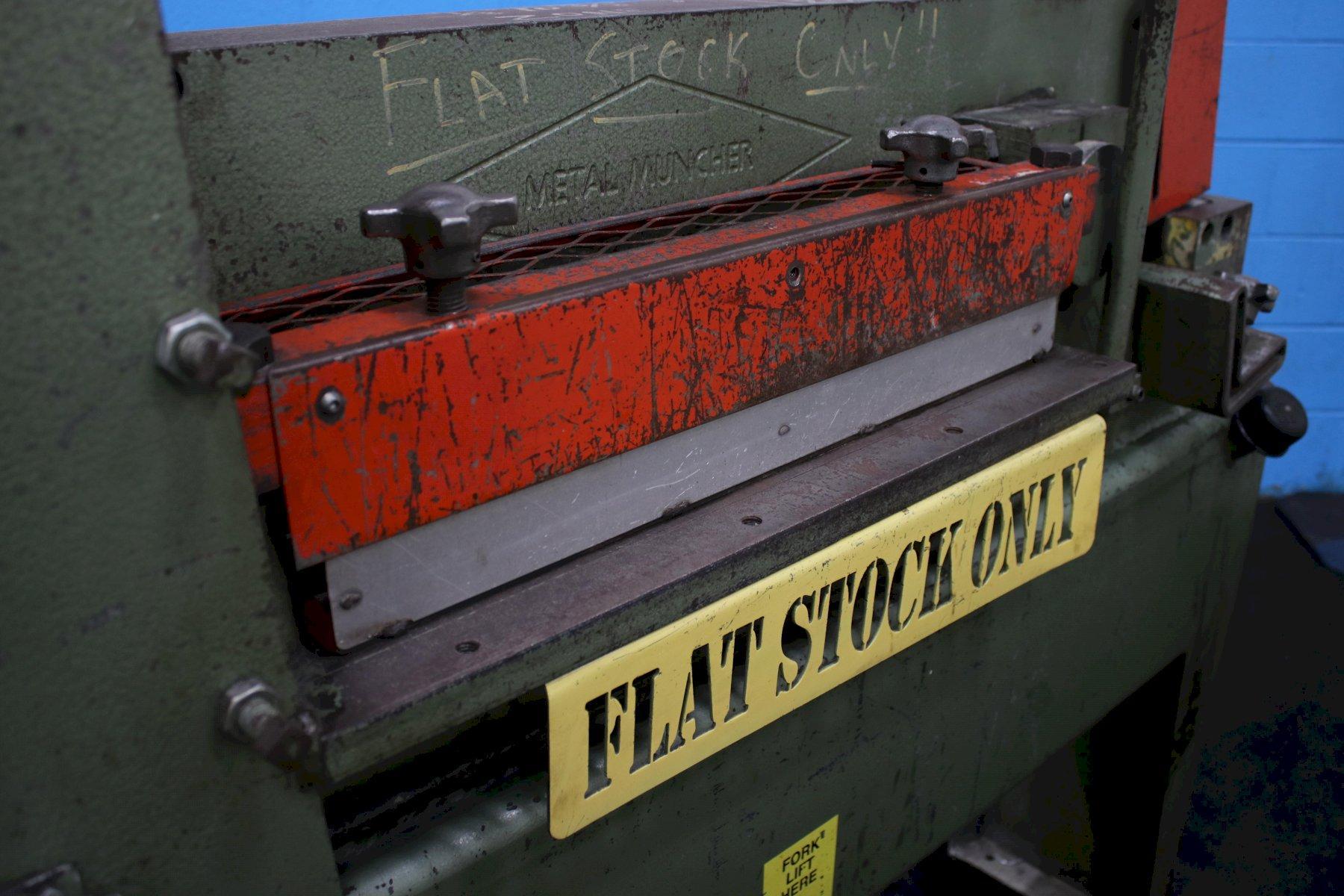

FLATS ................................. 1" X 6" THRU 1/4" X 24"
COPER ................................. 3" X 3" 3/8"

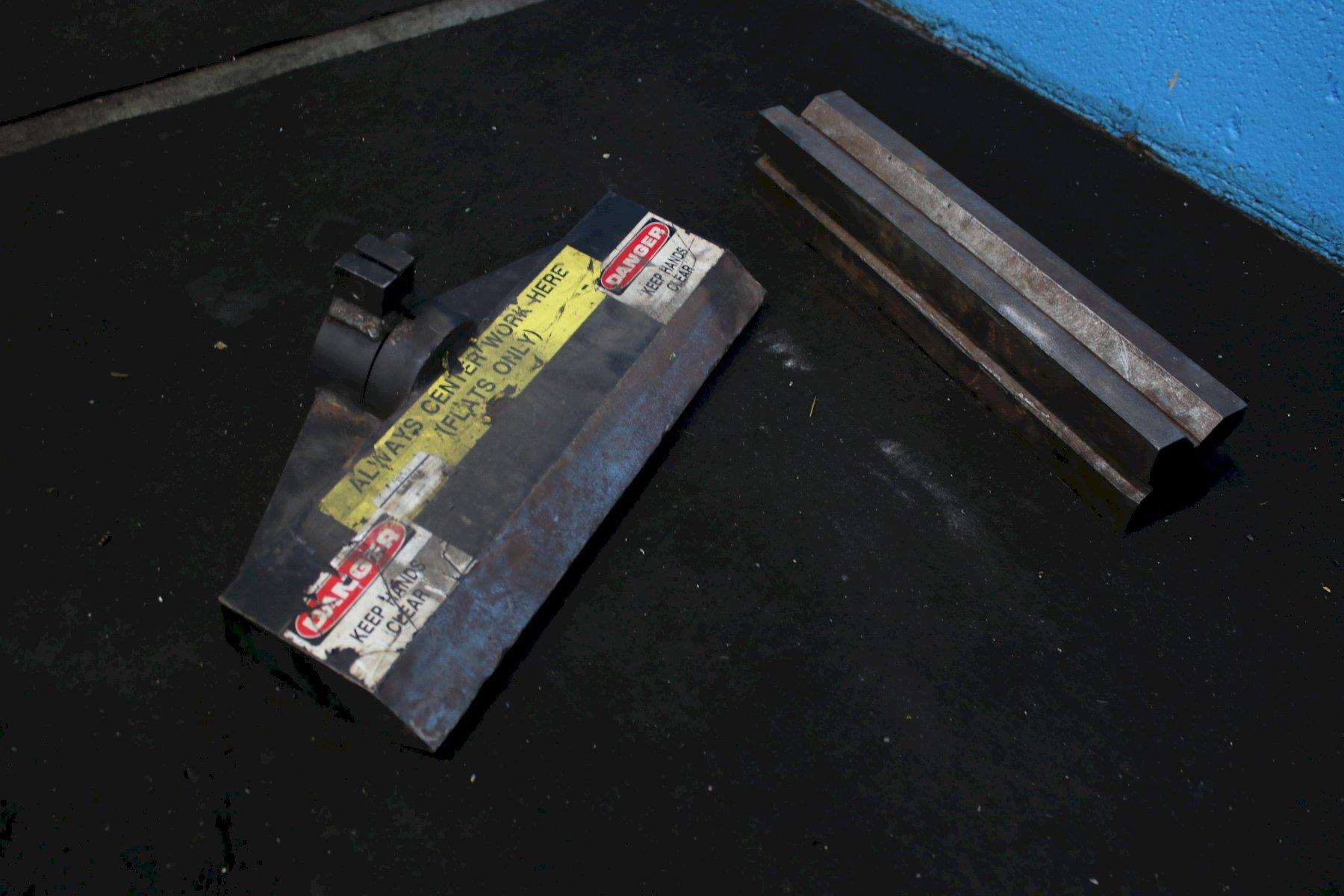

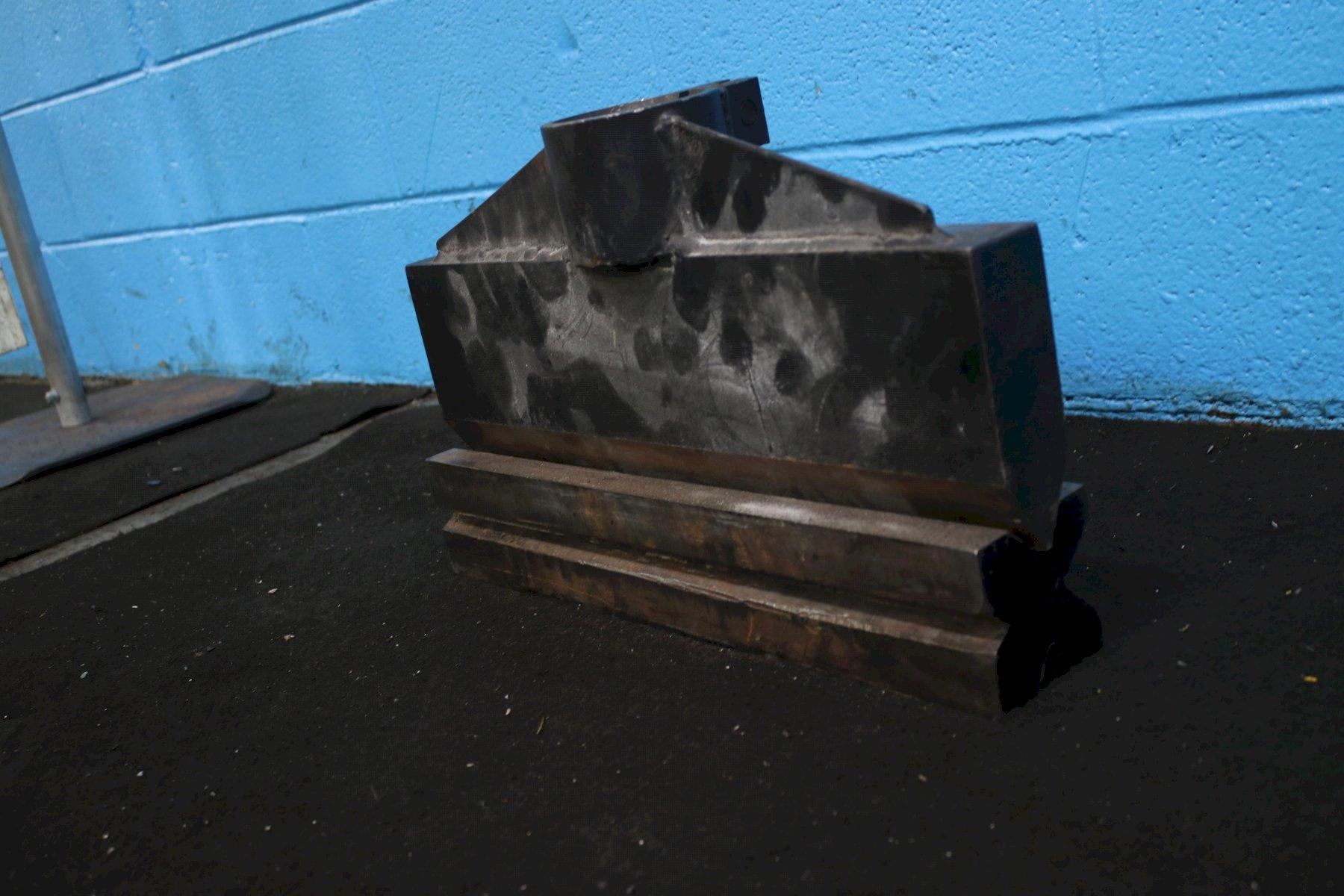

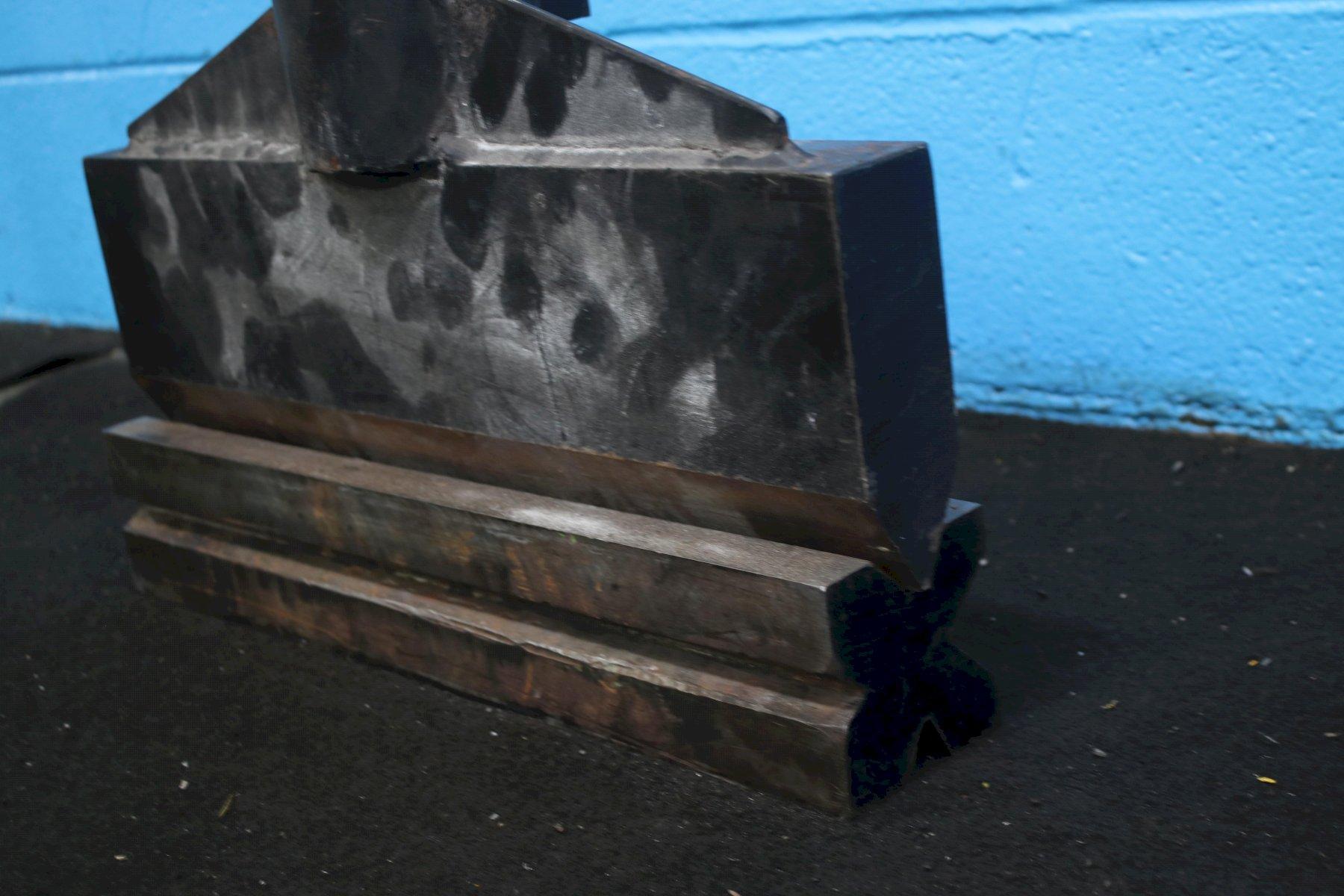

PRESS BRAKE DIE ATTACHMENT ............ YES
DUAL ELECTRIC FOOT PEDALS ............. YES
MOTOR ................................. 7-1/2 HORSEPOWER
