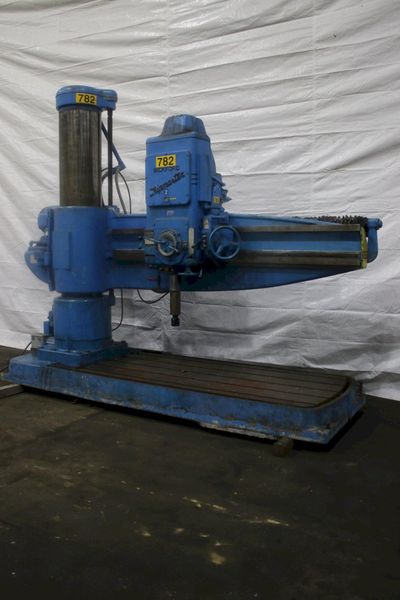

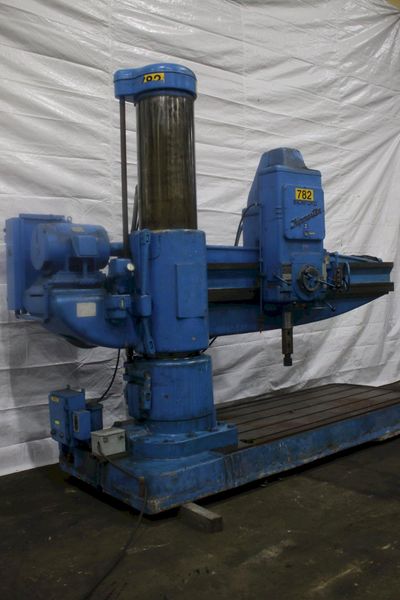

8' X 19" GIDDINGS & LEWIS RADIAL DRILL: STOCK #75046

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

75046

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL ............................... #956-00254-74

MODEL ................................ 00190

YEAR NEW ........................... 1974

AREA OF BASE ......................... 102" X 50"

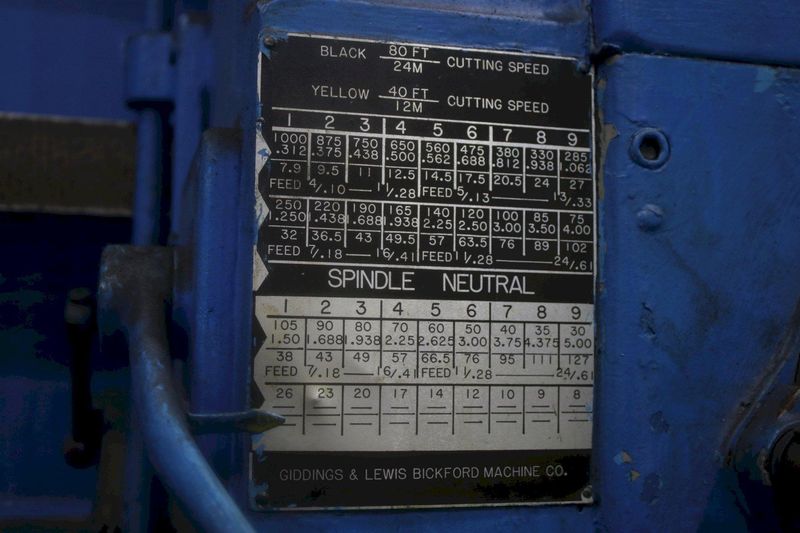

SPINDLE SPEEDS ....................... (36) 10 TO 1250 RPM

FEEDS ................................ (18) .004 TO .125 IPR

THREADS .............................. 8, 11-1/2, 14, 18, 20, 27 TPI

SPINDLE TRAVEL ....................... 20"

DIAMETER OF SPINDLE .................. 4-1/2"

TAPER IN SPINDLE ..................... #6MT

DISTANCE SPINDLE TO COLUMN ........... 17" MINIMUM, 96 MAXIMUM

DISTANCE SPINDLE TO BASE ............. 36" MINIMUM, 78" MAXIMUM

TRAVERSE OF HEAD ON ARM .............. 79"

TRAVERSE OF ARM ON COLUMN ............ 42"

POWER HEAD TRAVERSE .................. YES

POWER ELEVATION & CLAMPING ........... YES

COOLANT .............................. YES

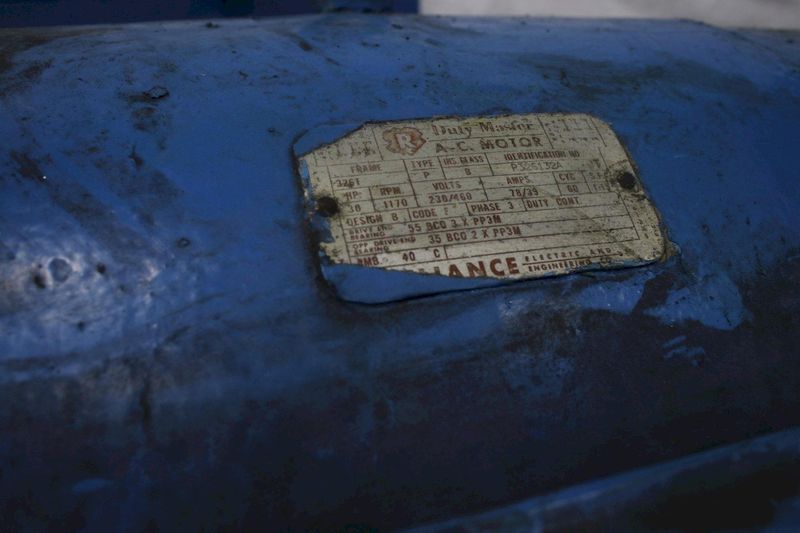

MAIN MOTOR HORSEPOWER ................ 25
