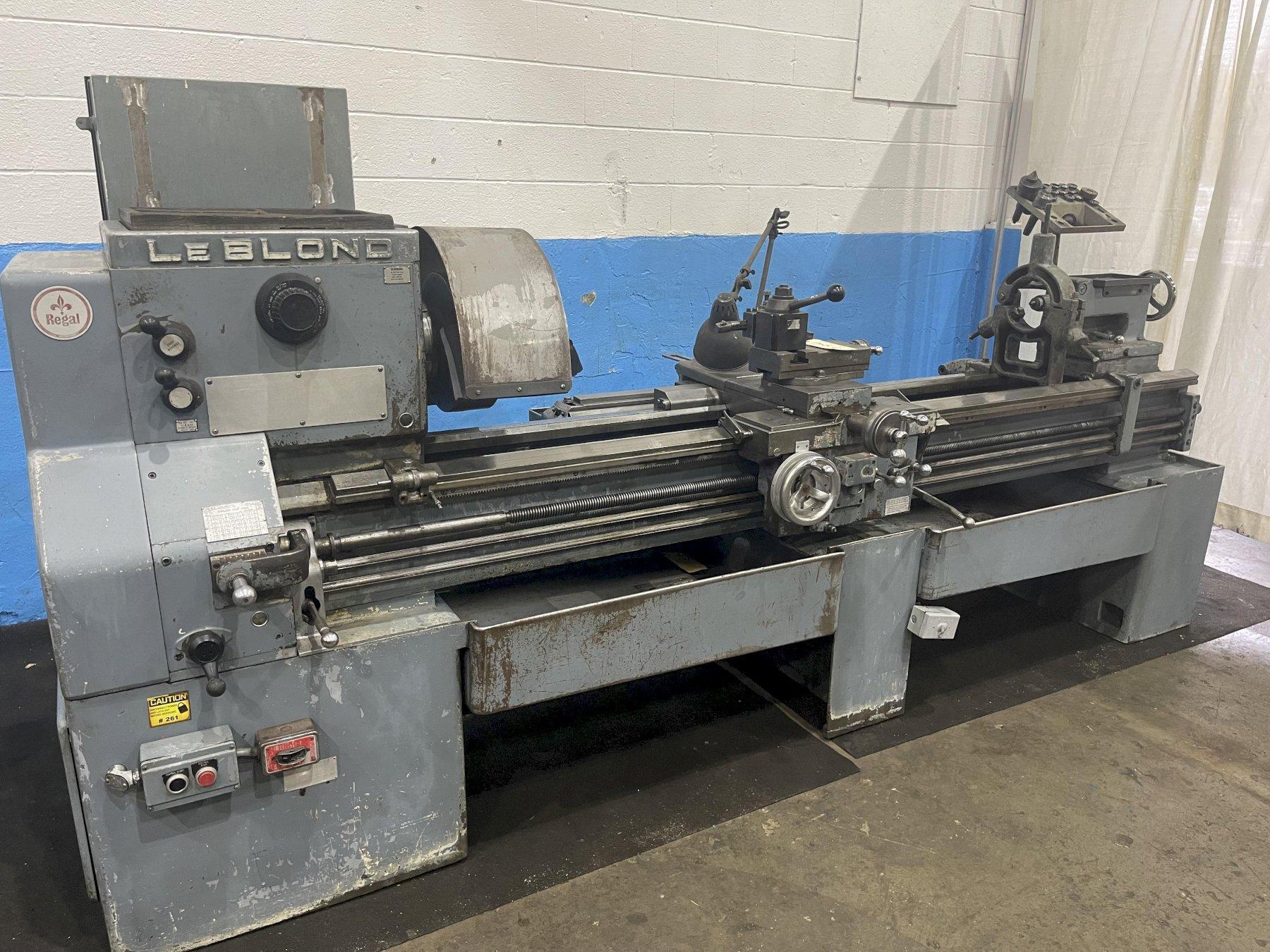

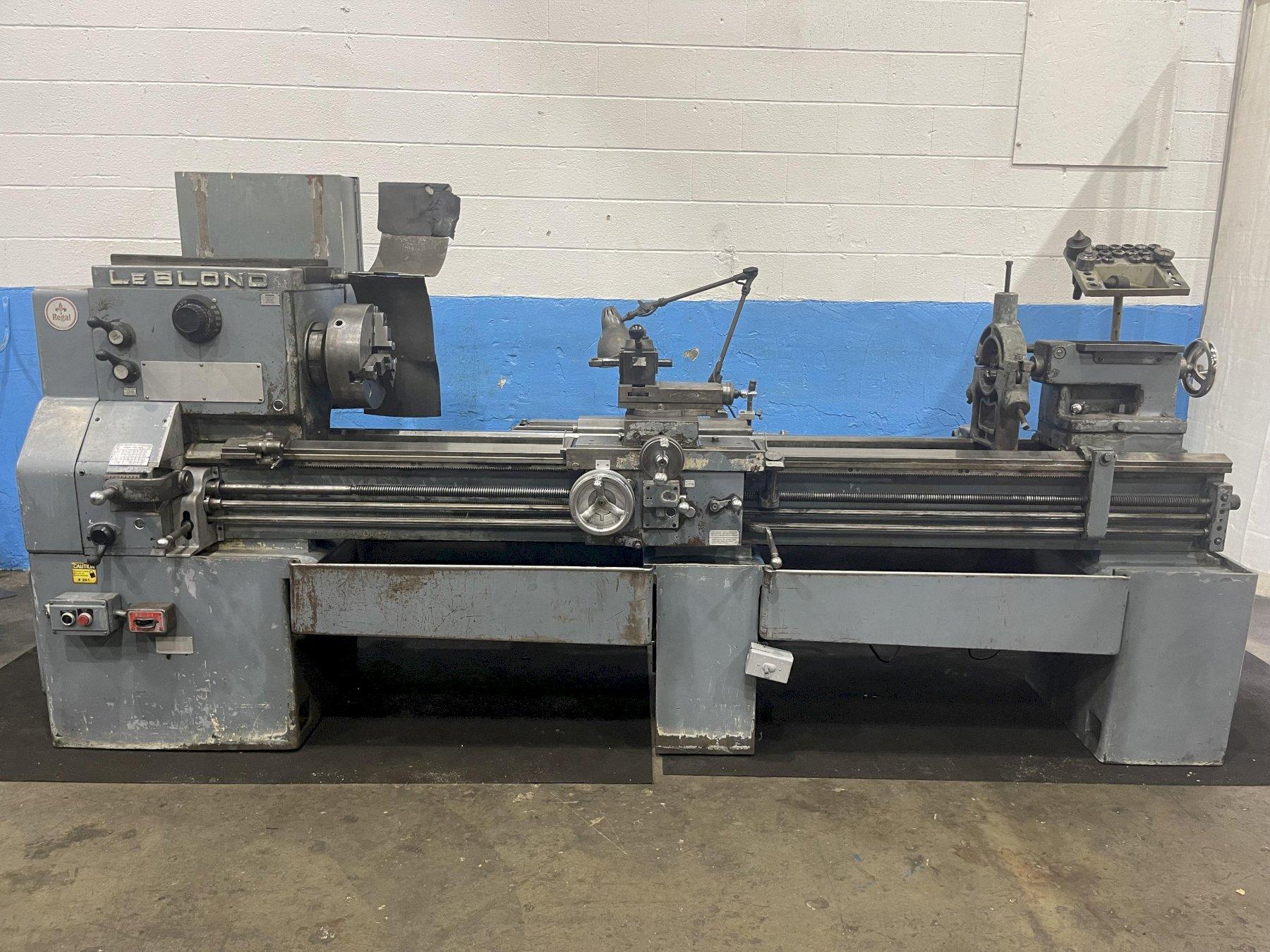

19" X 78" LEBLOND ENGINE LATHE: STOCK #74512

Manufacturer

LEBLOND

Category

Lathes

Type

LATHES, ENGINE

Stock

74512

Model

REGAL

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL ......................... 6E936

MODEL .......................... REGAL

SWING OVER WAYS ................ 19-1/2"

SWING OVER CROSS SLIDE ......... 12-1/4"

DISTANCE BETWEEN CENTERS ....... 78"

SPINDLE SPEEDS ................. (12) 40 TO 1600 RPM

FEEDS .......................... (48) .002 TO .116 IPR

THREADS ........................ (48) 2 TO 112 TPI

DIAMETER OF SPINDLE HOLE ....... 1-49/64"

TAPER ATTACHMENT ............... YES

3-JAW CHUCK .................... 12"

4 JAW CHUCK .... 16"

FACE PLATE ..... 16"

STEADY REST 3 POINT ROLLER ............... 5-3/4"

FOLLOW REST .................... YES

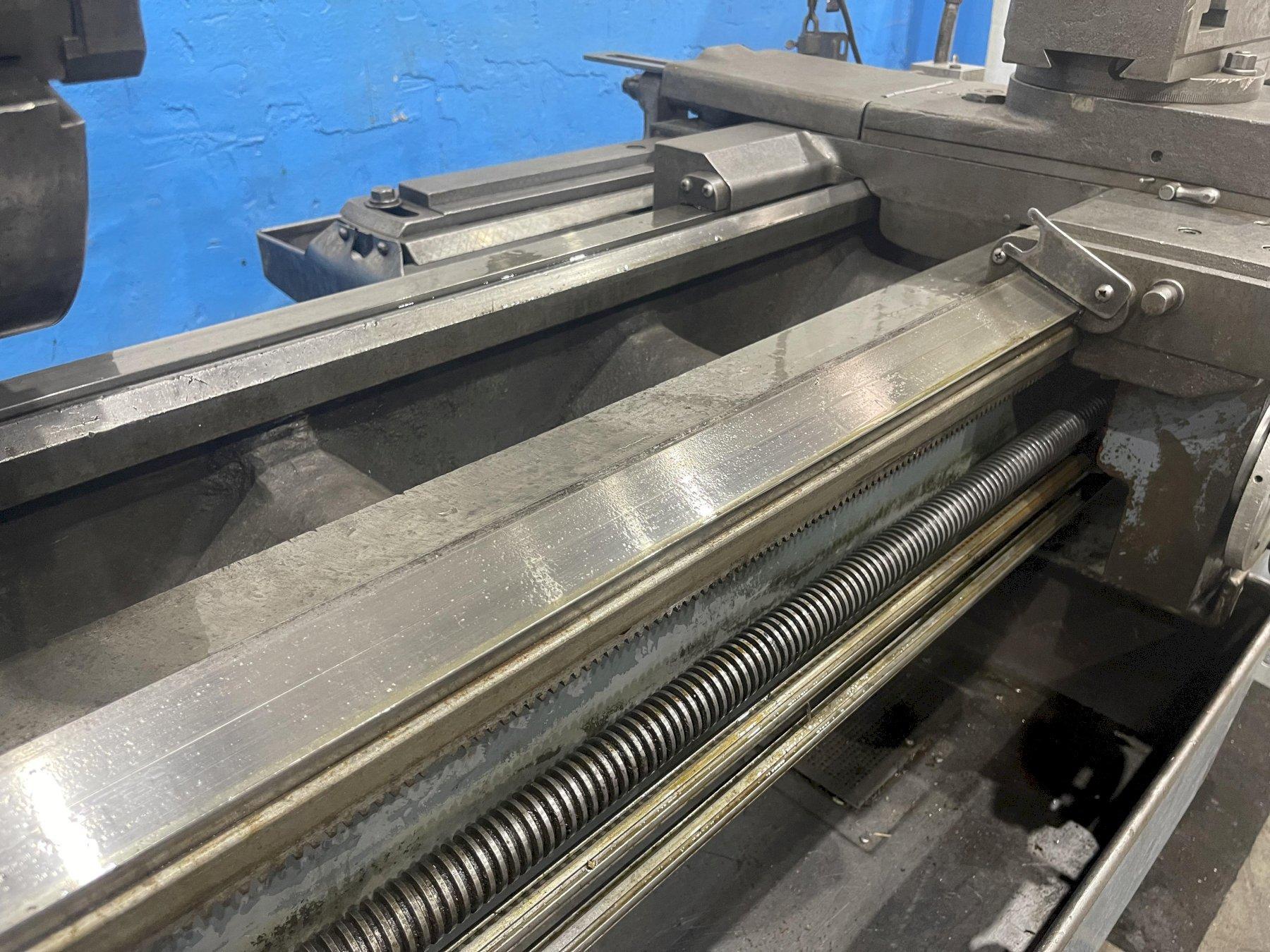

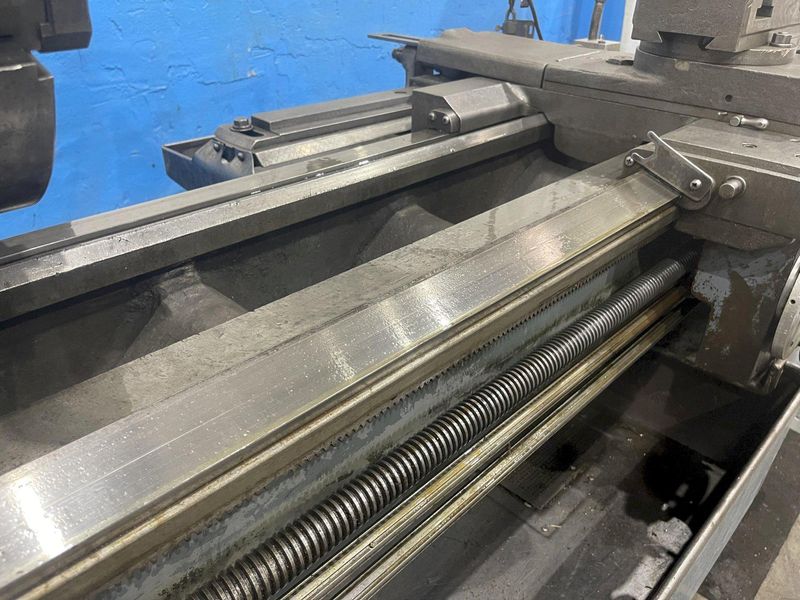

HARDEN REPLACEABLE WAYS ........ YES

CARRIAGE STOPS ................. YES

THREAD DIAL .................... YES

COOLANT WITH CHIP PANS ......... YES

MOTOR .......................... 10 HORSEPOWER
