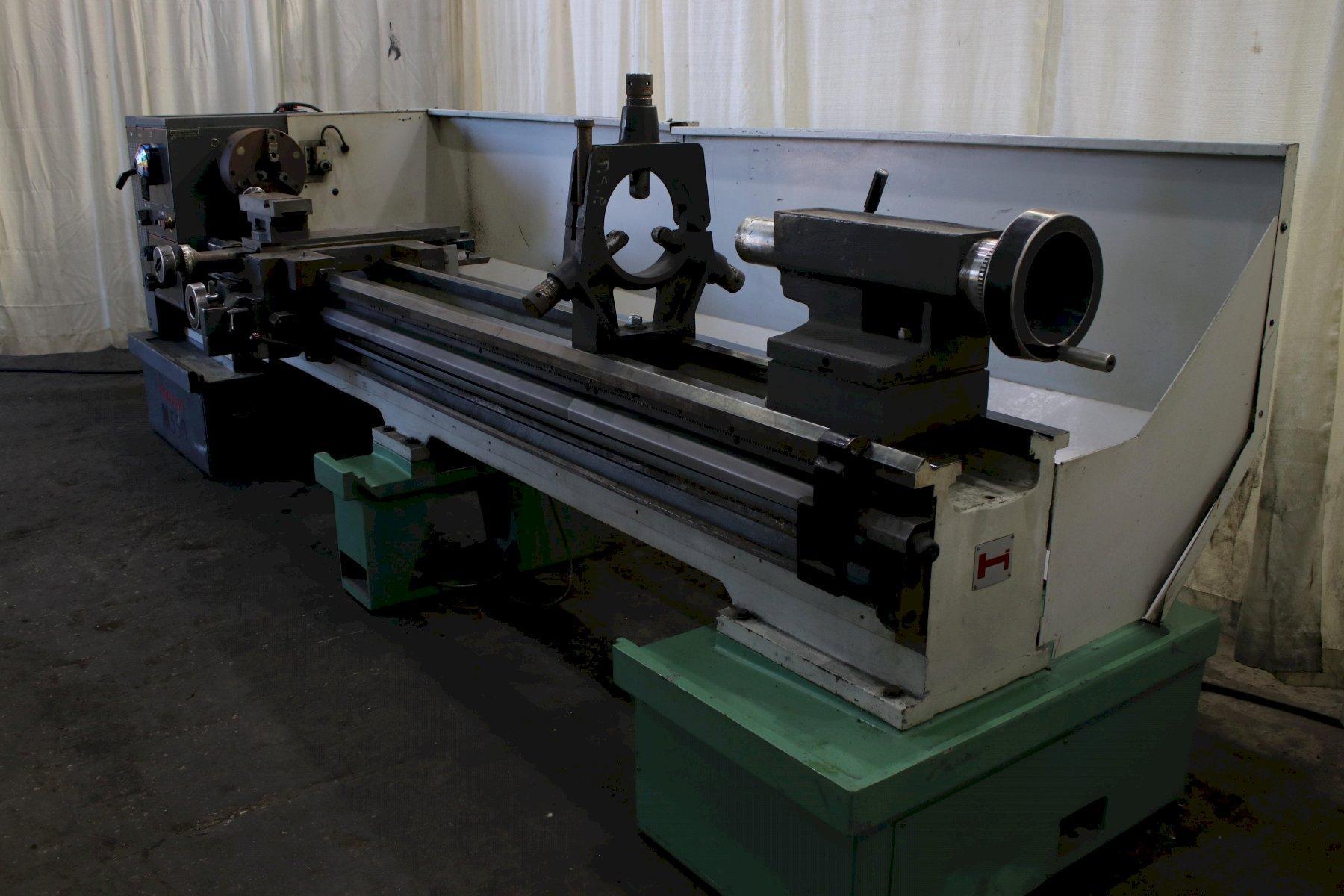

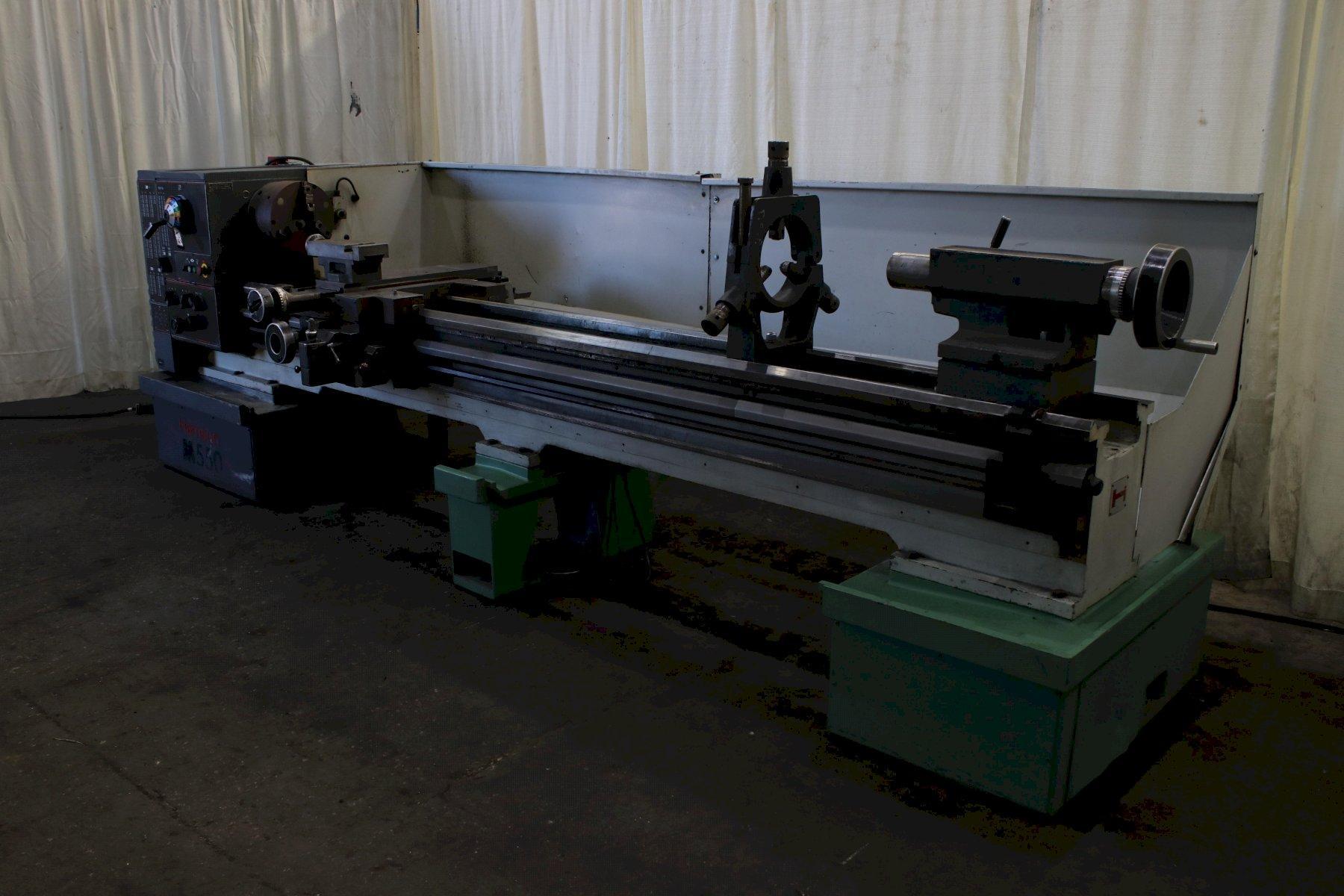

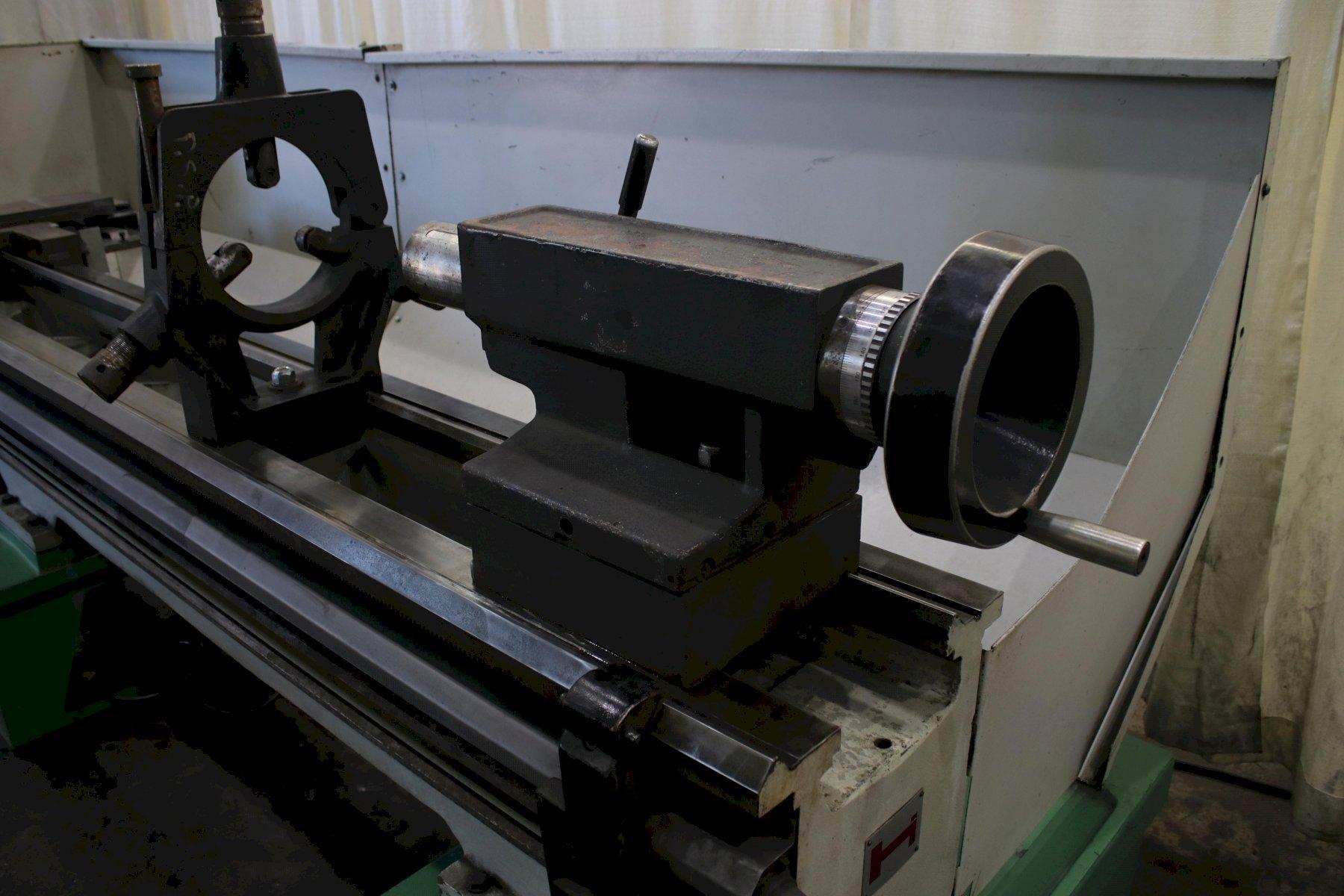

22"X 120" HARRISON GAP BED ENGINE LATHE: STOCK #74473

Manufacturer

HARRISON

Category

Lathes

Type

LATHES, GAP, SLIDING BED

Stock

74473

Model

M550

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL .......................... SM001-004
MODEL ........................... M550
SWING OVER BED WAYS ............. 18"
SWING OVER CROSS SLIDE .......... 15"
SWING IN GAP .................... 33"
DISTANCE BETWEEN CENTERS ........ 120"
SPINDLE SPEEDS .................. 18 TO 1400 RPM
LONGITUDINAL FEEDS .............. 0016 TO .11 IPR
THREADS (INCH) .................. 2 TO 84 TPI
METRIC THREADS .................. .2 TO 14 MM PITCH
DIAMETER OF SPINDLE HOLE ........ 3-1/2"
CHUCK ........................... 12" 3-JAW
RAPID TRAVERSE .................. 4 WAY
THREAD DIAL ..................... YES
HARD WAYS ....................... YES
COOLANT WITH CHIP PAN ........... YES
STEADY REST ROLLER TYPE ......... 9-1/2"
MOTOR ........................... 15 HORSEPOWER
