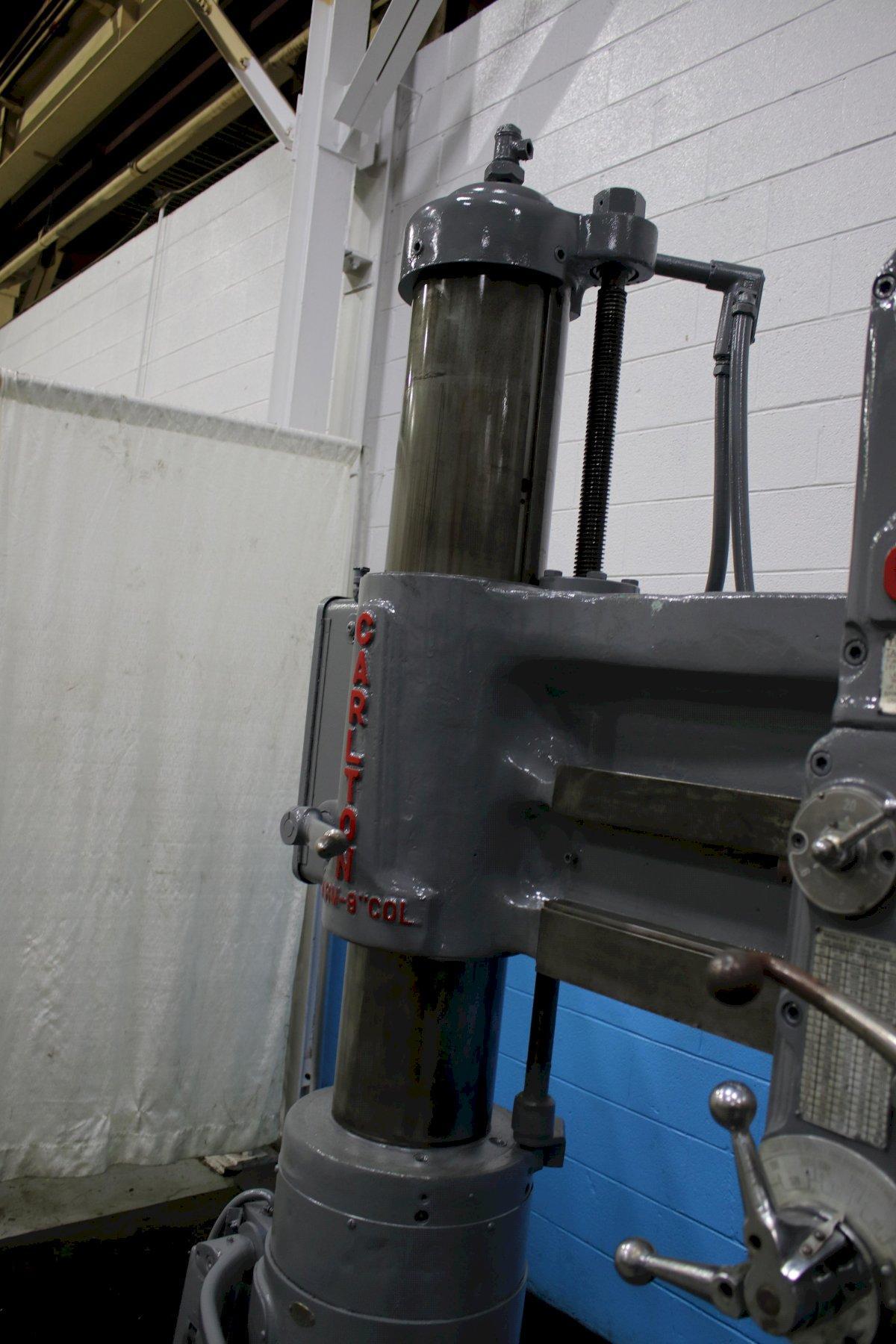

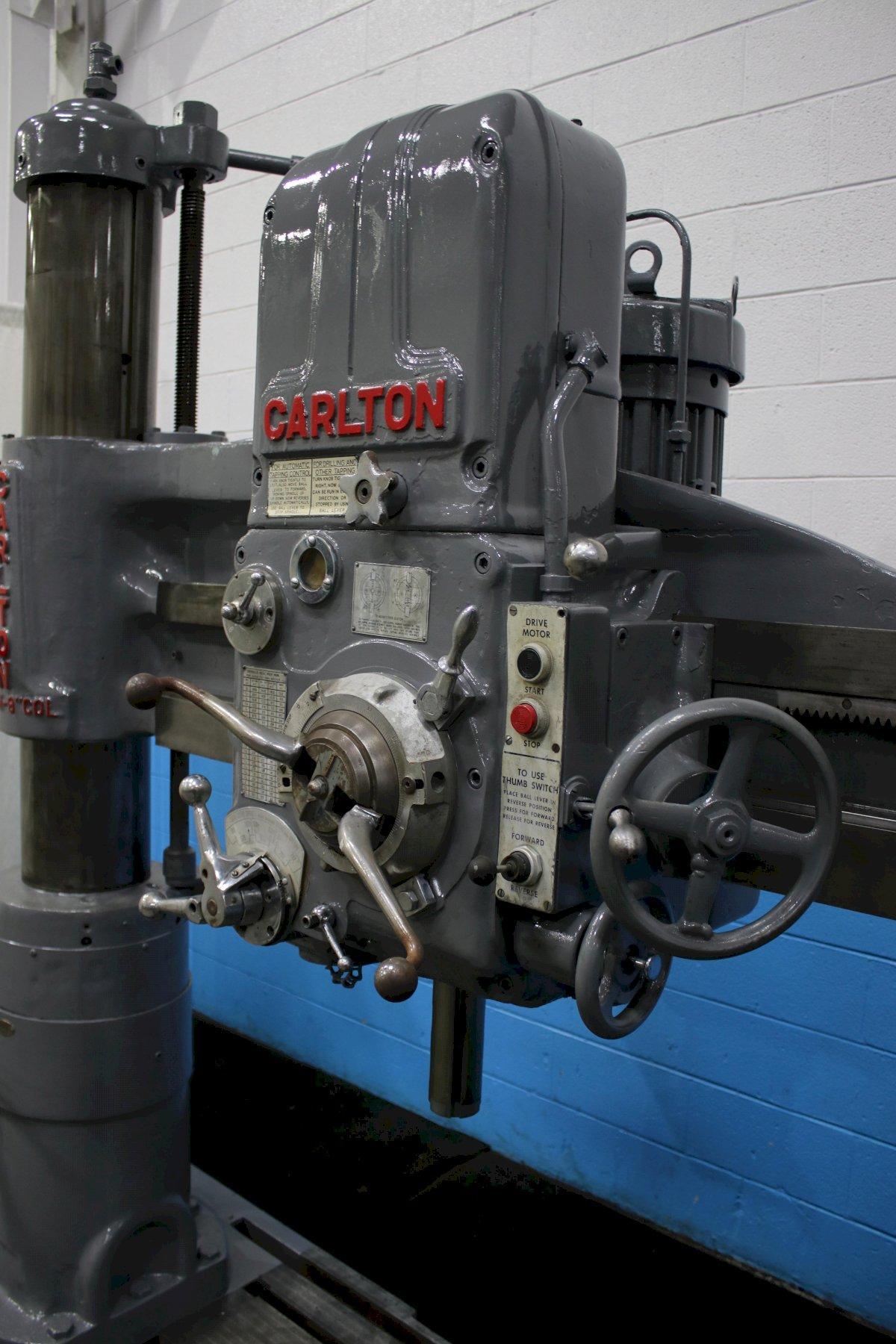

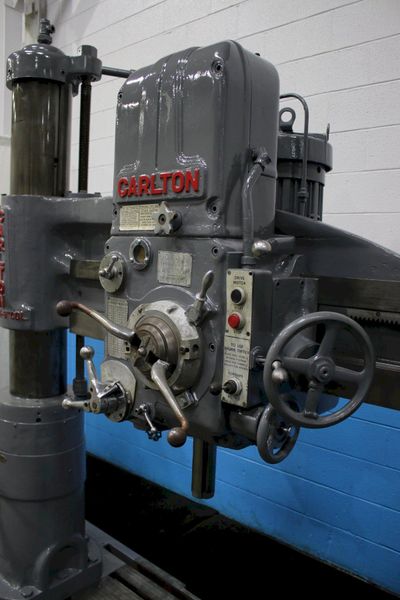

4' X 9" CARLTON RADIAL DRILL: STOCK #74187

Manufacturer

CARLTON

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

74187

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



​SERIAL .......................... 1A-3546
MODEL ........................... 1A

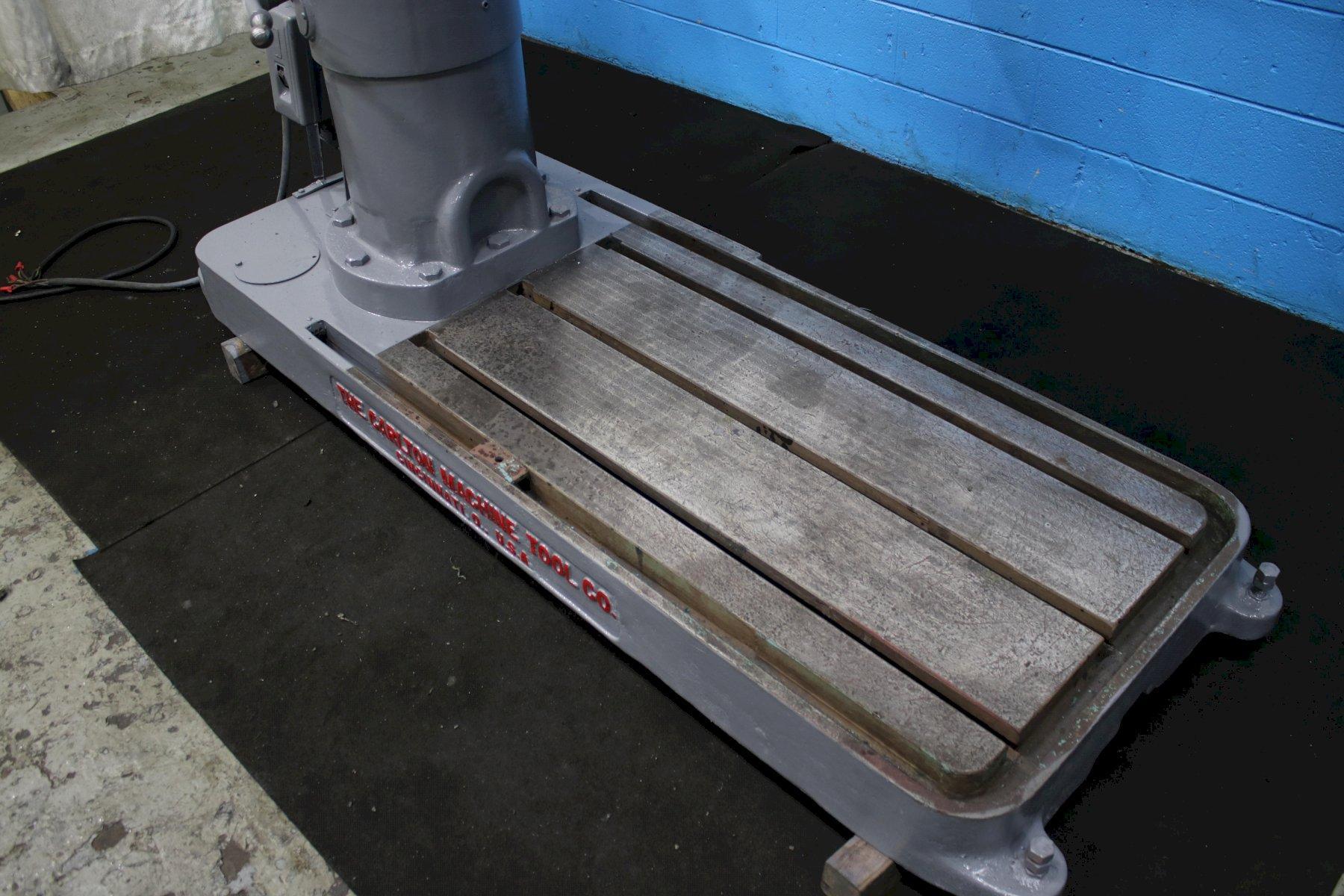

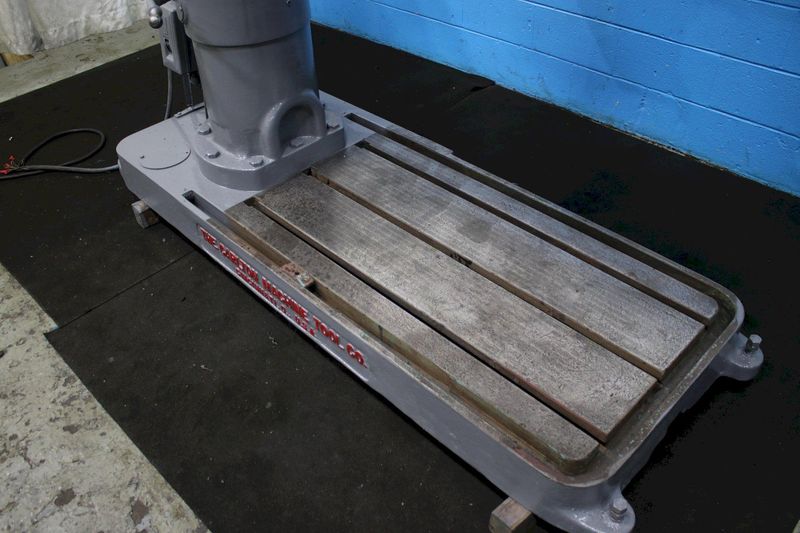

WORKING SURFACE OF BASE ......... 54" X 36"
SPINDLE SPEEDS .................. (12) 80 TO 1500 RPM
FEEDS ........................... (6) .004 TO .025 IPR
SPINDLE TRAVEL .................. 12"
TAPER IN SPINDLE ................ #4MT
DIAMETER OF SPINDLE ............. 2-1/2"
DISTANCE SPINDLE TO BASE ........ 26" MINIMUM, 54" MAXIMUM
TRAVEL OF ARM ON COLUMN ......... 28-1/2"
TRAVEL OF HEAD ON ARM ........... 39"
POWER COLUMN CLAMP .............. YES
POWER ELEVATION ................. YES
MOTOR ........................... 5 HORSEPOWER​
