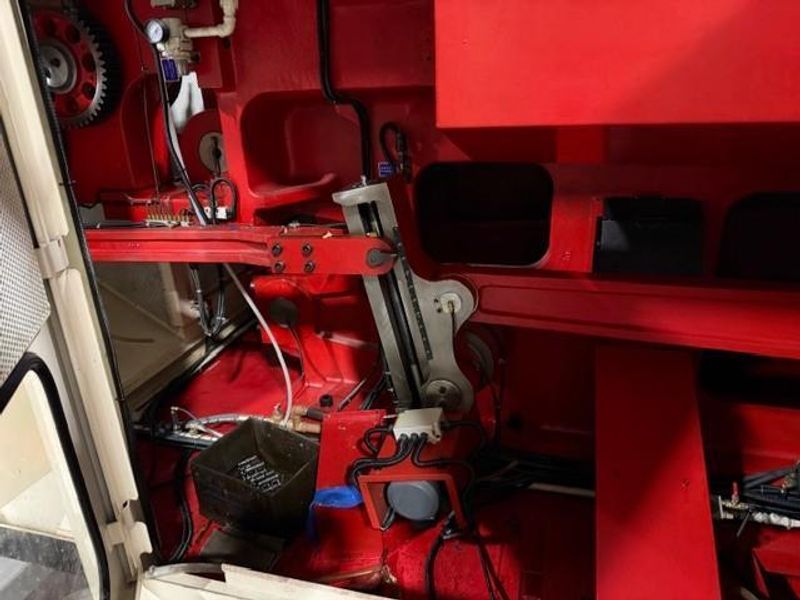

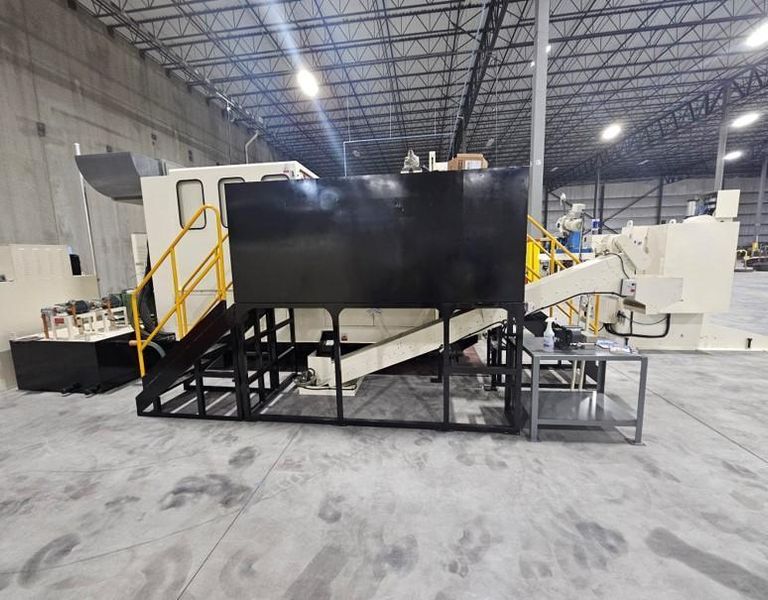

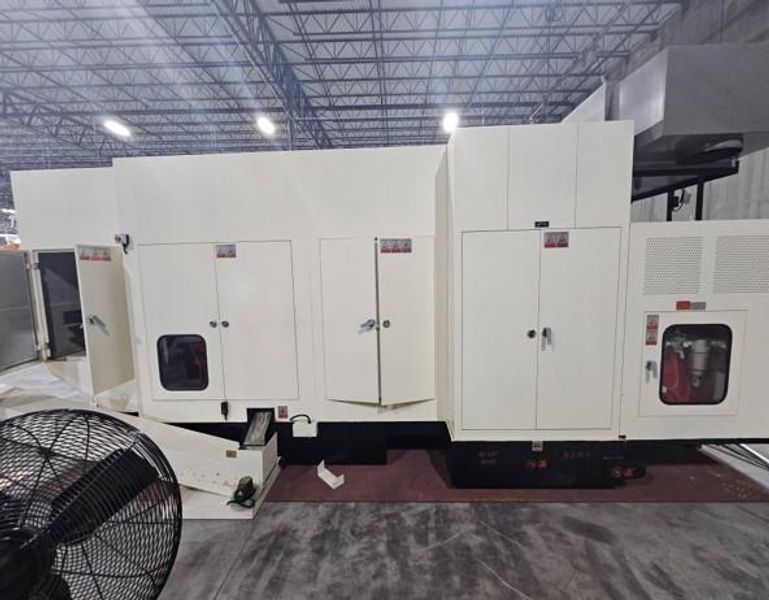

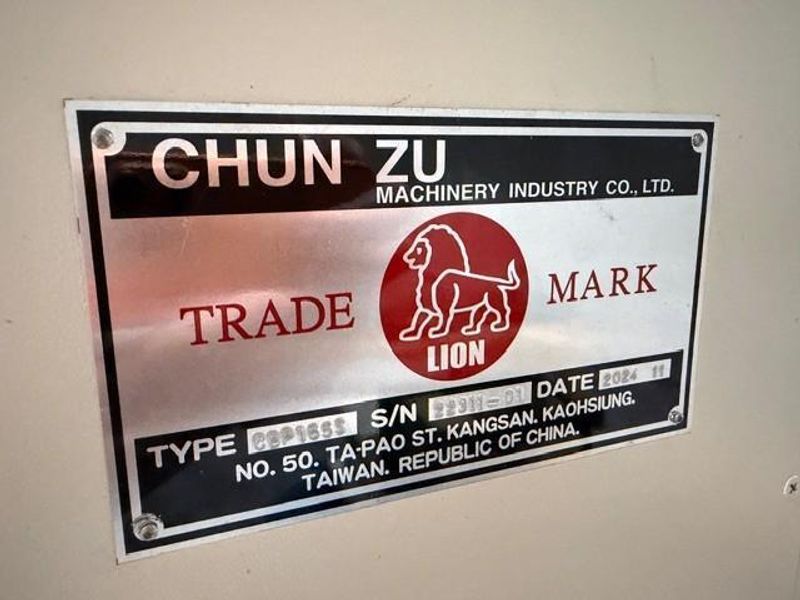

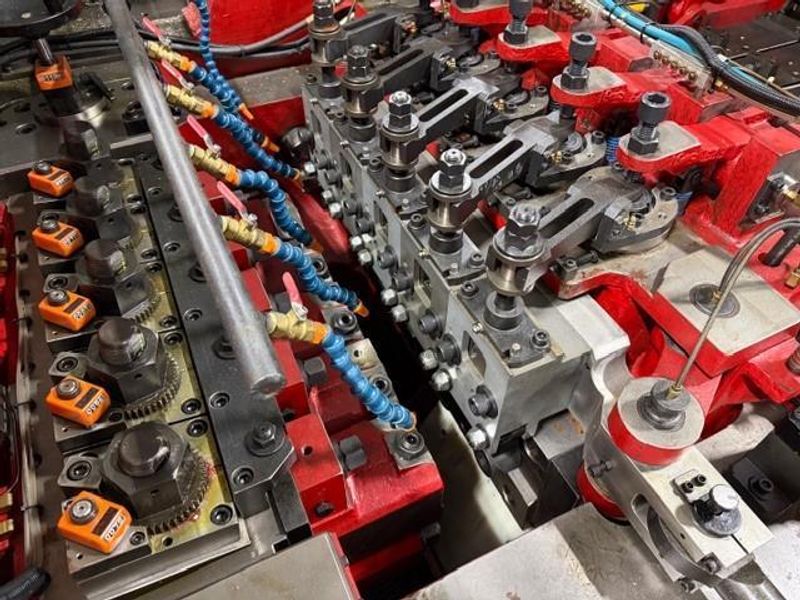

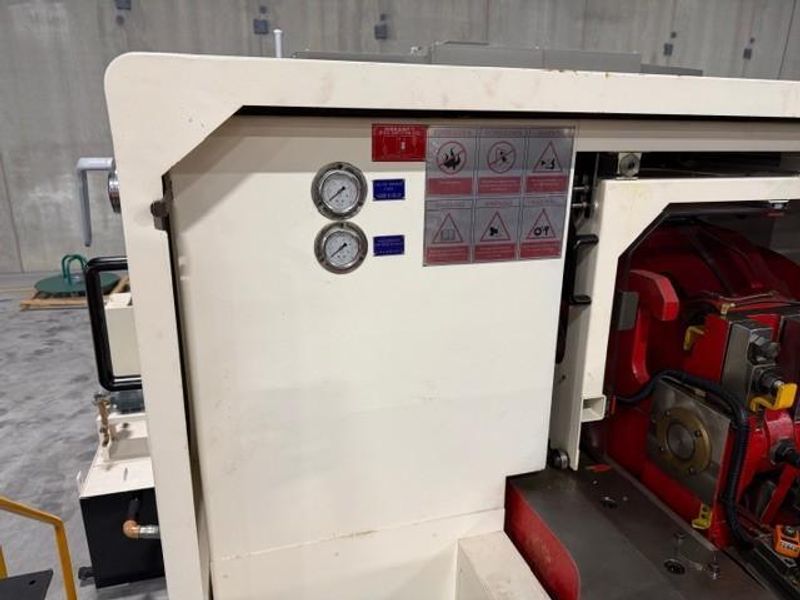

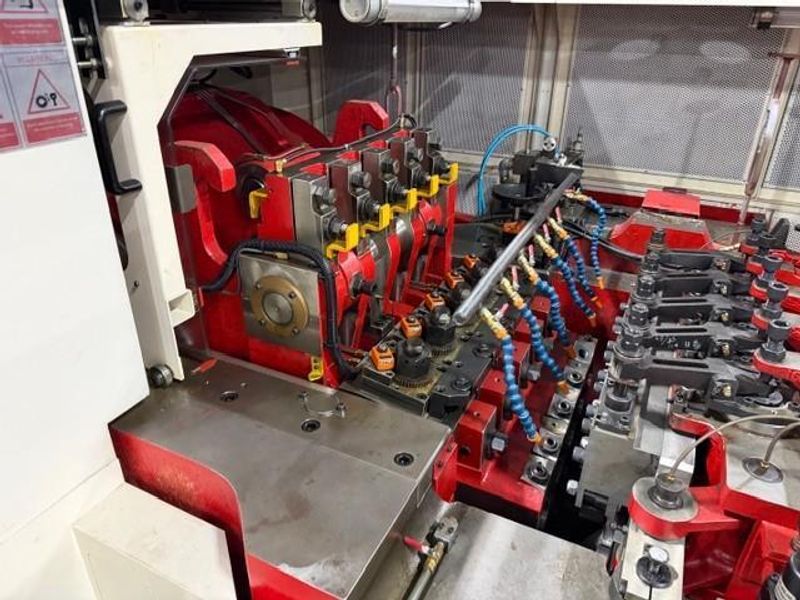

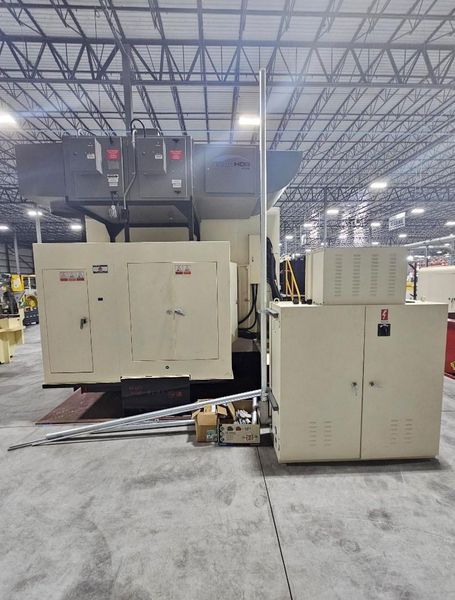

Chun Zu "Lion" Brand CBP-165S Multistage Bolt Parts Former

Manufacturer

CHUN ZU

Stock

8840

Model

CBP-165S

Dealer Location

Pennsylvania

Spec Sheet

No. of Forging Stations - 5
Forging Load - 220,000 kg
Maximum Cutoff Diameter - 18mm
Maximum Cutoff Length - 190mm
Maximum Production - 95 PPM
PKO Stroke - 35mm
KO Stroke - 165mm
Main Slider - 280mm
Main Motor - 75 HP
Cutoff Die Diameter - 64 x 100L mm
Punch Die Diameter - 75 x 185L mm
Main Die Diameter - 108 x 200L mm
Die Ditch - 129mm
Normal Size of Bolt - 10 - 16 mm
Shank Length of Blank - 25 - 152 mm
Approx. Weight - 52,000 kg
Electrics - 480V 60Hz
Color - RAL9001 Beige-White


Options on Machine
  1. Upgrade to full protective safety cover (Including safety switch on each door and sound-proof sponge)
  2. Protective cover for main motor and Wire Straightener
  3. Fluorescent lamp at feeding & K.O. Mechanism
  4. Presetting hole for Brankamp Monitor System (excluding Brankamp monitor device)
  5. CE type safety emergent stop system
  6. Punch Wedge adjustment with digital meter
  7. Transfer Block clamping fix system by hydraulic
  8. Oil flow rate control unit
  9. Temperature detect unit
  10. Cam type blowing device
  11. MPG System (Manual Pulse Generator)
  12. "1" type scrap conveyor (280 x1750mm)
  13. Adding "shut-off bar" on uncoiler to stop it when coils tighten.
