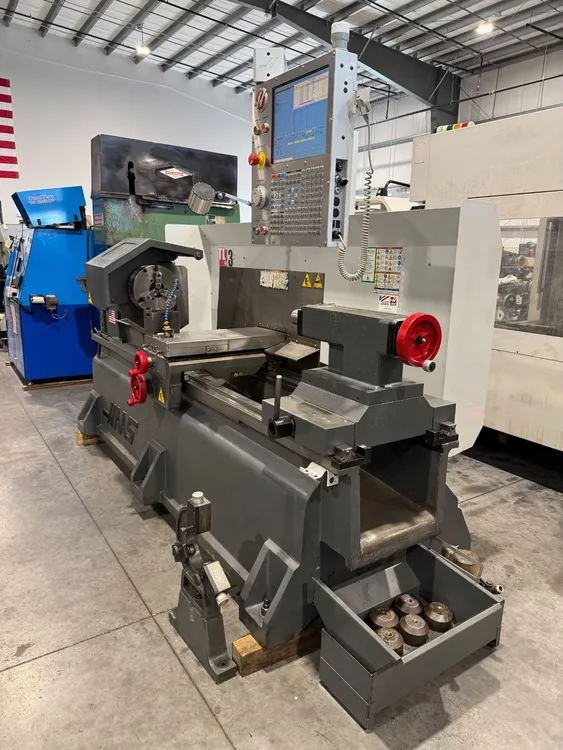

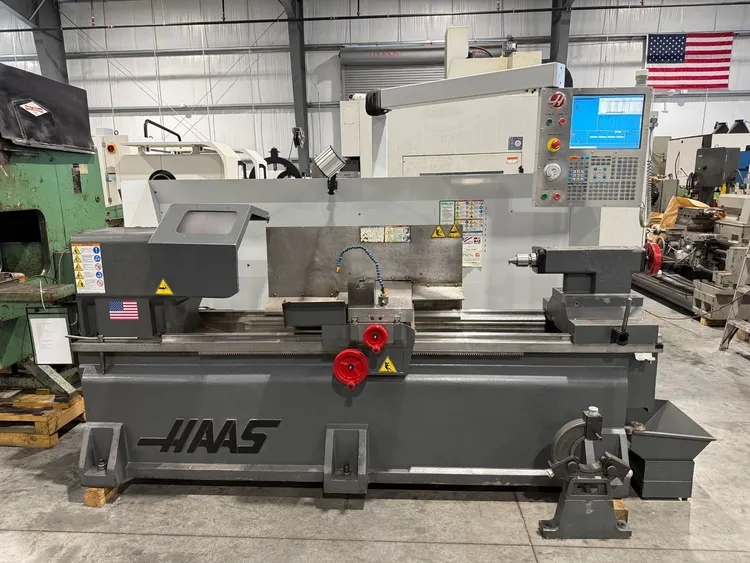

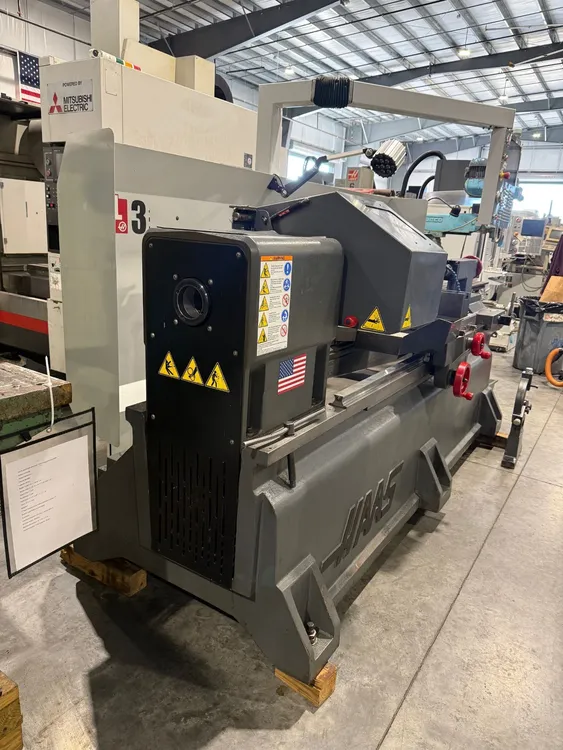

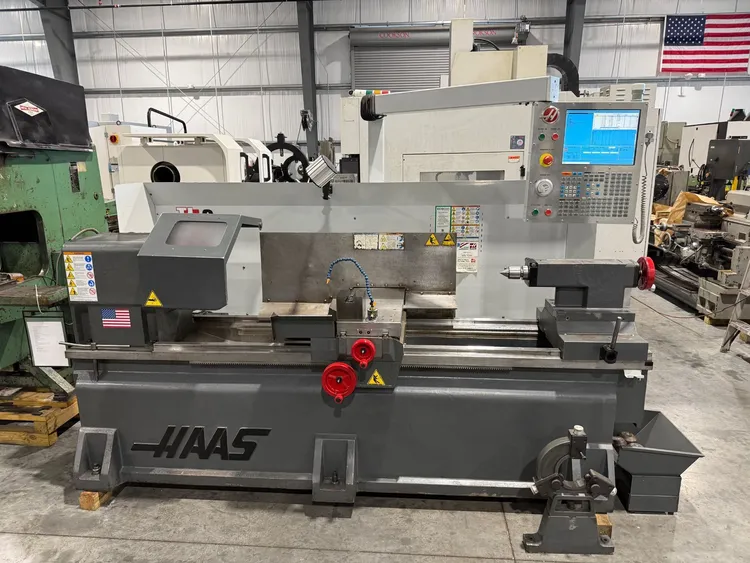

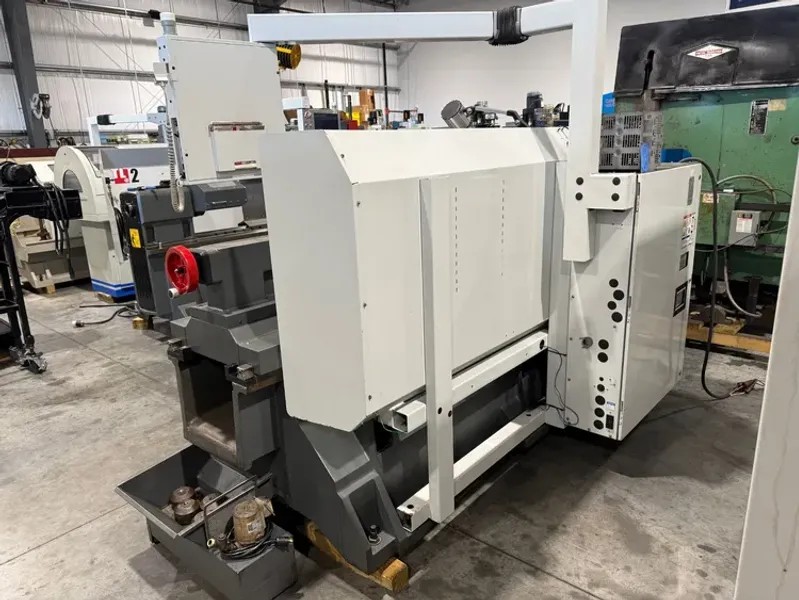

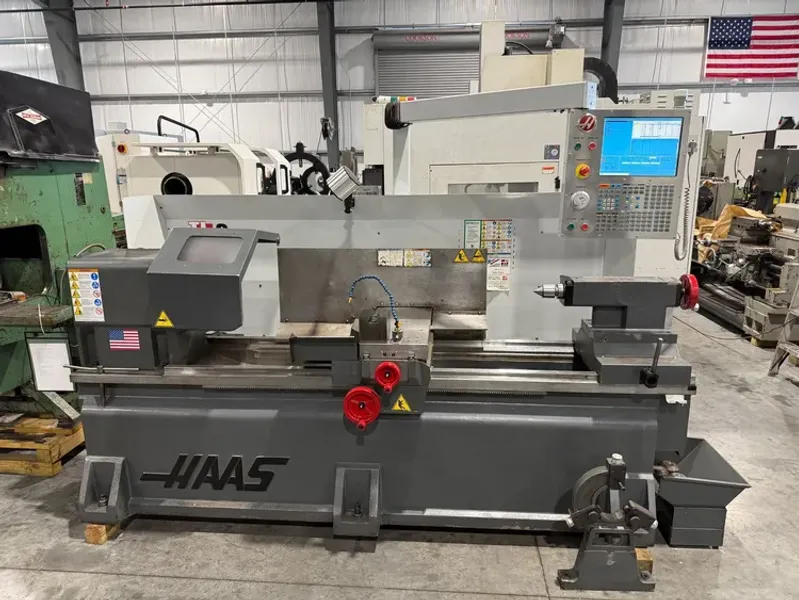

HAAS TL-3 CNC Toolroom Teach Style Lathe 2011’ USA #8139

Manufacturer

HAAS

Stock

8139

Model

TL-3

Dealer Location

Florida

Spec Sheet

Overview

Manufacturer:
HAAS
Model:
TL-3
Year:
2011
Stock #:
8139
Status:
For Sale

Description

HAAS TL-3 CNC Toolroom Teach Style Lathe 2011’ USA #8139

Swing20"508 mm
Machining Length60"1,524 mm
Chuck Size12"304.8 mm
Power18 hp13.4 kW
Max RPM1,800 RPM1,800 RPM
Turning Dia20"508 mm
TailstockNoNo
Dimensions118” x 69” W x 83” H118” x 69” W x 83” H
Weight8500 Lbs.8500 Lbs.

HAAS TL-3 CNC Toolroom Teach Style Lathe 2011’ USA #8139
Reference # 8139
Model # TL-3
Serial # 3089009
Year of manufacture- 7/2011’
Maximum swing- 20”
Swing over cross slide- 13”
Maximum cutting diameter- 16”
Maximum cutting length- 60”
Distance between centers- 60”
X axis travel- 12”
Z axis travel- 60”
Rapids on X axis- 450 I.P.M.
Rapids on Z axis- 450 I.P.M.
Spindle nose- A2-6
Max spindle speed- 1800 R.P.M.
Spindle bore- 3.5”

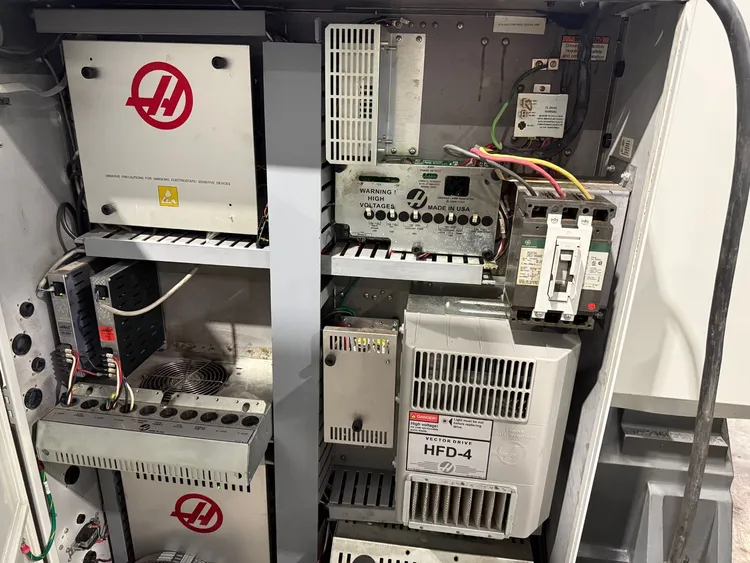

HAAS CNC control
Control options-, DNC, Quick code, Barfeeder interface, Intuitive Programming system
Machine hours- Power on time- 23,551, Cyle time- 1,198, Cutting time- 1,077

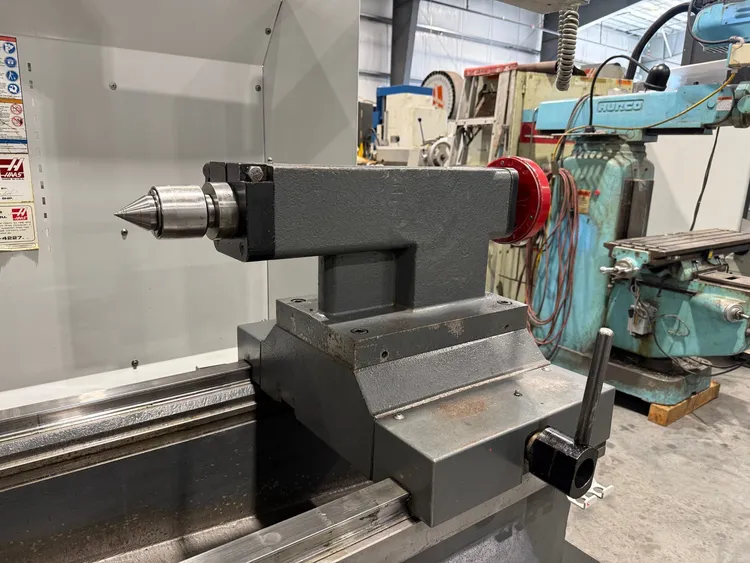

Tailstock with live center

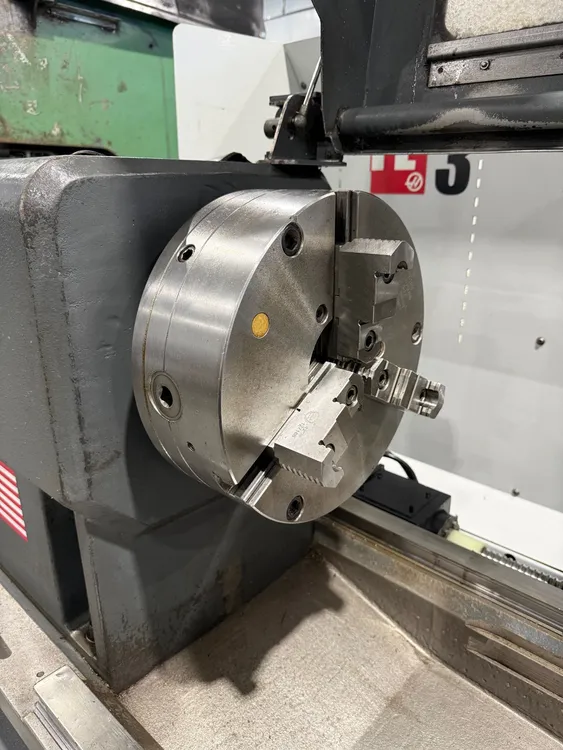

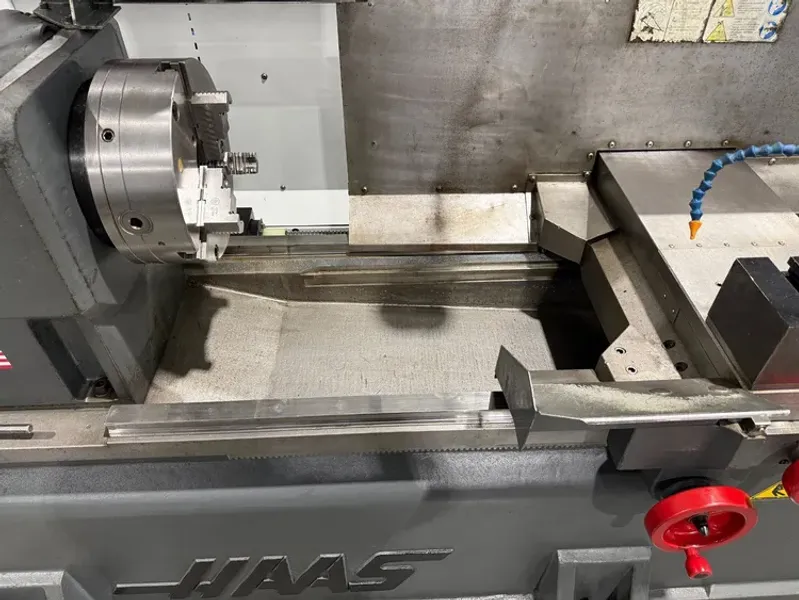

13” BISON 3 Jaw Chuck “Adjust-Tru” Type

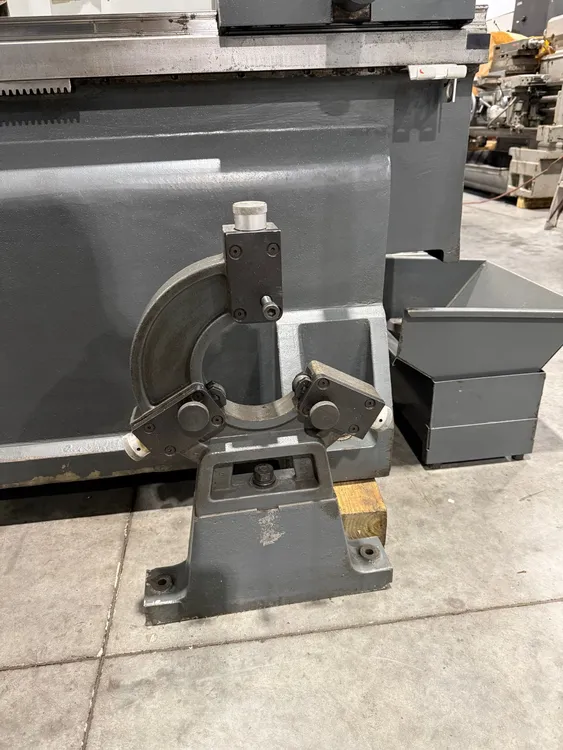

Steady Rest

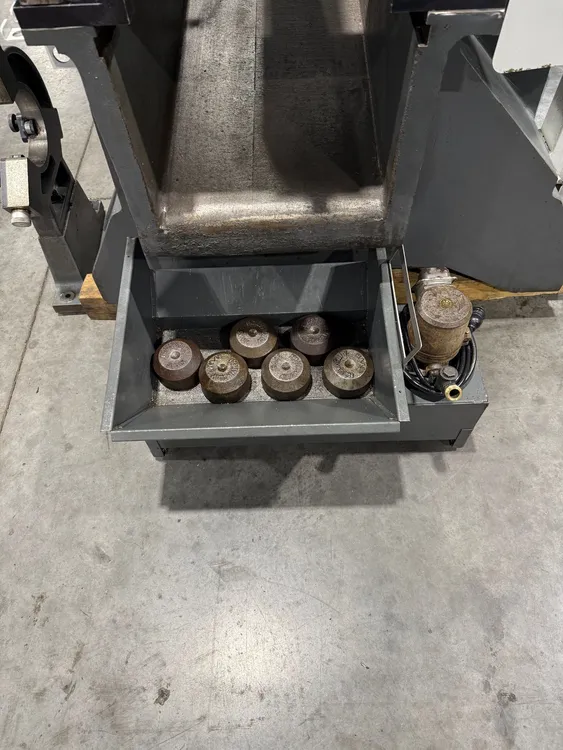

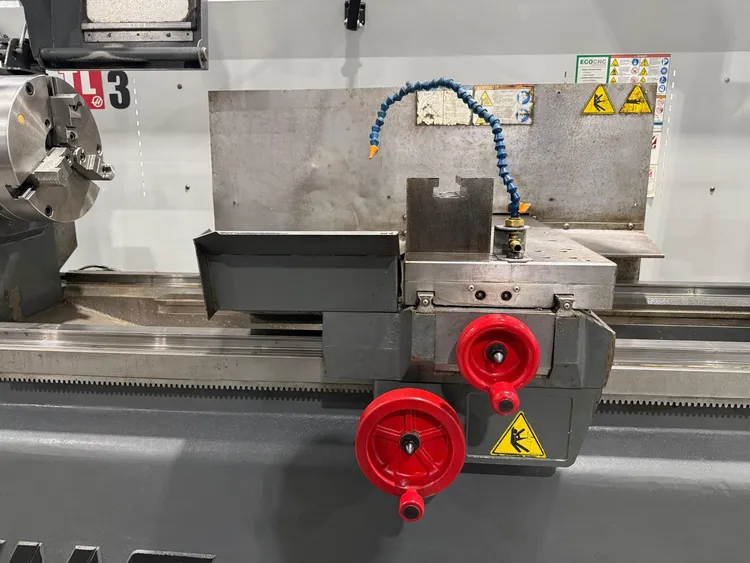

Coolant tank & pump
Chuck wrench
Main spindle motor 18 H.P.
Machine is wired for 208/230 volt / 3 phase / 60 H.Z.
Machine weight- 8500 Lbs.
Machine dimensions- 118” x 69” W x 83” H
Machine location- F.O.B. Sarasota, Florida
