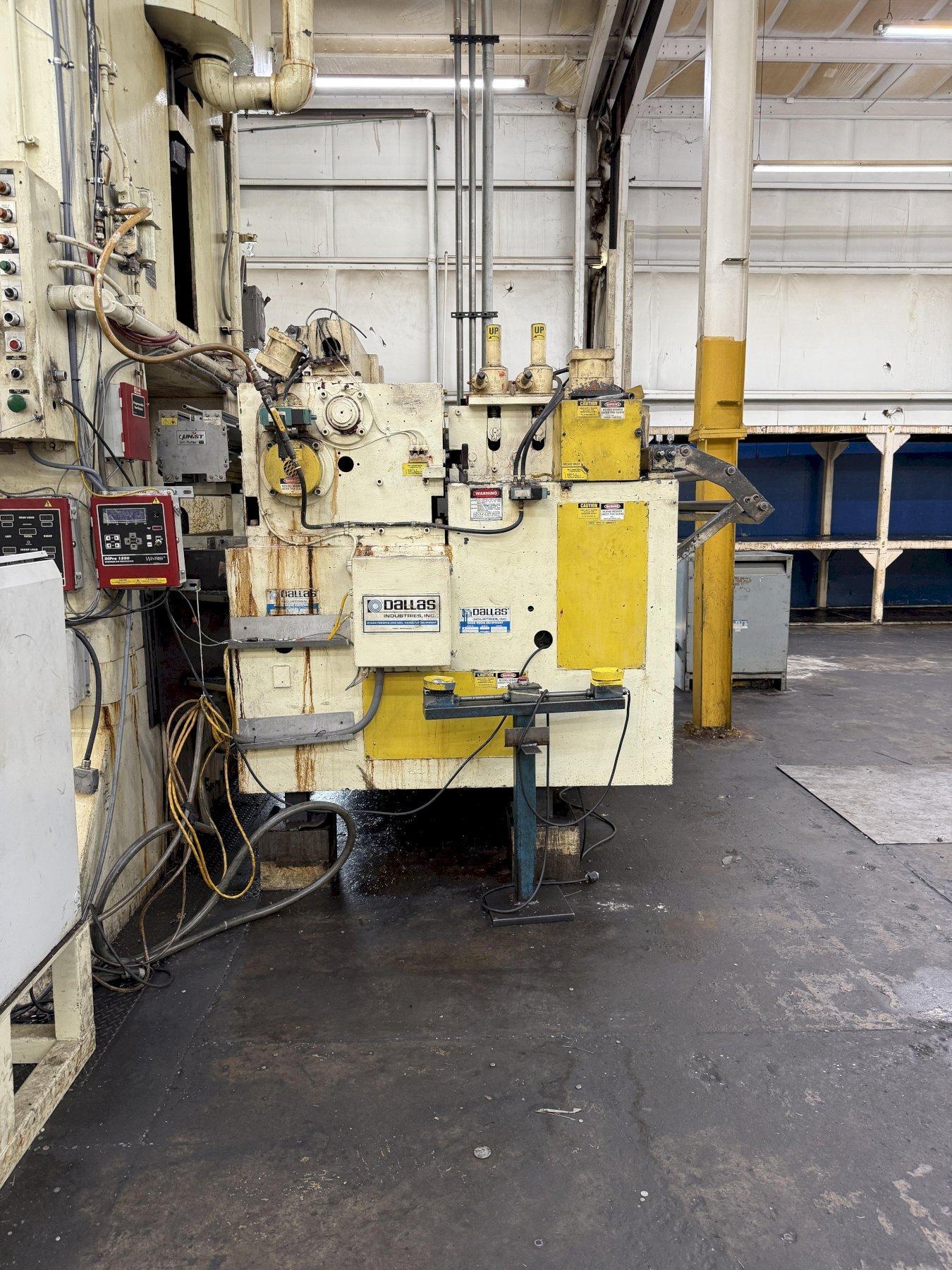

60" Dallas Heavy Duty Servo Feed Straightener Combination

Manufacturer

DALLAS

Stock

2972

Model

DRFS-860

Dealer Location

Michigan

Spec Sheet

Coil Width - 60 inches
Coil Thickness - .250 inches


Standard Specifications
60" Dallas Servo Feed Straightener Combination

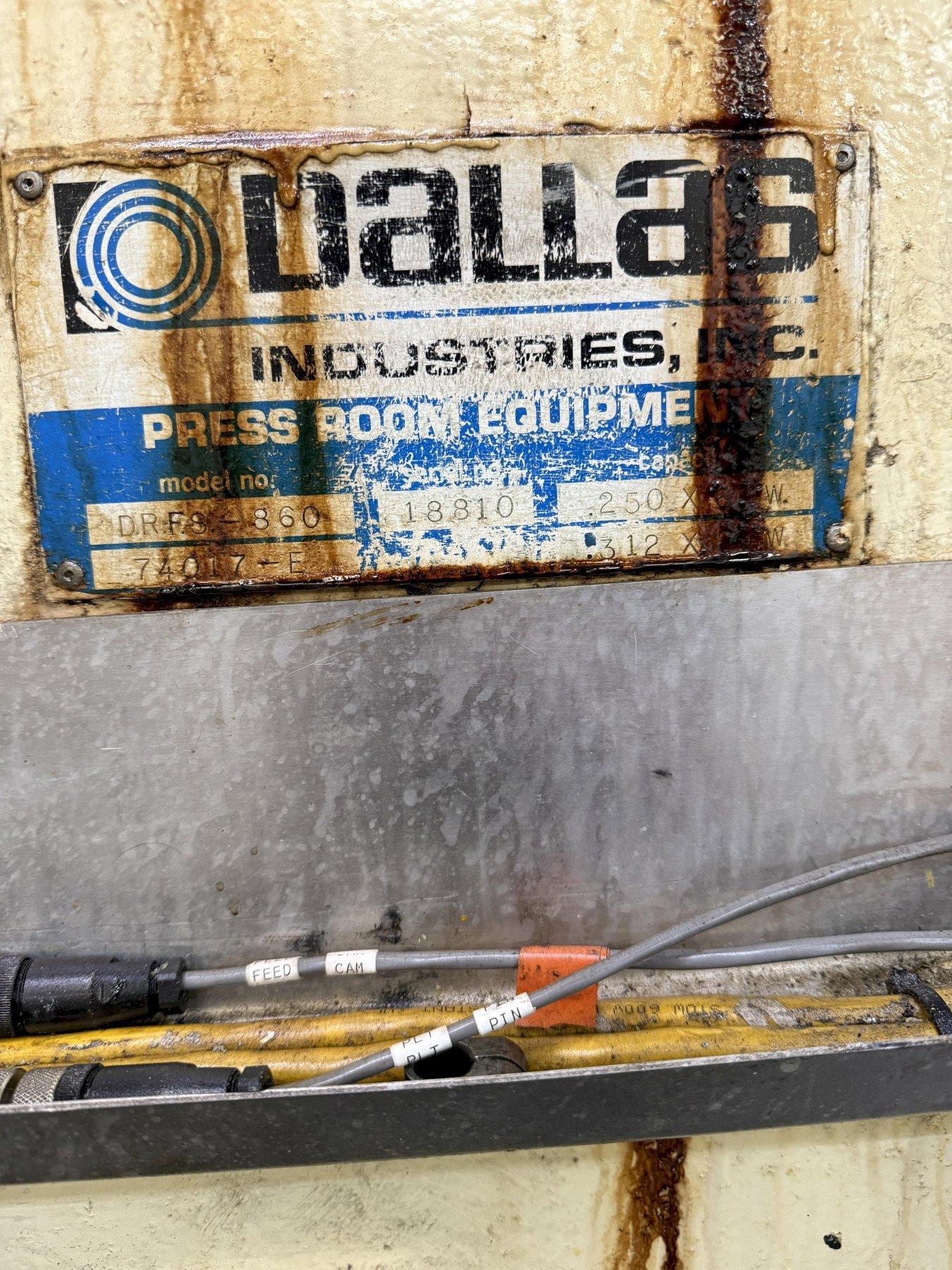

Heavy Duty Model #DRFS-860 & P.T.S.- 582

60" Maximum Coil Width
.250" Thick Coil Capacity @ 60" Wide
.312" Maximum Coil Thickness @ 24" Wide
Eight inch diameter feed rolls
Matte chrome finish on upper and lower feed rolls
Precision cluster gear driven upper feed
Heavy duty adjustable stock width edge guides

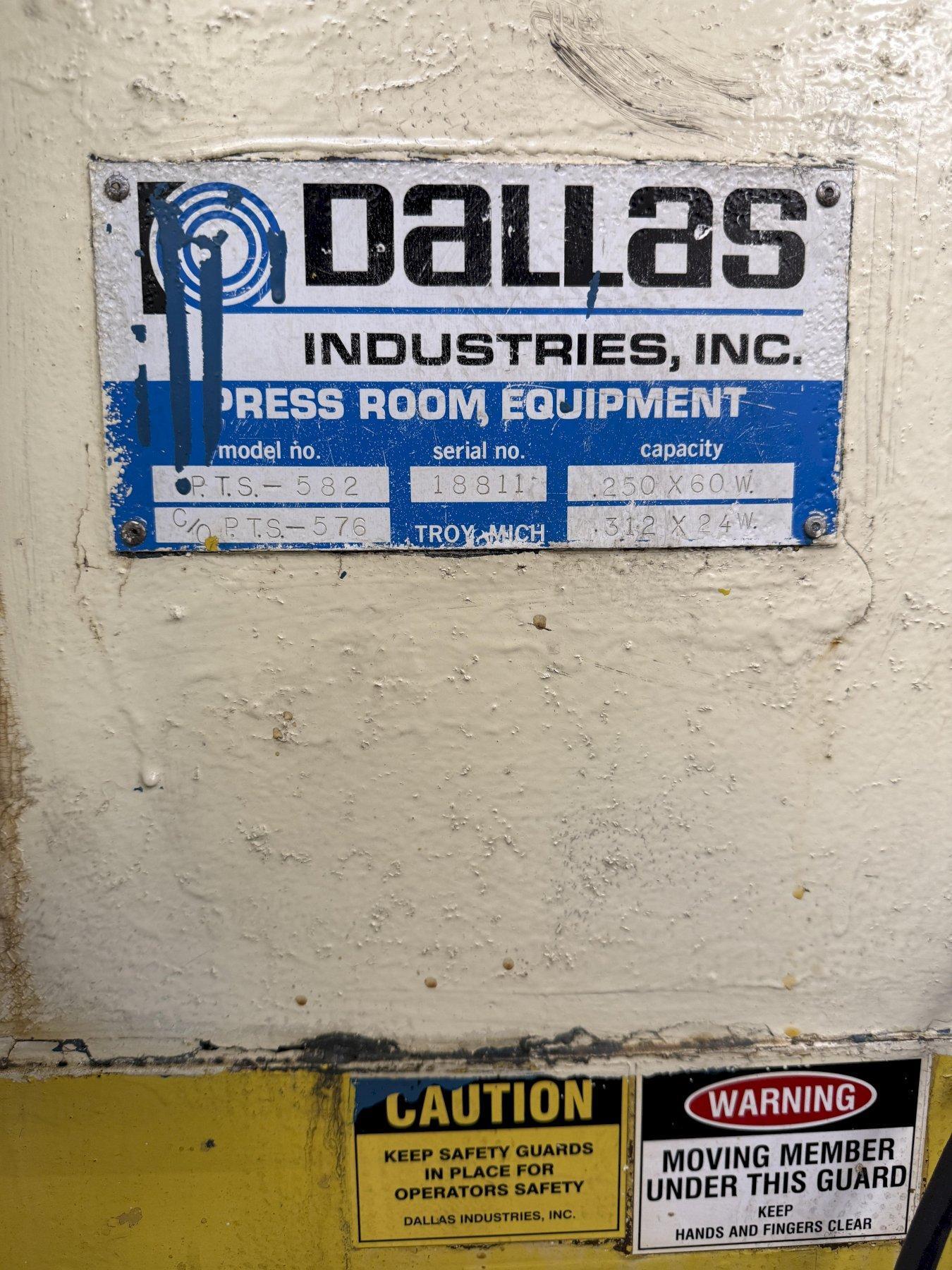

Pull Thru Straightener Model PTS-582
Five servo feed straightening rolls
Screw jack upper servo feed straightening roll adjustments
Servo feed pinch roll for stock threading (Motorized)
Air operated upper pinch roll adjustment
Cascade loop support rollers
Cabinet base mounted with heavy duty pass line adjustment
AC servo drive and control system
Job memory micro adjust batch count etc

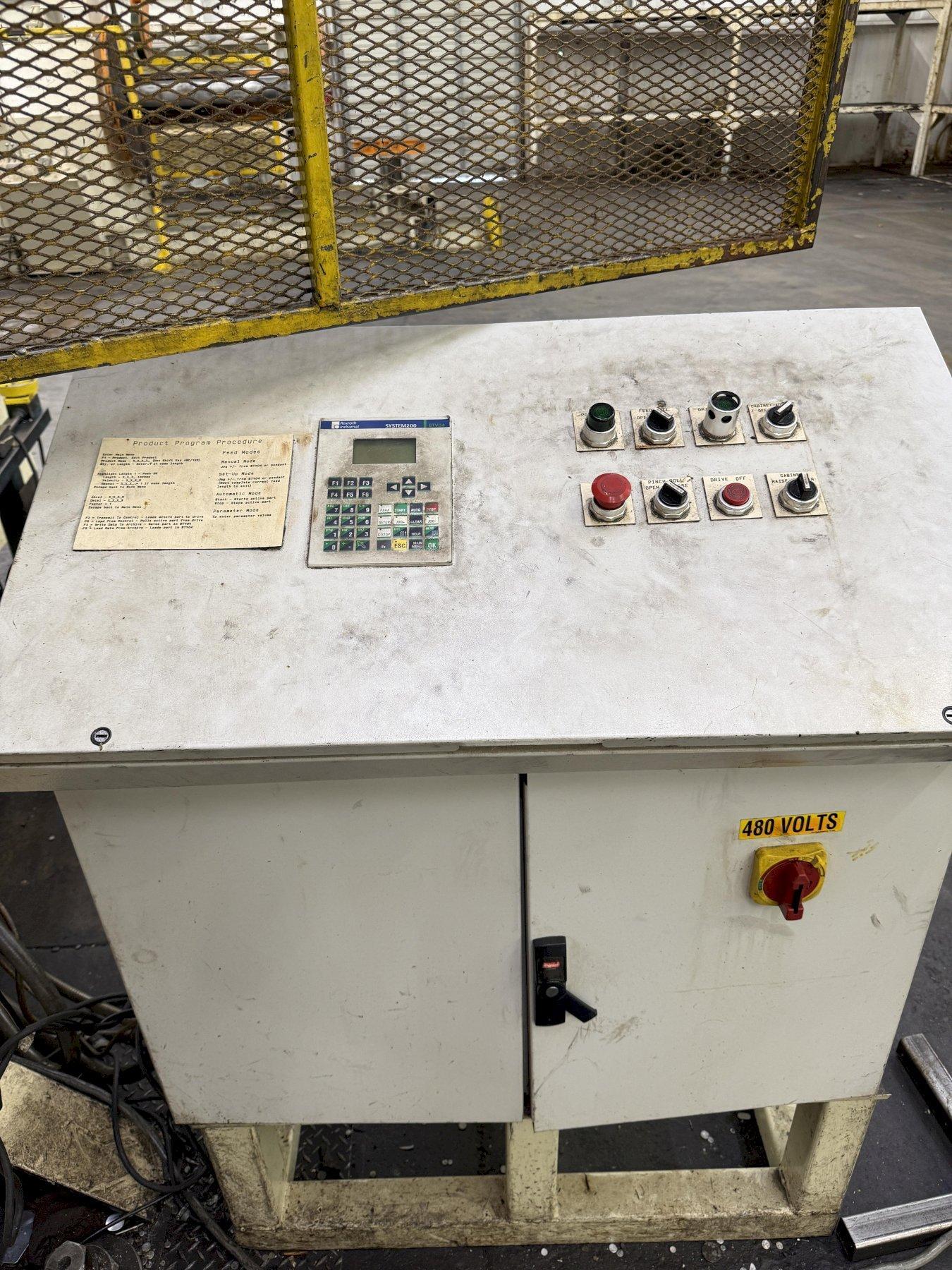

Free standing sloped front control console
Auto Mode
