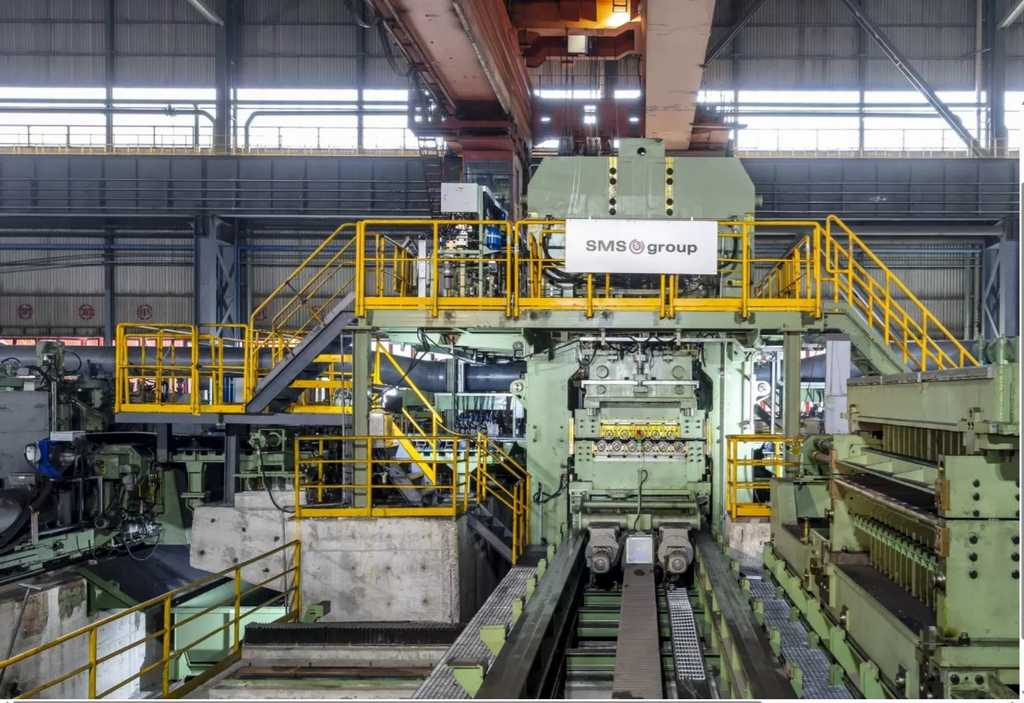

74" x 0.135" x 80,000# SMS/Pro Eco Multi Blank CTL Line

Manufacturer

Spec Sheet

YEAR: 2007

74" x 0.135" x 80,000# SMS/Pro Eco Multi Blank CTL Line

Material: CR, Galv
Incoming Material Quality: To ASTM Standards
Incoming Strip Crown - Maximum: 2%
Shear Strength - Maximum: 120,000 PSI to 0.090"
80,000 PSI to 0.135"
Yield Strength - Maximum: 120,000 PSI to 0.090"
80,000 PSI to 0.135"
- Minimum: 30,000 PSI
Coil Weight at Entry - Maximum: 80,000 lbs.
Strip Width at Entry: 18" - 74"
Strip Width at Exit: 18" - 72"

Coil OD: 40" - 84"
Coil ID: 20" - 24"
Strip Thickness: 0.010" - 0.135"
Reject Length - Maximum: 86"
Cut Length: 16" - 240"
Stack Weight - Maximum: 20,000 lbs.
Stack Height - Maximum: 24" (including dunnage)
Length Accuracy Production Rate: See Chart
Production Rate: See Chart
Line Speed: See Chart
Electrical Supply: 480/3/60
Electrical Control Supply: 120/1/60
Air Supply: 80 PSI
Hydraulic Design Pressure: 1,650 PSI
Hydraulic Working Pressure: 1,500 PSI
Mode of Operation: Flying Shear Multi Blanking Line
Passline Height - Entry: 58" (Approx.)
- Exit: 18" (Approx.)
Line Direction: Left to Right
Payoff Direction: Over Unwind
Discharge Direction: End

Consisting of the following:

-4 Arm Turnstile:
Power Rotation
C-Hook Slot 6" x 12"
20" ID

-Entry Coil Car:
L Shaped
Hydraulic Power Unit
84" Max. OD
28" Lift

-Single Mandrel Uncoiler:
Hydraulic Expansion
20" - 24" ID
84" O.D.
Water Cooled Brake
Sliding Base
Holddown Roll

-Automatic Center Guide Control Unit:

-Peeler Table:

-Pinch Rolls:
Urethane Covered
10" Diameter Upper Roll
8" Diameter Bottom Roll

-Mechanical Centering Guides:

-Hydraulic Crop Shear:
15 Second Cycle Time

-Belt Conveyor for scrap:

-Leveler: 5 HI
17 Work Rolls
2.50" Dia. x 100" Face Work Rolls
Cassette Type
300 HP Drive

-Carryover Table:

-Leveler: 5 HI
19 Work Rolls
1.50" Dia. x 102" Face Work Rolls
Cassette Type
20 HP Drive

-Inspection Table:

-Speed Reference Roll:

-Mechanical Centering Guides:

-"CNC" Slitter:
Full Head Arrangement with Automatic Tooling Setup
9" Diameter Arbors
Single Eccentric Arbor Adjustment

-Scrap Choppers:

-Scrap Discharge Conveyor:

-Carryover Table:
At Scrap Choppers

-Loop Pit Equipment:

-Squaring Guides:

-Precision Feed Roll Unit:
8" Diameter Rolls
Urethane Covered

-Reciprocating Flying Shear:
250 HP Drive
16" Minimum Cut Length

-Reject Conveyor:

-Runout Conveyor:

-Reject Cart:
86" - 16" Length

-Automatic Air Stacker:
End Discharge
16" Min. - 240" Max. Length

-Pallet Feed System:

-Scissor Lift Stacking Table:
24" Max. Lift
20,000 lb. Weight

-Storage Conveyor:
20,000 lb. Weight Capacity
240" Long

-Water Cooling Unit:
